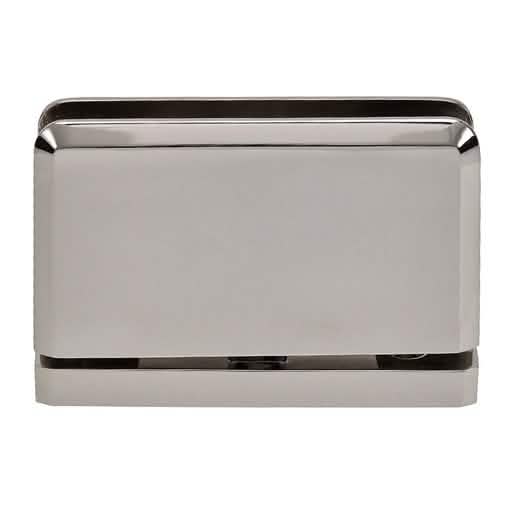

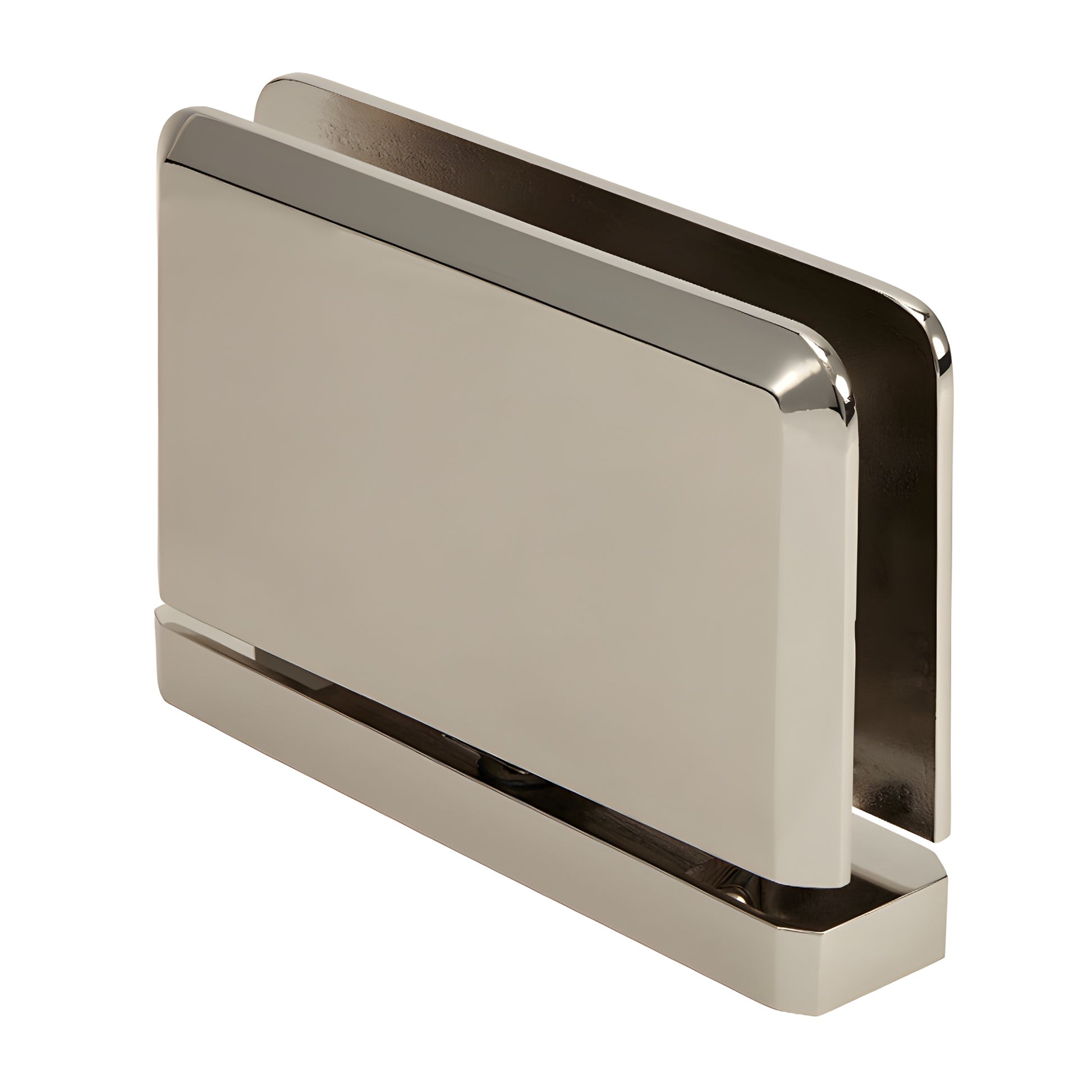

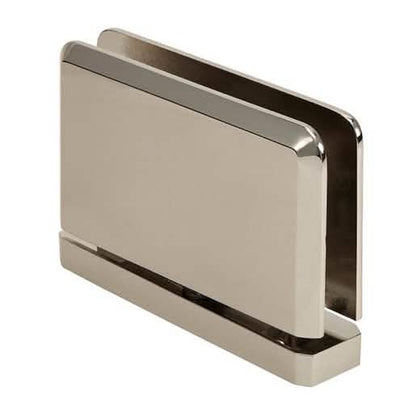

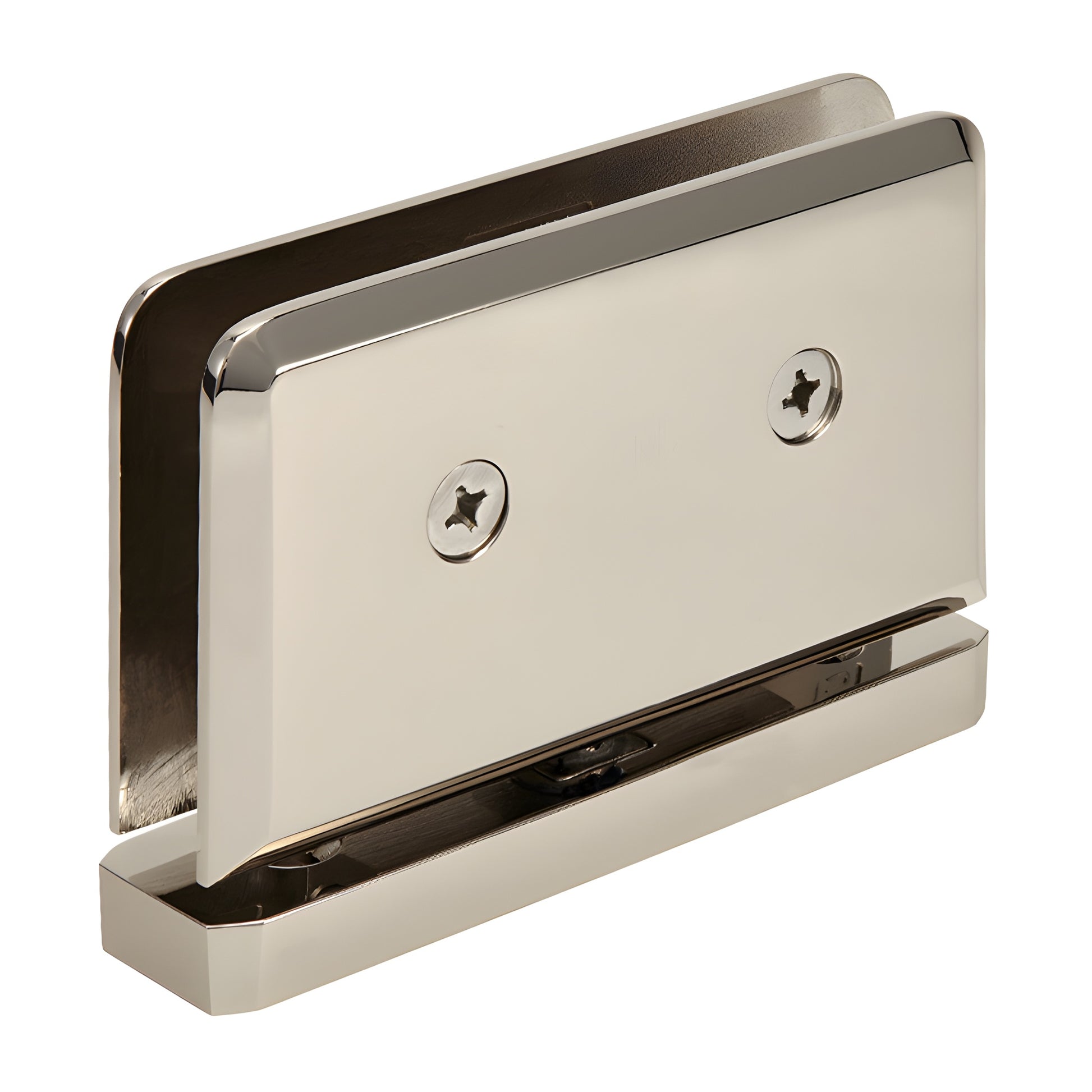

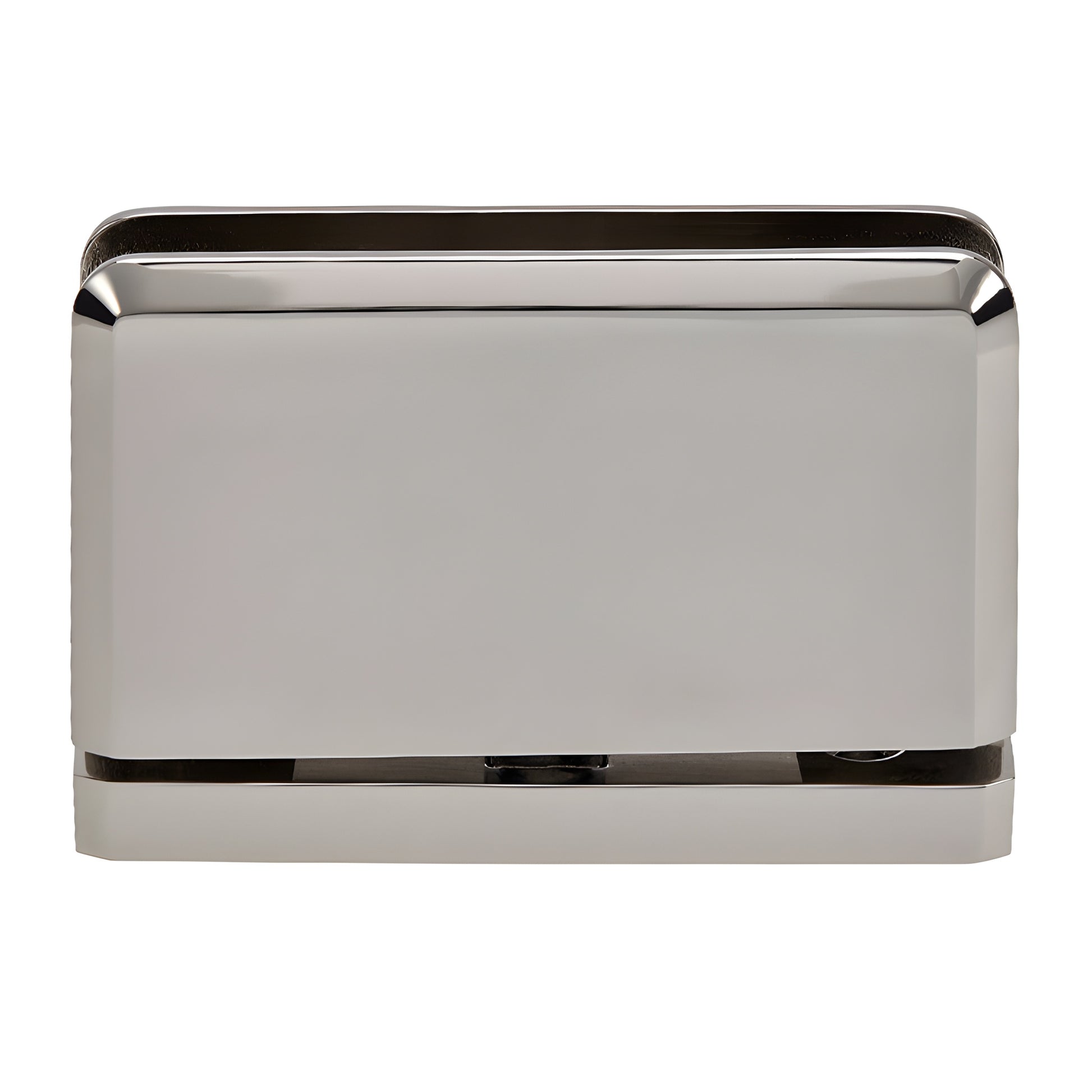

CRL Prima 01 Polished Nickel Top/Bottom Mount Hinge

• Top or bottom mount; adaptable to Deluxe Header Kit
• Self-centering with optional 5° pivot pin set
• Available in several durable finishes; custom finishes on request
• 3 year warranty
• Use with monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are engineered for 5/16" to 3/8" (8 to 10 mm) tempered safety glass and offer versatile installation options for shower enclosures. Pivot-style hinges carry most of the door weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The Prima Series is self-centering with four springs for strong retention. Optional Cat. No. P1VP1N 5° Pre-Set Pivot Pin Sets are available separately; pre-set 5° hinge models are also stocked. The PPH01 model (SKU: PPH01PN) adapts to the Deluxe Header System for enclosures that do not extend to the ceiling. The PPH06 model is compatible only with the EZ-Adjust Header System and includes an adaptor (HAB01 Adaptor Block must be ordered separately).

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Use these optional 5° pivot pins to alter the door closing position by 5°. Pins can be installed before or retrofitted after installation. Sold as a set (one top, one bottom). Not included with hinge purchase.

Using two hinges with 5/16" to 3/8" glass (8 to 10 mm): supports up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

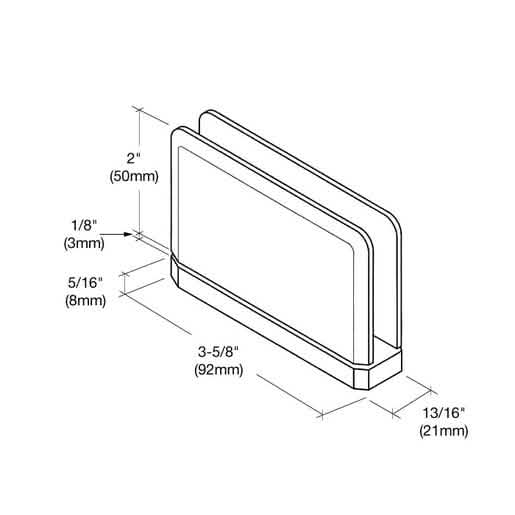

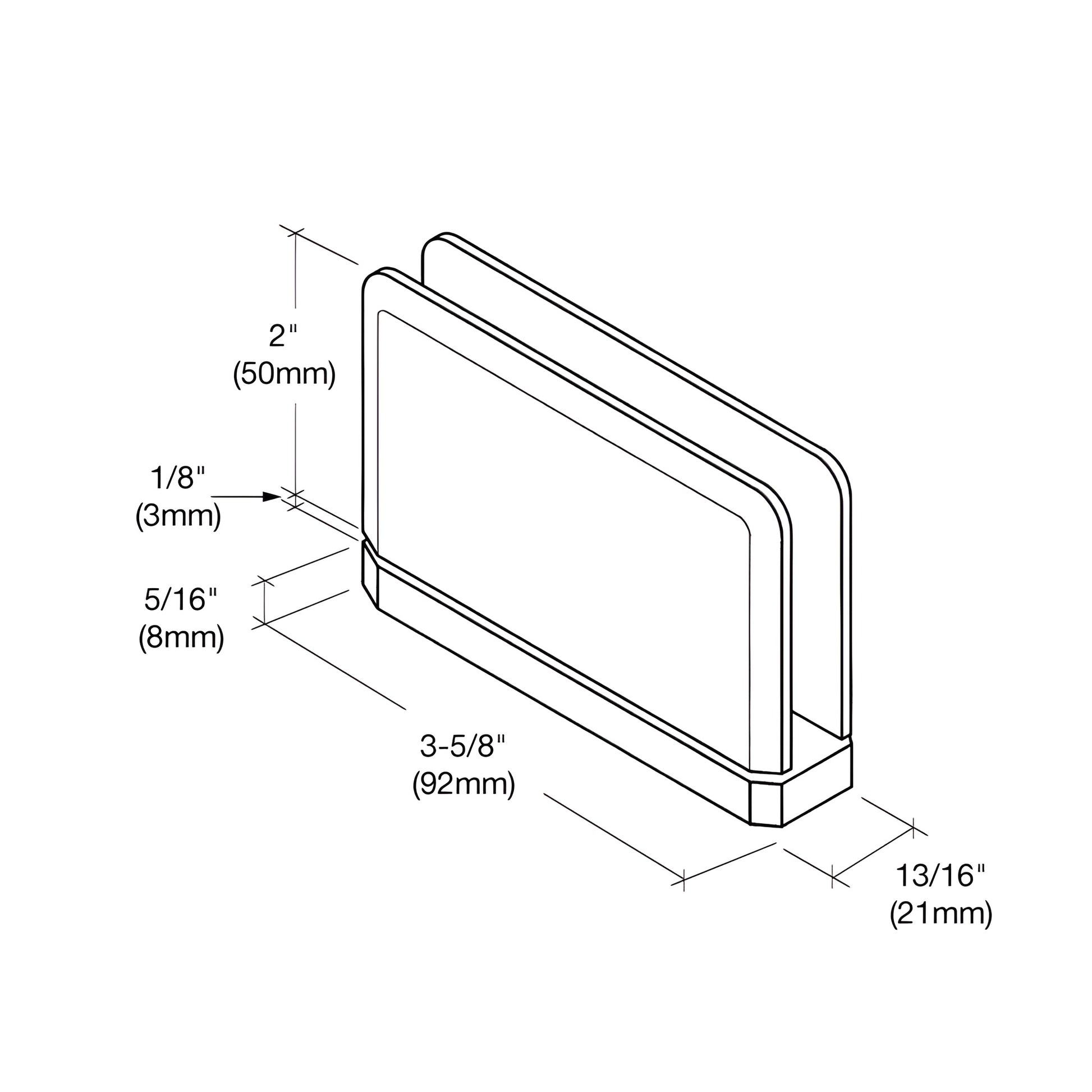

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design exposes more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: PPH135 model also requires two holes; PPH07 model requires cut-out for hinge and hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Custom finishes available on request—contact the CRL Technical Sales Department.
