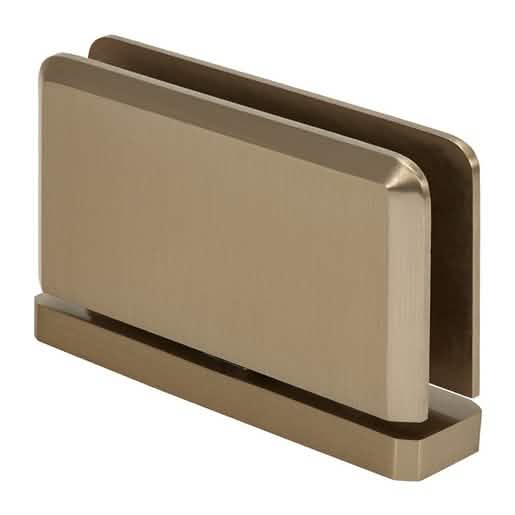

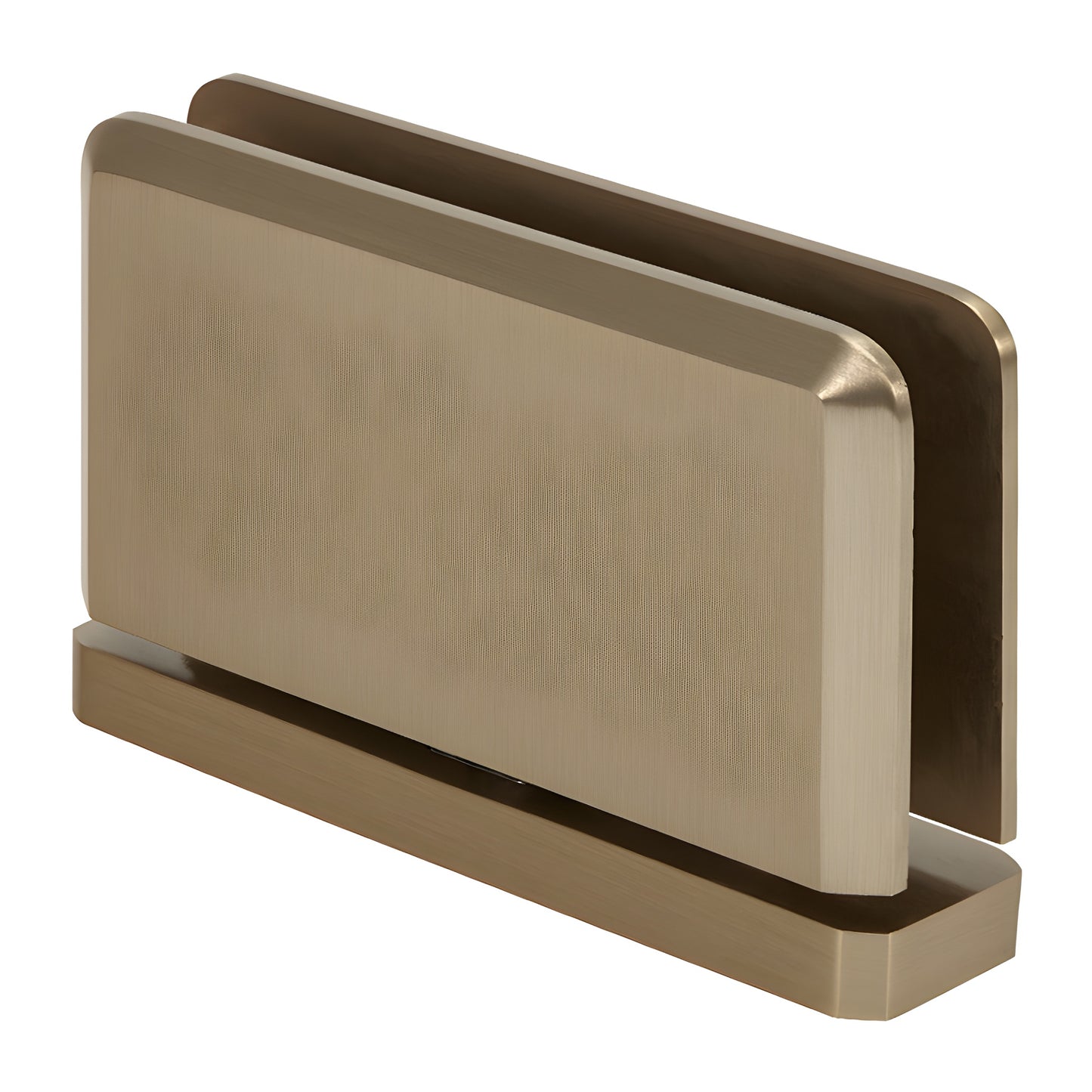

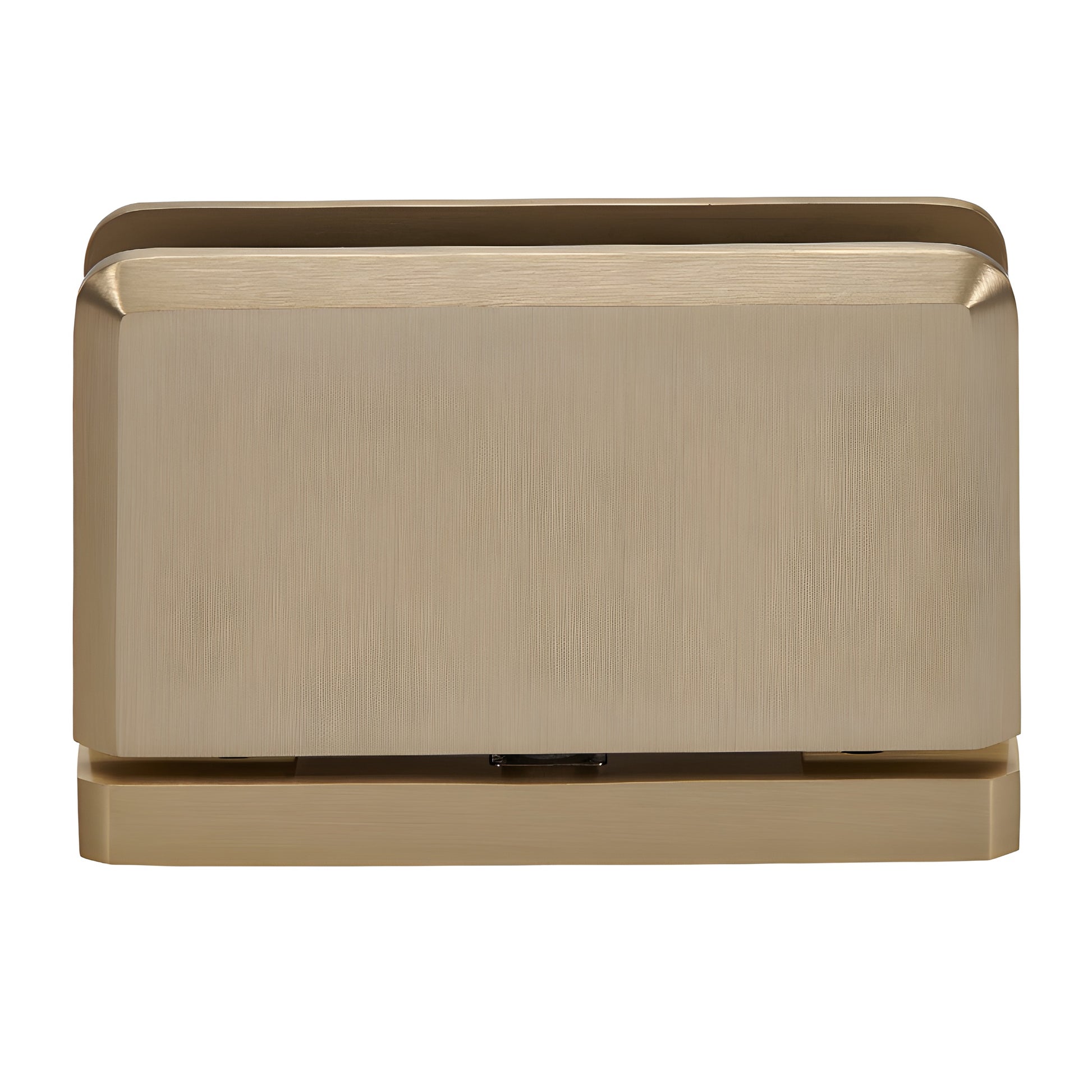

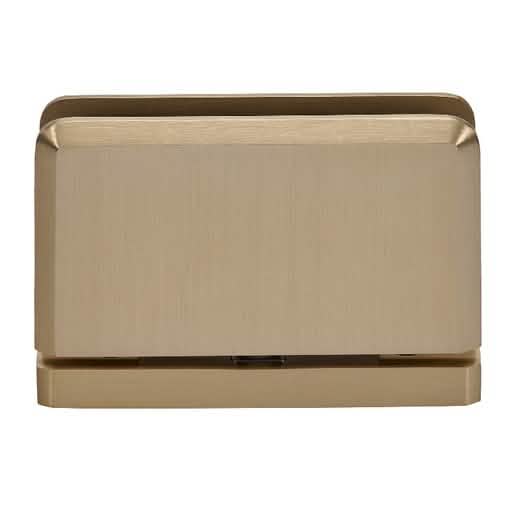

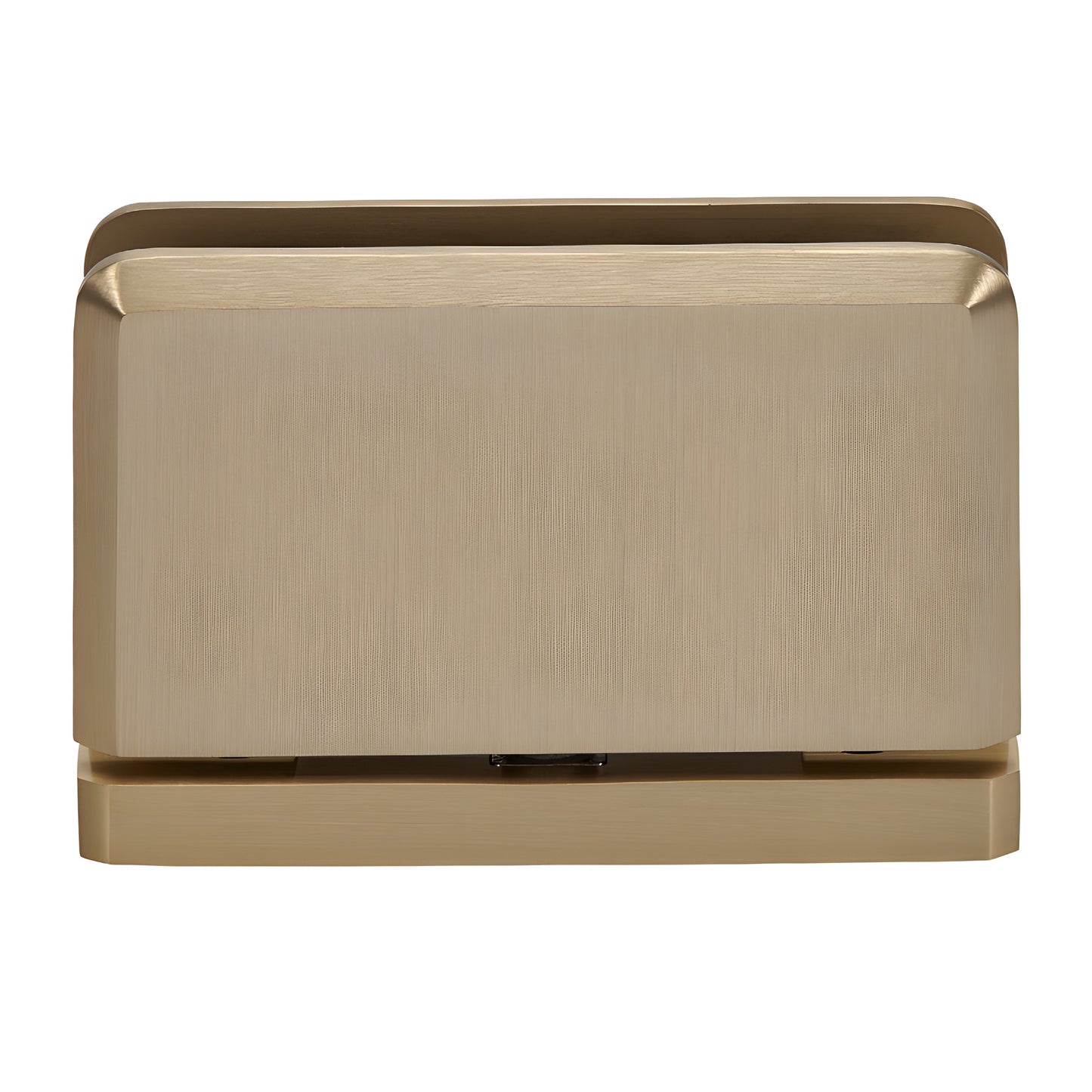

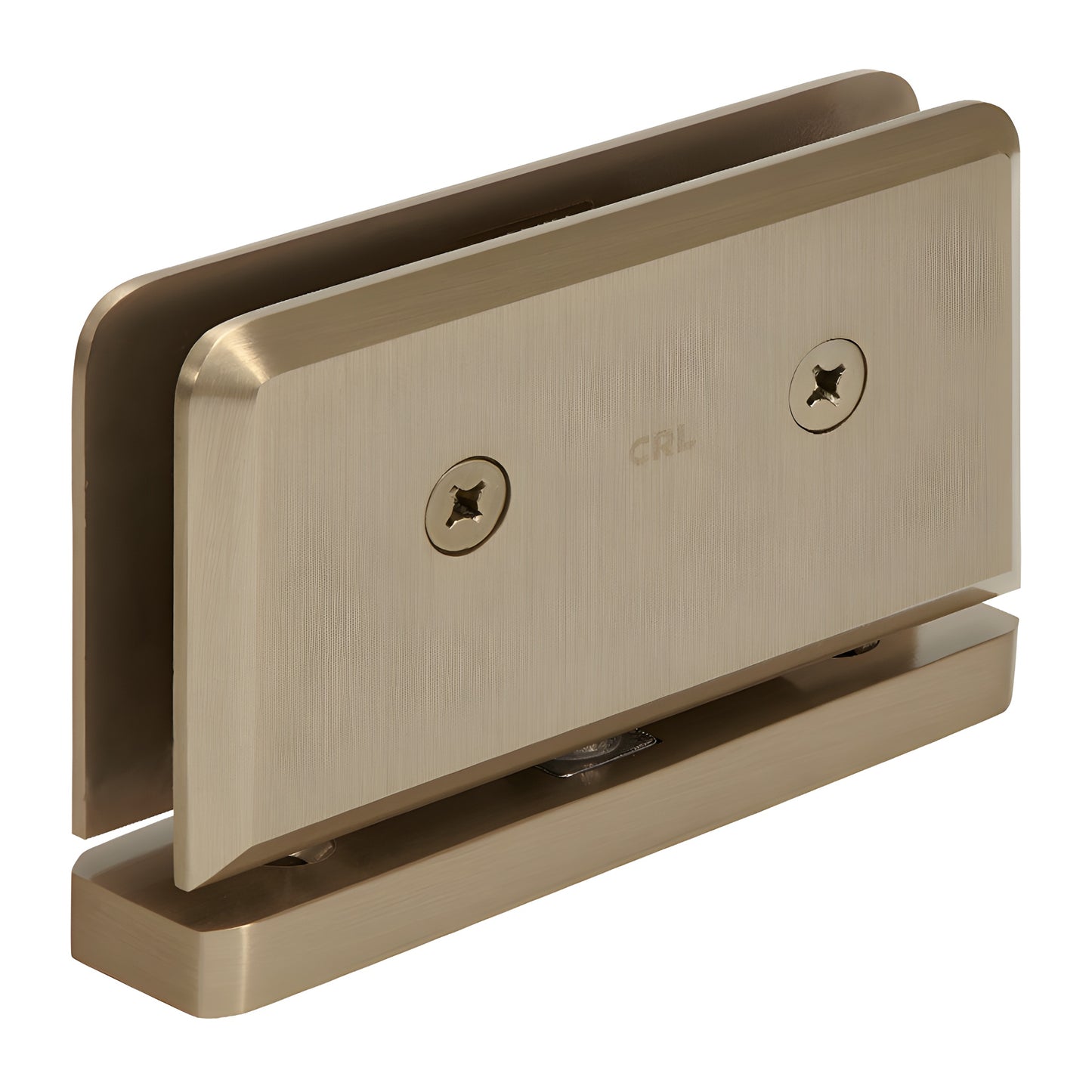

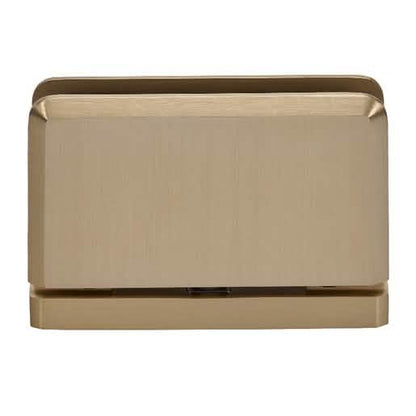

CRL Prima 01 Brushed Bronze Top/Bottom Mount Shower Glass Hinge

• Top or Bottom Mount (can be adapted to Deluxe Header Kit)
• Self-centering with optional 5° pivot pin set
• Available in several beautiful finishes (custom finishes available on request)
• 3 year warranty
• Use with monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH01BBRZ) are engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass and deliver versatile installation options for shower doors and glass enclosures. These solid brass pivot hinges are top- or bottom-mounted so the majority of the door weight is carried at the bottom, and they can be inset from the wall to provide clearance for towel bars and other projections—making them an ideal brass pivot hinge for tempered glass shower doors and frameless shower enclosures. Prima hinges are self-centering with four internal springs for durable retention. Optional 5° Pre-Set Pivot Pin Sets (Cat. No. P1VP1N) can be ordered separately or retrofitted to alter the door closing position by 5°. Pre-set 5° hinge models are also available from stock.

PPH01 models adapt to the Deluxe Header System for enclosures that do not extend to the ceiling; other Prima models (for example PPH06) are compatible with the EZ-Adjust Header System and include the appropriate adaptor (order HAB01 Adaptor Block separately).

Optional 5° Pivot Pin Set (for Prima, Cardiff, Rondo, and Shell Series): Sold as a top-and-bottom set to shift the door closing position by 5°. Inserts before or after installation. Not included with hinge purchase.

Load Capacity (using two hinges): Holds up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm) when used with 5/16" to 3/8" glass.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor & ceiling or floor & header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of the closed position
Cut-Out Required: PPH135 model requires two holes; PPH07 requires cut-out for hinge plus hole for clamp (verify template before cutting).
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,
