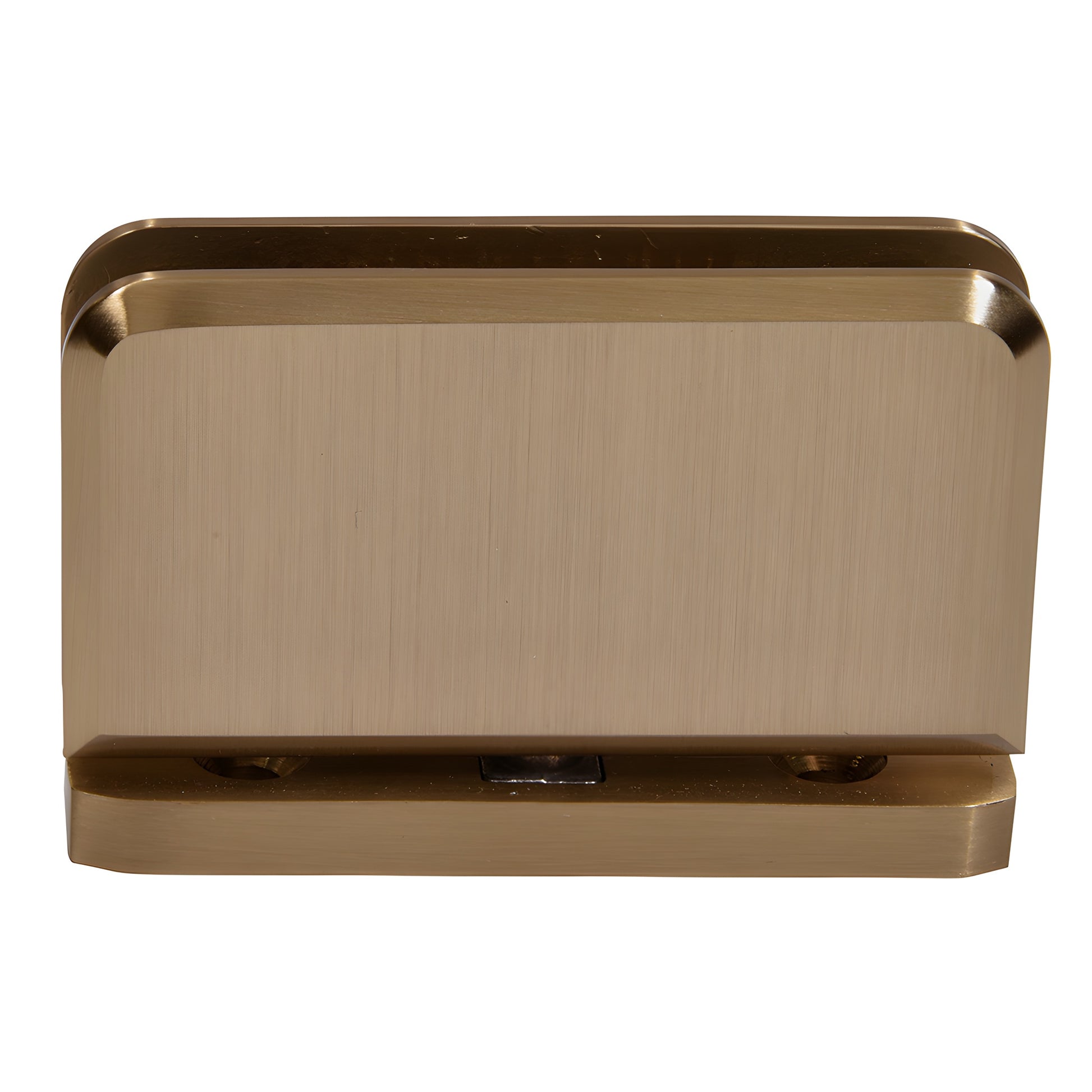

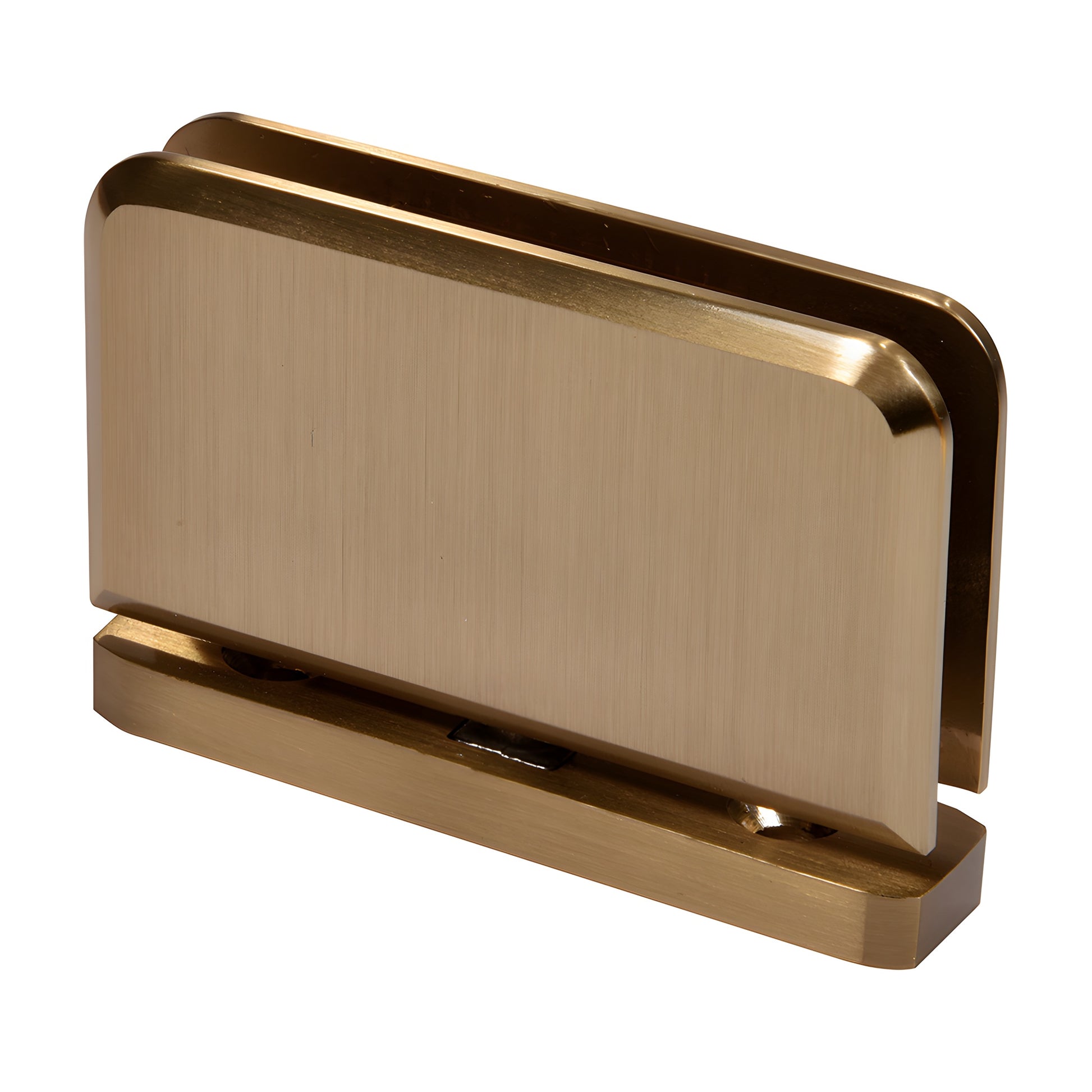

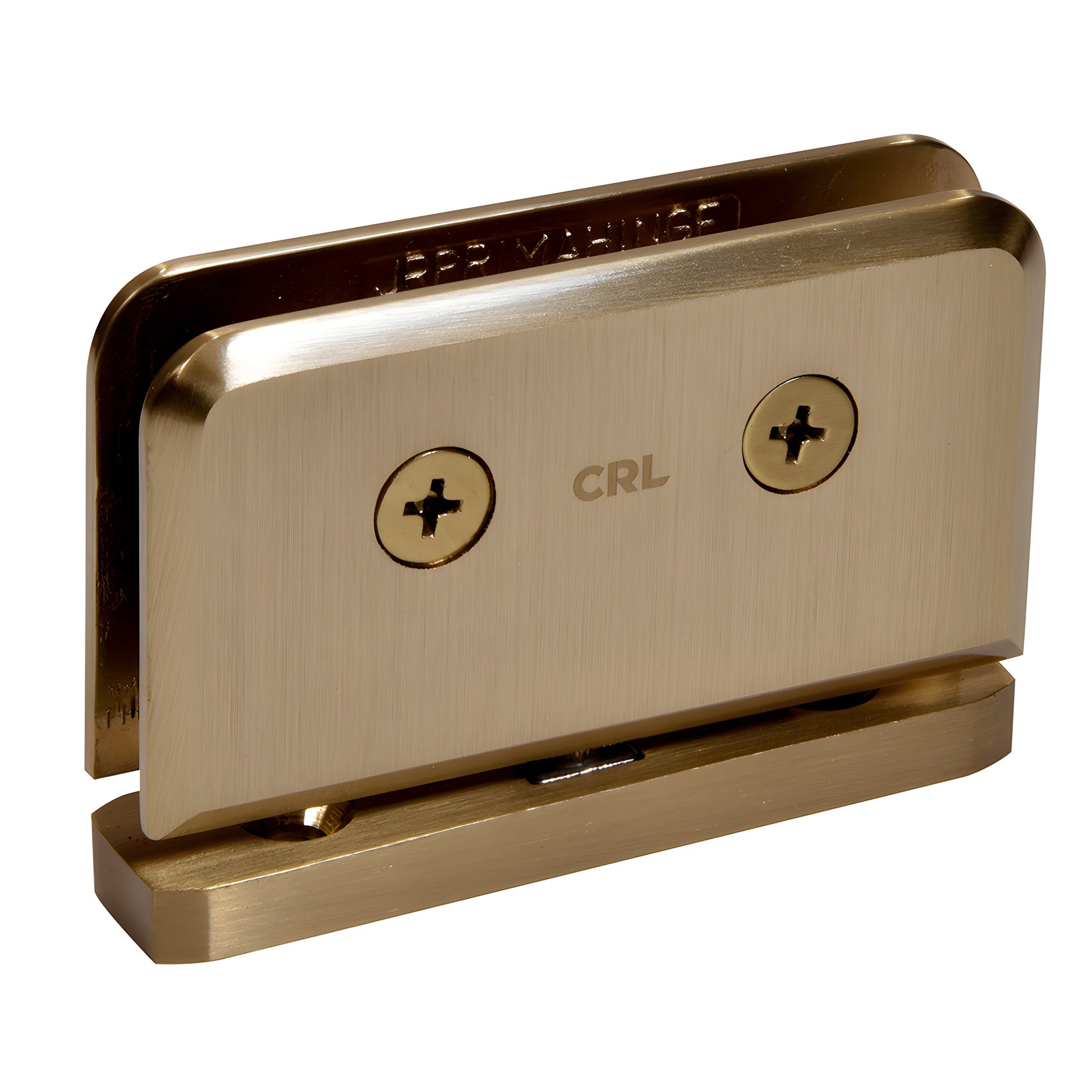

CRL Brushed Bronze Junior Prima 01 Shower Door Hinge (Top/Bottom)

• Top or Bottom Mount
• For Use with 1/4" (6 mm) Glass
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Junior Prima Hinges (SKU: JRPPH01BBRZ) are self-centering glass pivot hinges designed for shower doors and glass doors where the majority of the load is carried at the bottom. The bottom-load design lets the hinge be inset from the wall to provide clearance for towel bars and other projections. Use the Glass-to-Fixed Transom Mount Pivot Hinge for doors with fixed transoms above; when installed vertically, the hinge also works in movable transom installations. Each hinge uses four springs for maximum retention strength and is adaptable to the Junior Header System (order JRHAB01 Junior Adaptor Block separately).

Key differentiators: bottom-load pivot hinge for reduced wall interference; inset mounting for towel-bar clearance; self-centering with four-spring retention; patented design for reliable shower door performance.

SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:
Glass Thickness:
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Junior Prima 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require additional cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15° of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,
