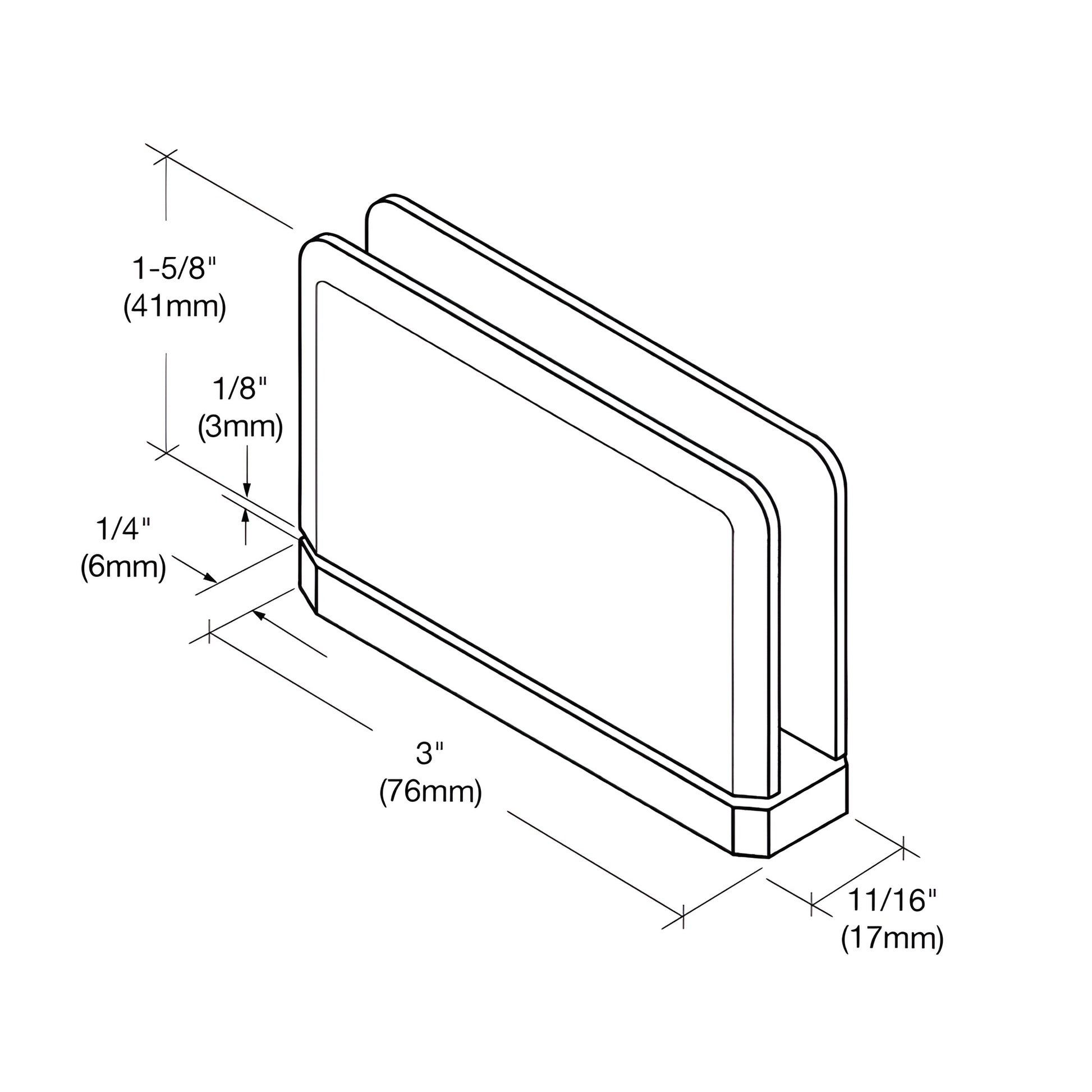

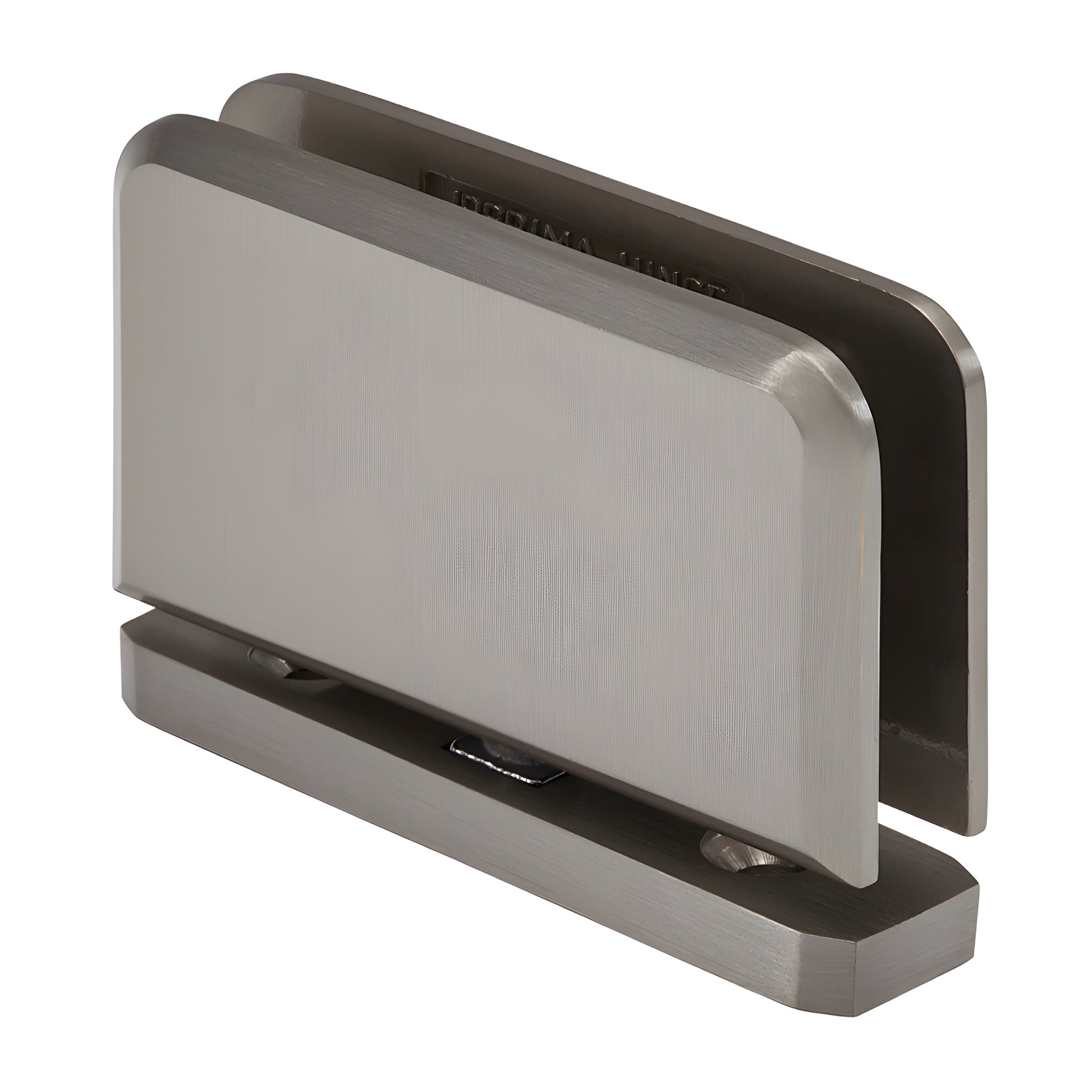

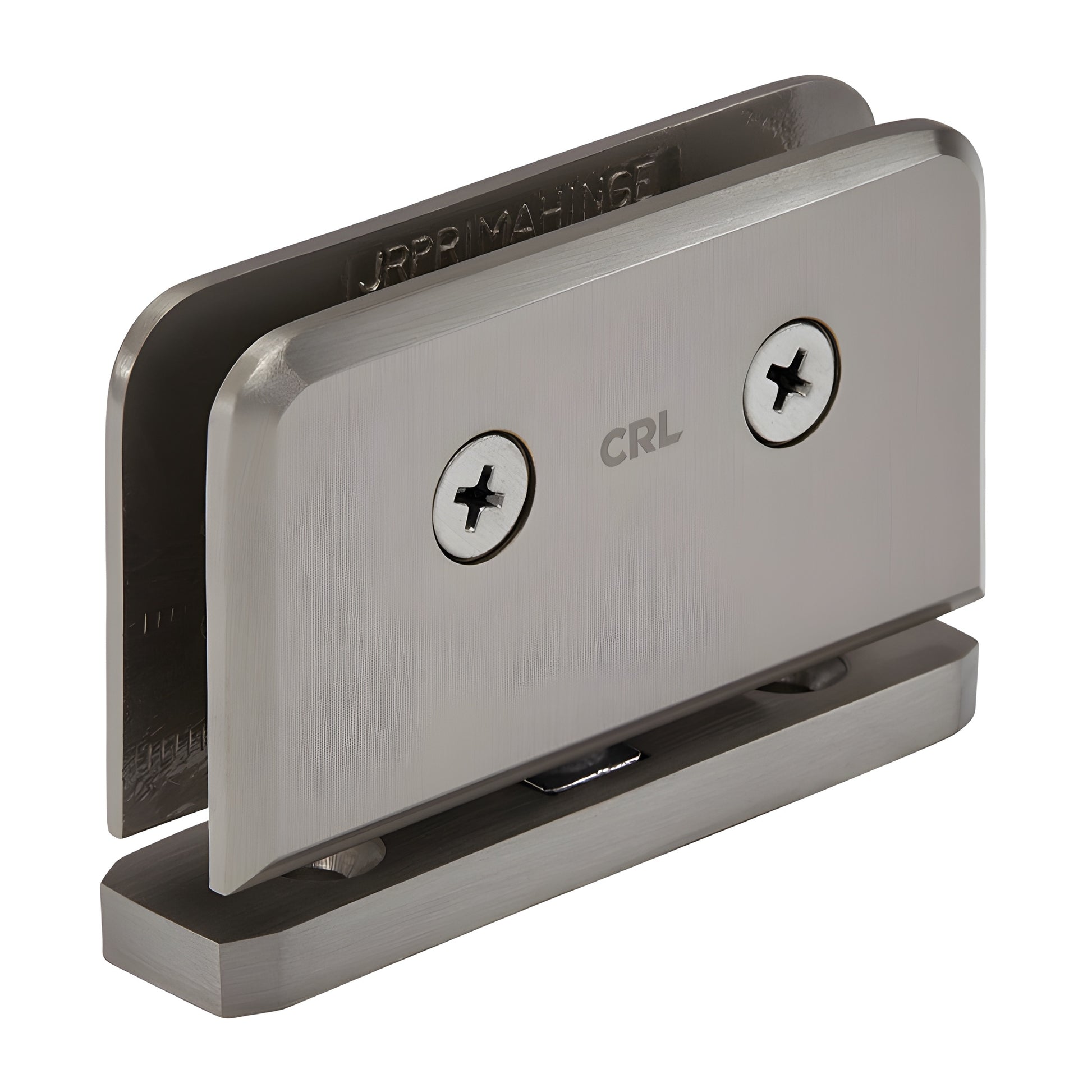

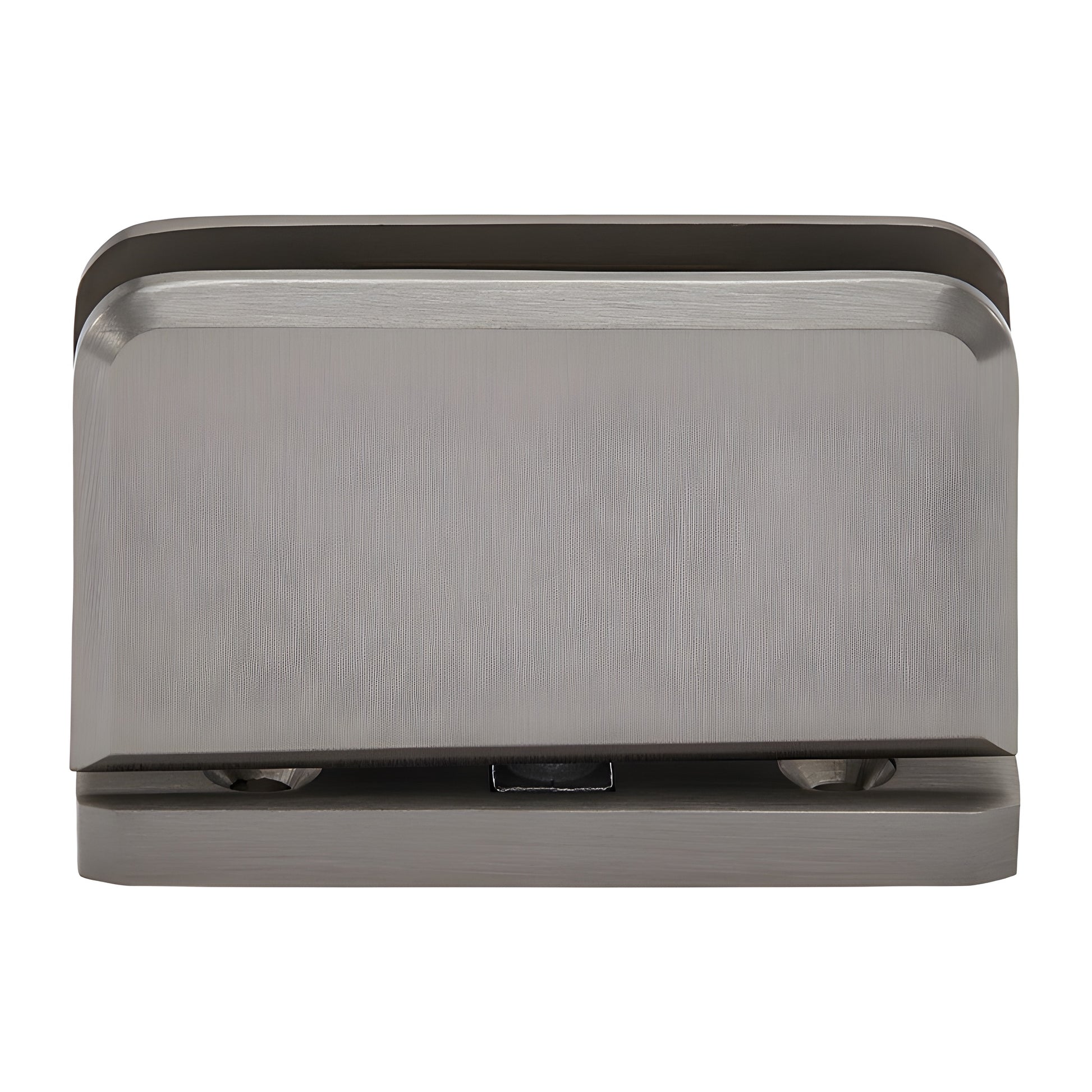

CRL Junior Prima 01 Brushed Nickel Top/Bottom Mount Shower Door Hinge

• Top or bottom mount pivot hinge for shower doors
• For use with 1/4" (6 mm) tempered safety glass
• Available in several durable finishes; custom finishes on request
• 3 year warranty
• Designed for monolithic tempered glass
• U.S. Patent 5,297,313

Overview — CRL Junior Prima Hinges (SKU: JRPPH01BN)

CRL Junior Prima glass shower pivot hinges carry the majority of the weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections—ideal when you need a low-profile, bottom-mount pivot hinge. These self-centering glass-to-fixed transom mount pivot hinges use four springs for maximum retention and are adaptable to the Junior Header System (requires JRHAB01 Junior Adaptor Block, sold separately). Long-tail keywords: glass shower pivot hinge, 1/4 inch glass shower hinge, bottom-mount shower door hinge.

Key Differentiators

• Bottom-weighted design for stable operation and reduced header stress
• Inset mount capability preserves wall clearance for accessories
• Self-centering action within 15° of closed position for smooth, reliable closing
• Solid brass construction for corrosion resistance and long life

Capacity & Usage

SENIOR PRIMA: With two hinges and 1/2" (12 mm) tempered safety glass, holds up to 145 lbs (66 kg); max door width 36" (914 mm).

JUNIOR PRIMA: With two hinges and 1/4" (6 mm) tempered safety glass, holds up to 62 lbs (28 kg); max door width 28" (711 mm).

Specifications

• Glass Thickness: Senior Prima — 1/2" (12 mm); Junior Prima — 1/4" (6 mm) tempered safety glass
• Special Feature: Top and bottom mount allows more visible glass and can reduce glass fabrication/cut-out costs versus side-mount glass-to-glass hinges
• Construction: Solid brass
• Hinge Swings: Full rotation
• Closing Type: Self-centering within 15° of closed position
• Includes: Gaskets, screws, and glass fabrication dimensions
• Patent: Senior and Junior Prima Hinges patented (U.S. Patent No. 5,297,313)

Installation & Warnings

CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template provided with this hinge—CRL cut-out dimensions may differ from other brands.
