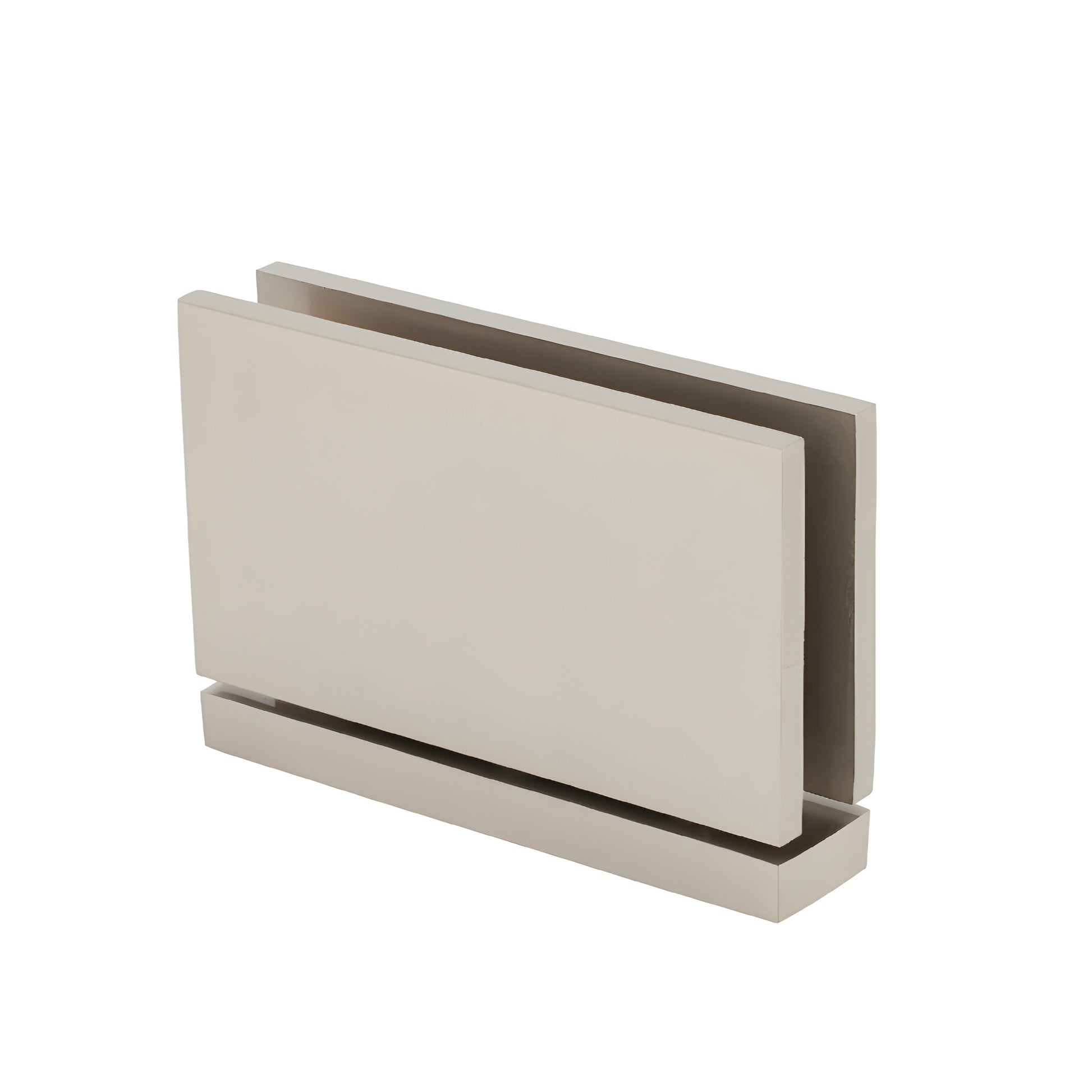

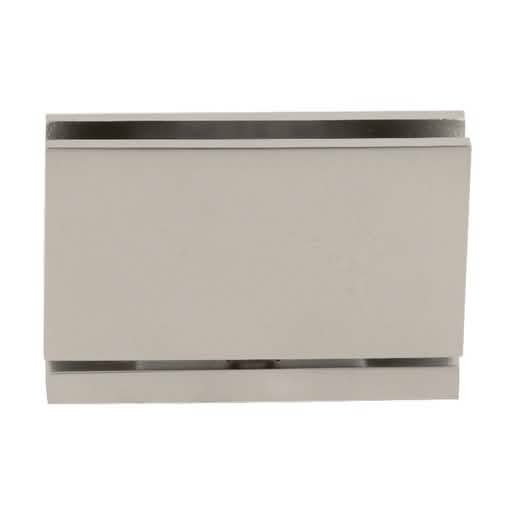

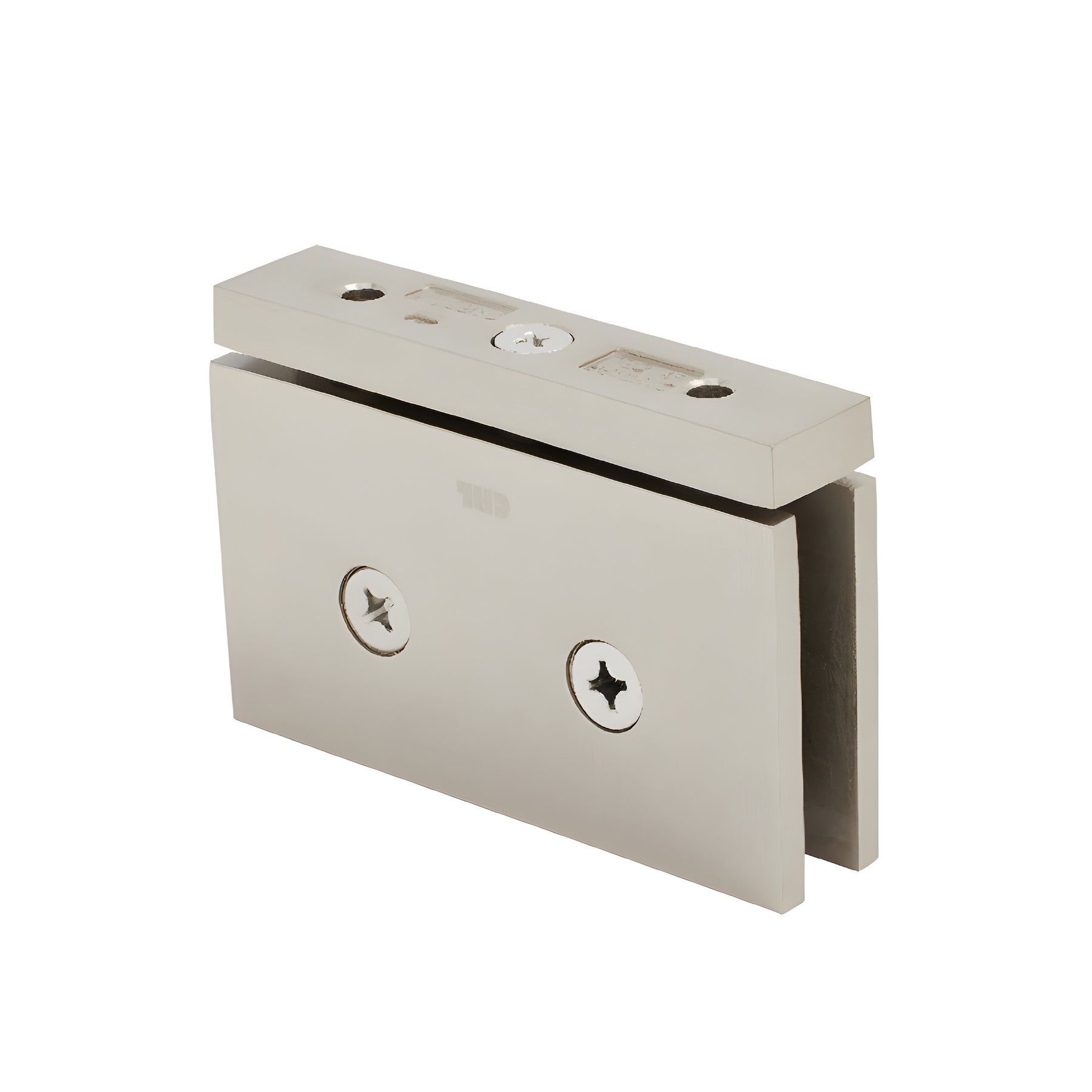

CRL Cardiff Brushed Nickel Top/Bottom Mount Glass Door Hinge

• Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges (SKU: CAR01BN) are engineered for frameless and semi-frameless glass shower doors using 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. These brass pivot hinges for glass shower doors expand installation options: mount top-and-bottom for clean sightlines, inset from the wall to clear towel bars and projections, or adapt to the Deluxe Header System for partial-height enclosures (HAB01 Adaptor Block sold separately). Cardiff hinges are self-centering with four springs for maximum retention strength and include gaskets, screws, and glass fabrication dimensions.

NOTE: Optional 5º Pivot Pin Sets (sold separately) let you alter the door closing position by 5º. Sets include one top and one bottom pin and may be installed before or retrofitted after installation. Not included with hinge purchase.

Performance: Using two hinges on 5/16" or 3/8" glass (8 or 10 mm), the hinge supports up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

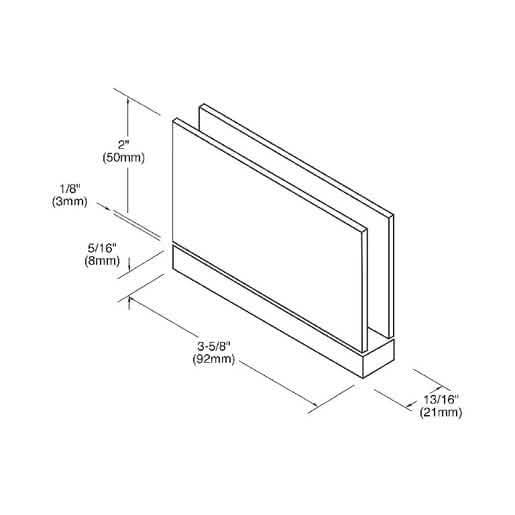

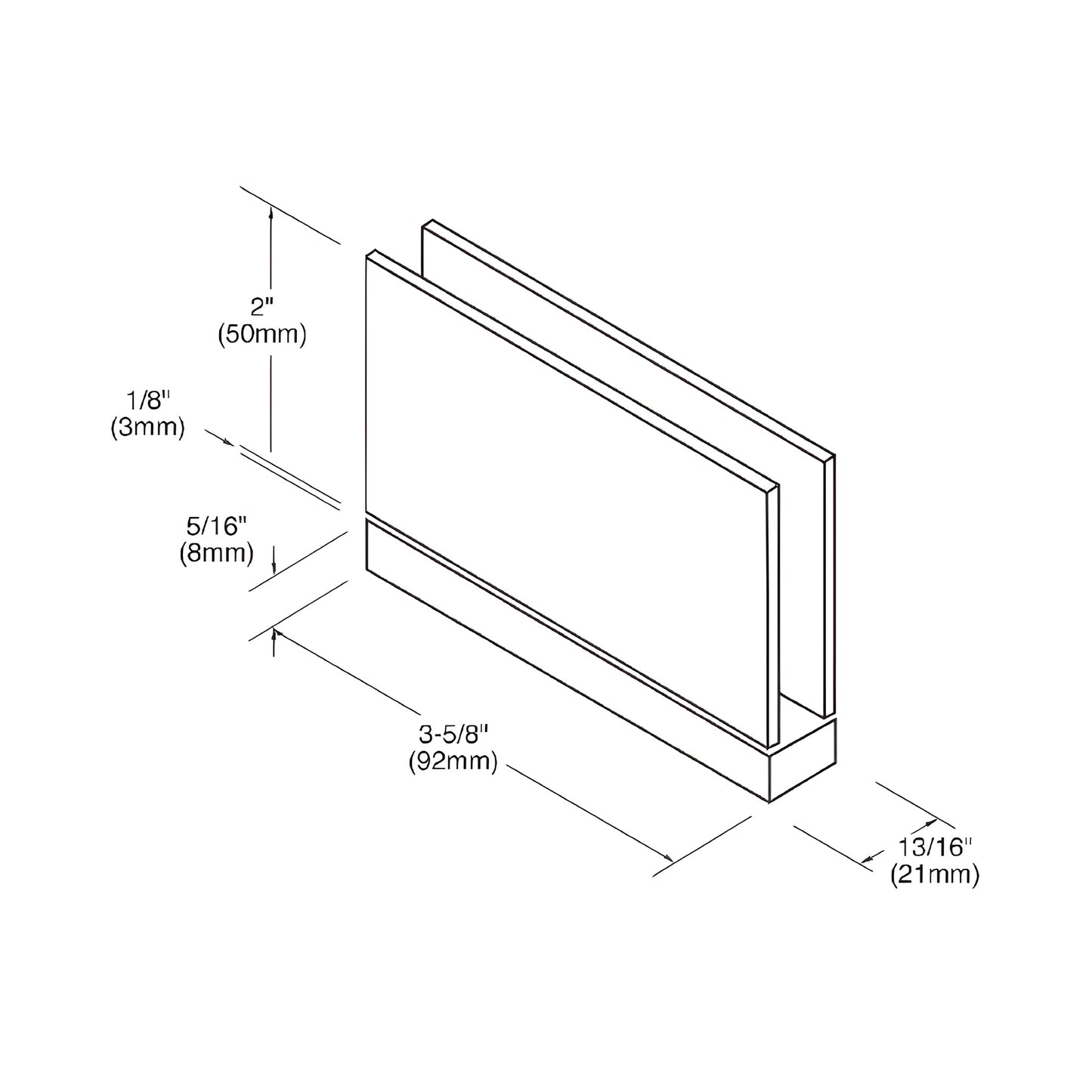

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs compared to standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—CRL cut-out dimensions may differ from other brands.
