CRL Cardiff Series Satin Nickel Top/Bottom Mount Door Hinge

• Top or Bottom Mount (Can be adapted to Deluxe Header Kit — order HAB01 Adaptor Block separately)
• Available in several beautiful finishes
• Uses monolithic tempered safety glass (5/16"–3/8")
• U.S. Patent 5,297,313

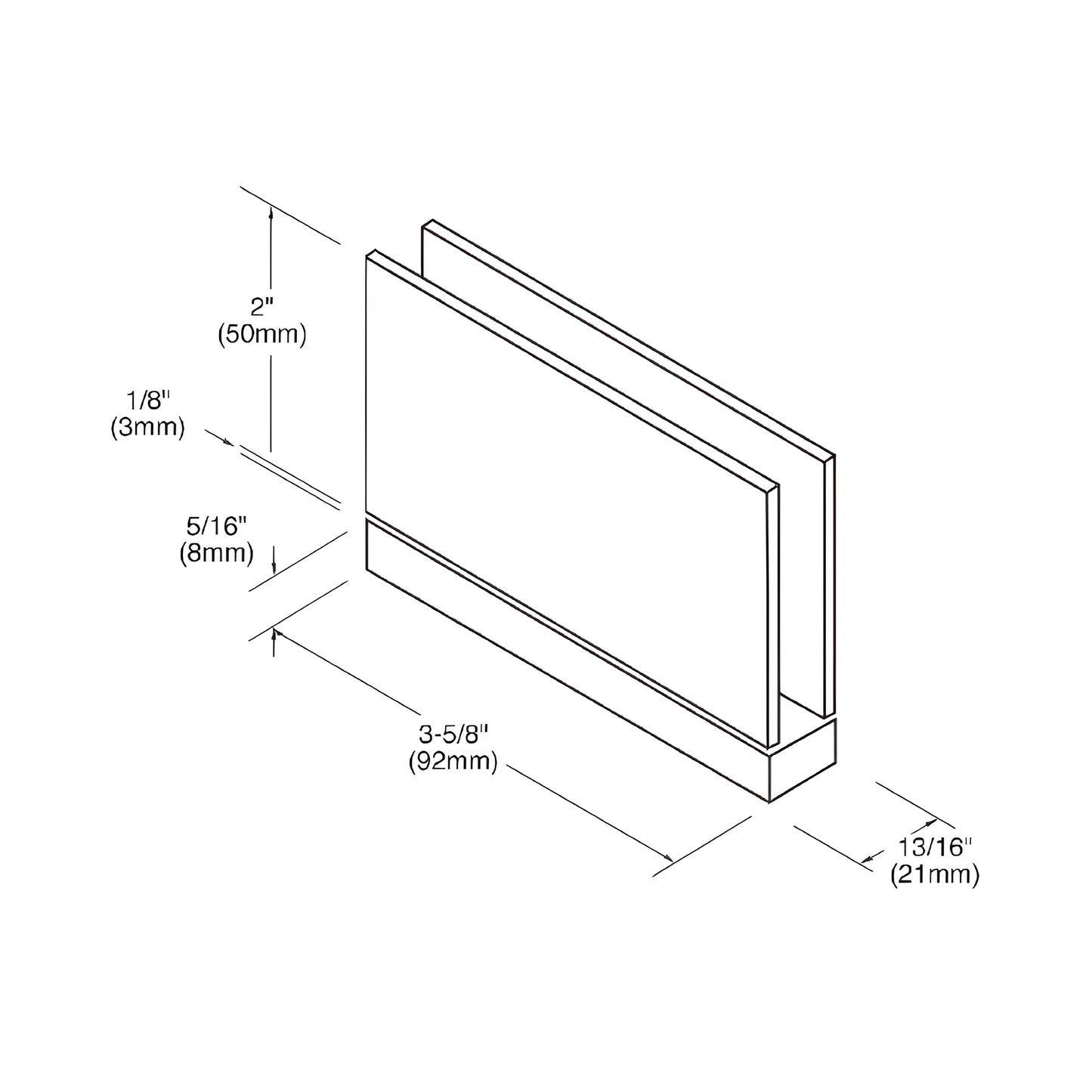

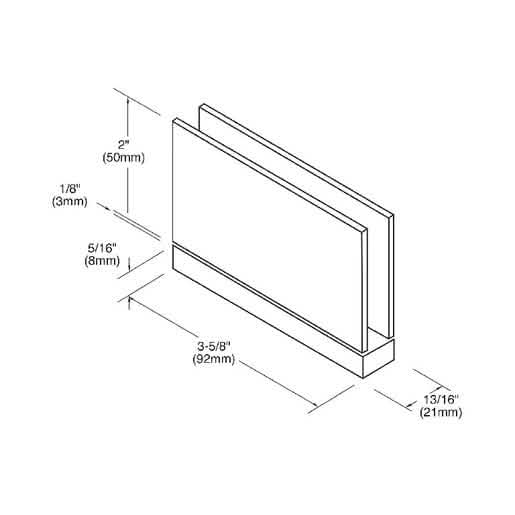

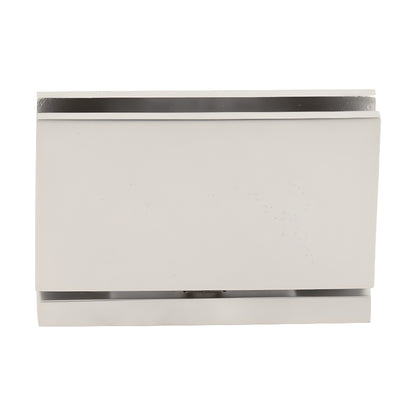

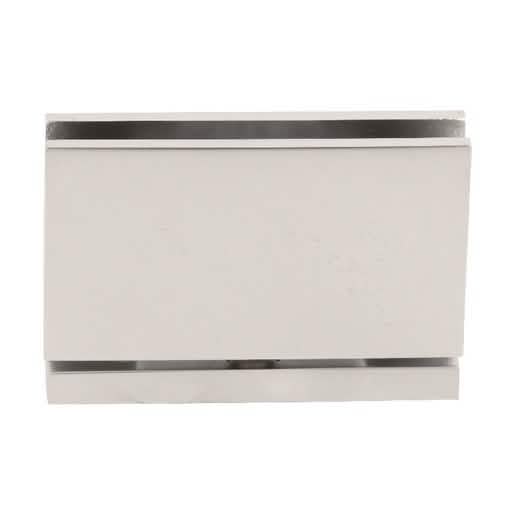

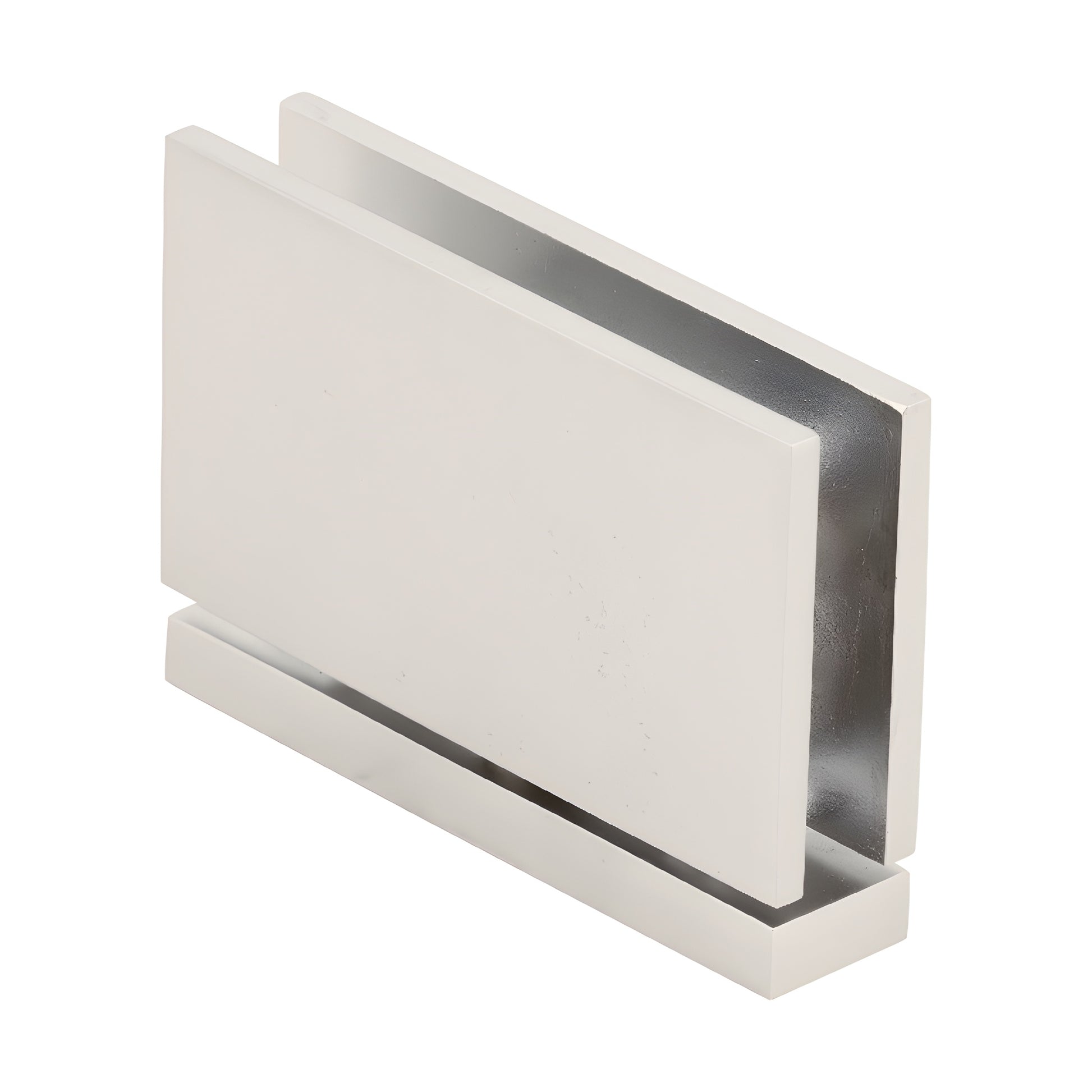

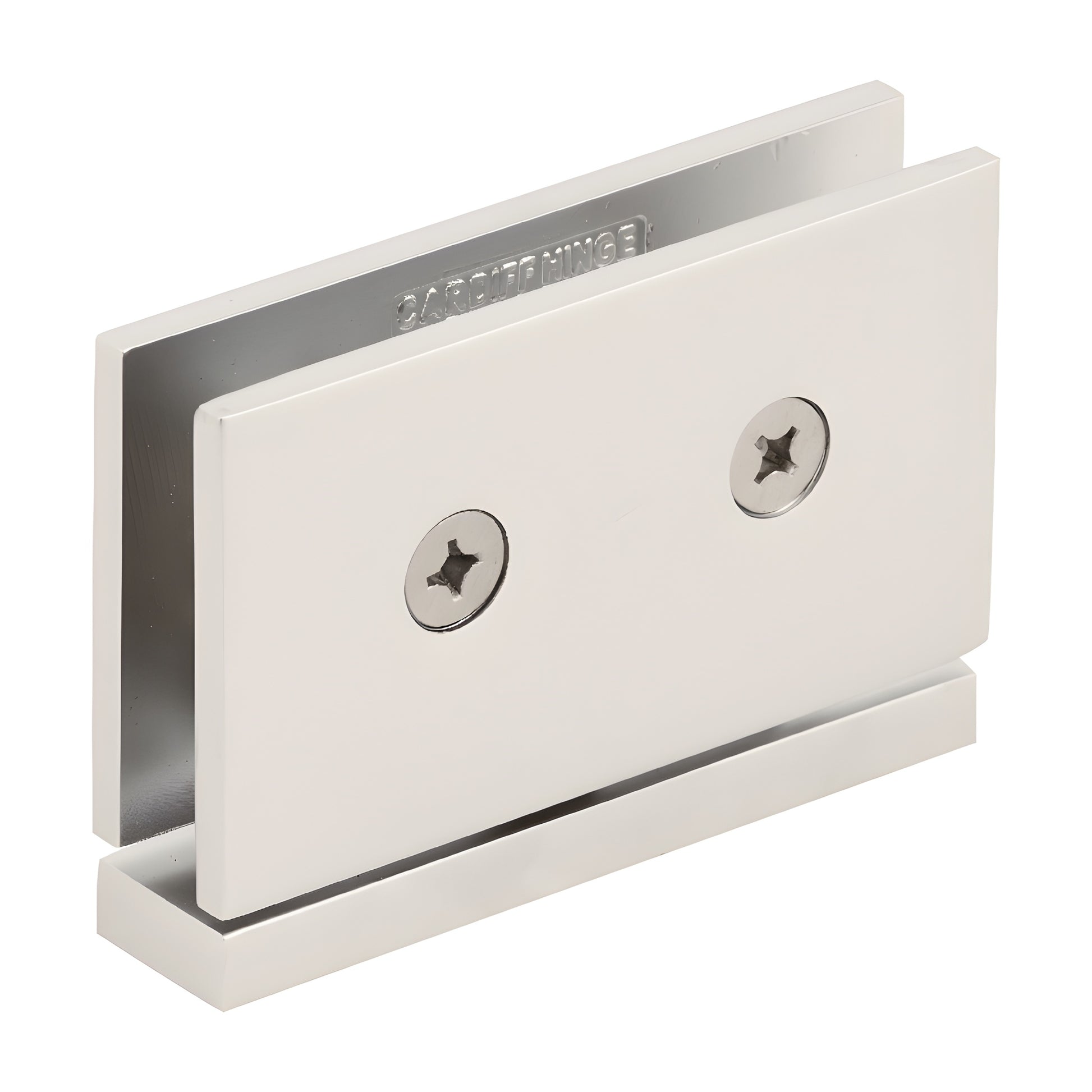

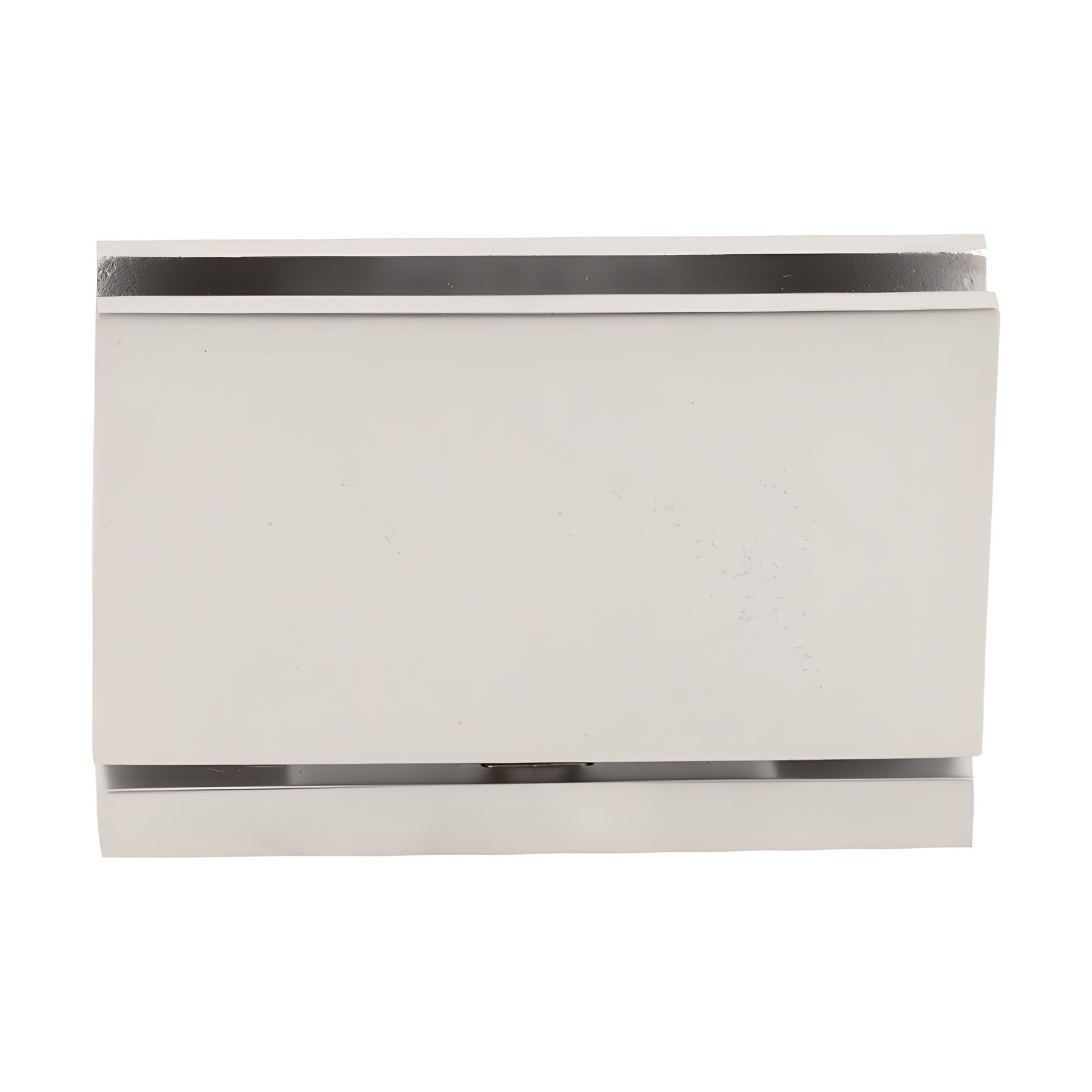

CRL Cardiff Series Pivot Hinges — SKU: CAR01SN are precision pivot hinges for glass shower doors, engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. These solid brass, self-centering pivot hinges include four springs for maximum retention strength and a full-rotation hinge swing. The top-and-bottom mount design carries most of the door weight on the bottom and can be inset from the wall to allow clearance for towel bars and other projections—ideal for glass shower doors, frameless shower enclosures, and hotel or residential bathrooms. The Cardiff Series adapts to the Deluxe Header System for enclosures not going to the ceiling (HAB01 sold separately).


NOTE: Optional 5º Pre-Set Pivot Pin Sets (sold separately) let you alter the closing position by 5º. These pins can be inserted before or retrofitted after installation. Sold as a set of two (top and bottom). Not included with hinge purchase.

Load Capacity (using two hinges): For 5/16" or 3/8" glass (8 or 10 mm), two hinges support up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount shows more glass and reduces the number of cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass for corrosion resistance and long service life
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Patent No. 5,297,313


Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may
