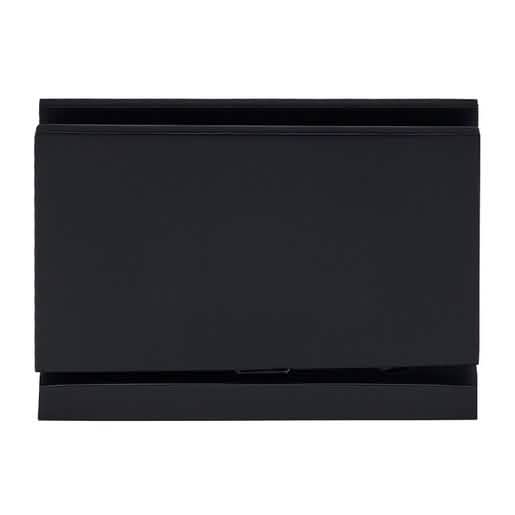

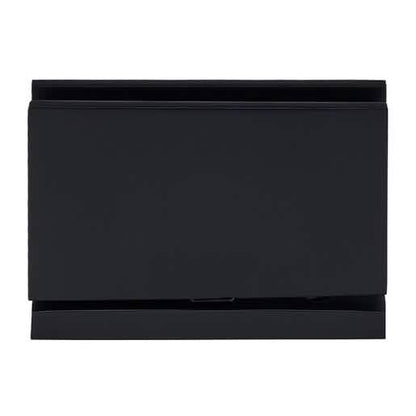

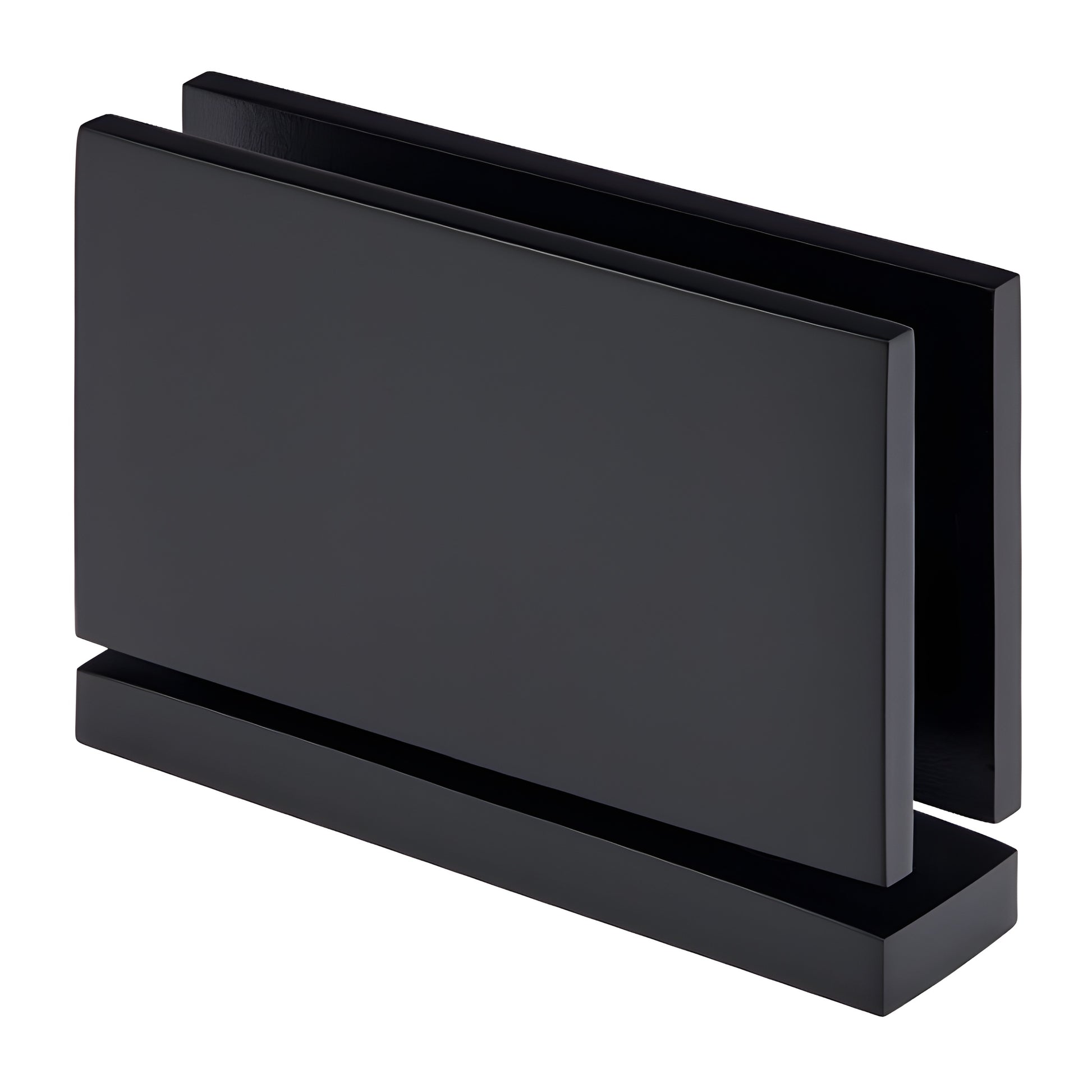

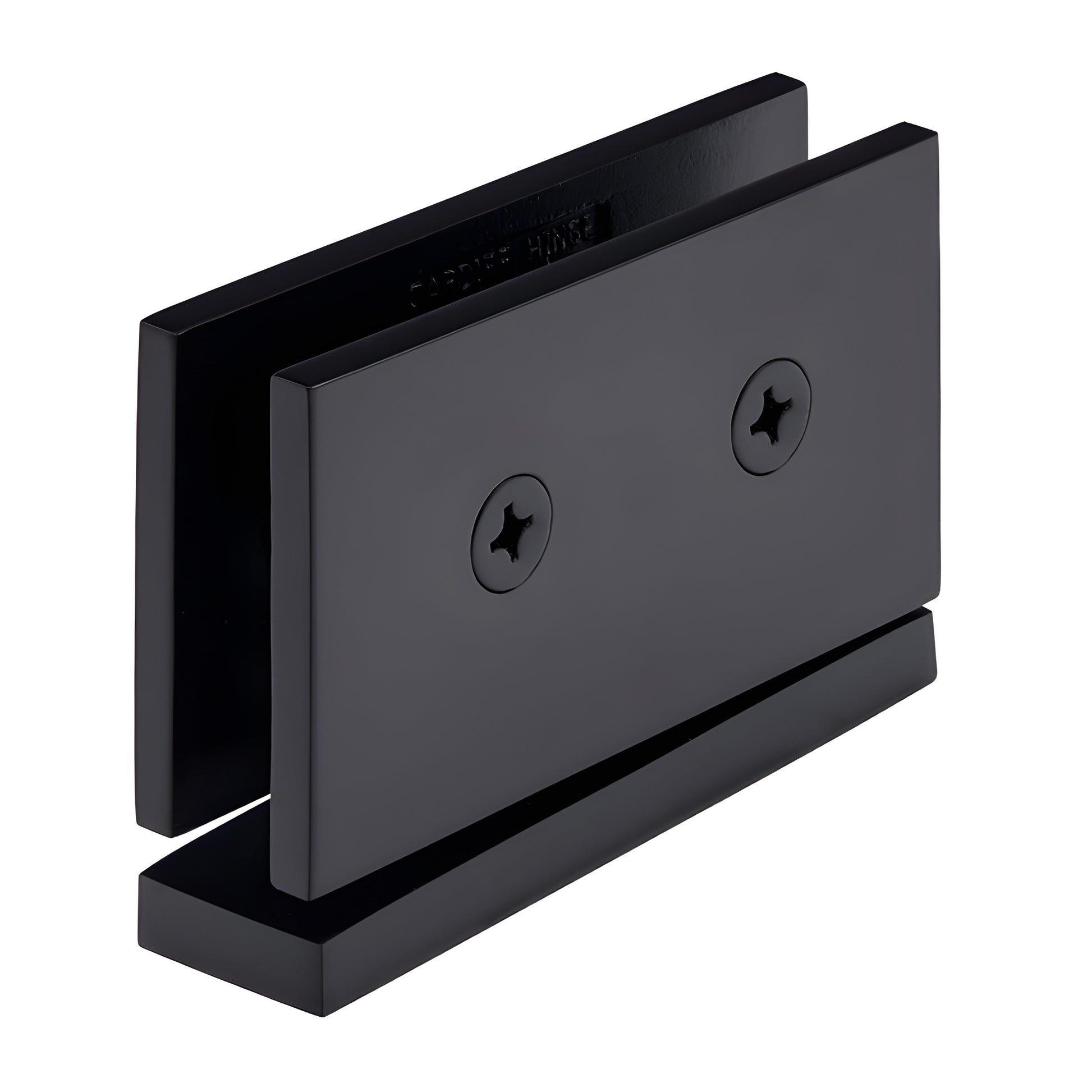

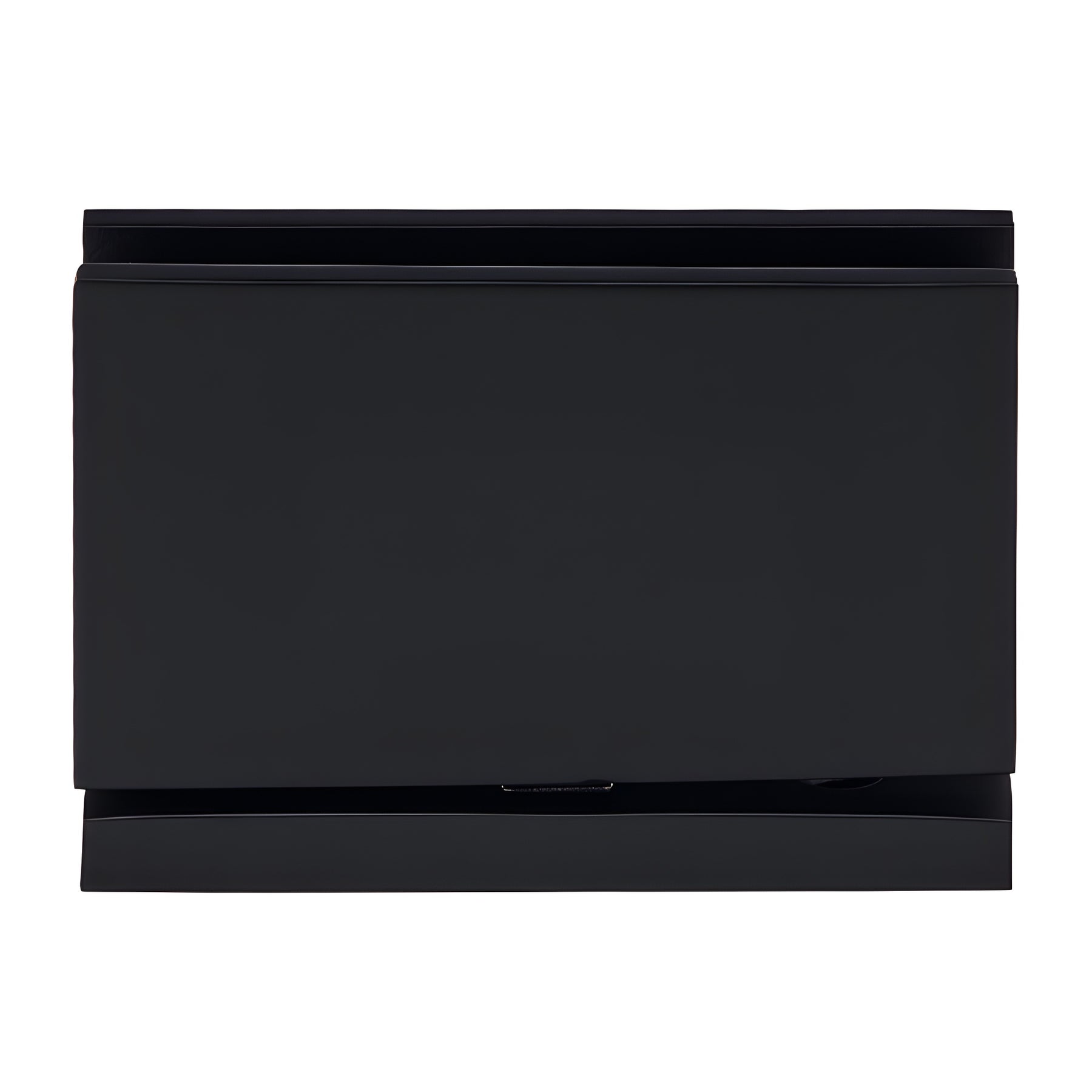

CRL Cardiff Oil Rubbed Bronze Top/Bottom Mount Door Hinge

• Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
• Available in several beautiful finishes
• Use monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges (SKU: CAR010RB) are precision pivot hinges for glass shower doors, designed for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. These brass shower door pivot hinges offer versatile installation options and are a reliable choice for residential and hotel shower enclosures.

Key differentiators:

• Top and bottom mount design maximizes visible glass and reduces the number of cut-outs versus standard side-mount glass-to-glass hinges
• Self-centering mechanism with four springs for strong retention and smooth closing when within 15° of closed position
• Loads carried mainly on the bottom hinge, allowing inset installation for clearance of towel bars and other projections
• Adaptable to CRL’s Deluxe Header System (requires HAB01 adaptor block sold separately)

Optional Accessory: 5° Pre-Set Pivot Pin Set (sold separately) — allows altering the door’s closing position by 5°. Sold as a set of two (top and bottom); can be installed before or retrofitted after installation.

Performance with two hinges: For 5/16" or 3/8" glass (8 or 10 mm), two hinges support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

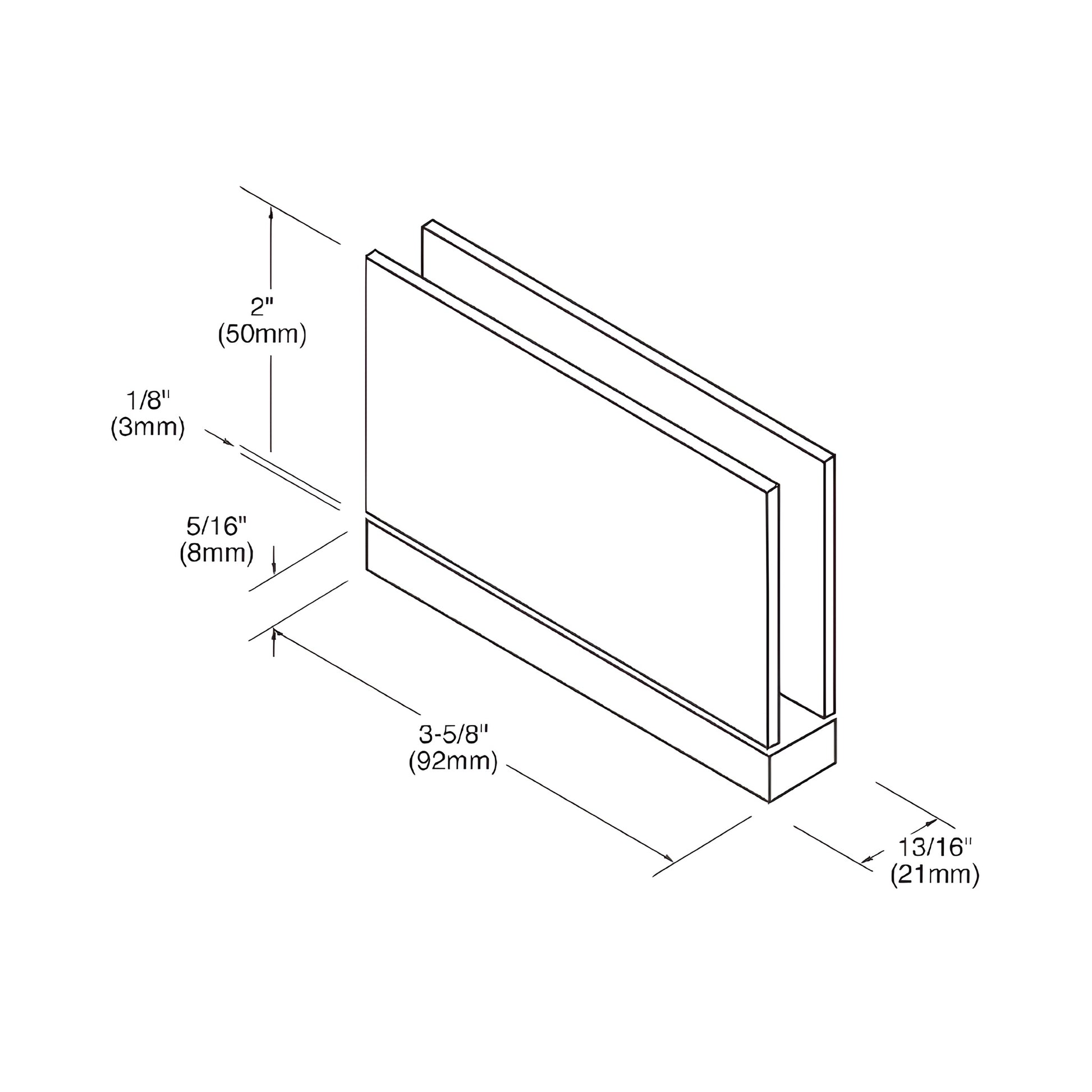

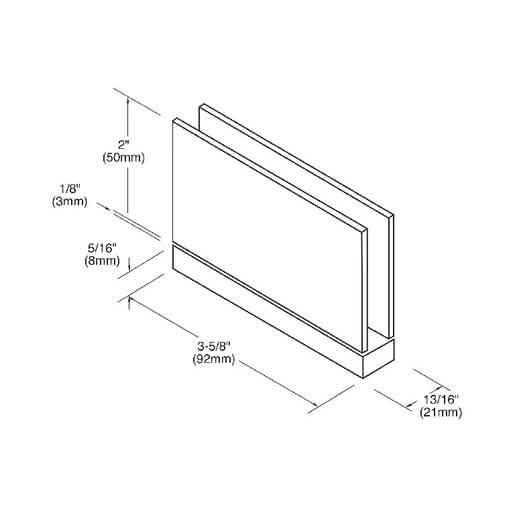

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top and bottom mount; reduces cut-outs required compared to standard side-mount hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Product Warning:

CRL shower door hinges are intended for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions for CRL hinges may differ from other brands.
