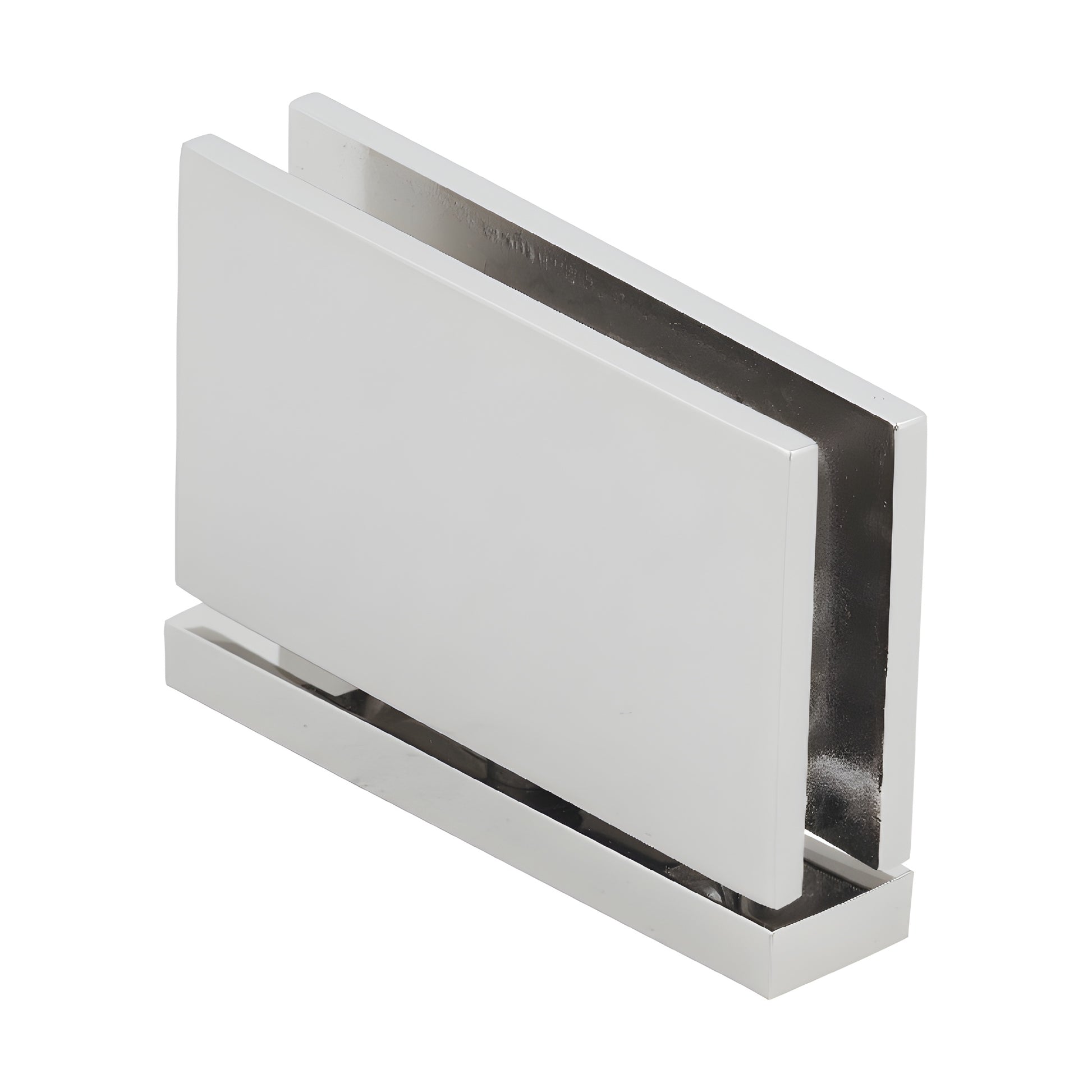

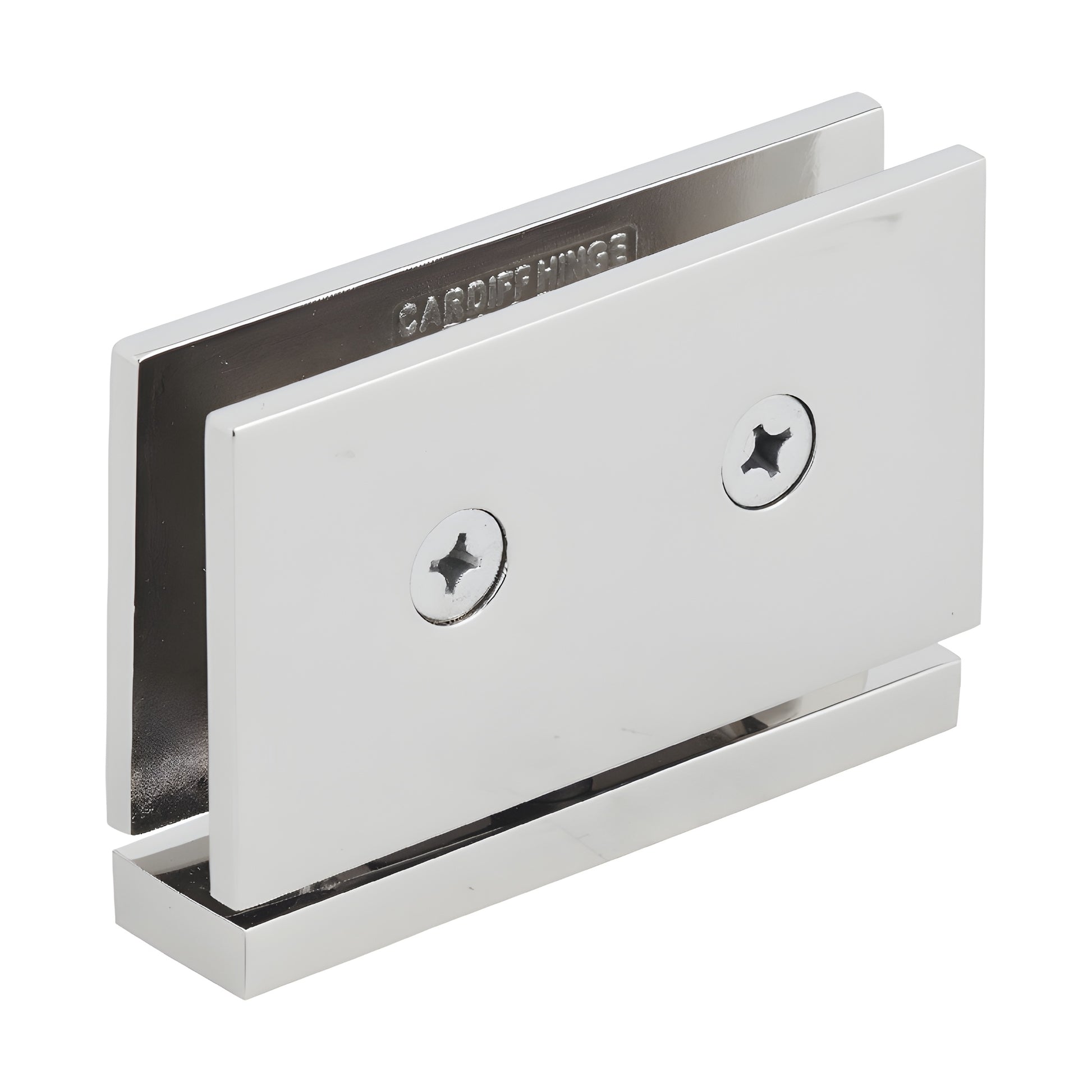

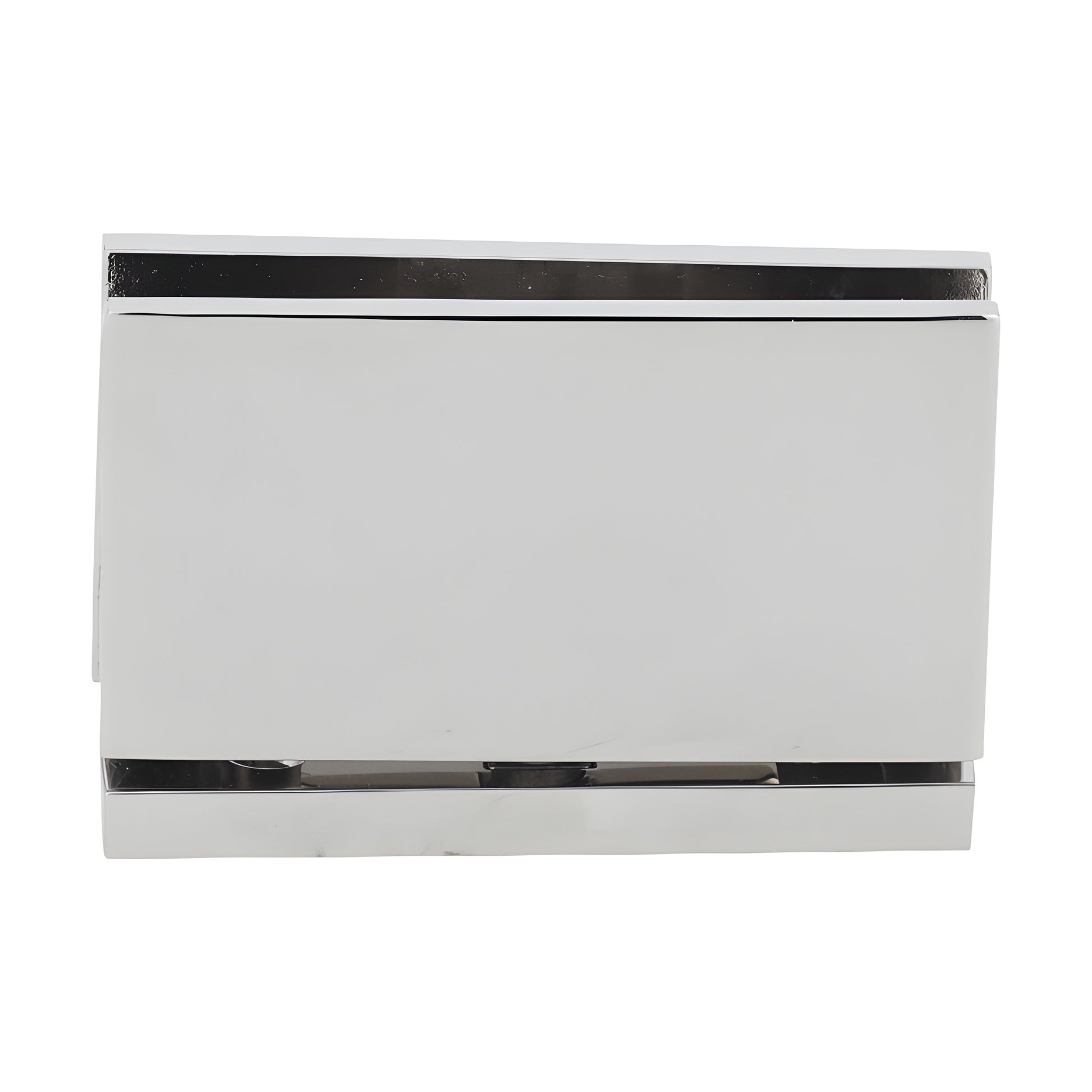

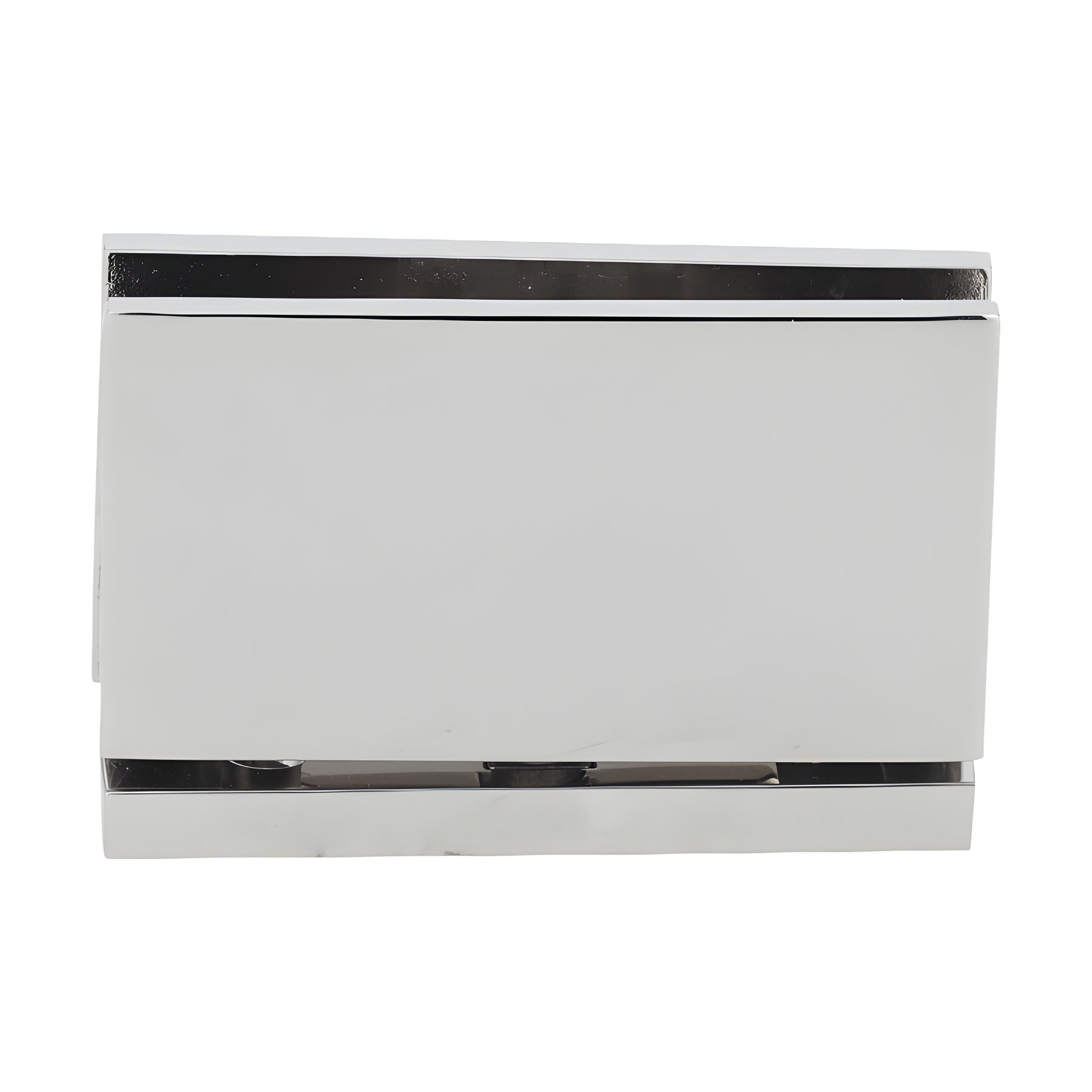

CRL Cardiff Polished Nickel Top/Bottom Mount Shower Door Hinge

• Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges are precision pivot shower door hinges designed for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. These solid brass pivot hinges carry most of the weight at the bottom, can be inset from the wall to clear towel bars or projections, and are self-centering with four springs for maximum retention strength. The Cardiff Series is adaptable to CRL’s Deluxe Header System for shower enclosures that do not extend to the ceiling (HAB01 Adaptor Block ordered separately). Optional 5º Pre-Set Pivot Pin Sets (sold separately) let you alter the closing position by 5º and can be installed before or retrofitted after installation.

NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) — sold as a set of two (top and bottom). Not included with hinge purchase.

Capacity: Using two hinges with 5/16" or 3/8" glass (8 or 10 mm), the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
SKU: CAR01PN
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top-and-bottom mount design exposes more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).

Product Warning:

CRL shower door hinges are intended for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower
