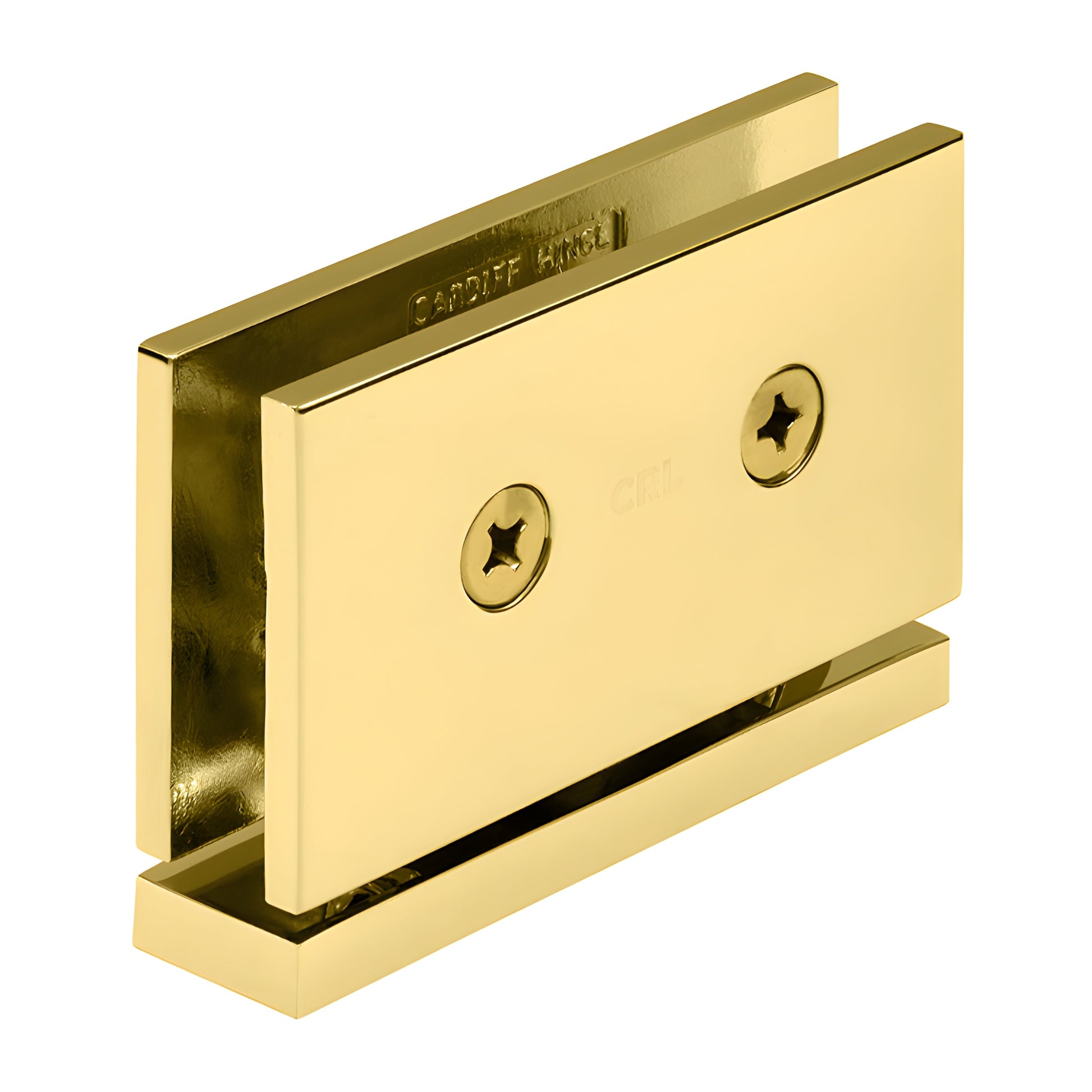

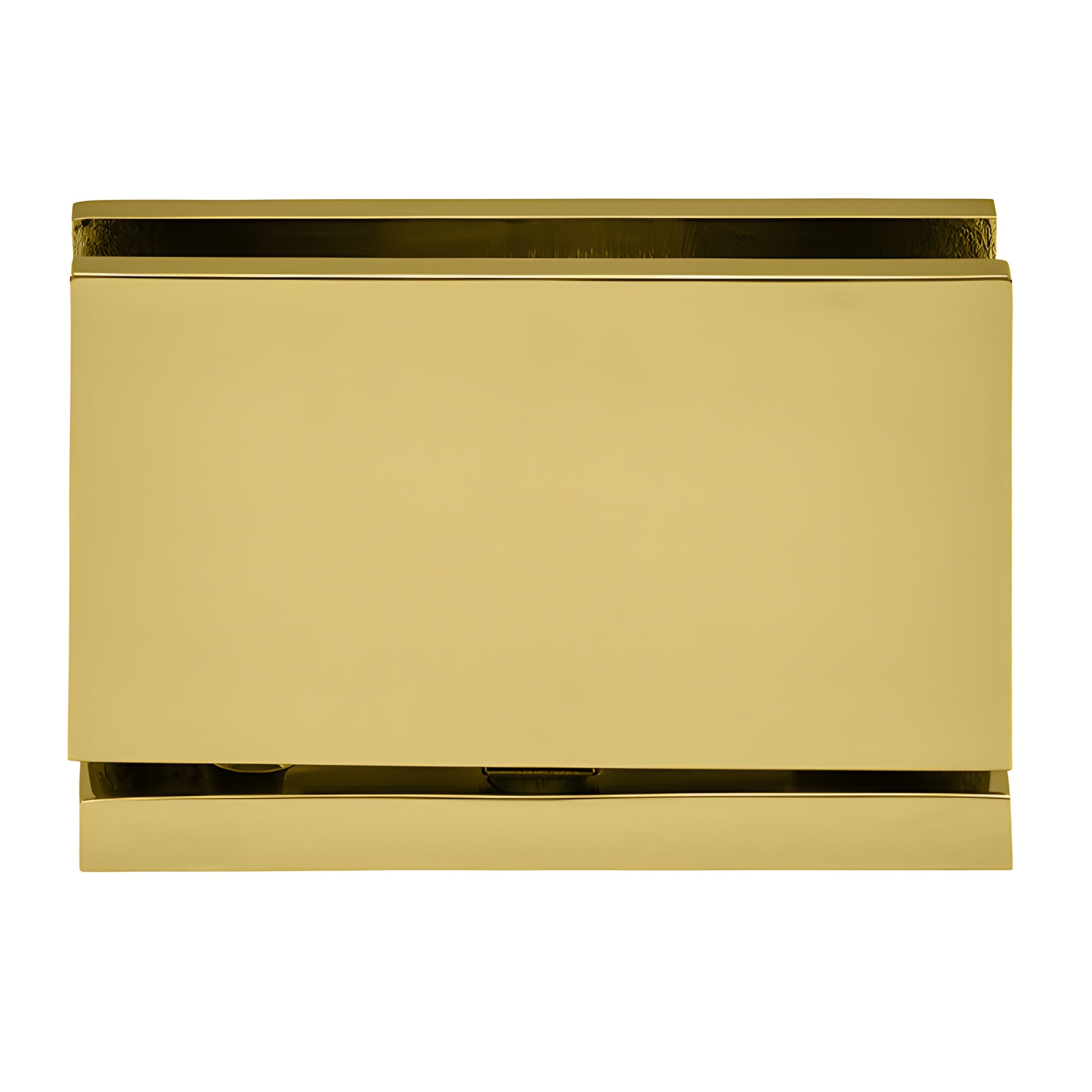

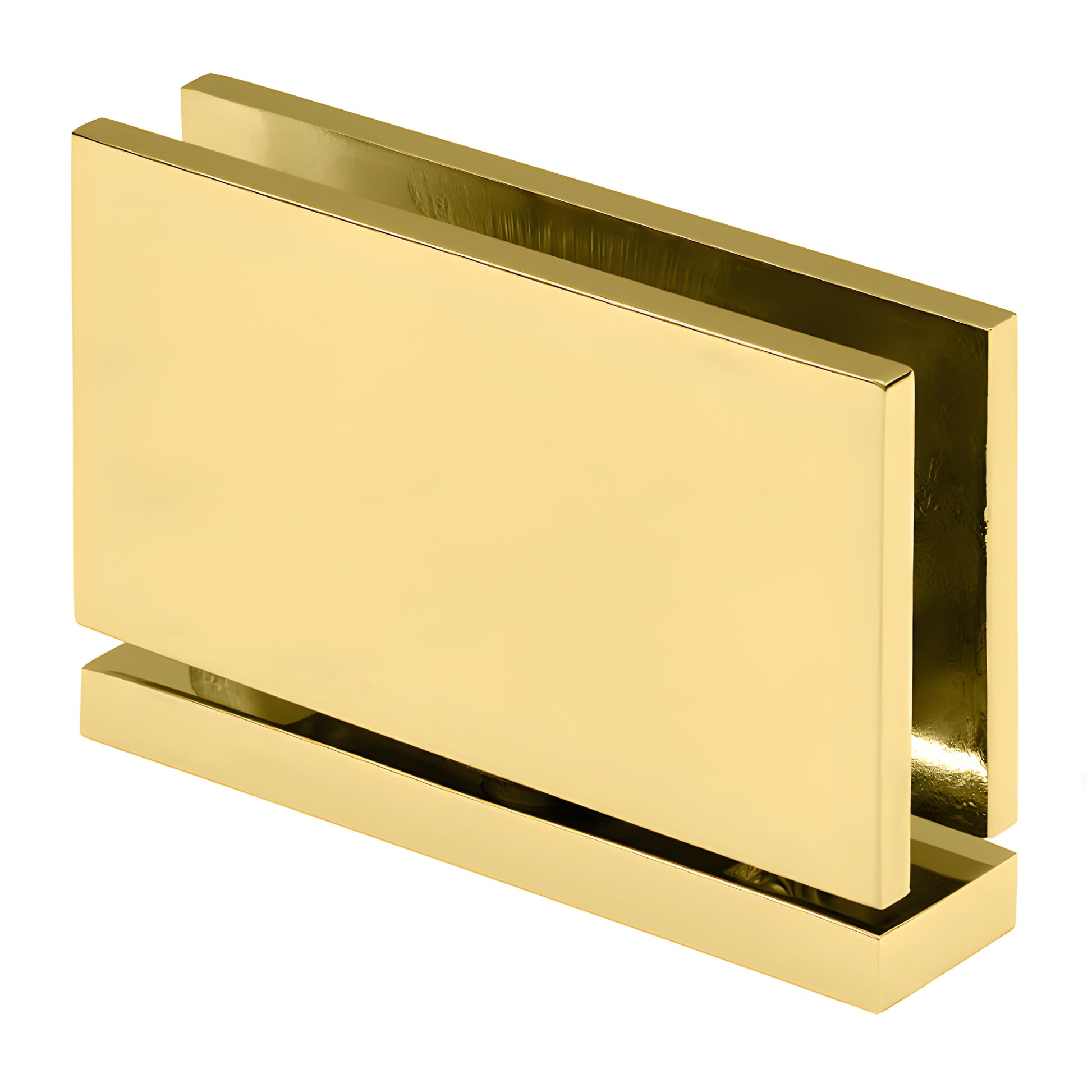

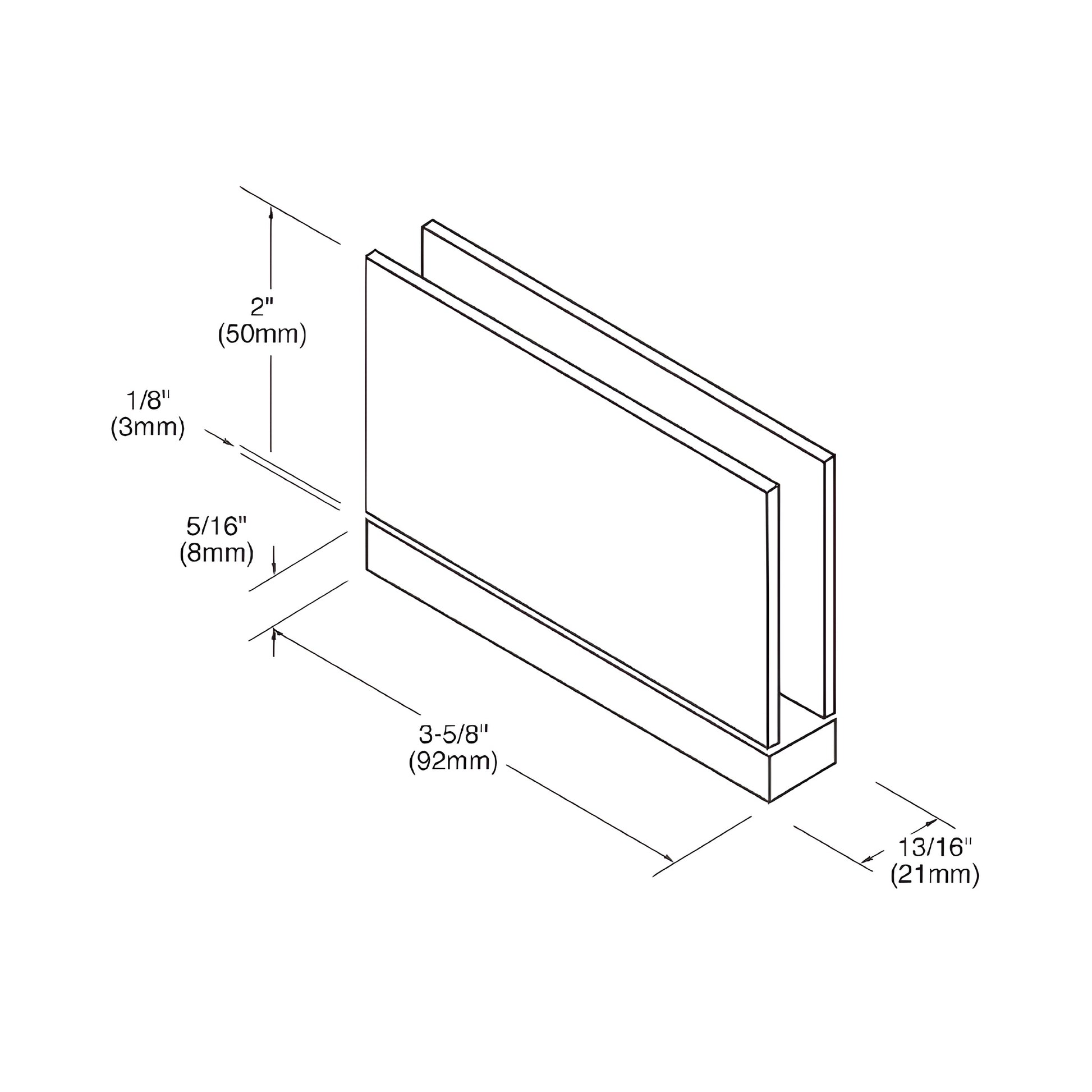

CRL Cardiff Polished Brass Top/Bottom Mount Shower Door Hinge

• Top or Bottom Mount (Adaptable to Deluxe Header Kit)
• Available in several durable finishes
• For use with monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges (SKU: CAR01BR) are precision brass pivot hinges engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Ideal for glass shower doors and frameless shower enclosures, these shower door pivot hinges provide flexible installation options—floor-and-ceiling, floor-and-header, or floor-and-rail—reducing visible hardware and required glass cut-outs compared with standard side-mount glass-to-glass hinges. Cardiff hinges are self-centering with four springs for strong retention and carry the majority of the door weight on the bottom, allowing inset mounting that preserves clearance for towel bars and other projections. Optional 5° pre-set pivot pin sets are available separately for slight door-closing position adjustment. The series is adaptable to the Deluxe Header System (HAB01 Adaptor Block sold separately).

NOTE: Optional 5° Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) adjusts door closing by 5°. Can be installed before or retrofitted after hinge installation. Sold as a set of two (top and bottom). Not included with hinge purchase.

Performance: Using two hinges with 5/16" or 3/8" glass, each hinge system will hold up to 100 lbs. (45 kg) with a maximum supported door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top & bottom mount design for more visible glass and fewer cut-outs versus side-mount hinges. Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid Brass (durable pivot hinge for glass shower doors)
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
This hinge series is patented (Patent No. 5,297,313).

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.
