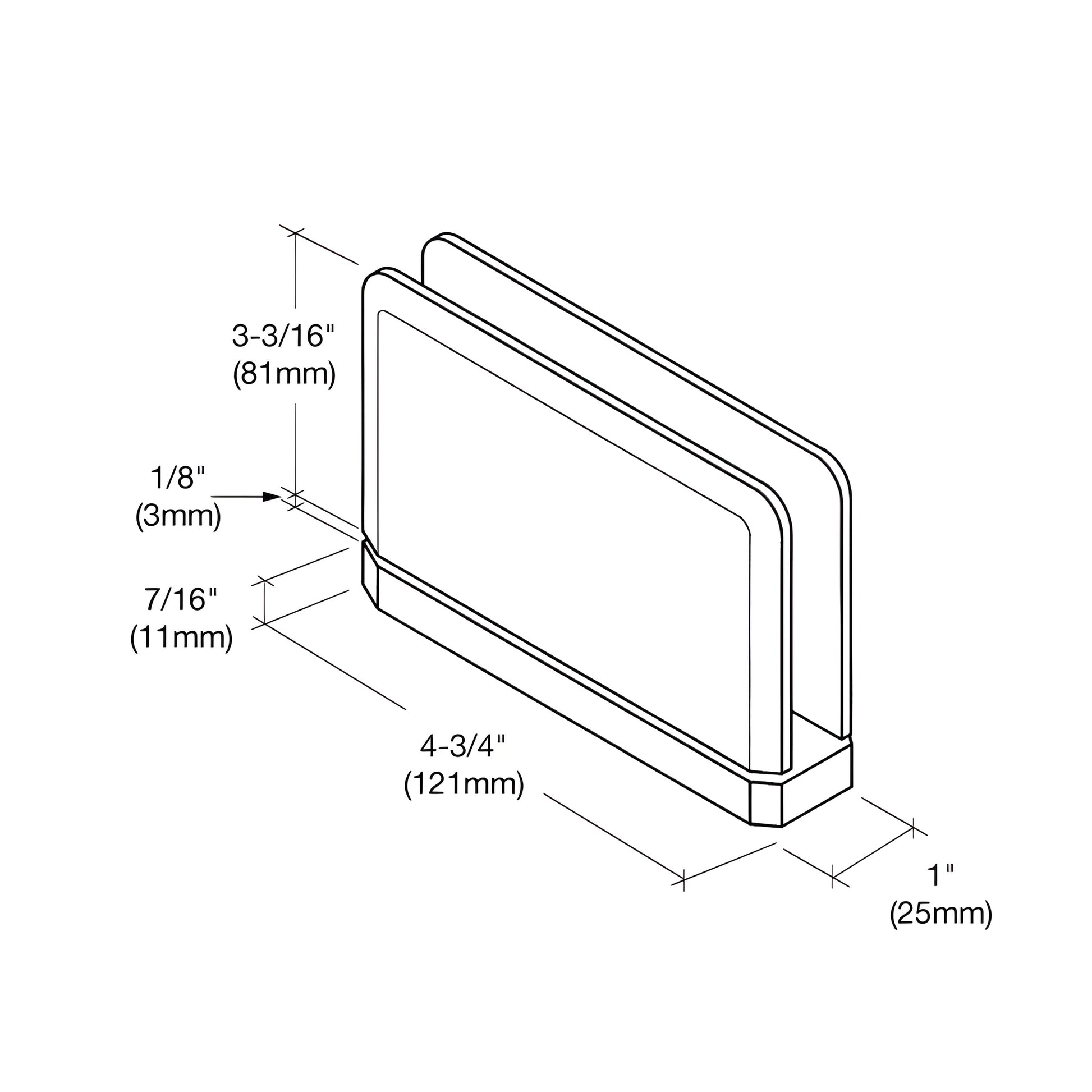

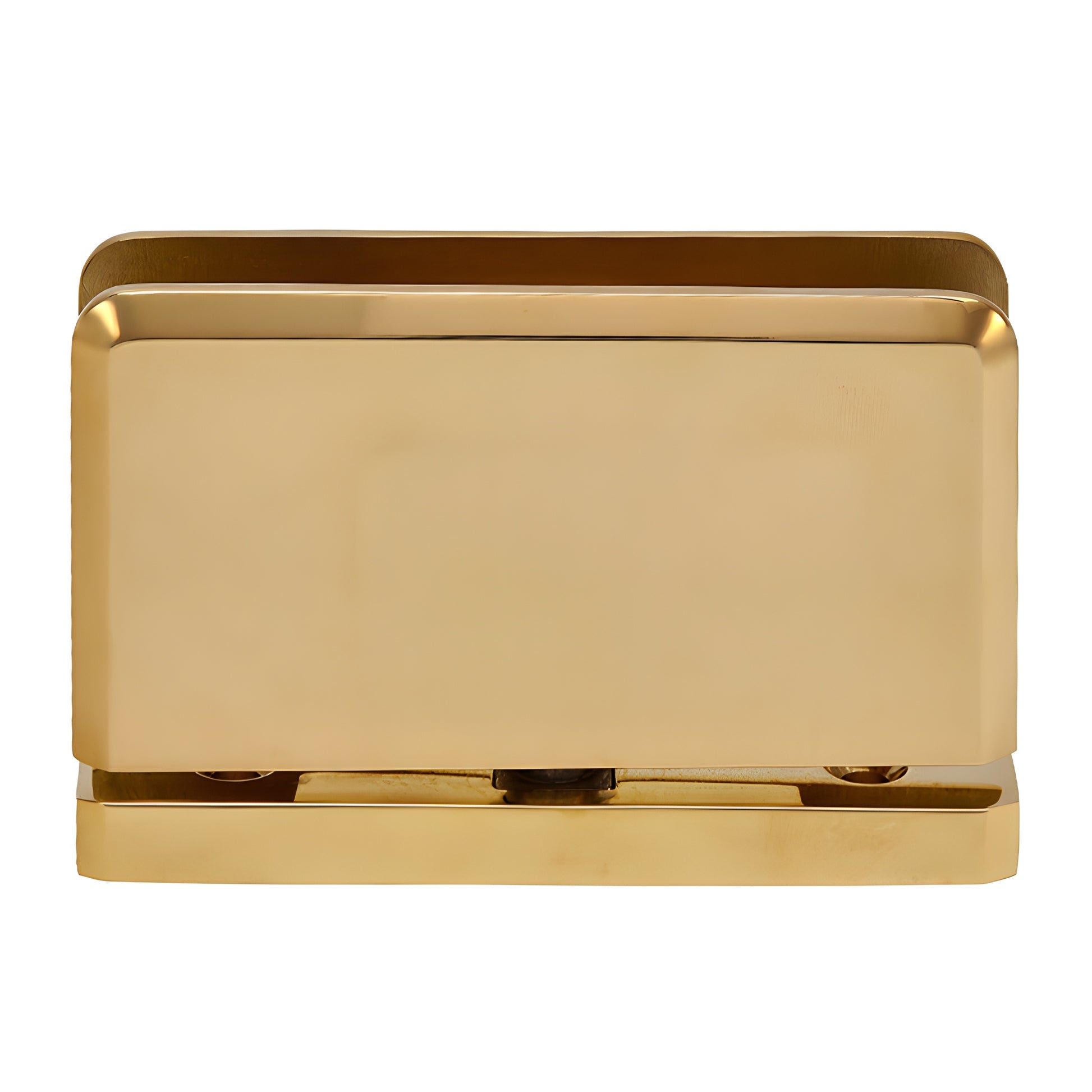

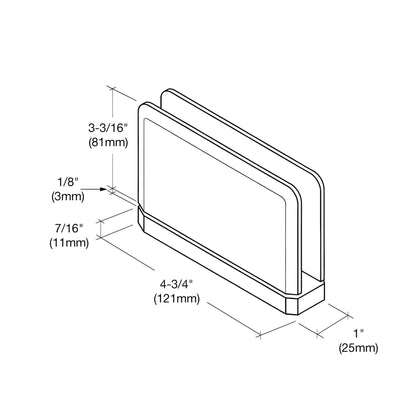

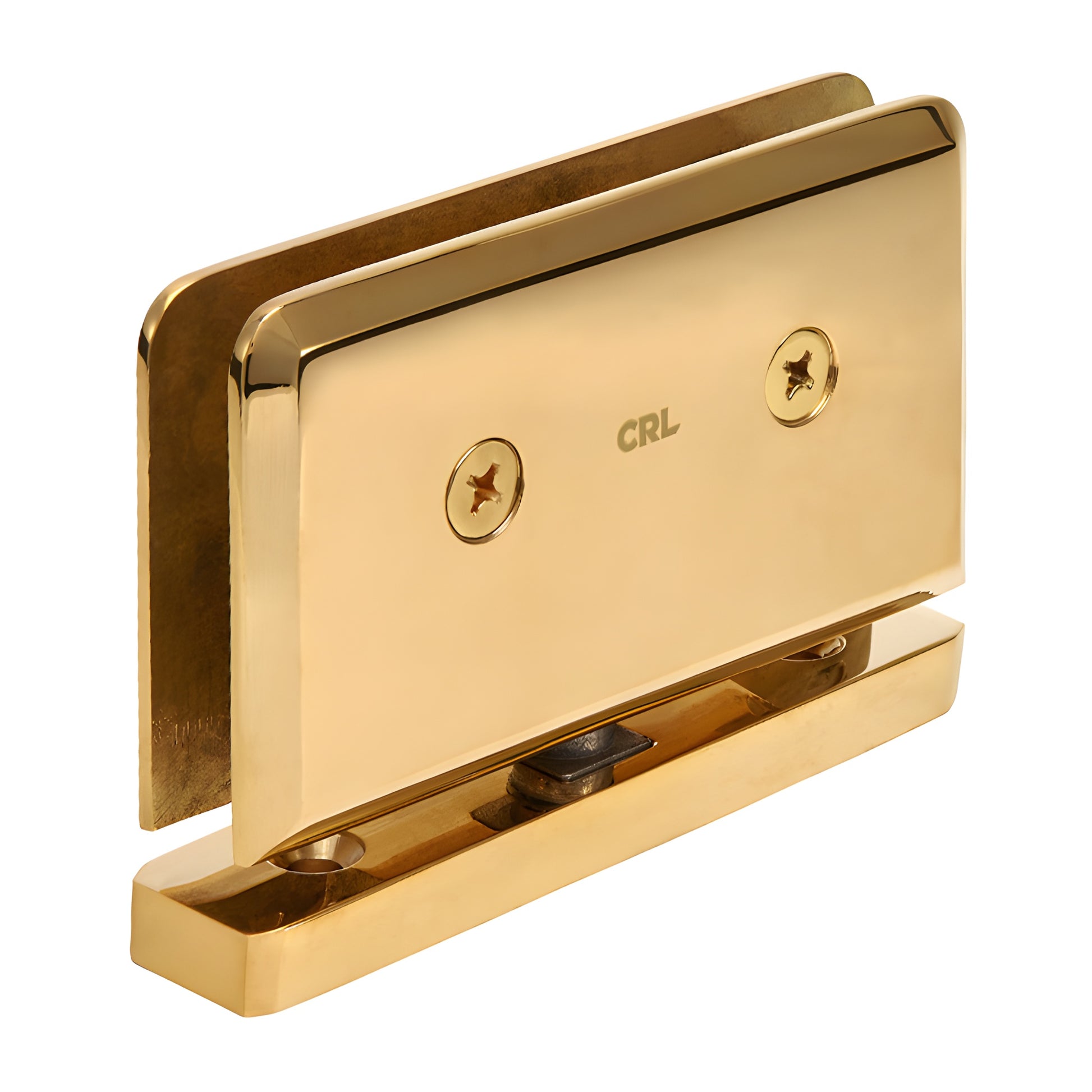

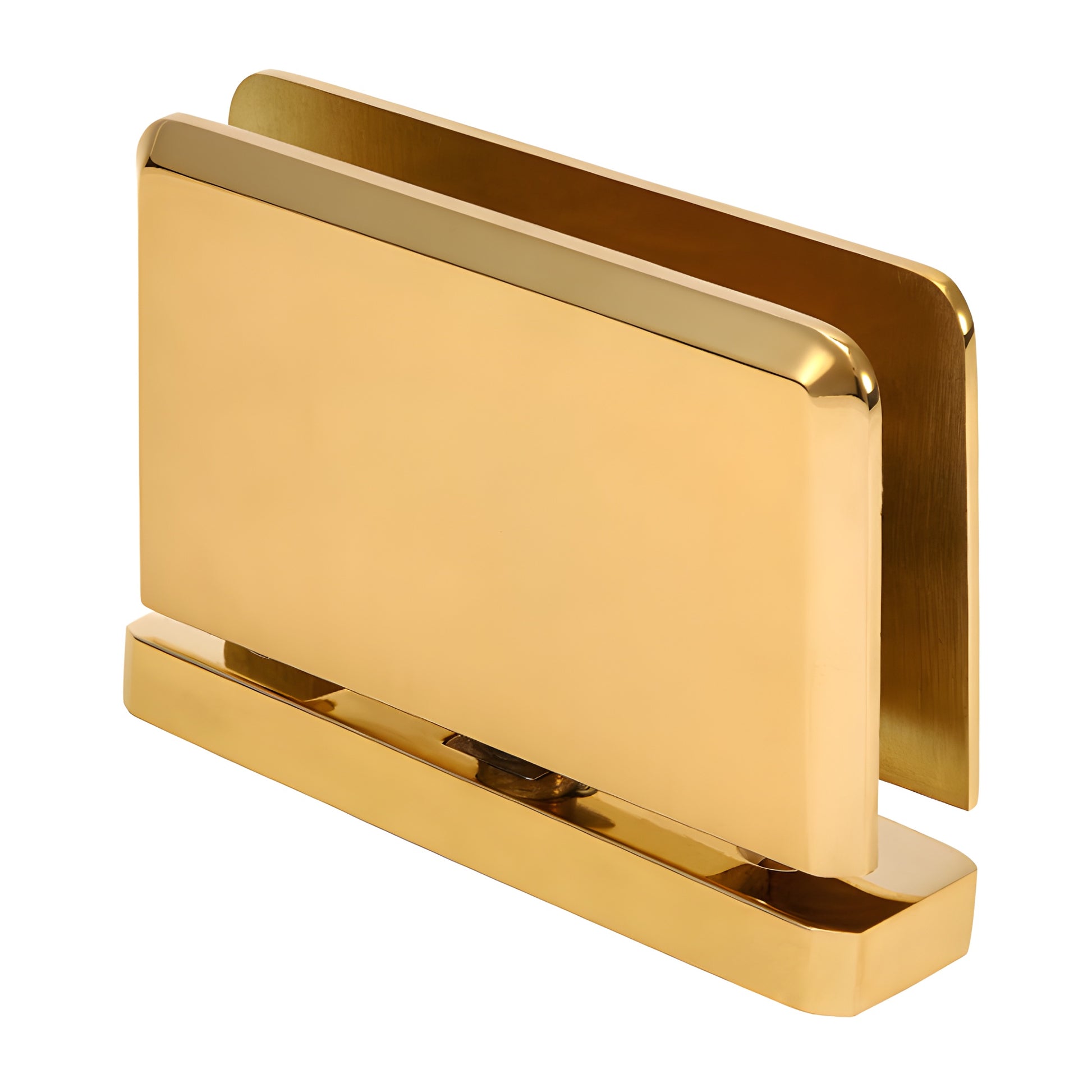

CRL Senior Prima 01 Polished Brass Top/Bottom Glass Door Hinge

• Top or Bottom Mount
• For use with 1/2" (12 mm) tempered glass
• Available in several beautiful finishes
• Use monolithic tempered glass
• 3 year warranty
• U.S. Patent 5,297,313

Advantages of CRL Senior Prima Hinges: these glass shower door hinges carry the majority of the weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is designed for doors with fixed transoms above; mounted vertically it can also be used in movable transom installations. These pivot hinges are self-centering with four springs for maximum retention strength. The SRPPH01 Model (SKU: SRPPH01BR) is adaptable to our Deluxe Header System.

NOTE: Must order SRHAB01 Senior Adaptor Block separately. Our SRPPH06 Model is only compatible with the EZ-Adjust Header System and includes its required adaptor.

SENIOR PRIMA (1/2" glass): Using two hinges with 1/2" (12 mm) tempered safety glass, each hinge set will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA (1/4" glass): Using two hinges with 1/4" (6 mm) tempered safety glass, each hinge set will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:

Glass Thickness:
Senior Prima: 1/2" (12 mm) tempered safety glass
Junior Prima: 1/4" (6 mm) tempered safety glass

Special Feature: Top and bottom mount allows more glass exposure and can reduce glass fabrication costs compared to side-mount glass-to-glass hinges that require additional cut-outs.

Construction: Solid brass

Hinge Swings: Full rotation

Closing Type: Self-centering within 15° of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions

Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for finish options and quote requests.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. If you intend to use hinges for other purposes, obtain approval from the CRL Shower Door Technical Sales
