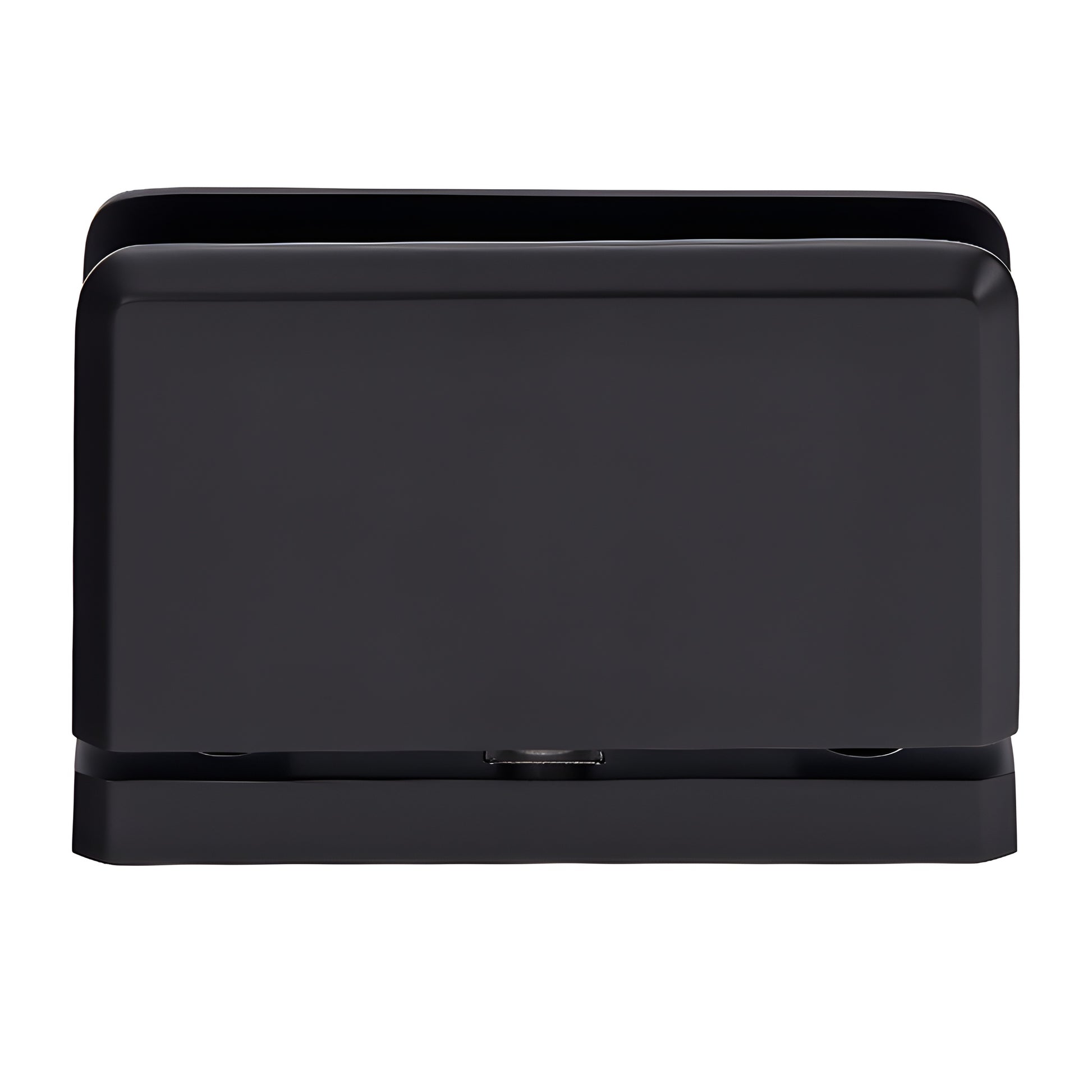

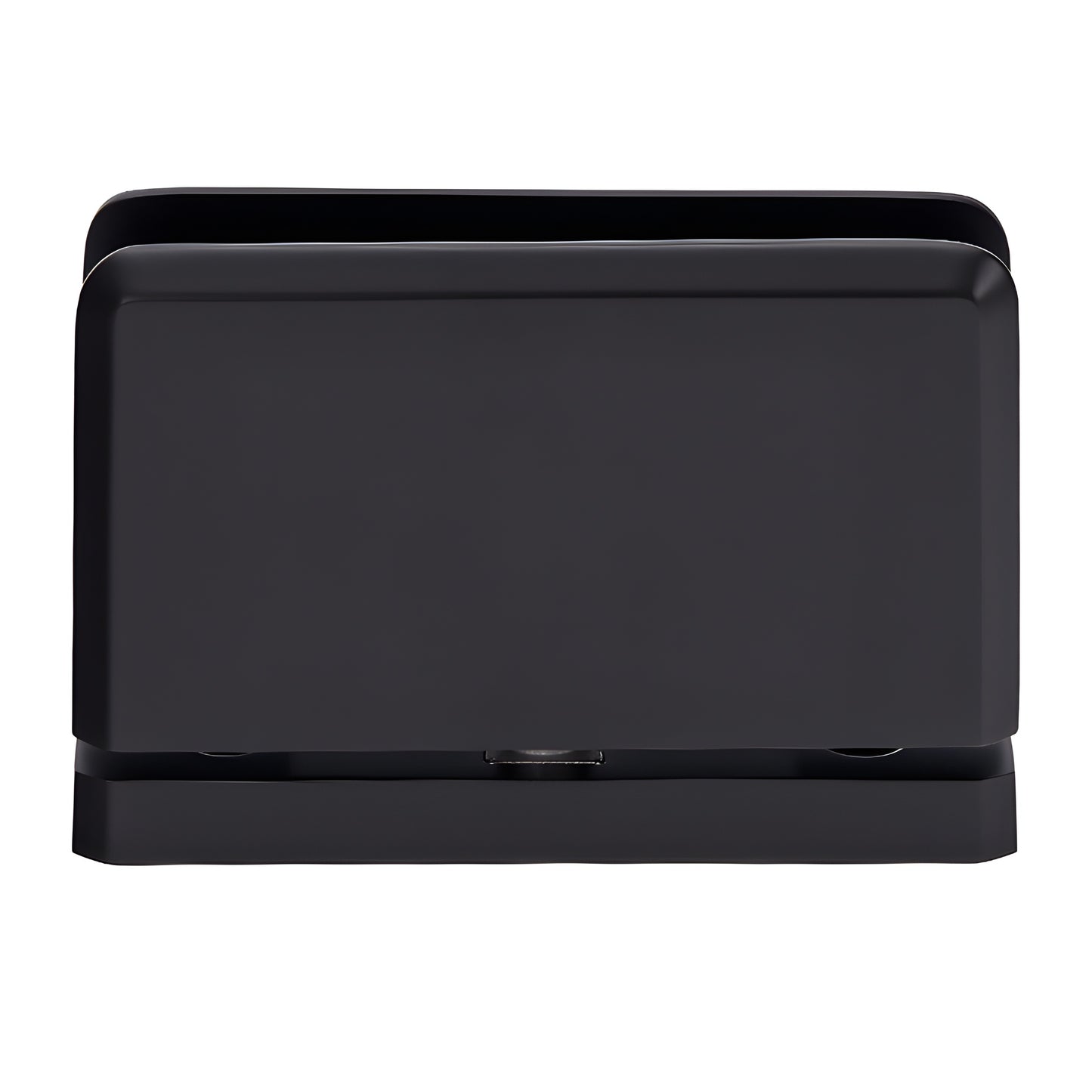

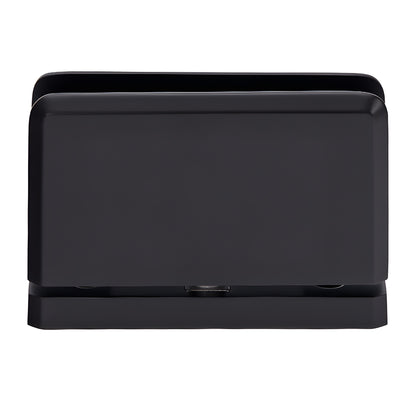

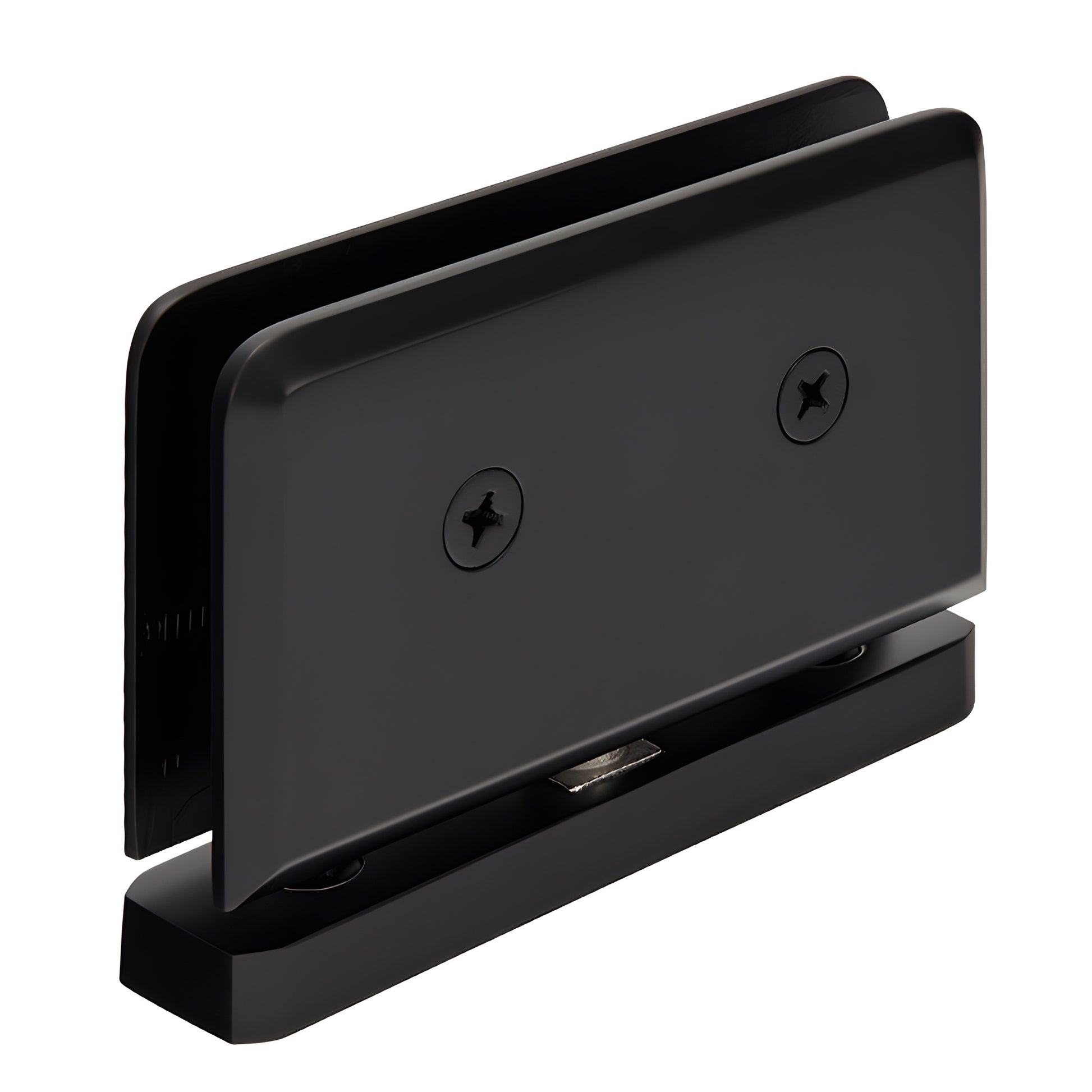

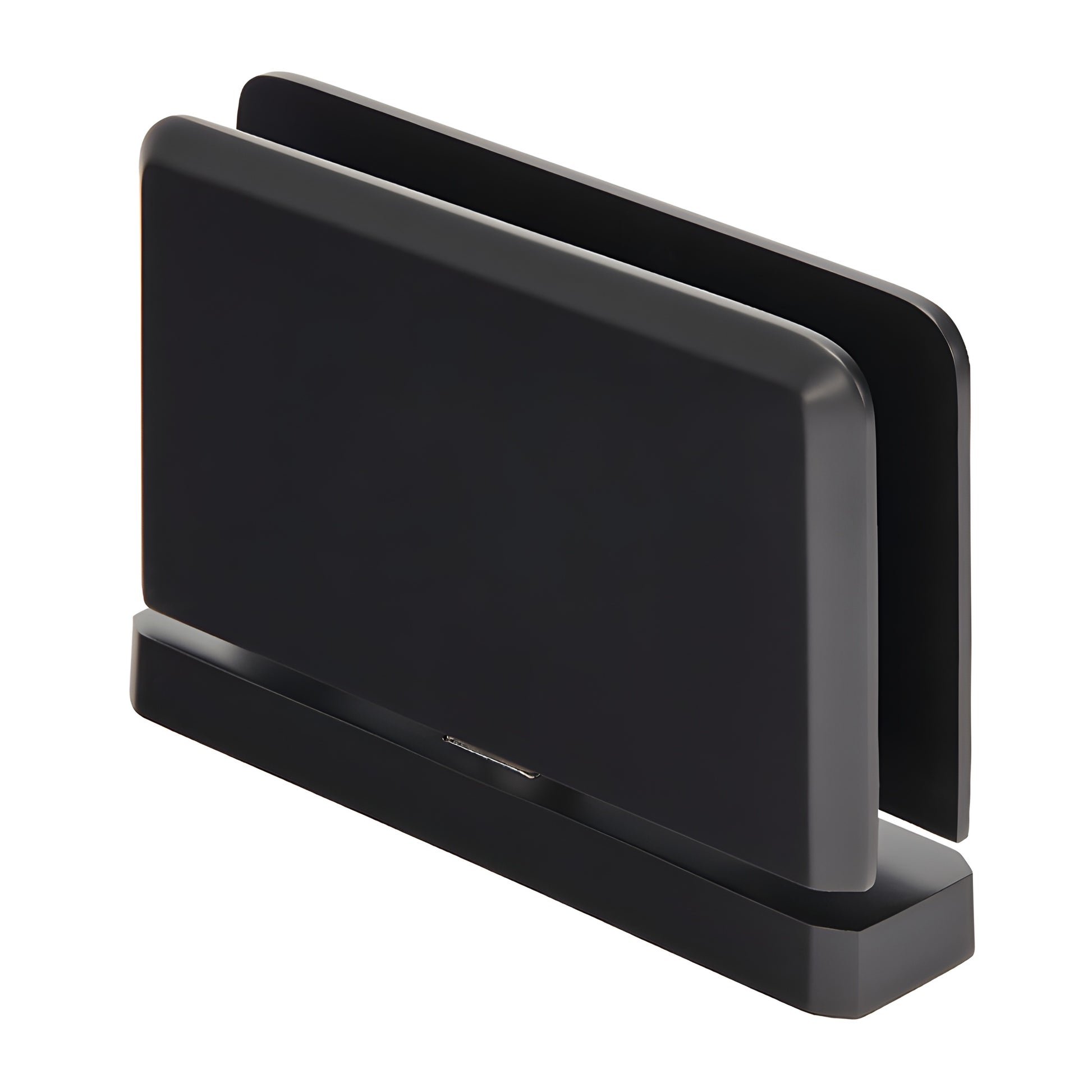

CRL Senior Prima 01 Matte Black Top/Bottom Mount Door Hinge

• Top or Bottom Mount
• For use with 1/2" (12 mm) glass
• Available in several beautiful finishes
• Use monolithic tempered glass
• 3 year warranty
• U.S. Patent 5,297,313

Advantages of CRL Senior Prima Hinges include bottom-weight support and the ability to be inset from the wall for clearance of towel bars and other projections. This Glass-to-Fixed Transom Mount Pivot Hinge is designed for doors with fixed transoms and—when oriented vertically—can be used in movable transom installations. The pivot hinges are self-centering with four internal springs for maximum retention strength. The SRPPH01 model (SKU: SRPPH01MBL) is adaptable to CRL’s Deluxe Header System.

NOTE: Must order SRHAB01 Senior Adaptor Block separately. The SRPPH06 model is compatible only with the EZ-Adjust Header System and includes its required adaptor.

SENIOR PRIMA: With two hinges and 1/2" (12 mm) tempered safety glass, holds up to 145 lbs (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: With two hinges and 1/4" (6 mm) tempered safety glass, holds up to 62 lbs (28 kg) with a maximum door width of 28" (711 mm).

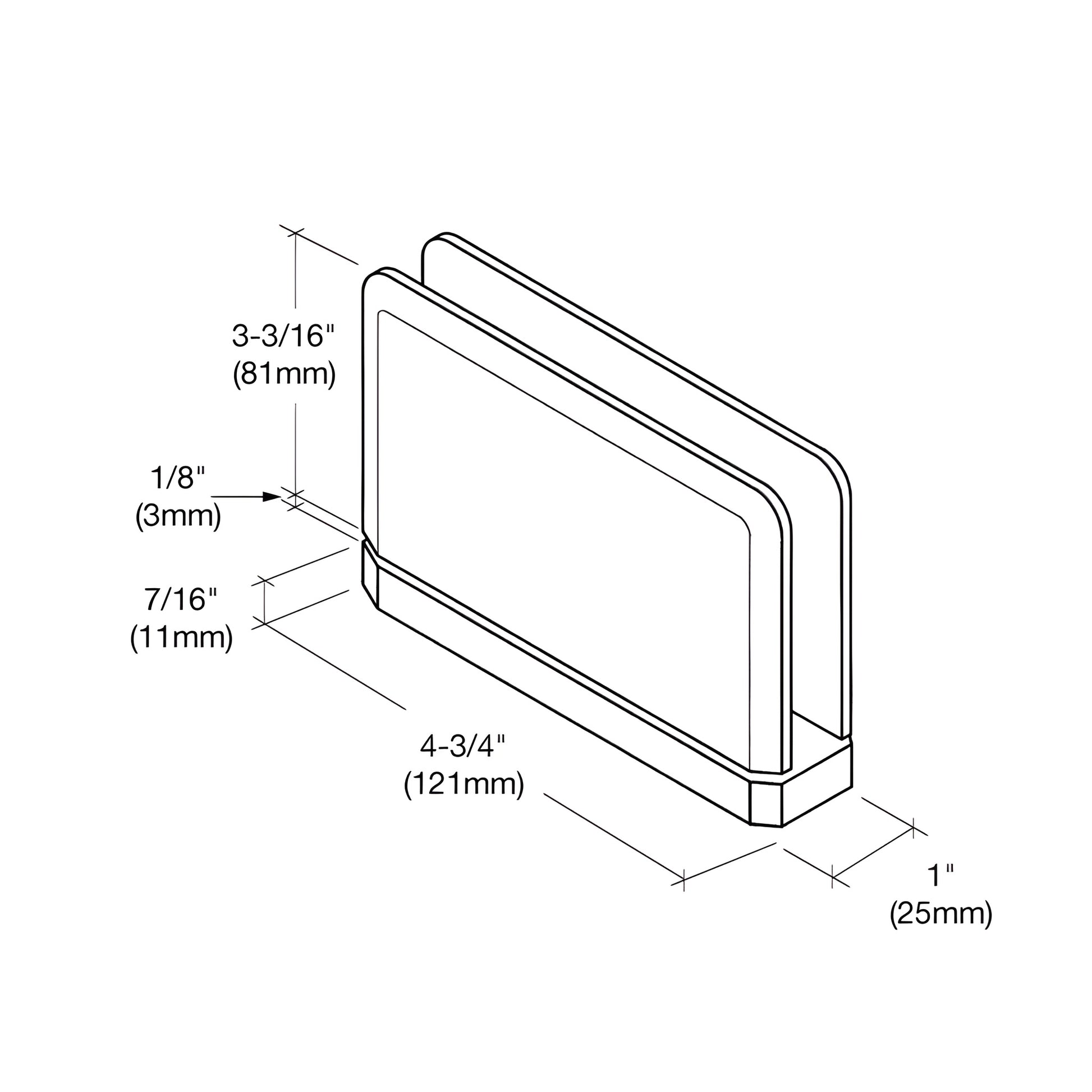

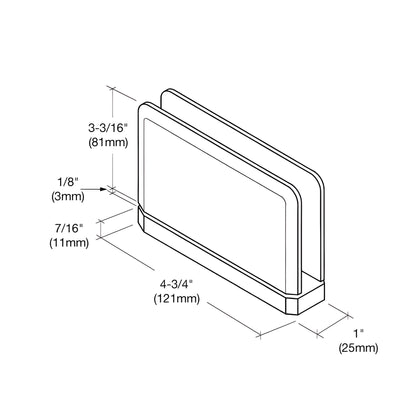

SPECIFICATIONS:

Glass Thickness:
Senior Prima: 1/2" (12 mm) tempered safety glass
Junior Prima: 1/4" (6 mm) tempered safety glass

Special Feature: Top and bottom mount exposes more glass and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require additional cut-outs.

Construction: Solid brass

Hinge Swings: Full rotation

Closing Type: Self-centering within 15° of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions

Patent: Senior and Junior Prima Hinges (Patent No. 5,297,313)

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for finish options and lead times.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use. For alternate uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may
