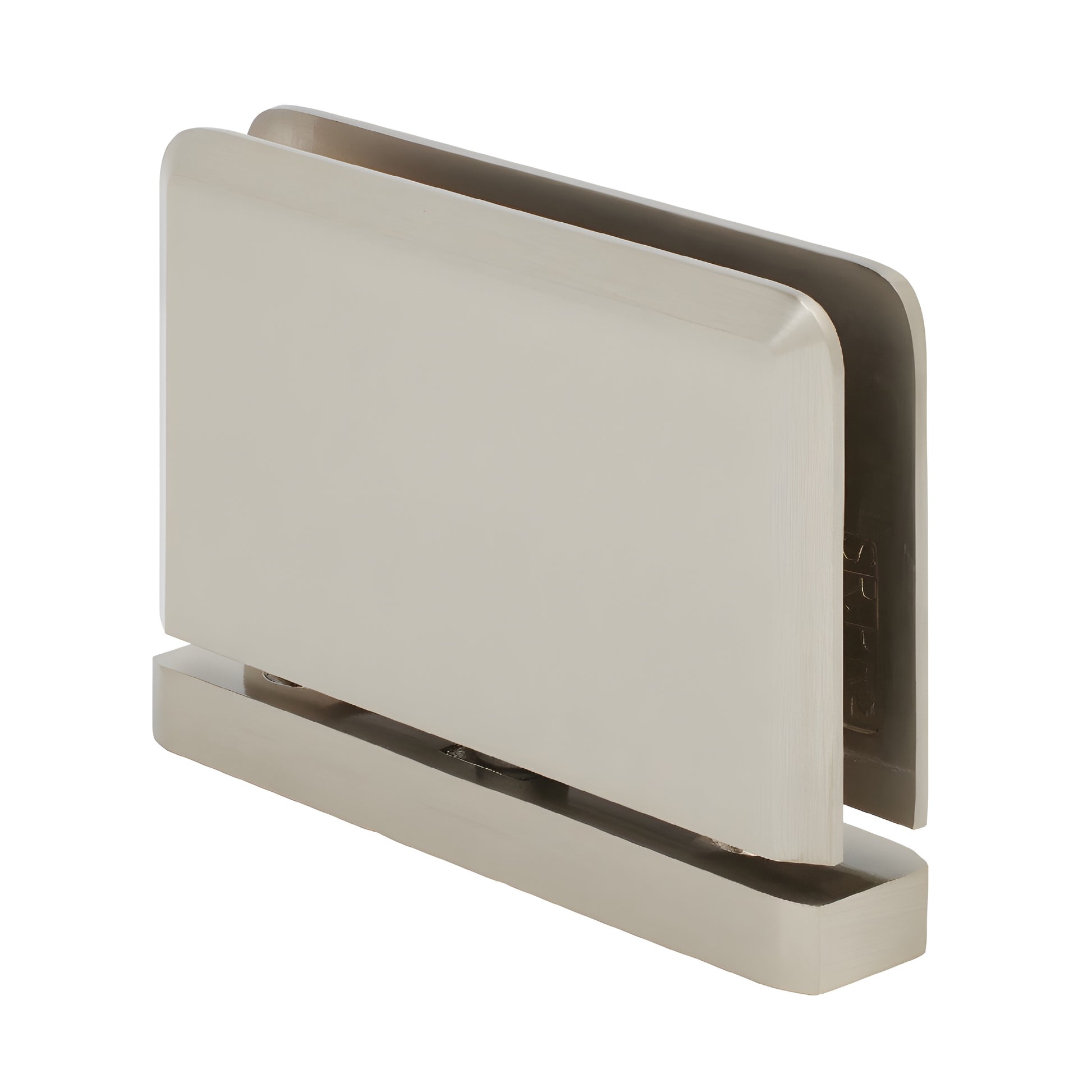

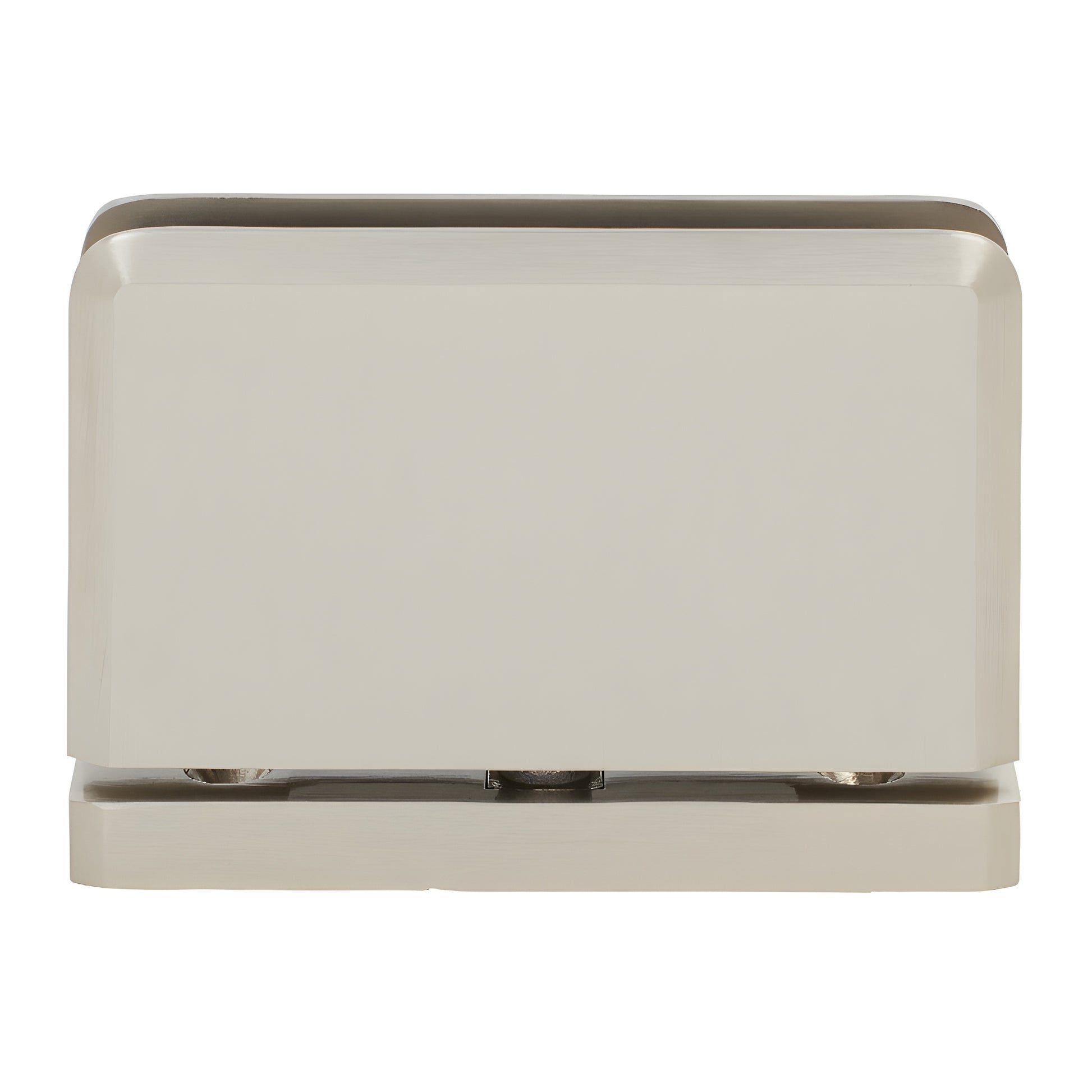

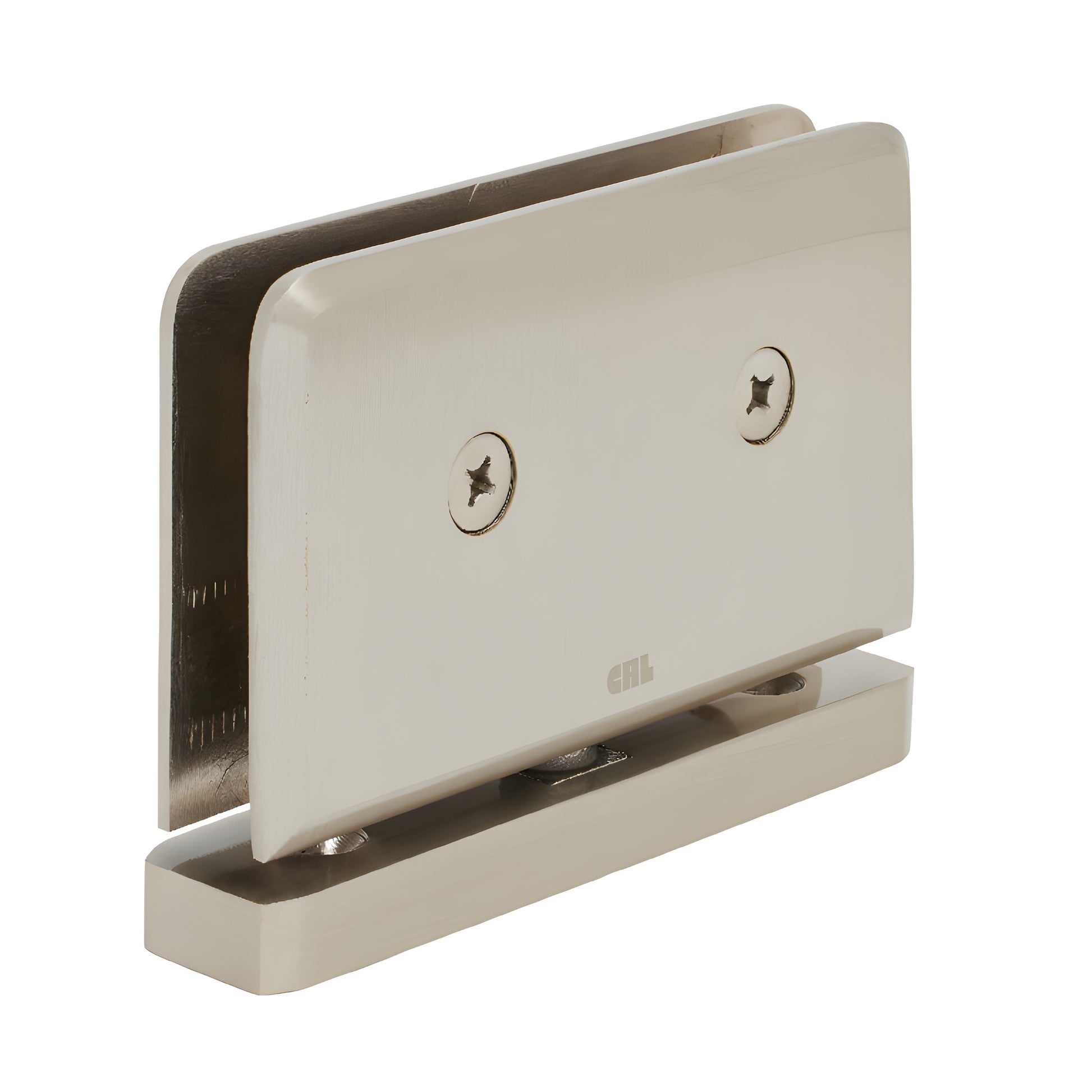

CRL Senior Prima 01 Brushed Nickel Top/Bottom Glass Door Hinge

• Top or Bottom Mount
• For Use with 1/2" (12 mm) Glass
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass
• 3 Year Warranty
• U.S. Patent 5,297,313

Advantages of CRL Senior Prima Hinges (SKU: SRPPH01BN) — heavy-duty shower door pivot hinges and glass-to-fixed transom pivot hinges designed for residential and hotel shower use. These top-or-bottom mount pivot hinges carry the majority of the door weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections. Self-centering with four springs for maximum retention strength, the SRPPH01 is adaptable to our Deluxe Header System and is ideal for frameless shower doors using tempered safety glass.

NOTE: Must order SRHAB01 Senior Adaptor Block separately. The SRPPH06 model is compatible only with the EZ-Adjust Header System and includes its adaptor.

SENIOR PRIMA: With two hinges and 1/2" (12 mm) tempered safety glass, holds up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: With two hinges and 1/4" (6 mm) tempered safety glass, holds up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

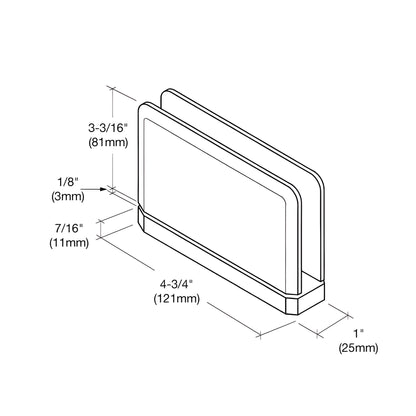

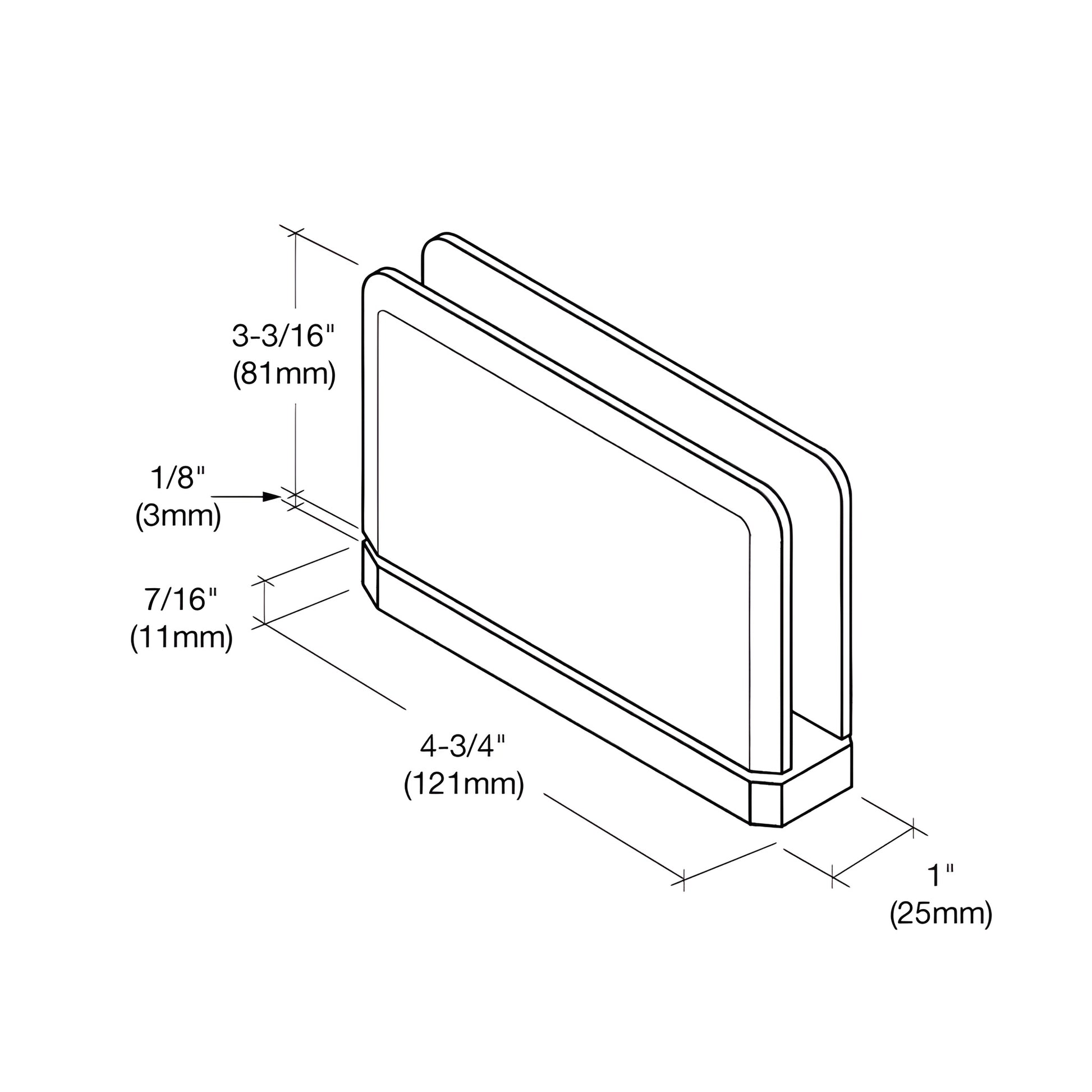

SPECIFICATIONS:
Glass Thickness:
Senior Prima — 1/2" (12 mm) Tempered Safety Glass
Junior Prima — 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount increases visible glass area and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require additional cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Patent: Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)

Custom finishes available on request — contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions may not match other brands.
