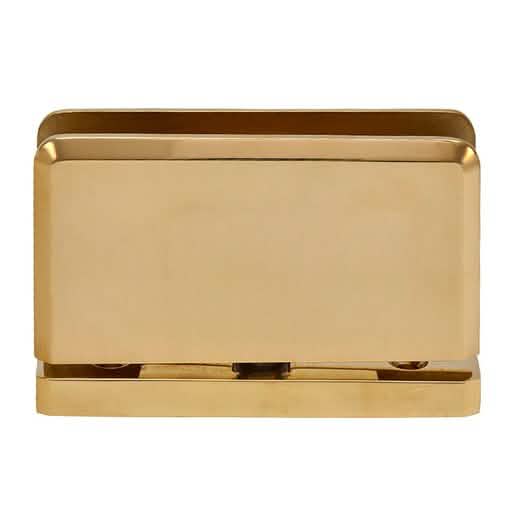

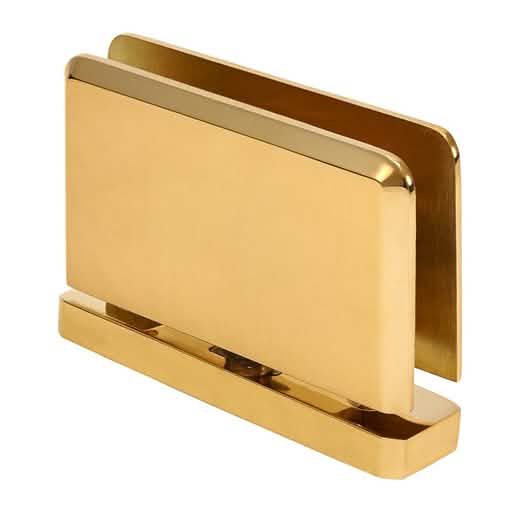

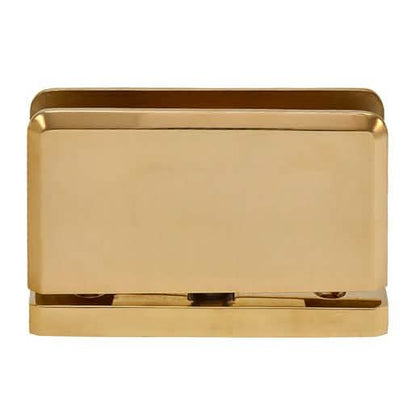

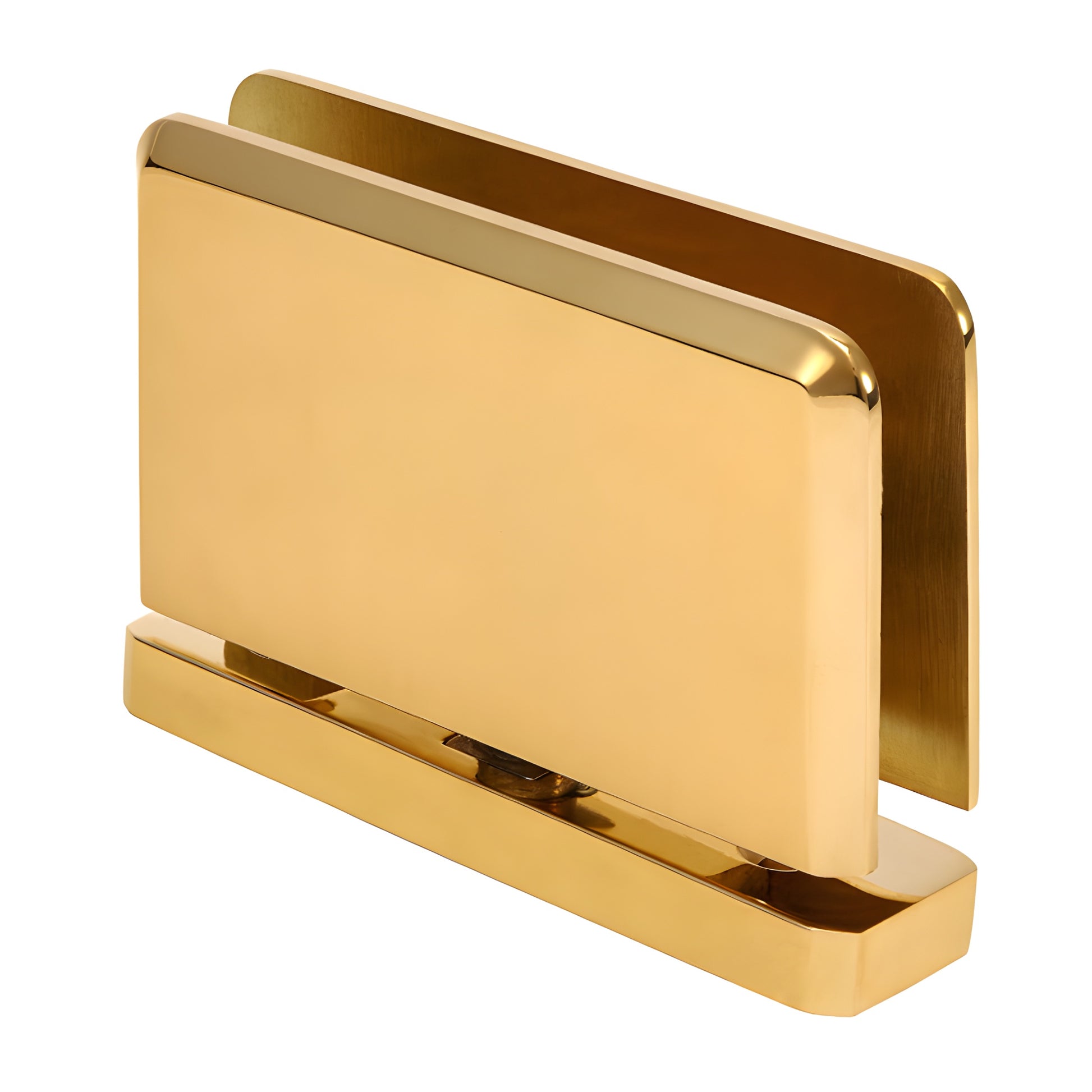

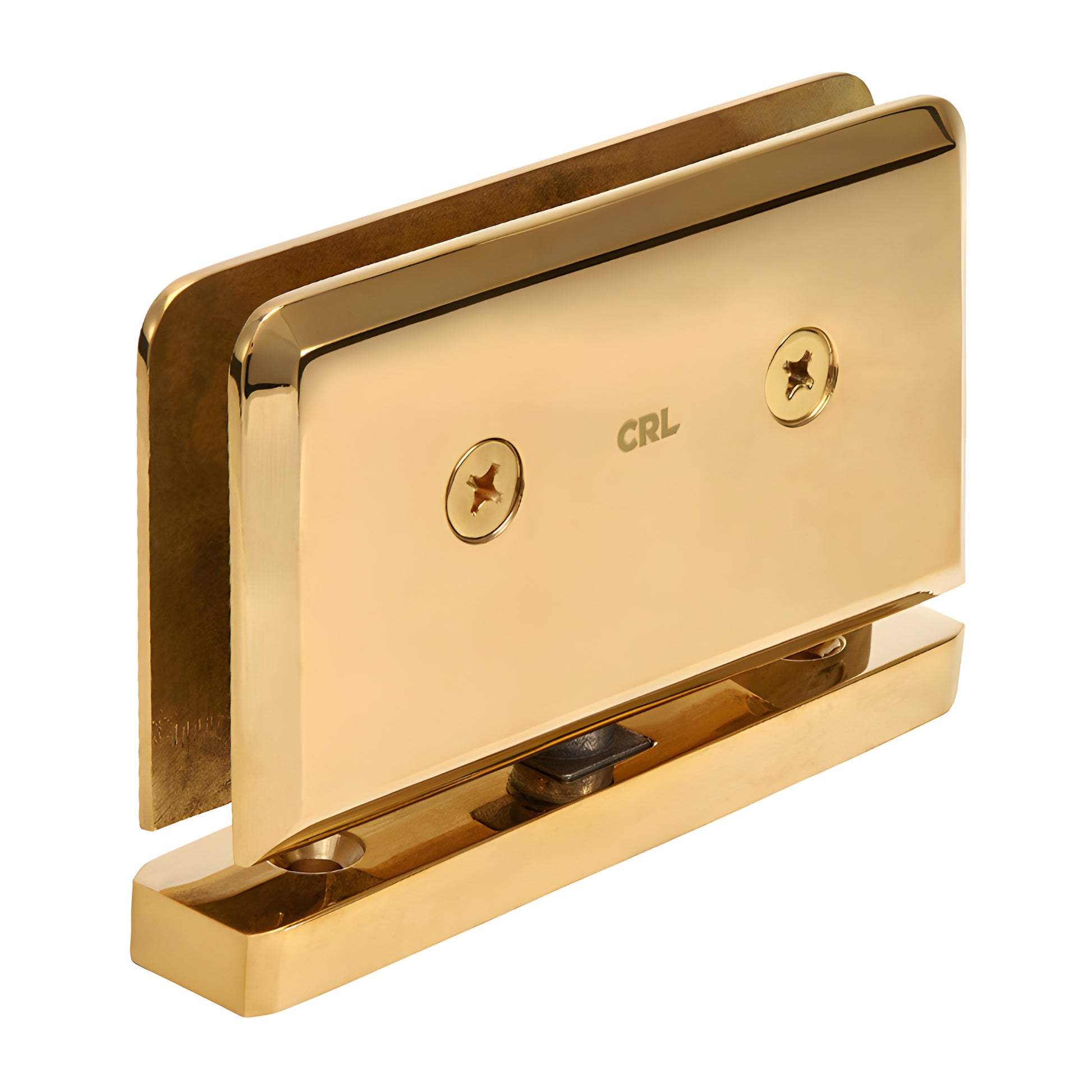

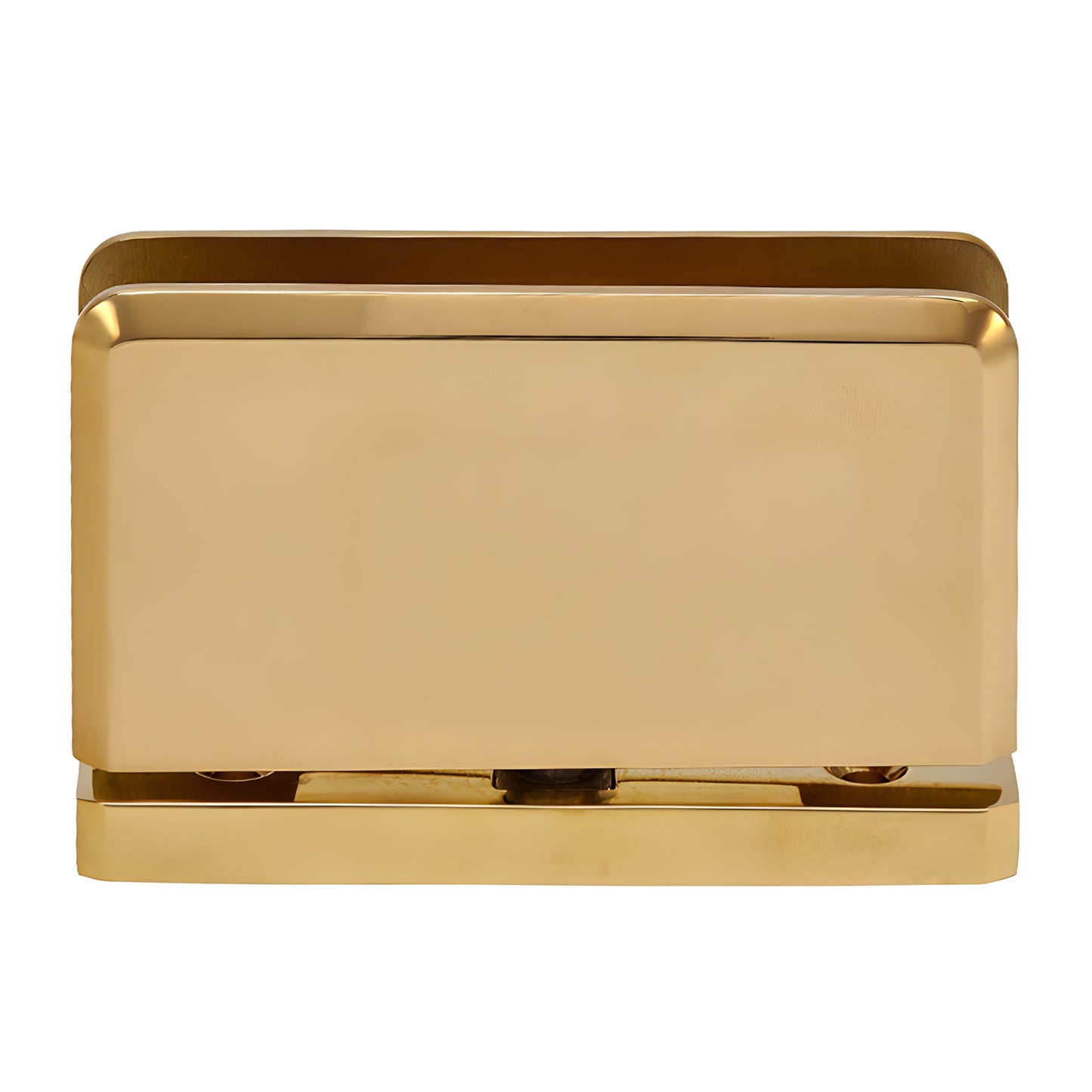

CRL Senior Prima 01 Unlacquered Brass Top/Bottom Mount Hinge

• Top or Bottom Mount
• For Use with 1/2" (12 mm) Glass
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass
• 3 Year Warranty
• U.S. Patent 5,297,313

Advantages of CRL Senior Prima Hinges (SKU: SRPPH01ULBR): these glass shower door pivot hinges carry the majority of the door weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections. Designed for glass-to-fixed transom installations, the pivot hinge is self-centering with four springs for maximum retention strength. The SRPPH01 model adapts to CRL’s Deluxe Header System.

Note: Order SRHAB01 Senior Adaptor Block separately. (SRPPH06 is compatible only with the EZ-Adjust Header System and includes its own adaptor.)

Performance & Capacity

Senior Prima (uses two hinges with 1/2" (12 mm) tempered safety glass): holds up to 145 lbs (66 kg) with a maximum door width of 36" (914 mm).

Junior Prima (uses two hinges with 1/4" (6 mm) tempered safety glass): holds up to 62 lbs (28 kg) with a maximum door width of 28" (711 mm).

Specifications

• Glass Thickness: Senior Prima — 1/2" (12 mm) tempered safety glass; Junior Prima — 1/4" (6 mm) tempered safety glass
• Special Feature: Top and bottom mount maximizes visible glass and can reduce glass fabrication costs vs. side-mount glass-to-glass hinges
• Construction: Solid brass
• Hinge Swing: Full rotation
• Closing Type: Self-centering within 15° of closed position
• Includes: Gaskets, screws, and glass fabrication dimensions
• Patent: Senior and Junior Prima Hinges — Patent No. 5,297,313

Custom finishes available on request. Contact CRL Technical Sales, Shower Door Department for finish options and pricing.

Product Warning & Installation

CRL shower door hinges are intended for residential or hotel shower use. For alternative applications, obtain written approval from CRL Shower Door Technical Sales. Use only the template included with this hinge — cut-out dimensions may differ from other brands.
