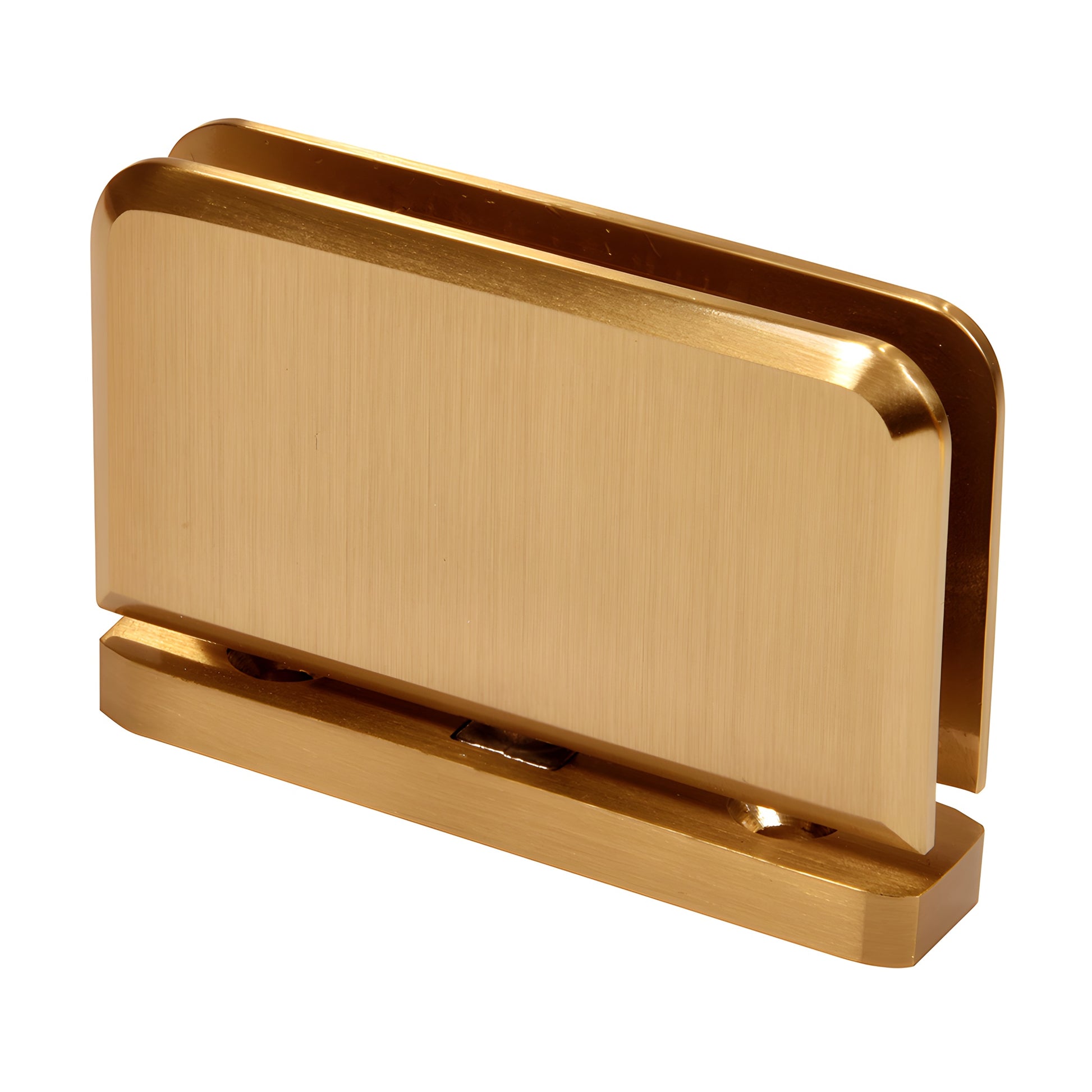

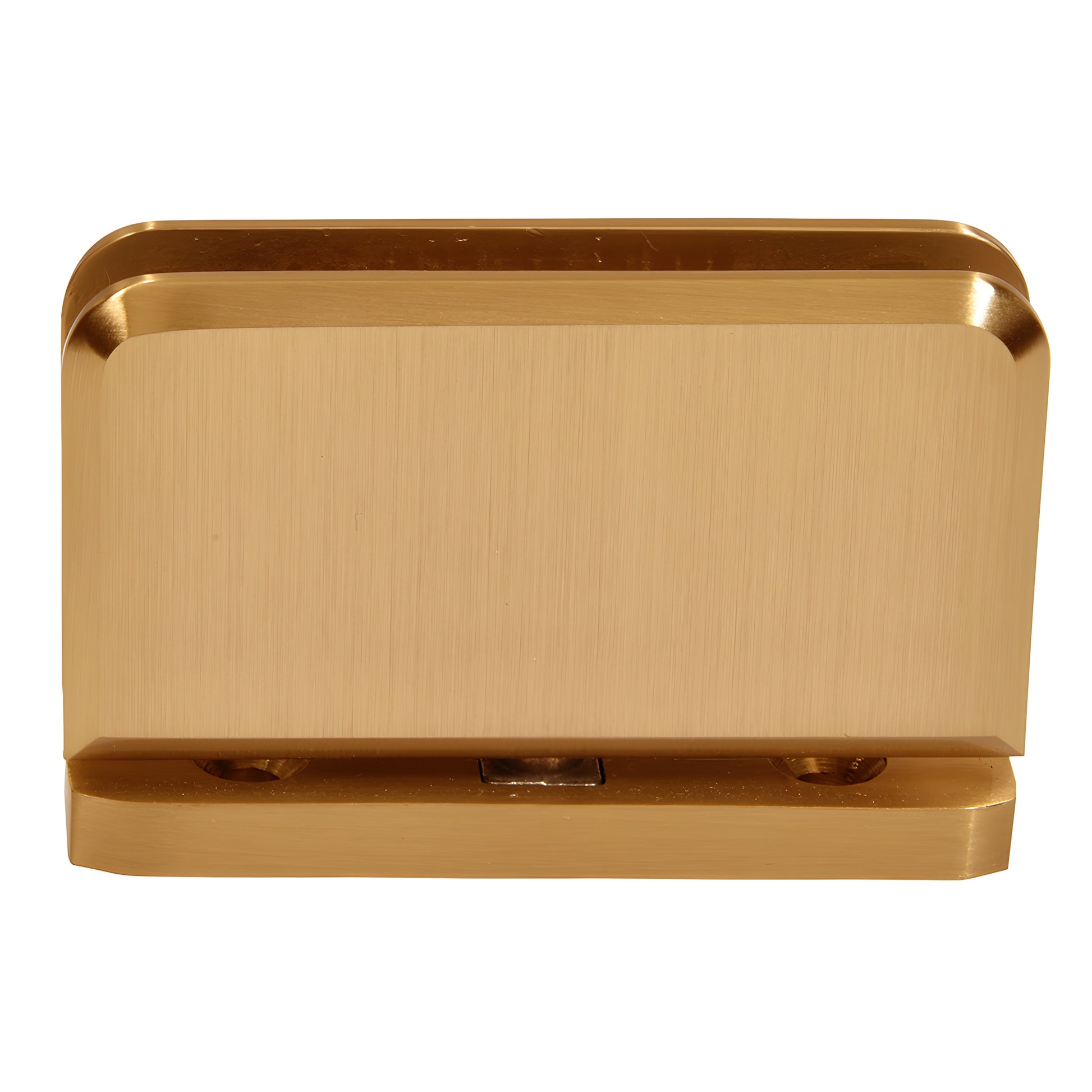

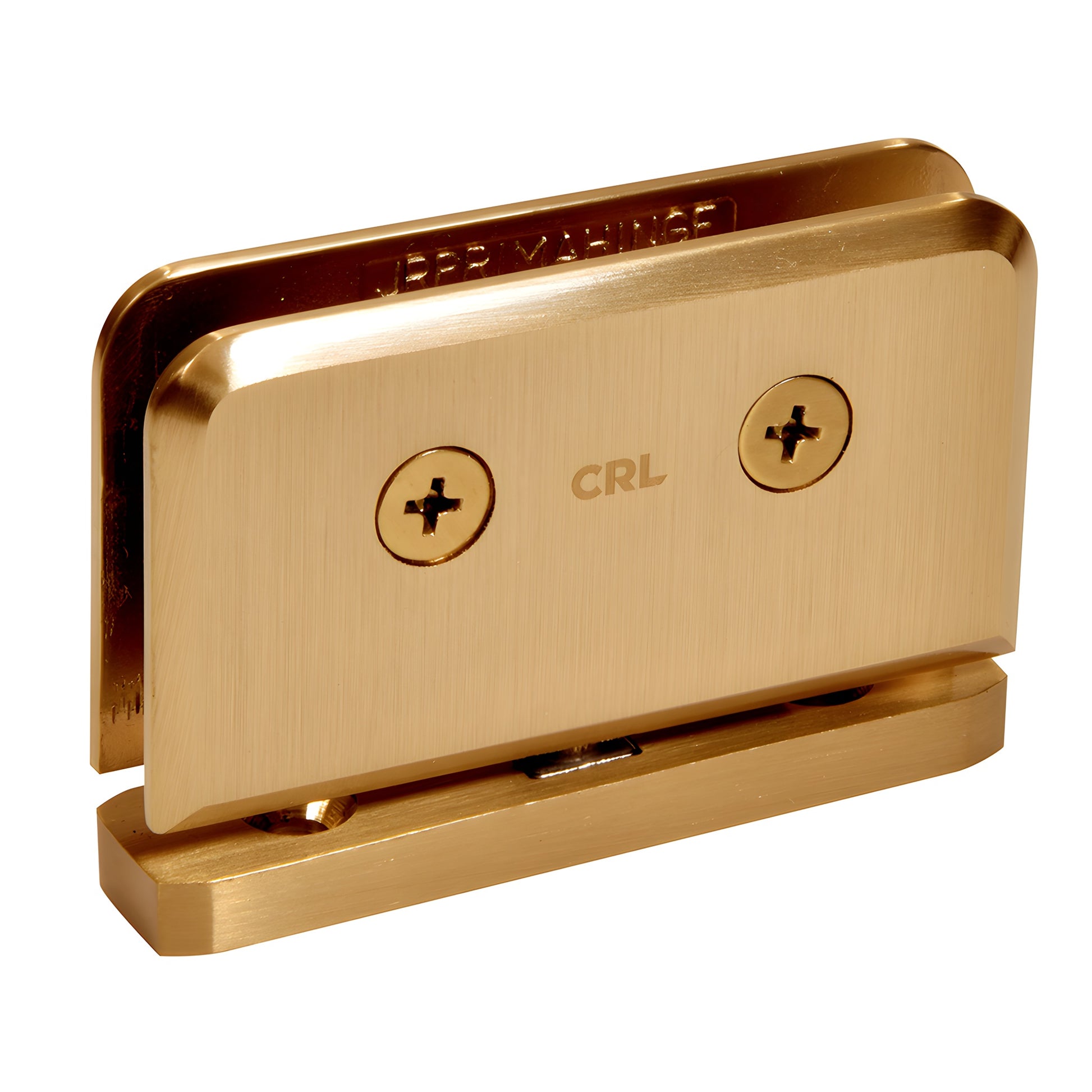

CRL Satin Brass Junior Prima 01 Top/Bottom Mount Shower Door Hinge

• Top or Bottom Mount
• For Use with 1/4" (6 mm) Glass
• Available in Several Beautiful Finishes (custom finishes available on request)
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

Advantages of CRL Junior Prima Hinges (SKU: JRPPH01SB) include bottom-weight bearing design that supports the majority of door weight and the ability to inset from the wall to provide clearance for towel bars and other projections. This glass-to-fixed transom pivot hinge is intended for doors with fixed transoms above them and can be used vertically in movable transom installations. The pivot hinge is self-centering with four springs for maximum retention strength and adapts to the CRL Junior Header System (requires JRHAB01 Junior Adaptor Block, ordered separately).

Key Differentiators

• Bottom-load design reduces stress on door edges and provides smooth operation.
• Inset mounting creates clearance for towel bars and accessories—reduces interference with wall fixtures.
• Self-centering pivot with four springs for consistent closing and retention.
• Solid brass construction for strength and durability.

SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:
Glass Thickness:
Senior Prima — 1/2" (12 mm) Tempered Safety Glass
Junior Prima — 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and bottom mount allows more visible glass area and can reduce glass fabrication cut-outs versus side-mount glass-to-glass hinges.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313).

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For uses
