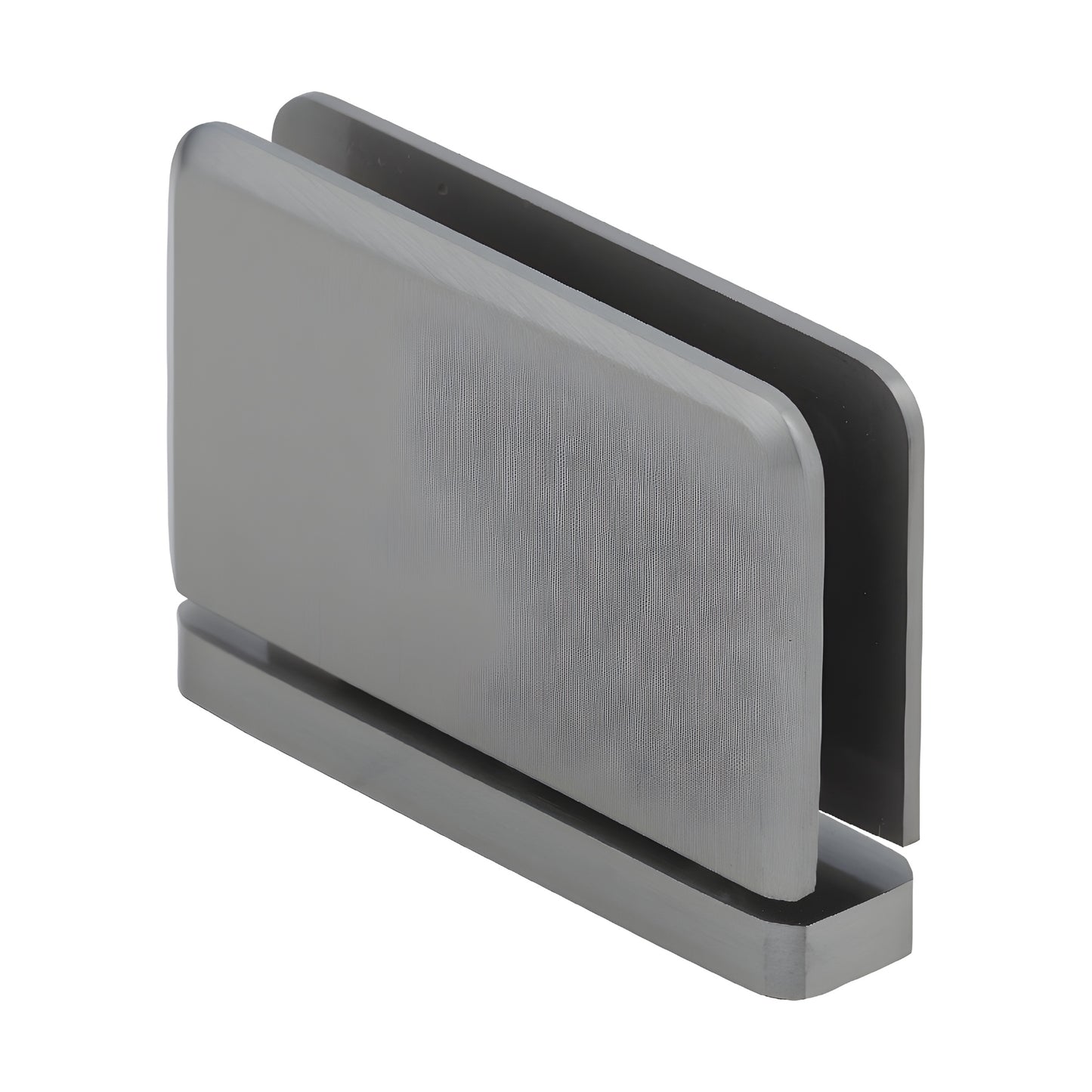

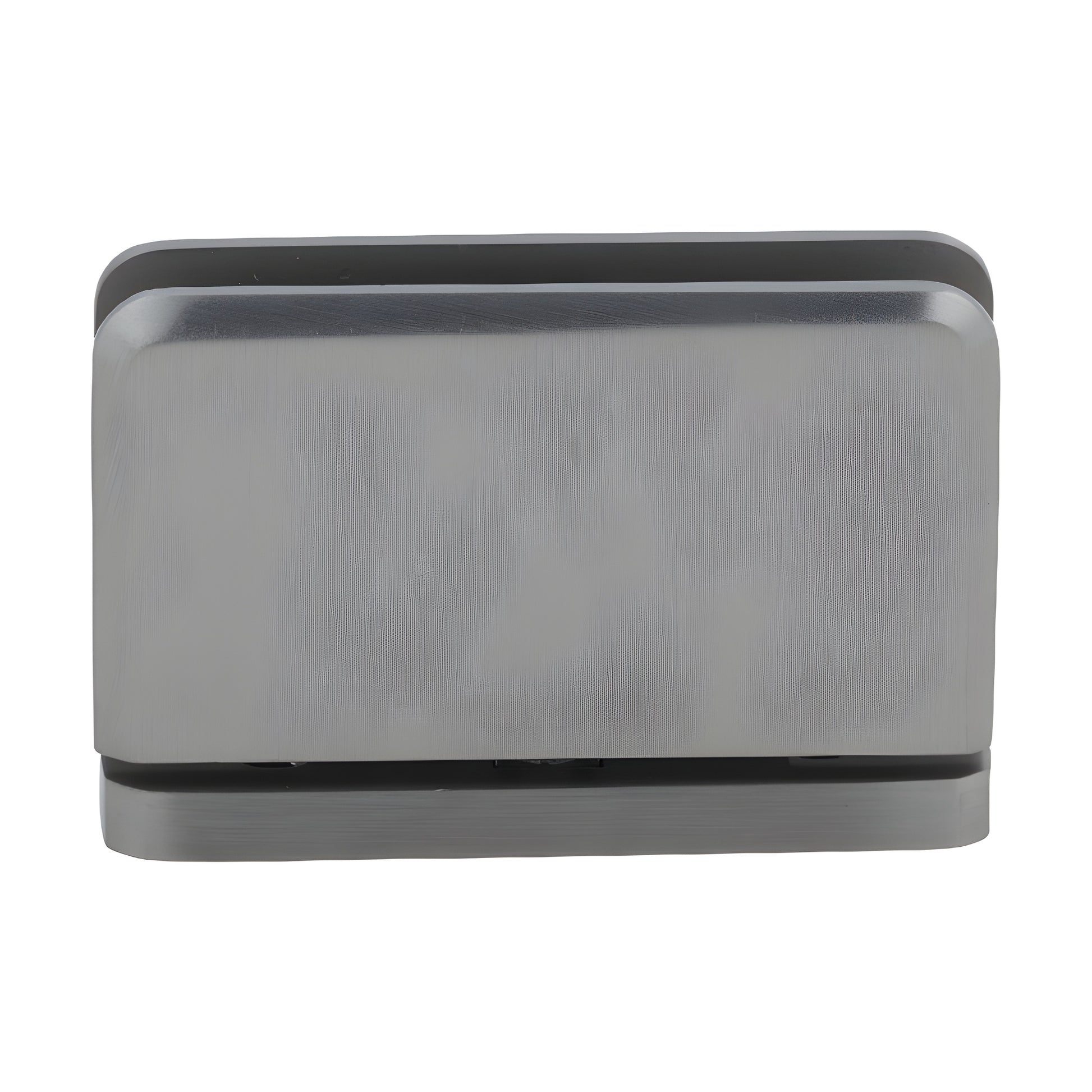

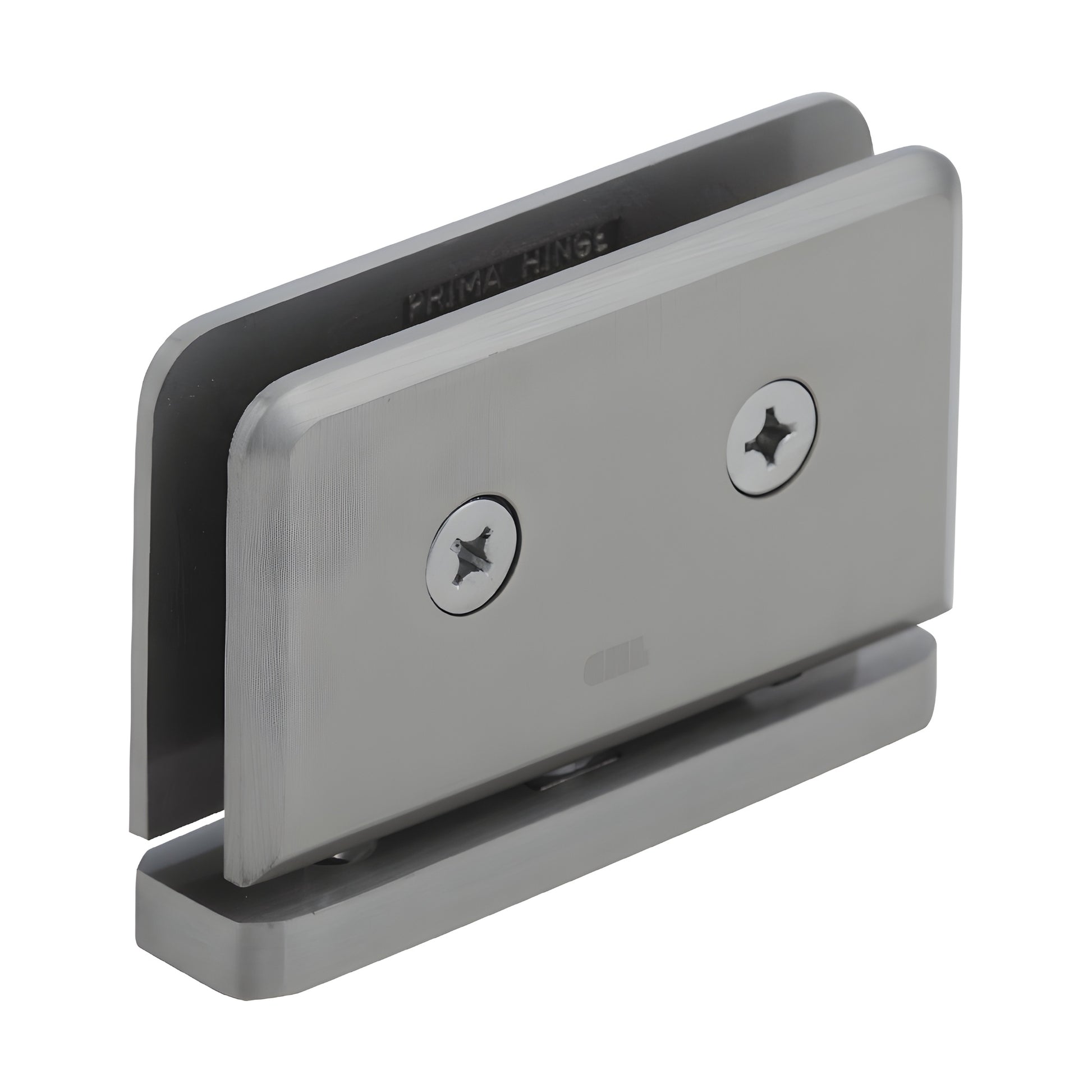

CRL Prima 01 Brushed Nickel Top/Bottom Mount Glass Door Hinge

• Top or Bottom Mount — adaptable to Deluxe Header Kit
• Self-centering with optional 5° preset pivot pin set
• Available in several designer finishes (custom finishes on request)
• 3-year warranty
• For monolithic tempered safety glass (5/16"–3/8" / 8–10 mm)
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH01BN) are heavy-duty, solid-brass pivot hinges engineered for tempered glass shower doors. Designed for 5/16" to 3/8" (8–10 mm) tempered safety glass, these top-or-bottom mount shower pivot hinges reduce required glass cut-outs versus standard side-mount glass-to-glass hinges and allow inset installation for clearance of towel bars and other projections. The Prima Series is self-centering with four internal springs for reliable closing within 15° of the closed position, and features full rotation swing for wide opening clearance. PPH01 can be mounted floor-to-ceiling or floor-to-header and is adaptable to CRL’s Deluxe Header System for partial-height enclosures.

Optional 5° Pivot Pin Set (Cat. No. P1VP1N): Pre-set 5° pivot pin sets adjust the door closing position by 5° and can be installed before or retrofitted after installation. Sold as a top-and-bottom set. Not included with hinge purchase. Pre-set 5° hinge models are also available from stock.

Performance using two hinges: For 5/16"–3/8" (8–10 mm) glass, two hinges support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design maximizes visible glass and reduces cut-outs compared to side-mount hinges. PPH01 mounts floor & ceiling or floor & header; PPH06 is compatible only with the EZ-Adjust Header System (HAB01 adaptor block sold separately).
Construction: Solid brass for corrosion resistance and long service life
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position (four-spring retention)
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes and technical support are available from CRL Technical Sales. For compatibility with headers or to order P1VP1N pivot pin sets and adaptors, contact CRL Customer Service.
