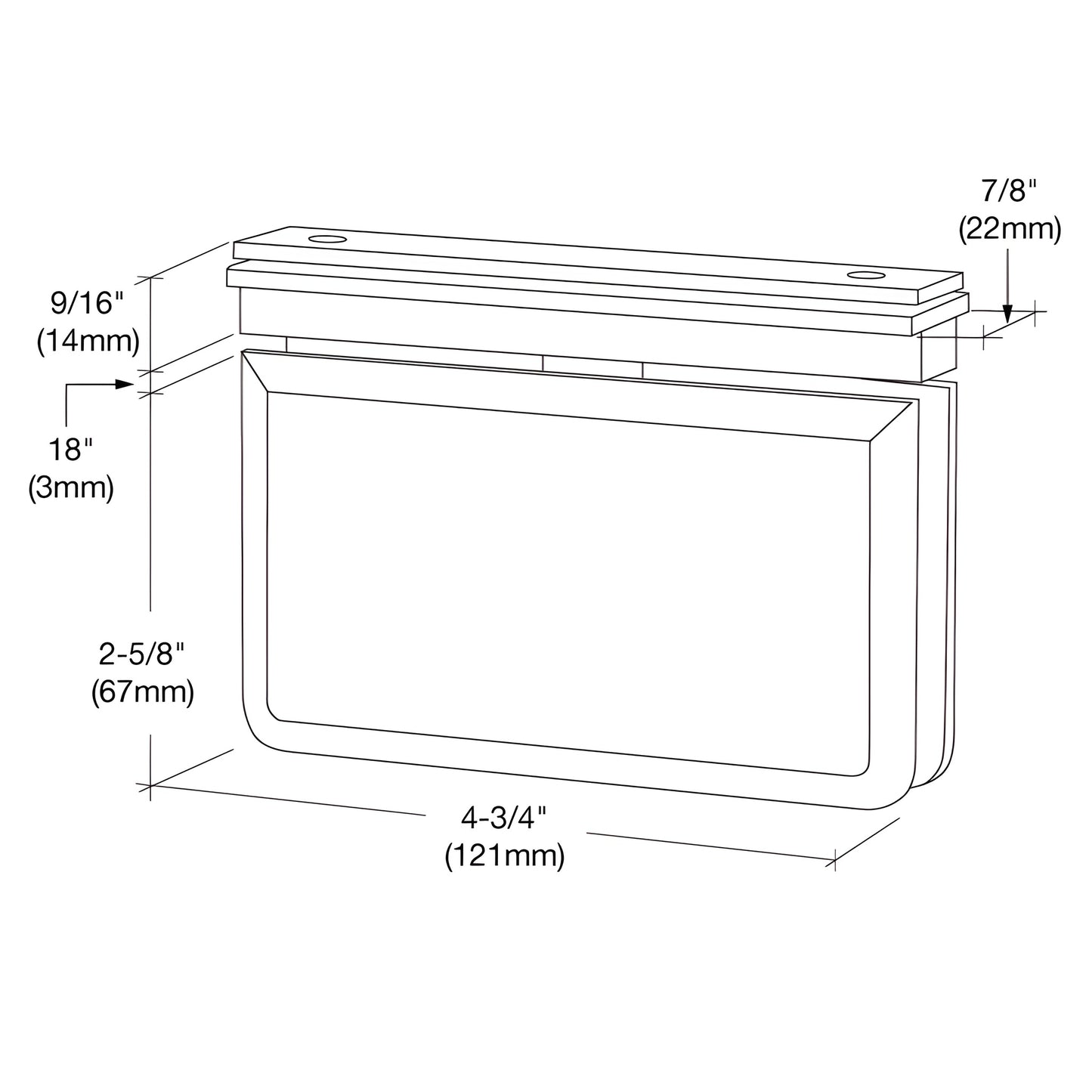

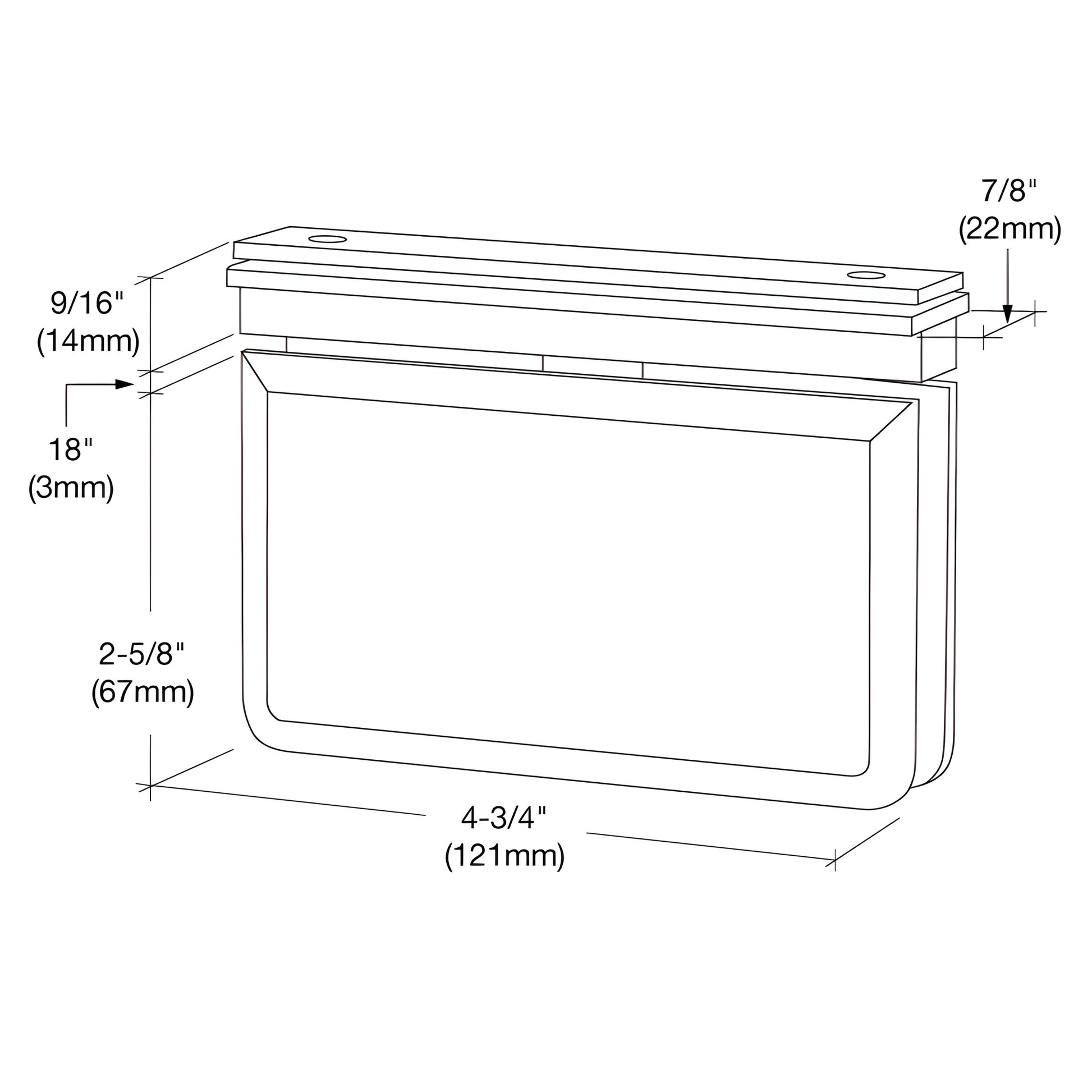

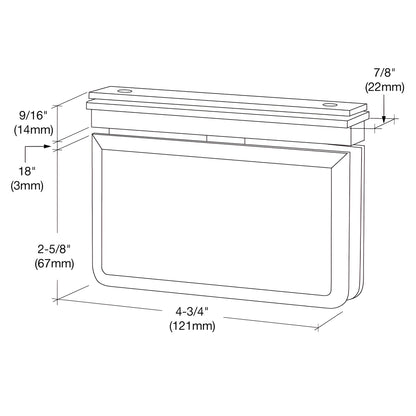

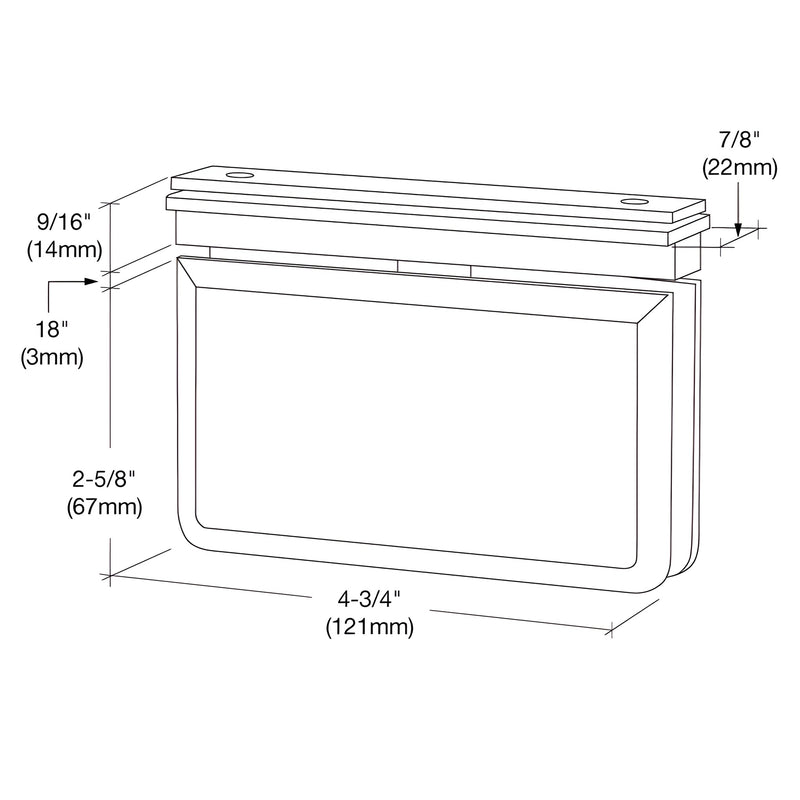

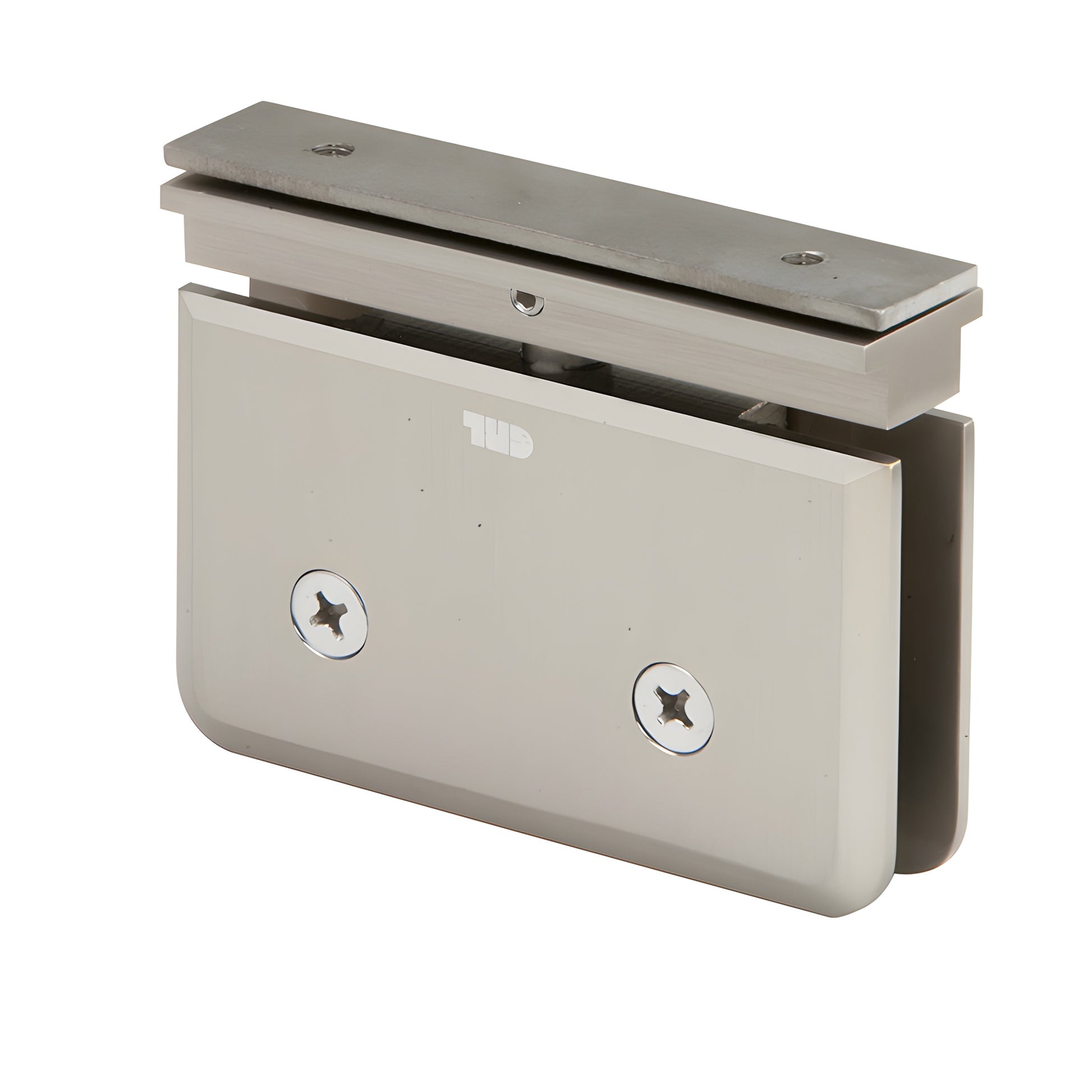

CRL Prima 06 Brushed Nickel EZ-Adjust Top Mount Shower Door Hinge

• Top Mount (Compatible only with EZ-Adjust Header; use Cat. No. SRPPH01 as bottom hinge)
• For use with 1/2" (12 mm) tempered safety glass
• Available in several durable finishes (including custom finishes on request)
• No drilling required to install hinge into EZ-Adjust Header
• Adjustable side-to-side after installing for precise door alignment
• 3 year warranty
• Use with monolithic tempered glass
• U.S. Patent 5,297,313

Advantages of CRL Senior and Junior Prima Hinges: these top-and-bottom mount pivot hinges carry the majority of door weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The glass-to-fixed transom mount pivot hinge is designed for doors with fixed transoms above; when installed vertically, either style works in movable transom installations. These pivot hinges are self-centering with four springs for maximum retention strength. Model SRPPH06 (SKU SRPPH06BN) is compatible only with our EZ-Adjust Header System and includes the required adaptor; Model SRPPH01 adapts to the Deluxe Header System. The Junior Prima Series adapts to our Junior Header Kit.

SENIOR PRIMA: With two hinges and 1/2" (12 mm) tempered safety glass, holds up to 145 lbs (66 kg) with a maximum door width of 36" (914 mm). Ideal as a heavy-duty shower door hinge for 1/2" glass.

JUNIOR PRIMA: With two hinges and 1/4" (6 mm) tempered safety glass, holds up to 62 lbs (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:
Glass Thickness:
Senior Prima: 1/2" (12 mm) tempered safety glass
Junior Prima: 1/4" (6 mm) tempered safety glass
Special Feature: Top and bottom mount maximizes glass exposure and can reduce glass fabrication cut-outs versus side-mount glass-to-glass hinges
Construction: Solid brass for corrosion resistance and long life
Hinge Swings: Full rotation (pivot hinge)
Closing Type: Self-centering when within 15° of closed position (four-spring retention)
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Senior and Junior Prima Hinges are patented (Patent No. 5,297,313).

Custom finishes available on request—contact CRL Technical Sales Shower Door Department for specialty finishes and lead times.
