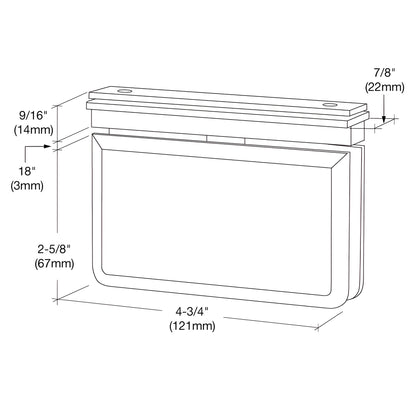

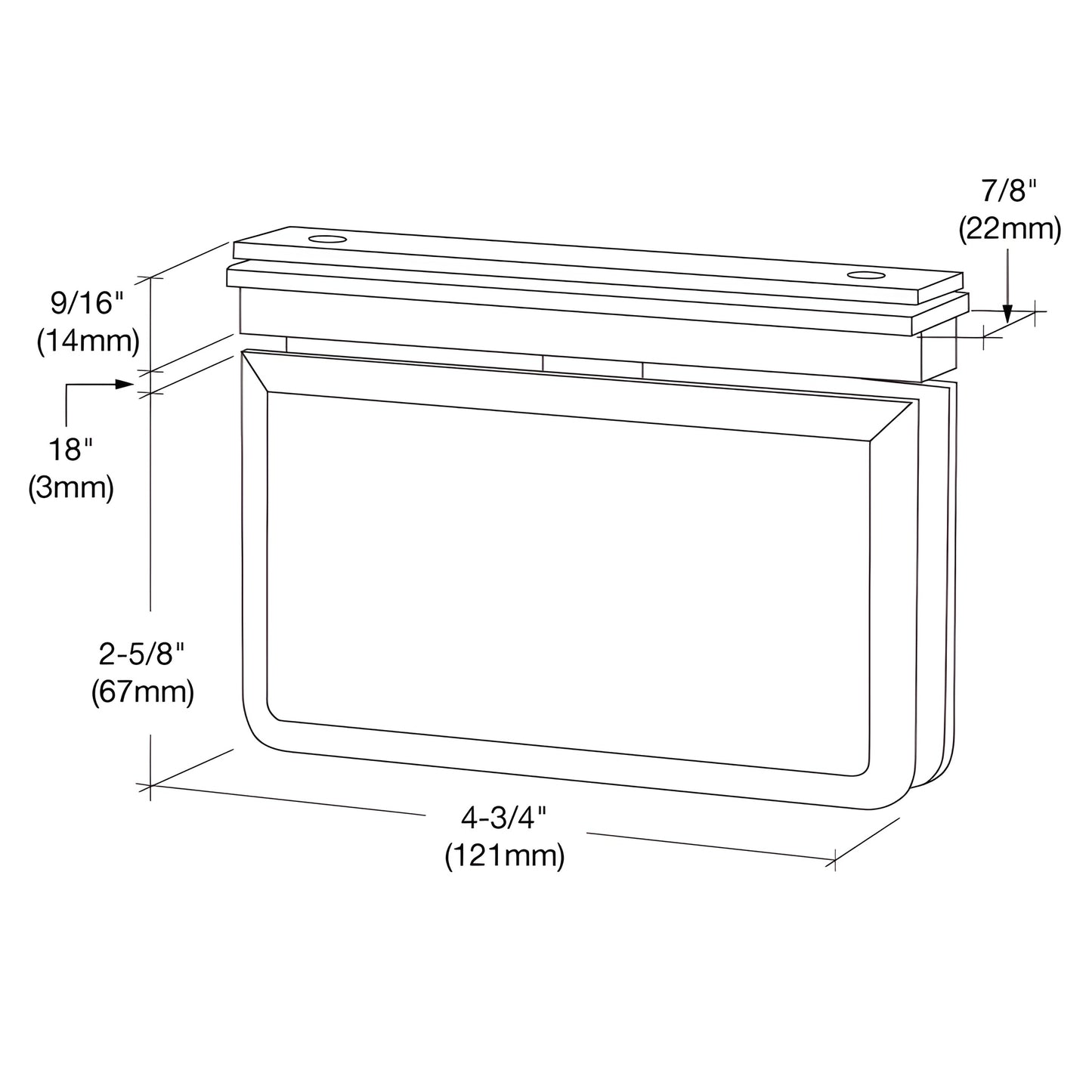

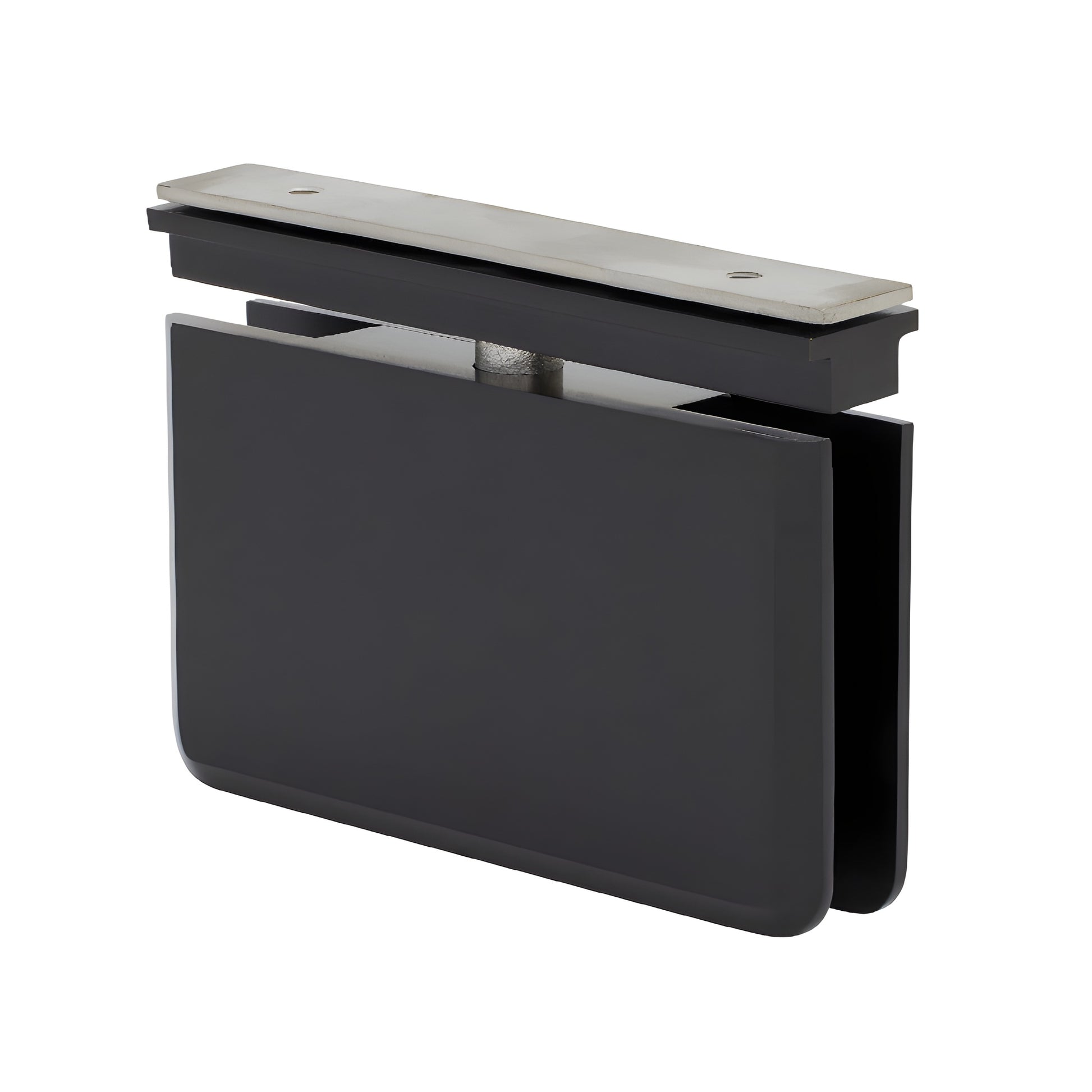

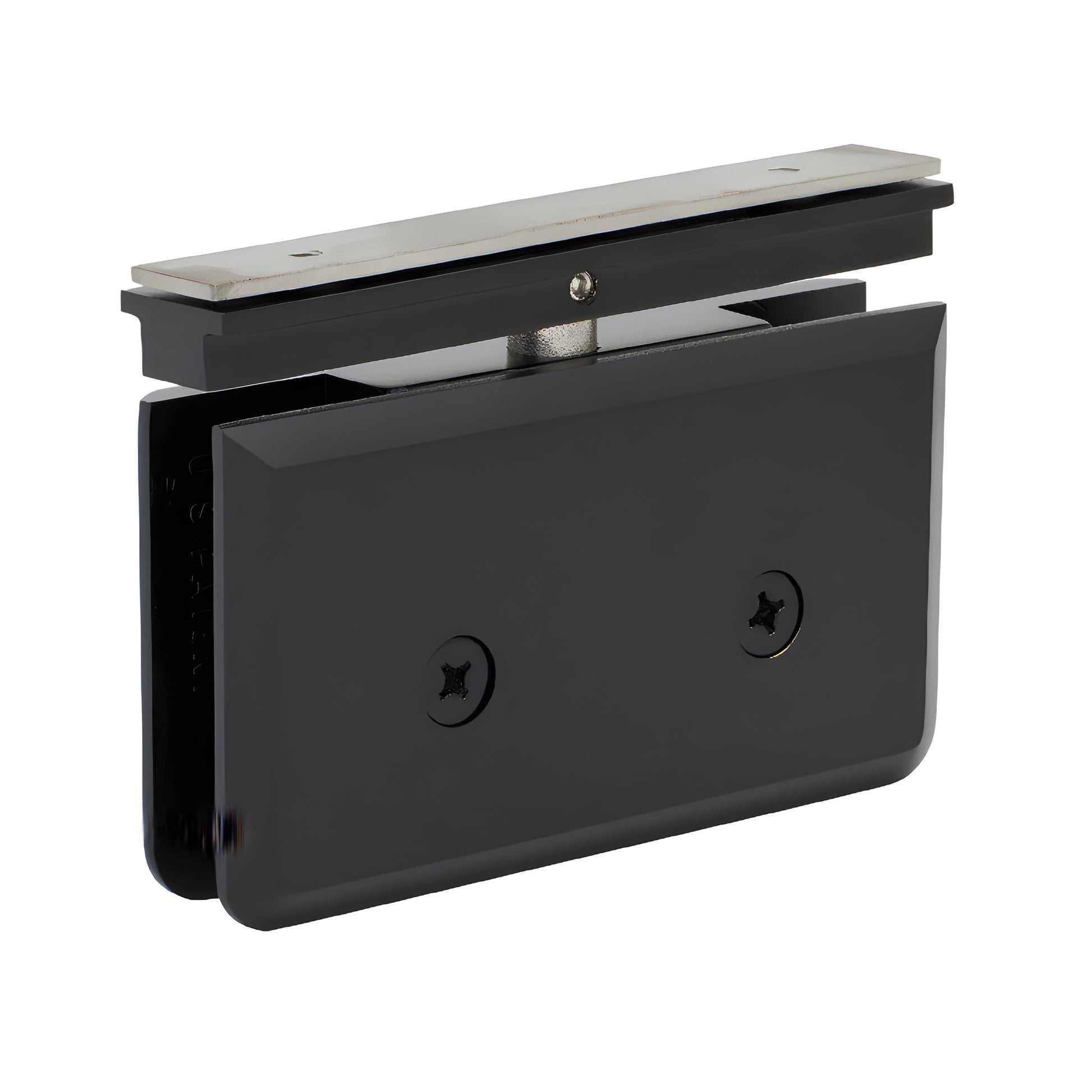

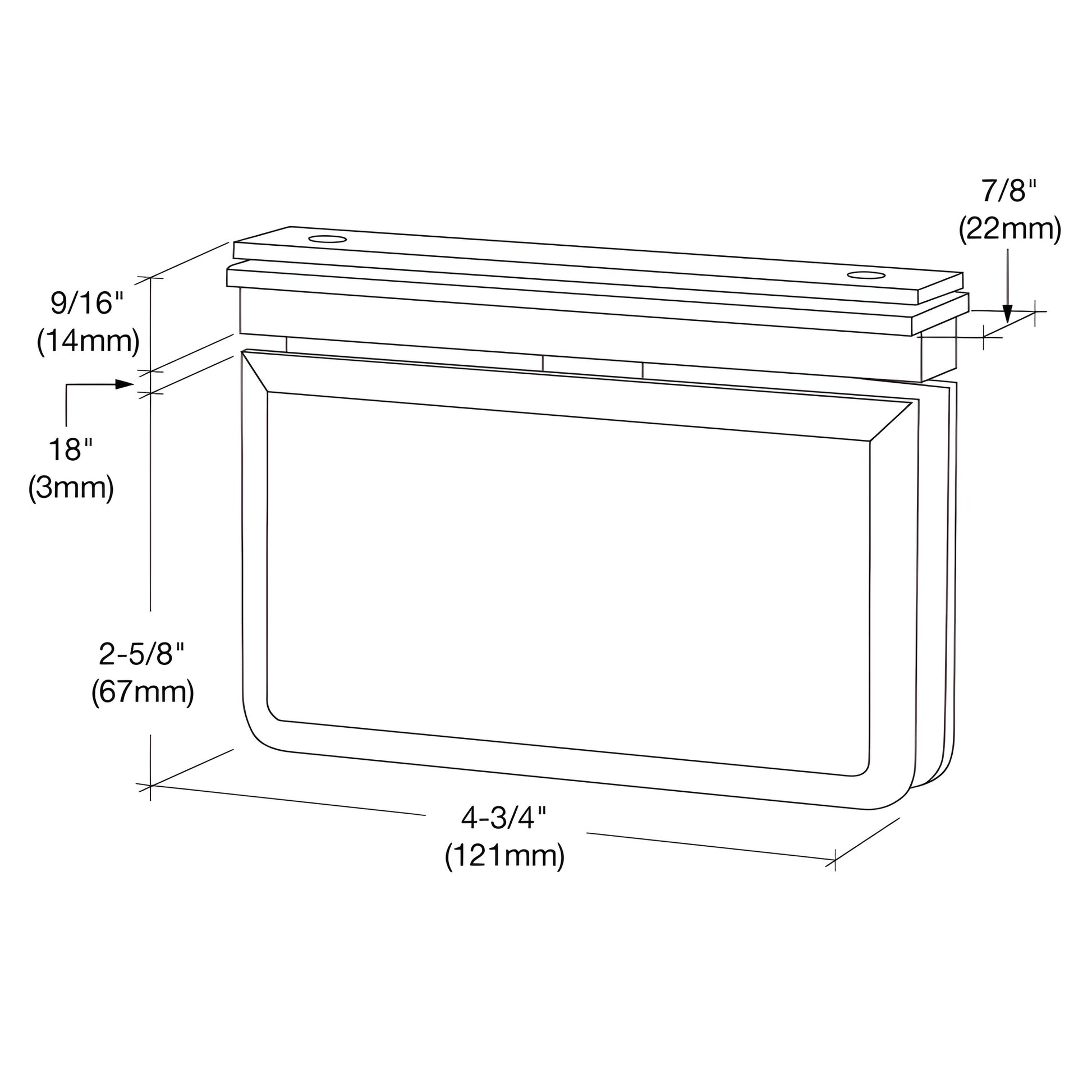

CRL Prima 06 EZ-Adjust Top Mount Glass Hinge - Oil Rubbed Bronze

• Top Mount (Compatible only with EZ-Adjust Header; use Cat. No. SRPPH01 as bottom hinge)
• For use with 1/2" (12 mm) tempered safety glass
• Available in several beautiful finishes; custom finishes available on request
• No drilling required to install hinge into EZ-Adjust Header
• Adjustable side-to-side after installing
• 3 Year Warranty
• Use monolithic tempered glass
• U.S. Patent 5,297,313

Advantages of CRL Senior and Junior Prima Hinges include carrying the majority of the weight on the bottom and the ability to be inset from the wall to provide clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors with fixed transoms above them; when mounted vertically, either style can be used in movable transom installations. These pivot hinges are self-centering with four springs for maximum retention strength. The SRPPH01 model adapts to our Deluxe Header System. The SRPPH06 model is compatible only with our EZ-Adjust Header System and includes an adaptor for EZ-Adjust. The Junior Prima series adapts to our Junior Header Kit.

SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:
Glass Thickness:
Senior Prima: 1/2" (12 mm) tempered safety glass
Junior Prima: 1/4" (6 mm) tempered safety glass
Special Feature: Top and bottom mount allows more glass exposure and can reduce glass fabrication costs compared with side-mount glass-to-glass hinges that require additional cut-outs.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
