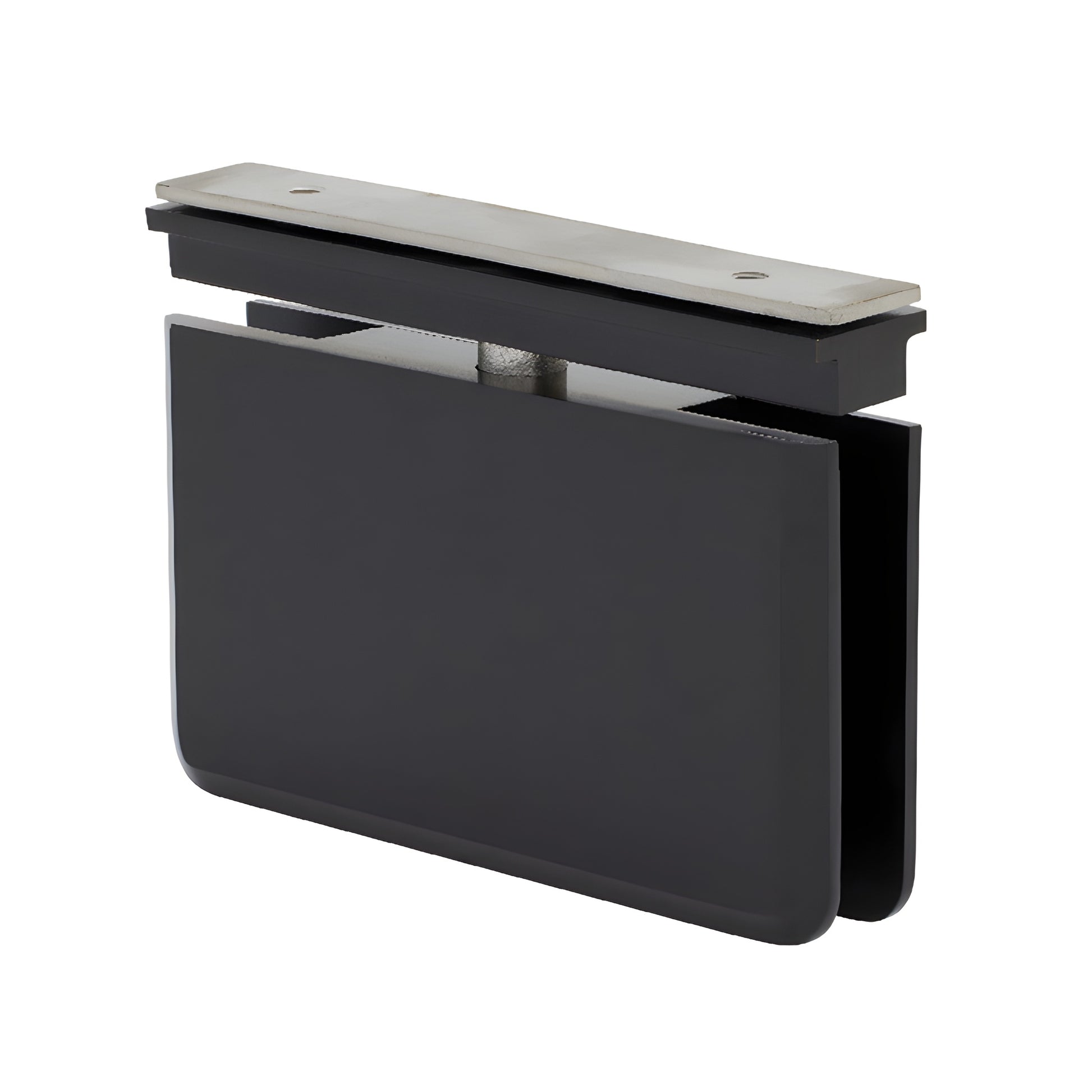

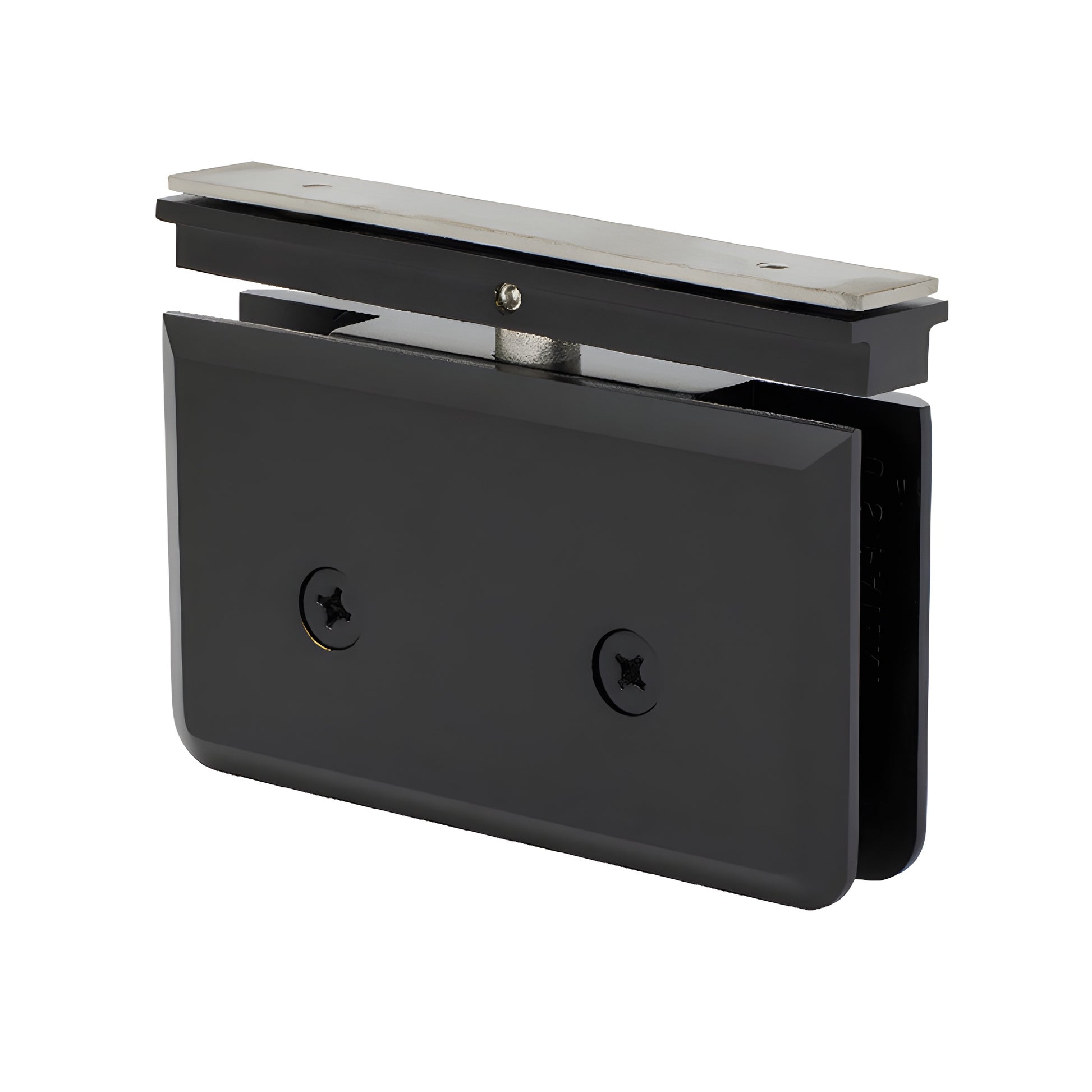

CRL Prima 06 EZ-Adjust Top-Mount Hinge, Oil Rubbed Bronze

• Top Mount (Compatible Only with EZ-Adjust Header)
• Use Cat. No. PPH01 as Bottom Hinge
• Available in several beautiful finishes
• 3 Year Warranty
• Use monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges — Model PPH060RB are engineered for frameless shower doors using 5/16" to 3/8" (8–10 mm) tempered safety glass. These Prima pivot shower door hinges offer inset mounting to clear towel bars and projections, and carry the majority of the door weight at the bottom for reliable long-term performance. Self-centering action with four springs provides maximum retention strength and smooth operation — ideal as a premium pivot hinge for glass shower enclosures.

Compatibility & Application: The PPH06 model (SKU PPH060RB) is only compatible with the EZ-Adjust Header System and includes the required adaptor. The PPH01 catalog hinge is specified as the bottom hinge when used with this top-mount unit. The PPH01 model is also adaptable to the Deluxe Header System for partial-height enclosures.

Load Capacity (two hinges): For 5/16"–3/8" (8–10 mm) glass: up to 100 lbs (45 kg) total; maximum door width 31" (787 mm).

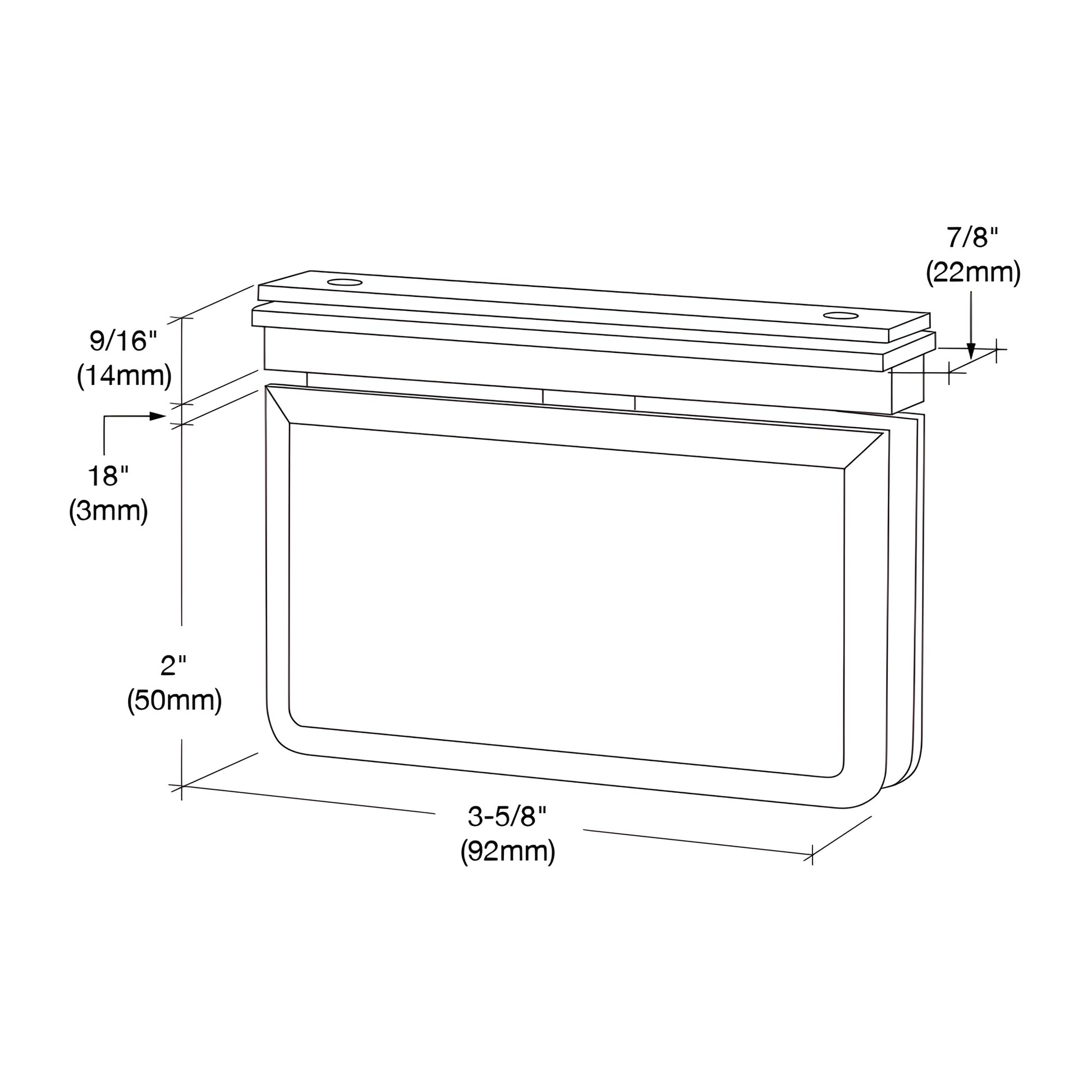

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design exposes more glass, reduces required cut-outs vs. standard side-mount glass-to-glass hinges, and allows inset mounting for clearance of fixtures.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Notes: Cut-out required (PPH135 model also requires two holes; PPH07 model requires cut-out for hinge plus hole for clamp).
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Custom finishes available on request — contact the CRL Technical Sales Department for finish and ordering options.

Product Warning:

CRL Shower Door Hinges are intended for residential and hotel shower applications. Use for other purposes requires prior approval from the CRL Shower Door Technical Sales Department. Always use the template included with this hinge — cut-out dimensions may differ from other brands.
