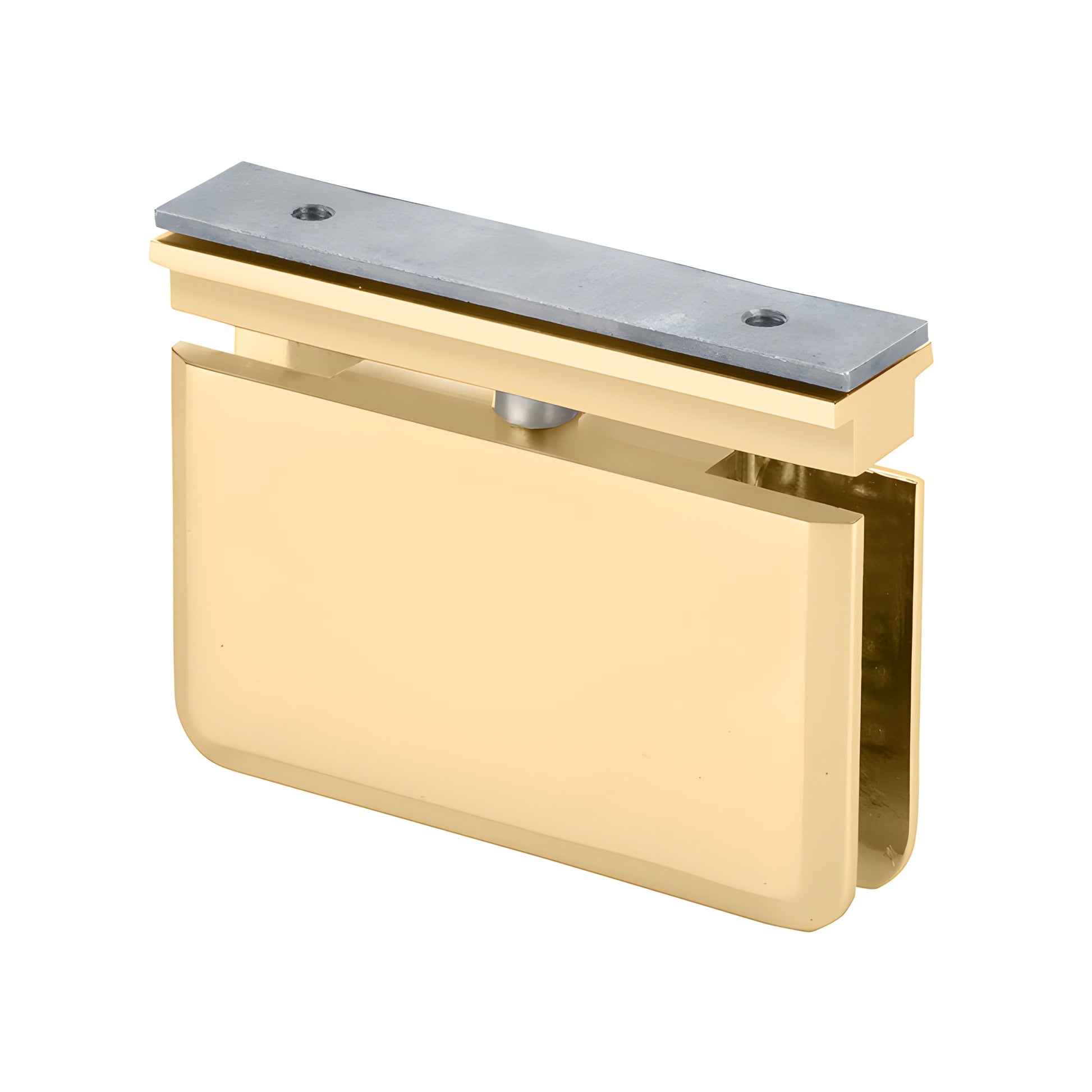

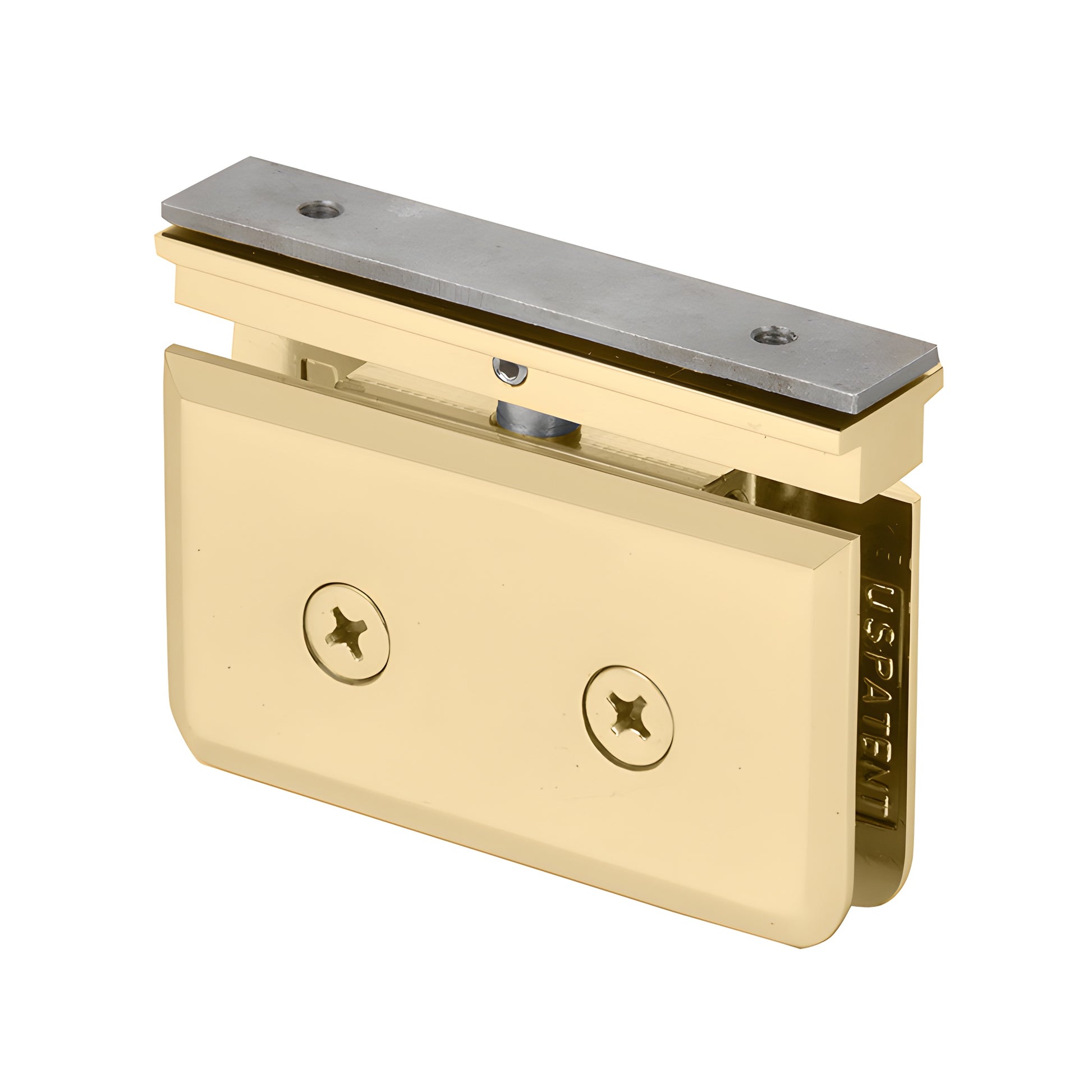

CRL Prima 06 EZ-Adjust Satin Brass Top-Mount Glass Door Hinge

• Top Mount (Compatible only with EZ-Adjust Header)
• Use Cat. No. PPH01 as Bottom Hinge
• Available in several beautiful finishes (custom finishes available on request)
• 3 Year Warranty
• Designed for monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are precision pivot hinges for shower doors, designed for 5/16" to 3/8" (8–10 mm) tempered safety glass. The Prima Series offers versatile application options for frameless and semi-frameless shower enclosures: top-mount configuration, inset-from-wall installation to clear towel bars and projections, and self-centering closing action using four springs for reliable retention. The Prima pivot design carries most of the door weight at the bottom for smooth operation and reduced stress on the header system.

PPH06 Model / SKU PPH06SB: Top-mount pivot hinge compatible only with the EZ-Adjust Header System. Includes adaptor for EZ-Adjust headers. (For floor-and-header or floor-and-ceiling installations, use Cat. No. PPH01.)

Performance (using two hinges): Holds up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm) for 5/16"–3/8" (8–10 mm) glass.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design maximizes visible glass, reduces the number of glass cut-outs versus standard side-mount hinges, and supports inset mounting for projection clearance.
Construction: Solid brass for durability and reliable performance
Hinge Swings: Full rotation (pivot hinge for shower door applications)
Closing Type: Self-centering within 15° of closed position (four-spring mechanism)

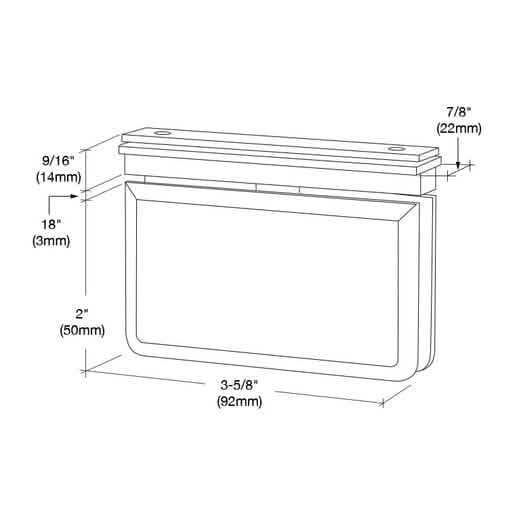

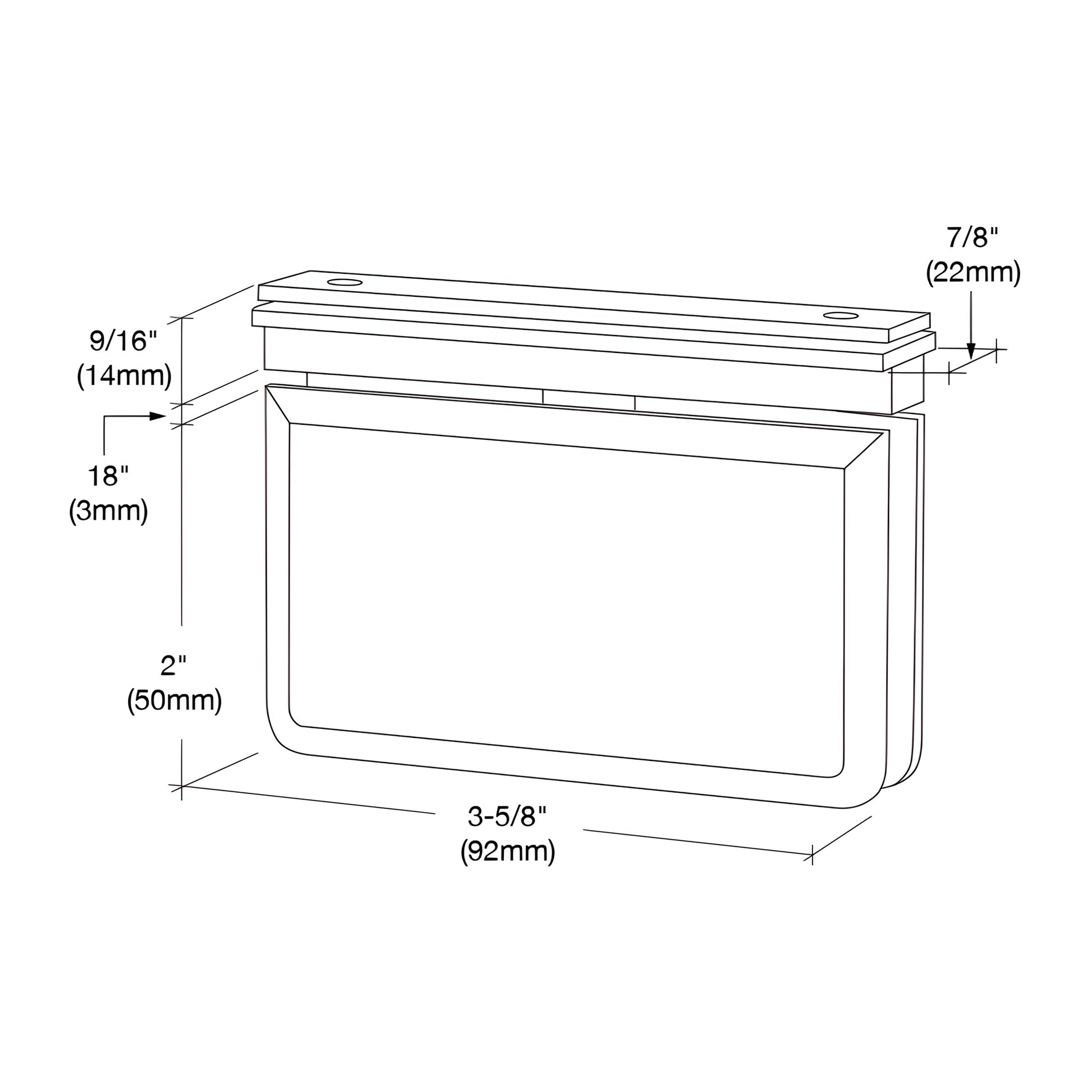

Cut-Out Required: See glass fabrication dimensions. (PPH135 requires two holes; PPH07 requires cut-out for hinge and hole for clamp.)
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Custom finishes available on request — contact the CRL Technical
