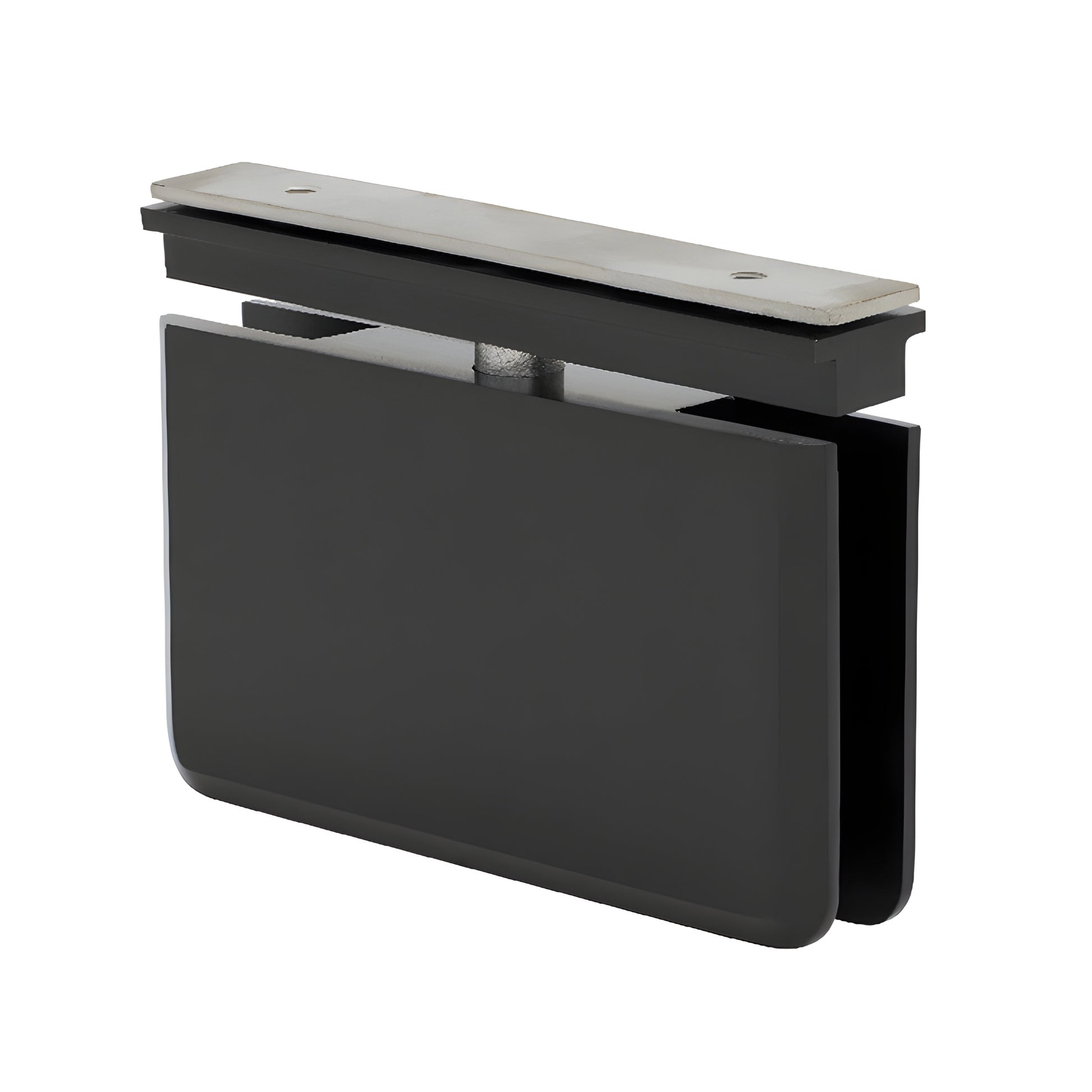

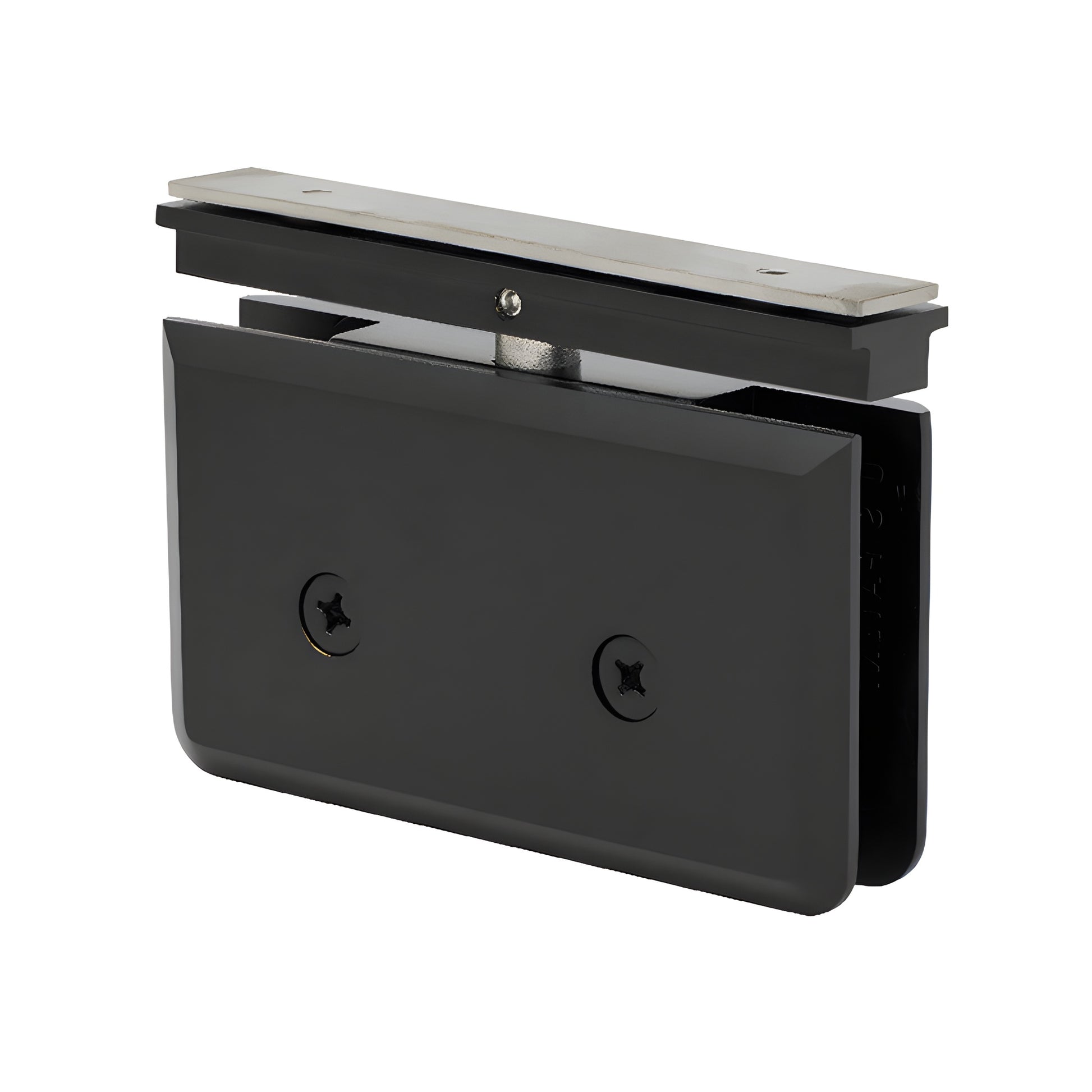

CRL Prima 06 Matte Black EZ-Adjust Top-Mount Glass Door Hinge

• Top Mount (compatible only with EZ-Adjust Header)
• Use Cat. No. PPH01 as bottom hinge
• Available in several beautiful finishes
• 3 year warranty
• Uses monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH06MBL) are precision-engineered top-mount pivot hinges for 5/16" to 3/8" (8–10 mm) tempered safety glass. Designed for use with the EZ-Adjust Header System, the PPH06 includes the necessary adapter and is ideal for glass shower doors requiring a top-mount pivot hinge. Pivot-style hinges transfer most weight to the bottom and can be inset from the wall to clear towel bars and other projections. Prima Series hinges are self-centering with four springs for maximum retention strength and expanded application possibilities.

Using two hinges with 5/16" to 3/8" glass (8–10 mm) will support up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs compared to standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of the closed position
Cut-Out Required: PPH135 model also requires two holes; PPH07 model requires cut-out for hinge and hole for clamp.
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Custom finishes available on request. Contact the CRL Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template—CRL cut-out dimensions may differ from other brands.
