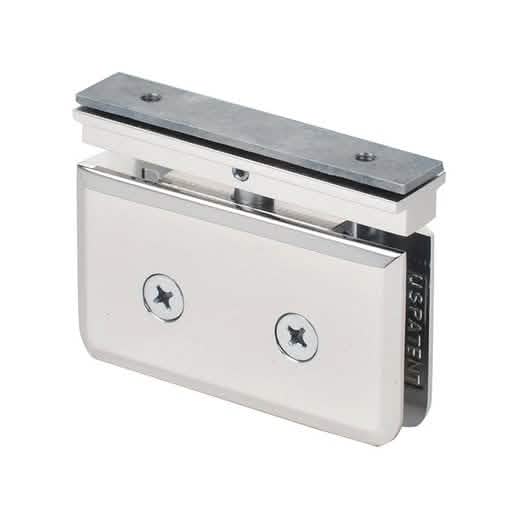

CRL Prima 06 Polished Nickel EZ-Adjust Top Mount Glass Shower Hinge

• Top Mount (Compatible only with EZ-Adjust Header)
• Use Cat. No. PPH01 as bottom hinge
• Available in several beautiful finishes
• 3 Year Warranty
• Use monolithic tempered safety glass
• U.S. Patent 5,297,313

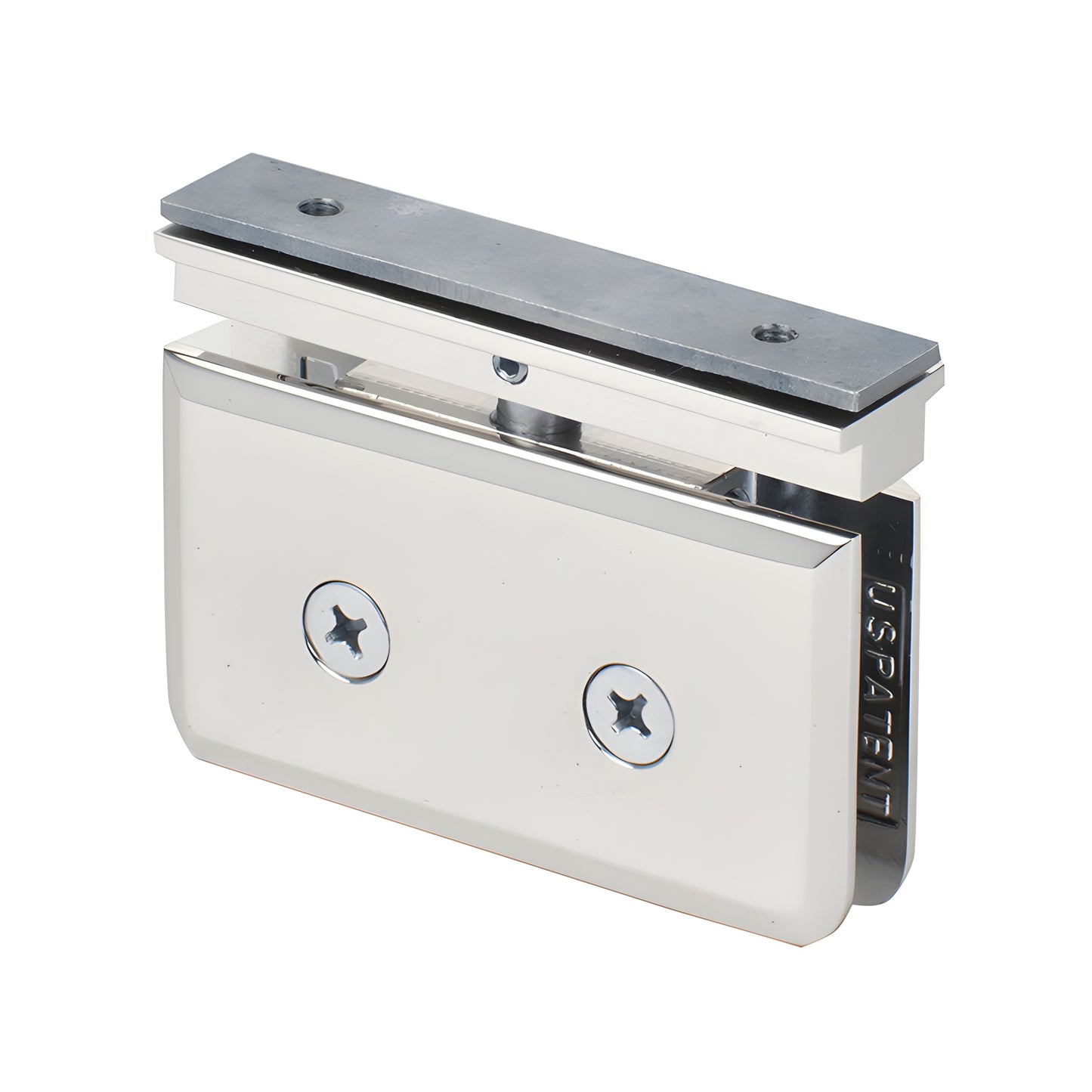

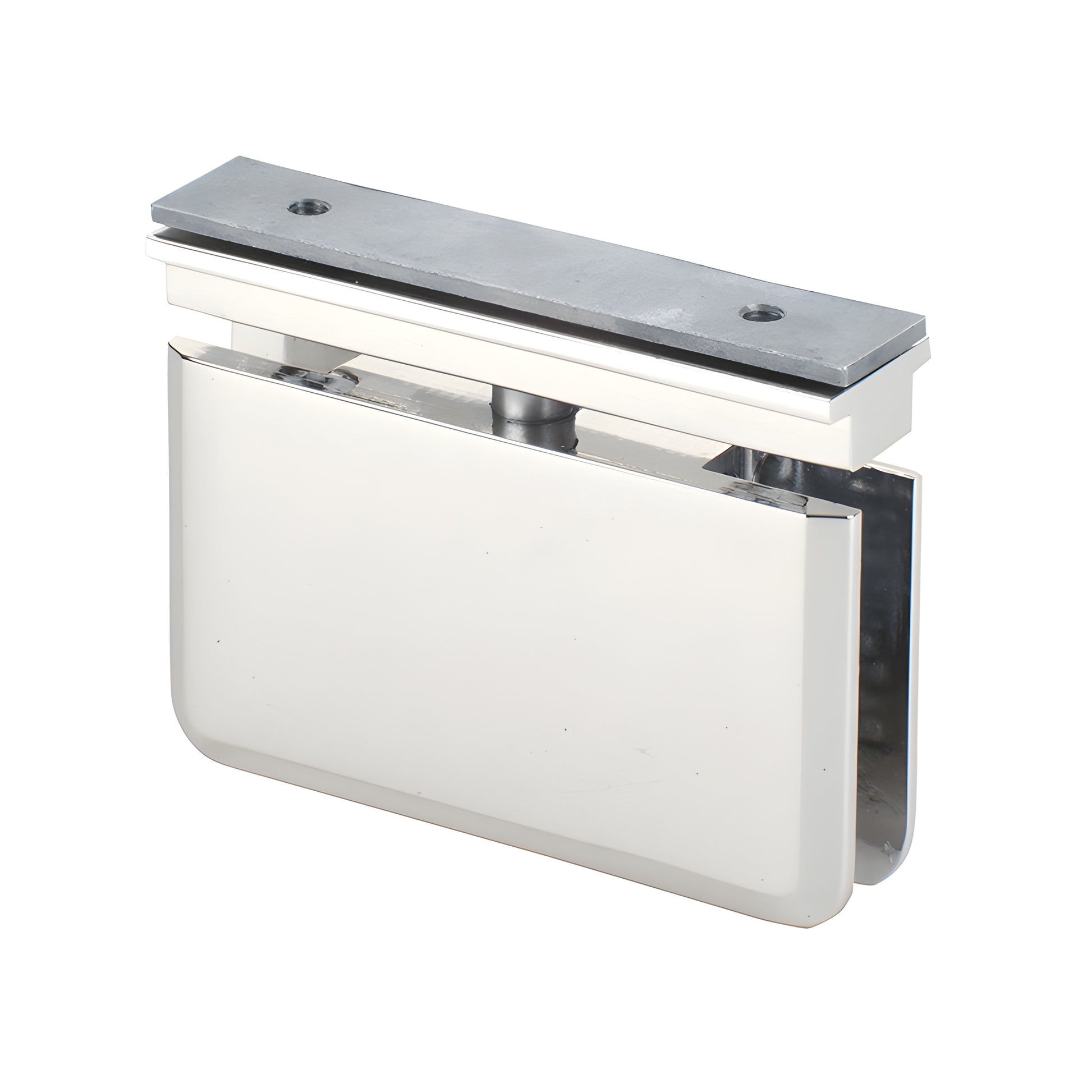

CRL Prima Series Pivot Hinges (SKU PPH06PN) are precision top-mount pivot hinges engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass. Designed for glass shower doors, these hinges pair with the EZ-Adjust Header System (PPH06PN includes the required adaptor) to provide smooth, self-centering operation and reliable long-term performance. Key benefits include inset mounting for clearance of towel bars and projections, majority weight carried at the bottom, and four internal springs for maximum retention strength—making them an excellent choice for frameless glass shower doors and other tempered glass applications.

Using two hinges with 5/16"–3/8" glass (8–10 mm) the assembly will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount option increases visible glass area and reduces cut-outs compared to standard side-mount glass-to-glass hinges. PPH01 can be mounted floor-and-ceiling or floor-and-header. PPH06PN is compatible only with the EZ-Adjust Header System and includes the adaptor for that header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: (PPH135 model also requires two holes; PPH07 model requires cut-out for hinge and hole for clamp)
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Custom finishes available on request. Contact the CRL Technical Sales Department for specialty finish and ordering details.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may differ from other brands.
