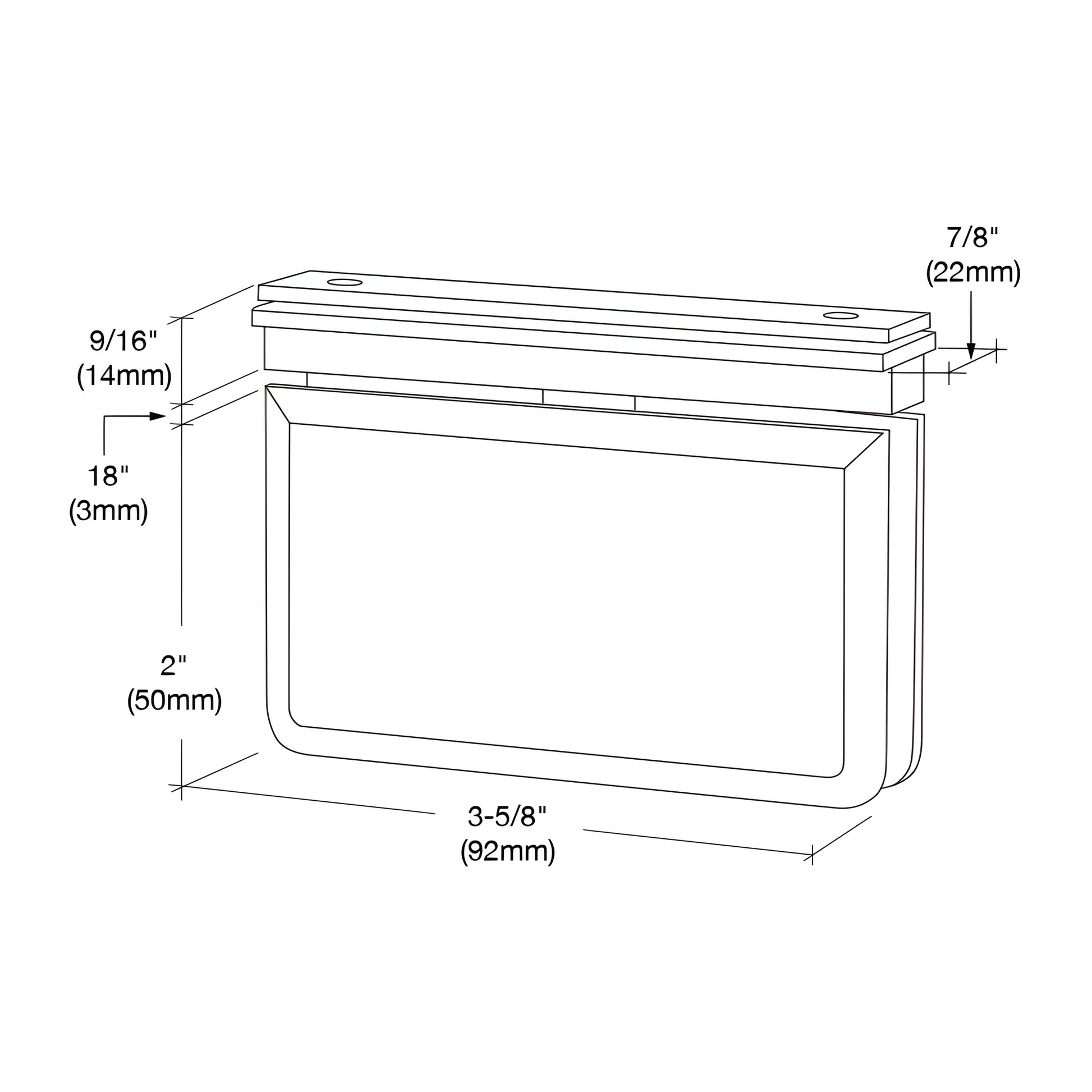

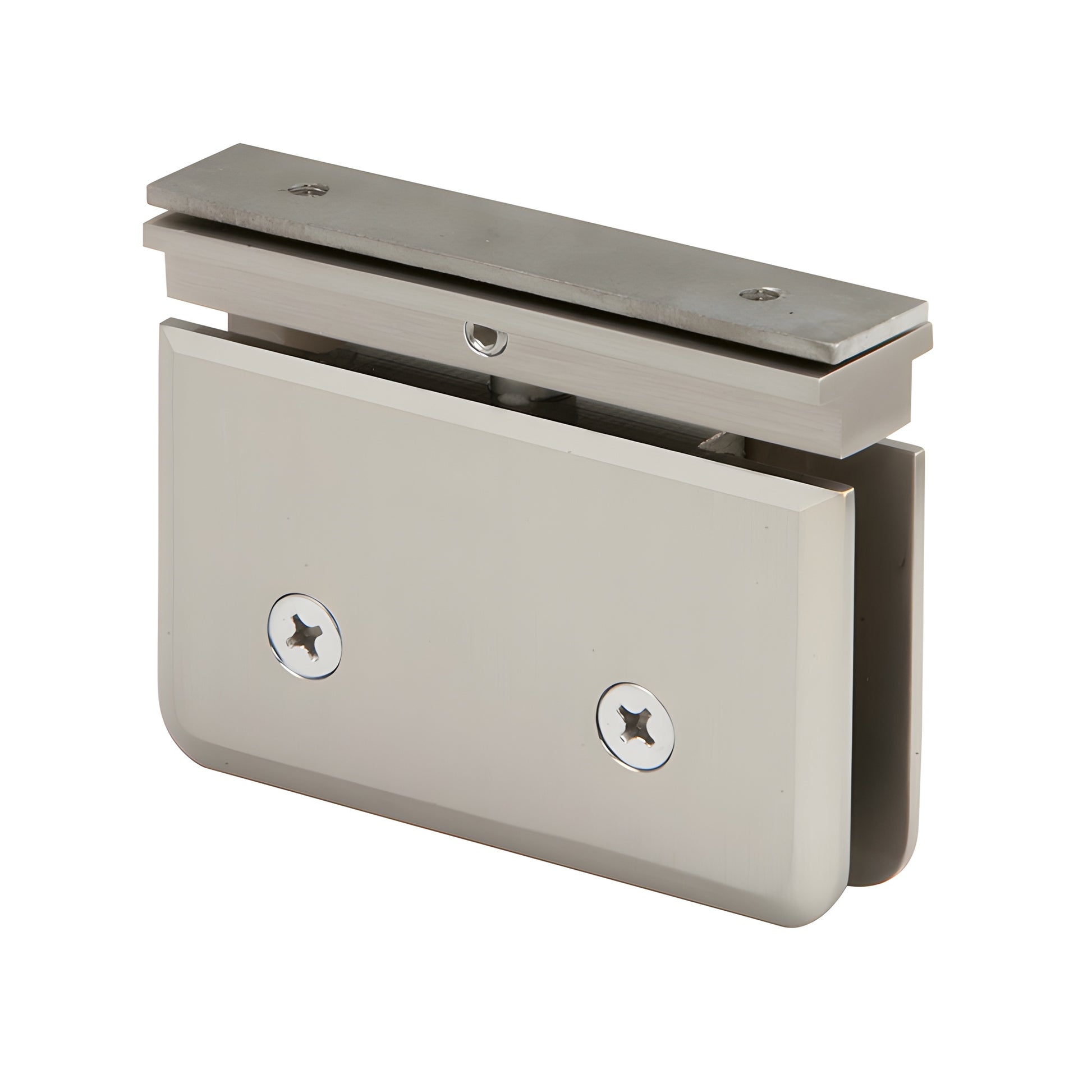

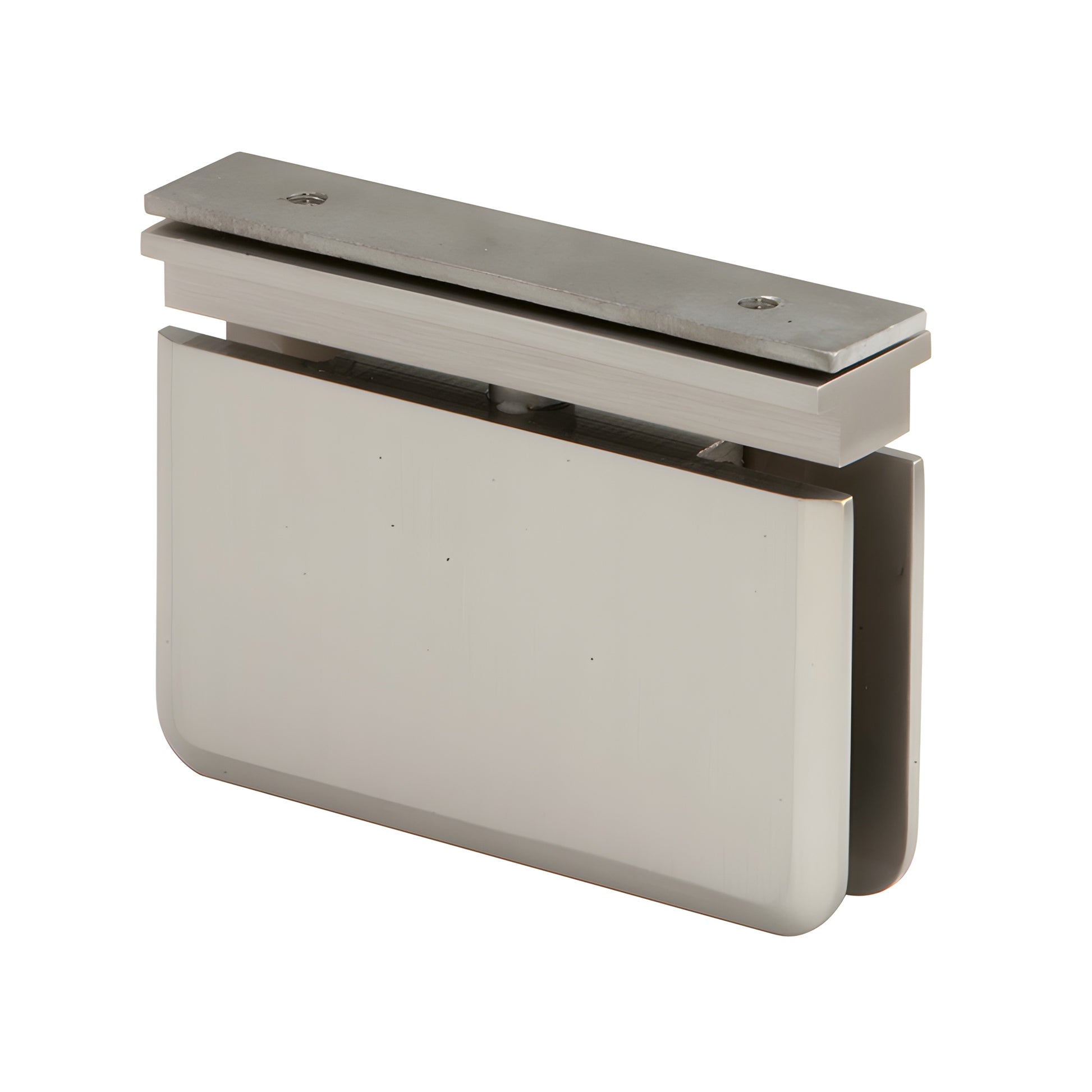

CRL Prima 06 EZ-Adjust Brushed Nickel Top-Mount Shower Door Hinge

• Top Mount (Compatible only with EZ-Adjust Header)
• Use Cat. No. PPH01 as Bottom Hinge
• Available in several beautiful finishes; custom finishes available on request
• 3 Year Warranty
• Use monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are precision shower door pivot hinges engineered for 5/16" to 3/8" (8 to 10 mm) tempered safety glass. Designed for shower enclosures, these brass pivot hinges provide flexible installation options and allow more glass exposure with a top-and-bottom mount design. Key differentiators include an EZ-Adjust Header adaptor (PPH06 model only), self-centering action with four springs for maximum retention strength, and the ability to inset from the wall to clear towel bars and other projections. SKU: PPH06BN.

Compatibility: PPH06 is compatible only with the EZ-Adjust Header System and includes the required adaptor. PPH01 is recommended as the bottom hinge and is adaptable to the Deluxe Header System for partial-height enclosures.

Load Capacity (two hinges): With 5/16" to 3/8" (8–10 mm) tempered glass, two hinges hold up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount exposes more glass and reduces cut-outs versus standard side-mount glass-to-glass hinges. PPH01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position (four-spring design)
Cut-Out Required: See product family notes—PPH135 requires two holes; PPH07 requires cut-out for hinge plus hole for clamp.
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Patented (U.S. Patent No. 5,297,313).

Custom finishes are available on request—contact the CRL Technical Sales Department for lead times and options.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use. For alternate applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions may differ from other brands.
