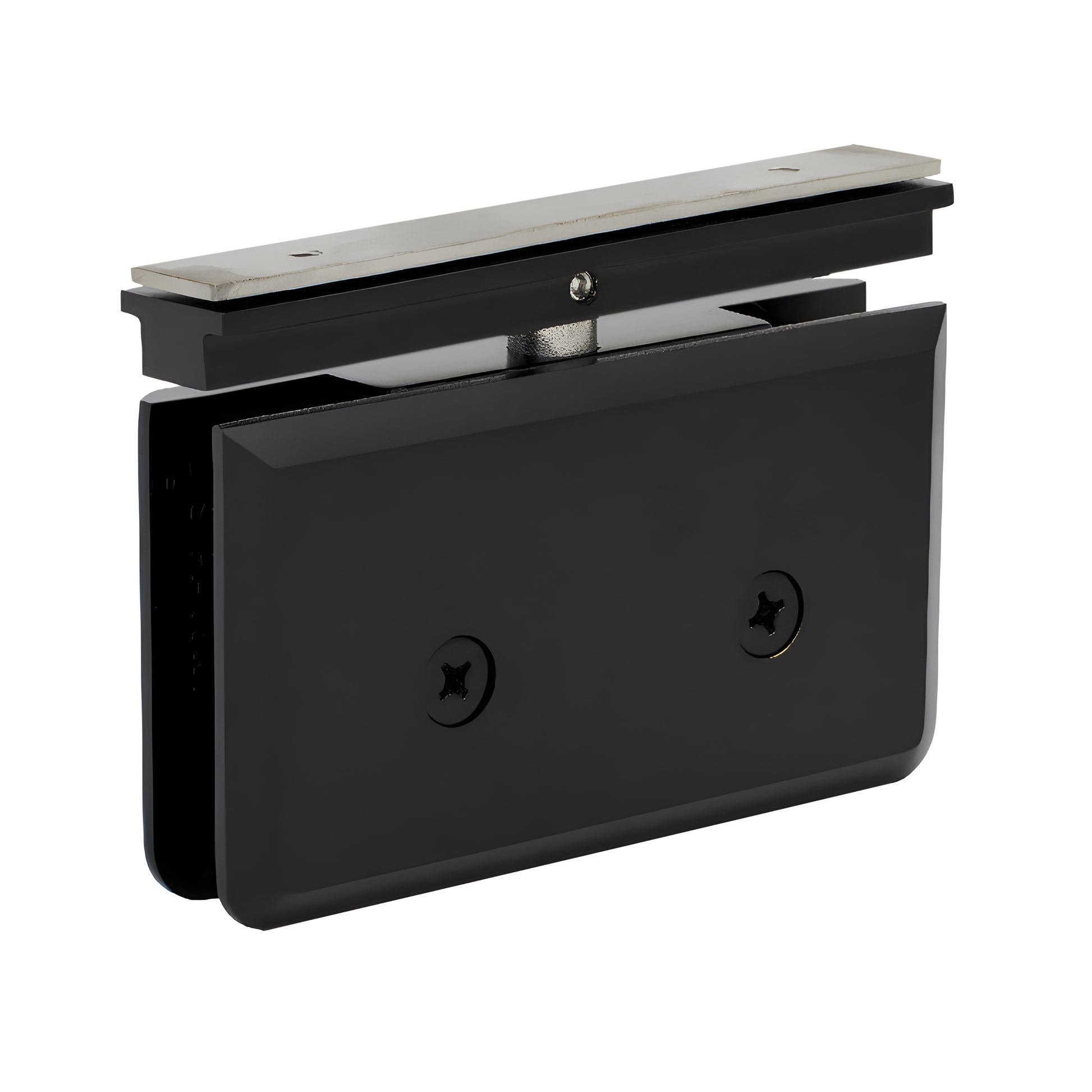

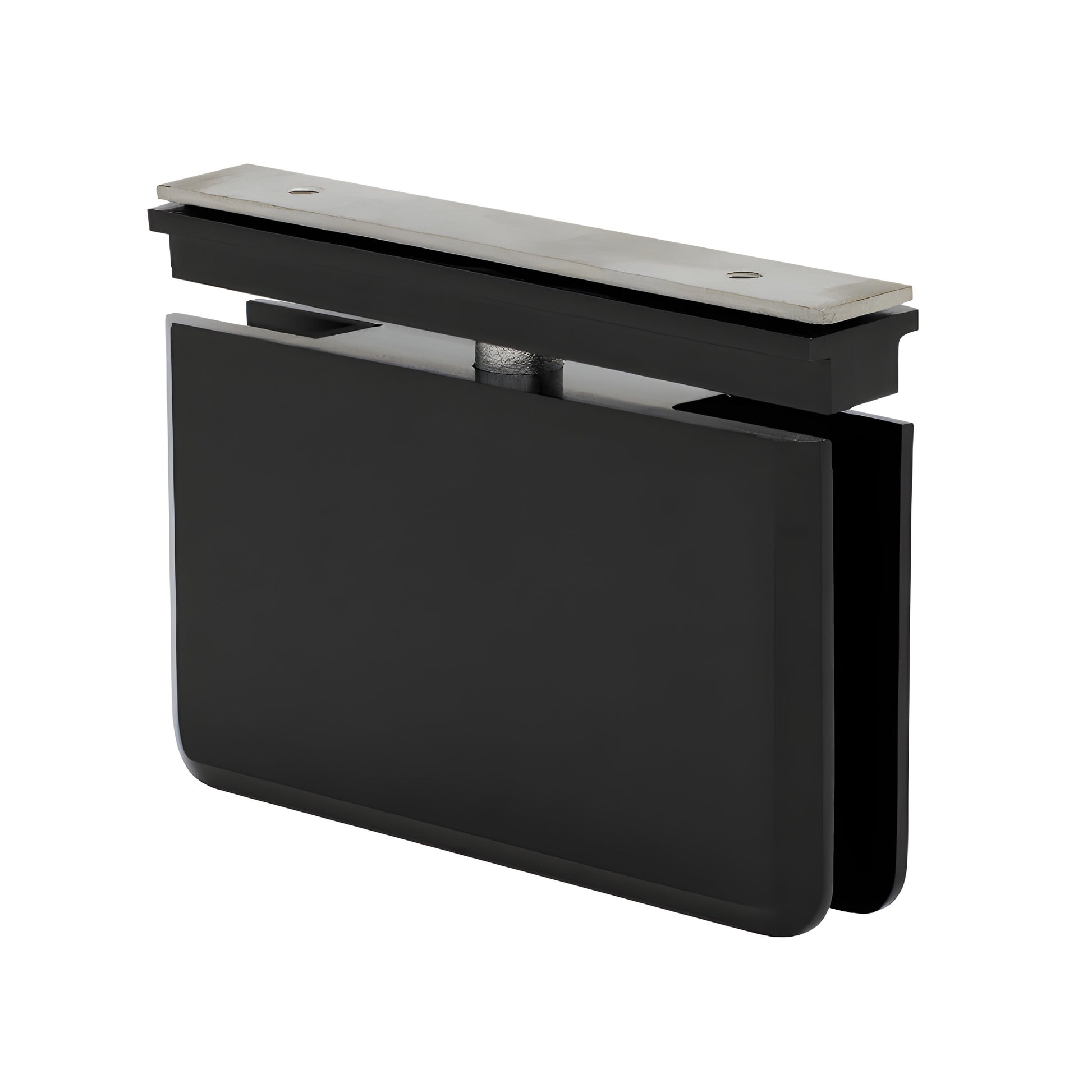

CRL Senior Prima 06 Matte Black EZ-Adjust Top Mount Glass Door Hinge

• Top Mount (Compatible only with EZ-Adjust Header; use Cat. No. SRPPH01 as bottom hinge)
• For use with 1/2" (12 mm) tempered safety glass
• Available in several beautiful finishes; custom finishes available on request
• No drilling required to install hinge into EZ-Adjust Header
• Adjustable side-to-side after installing for precise door alignment
• 3 Year Warranty
• Use with monolithic tempered glass
• U.S. Patent 5,297,313

CRL Senior and Junior Prima Hinges—designed for shower doors—carry most of the weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The glass-to-fixed transom mount pivot hinge is ideal for doors with fixed transoms and is also usable in movable transom installations when mounted vertically. These pivot hinges are self-centering and use four springs for maximum retention strength. The SRPPH06 model (SKU SRPPH06MBL) is compatible only with the EZ-Adjust Header System and includes the required adaptor; SRPPH01 adapts to the Deluxe Header System. The Junior Prima Series adapts to the Junior Header Kit.

SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, holds up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, holds up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:
Glass Thickness:
Senior Prima — 1/2" (12 mm) tempered safety glass
Junior Prima — 1/4" (6 mm) tempered safety glass
Special Feature: Top and bottom mount increases visible glass area and can reduce glass fabrication cuts compared to side-mount glass-to-glass hinges
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Senior and Junior Prima Hing
