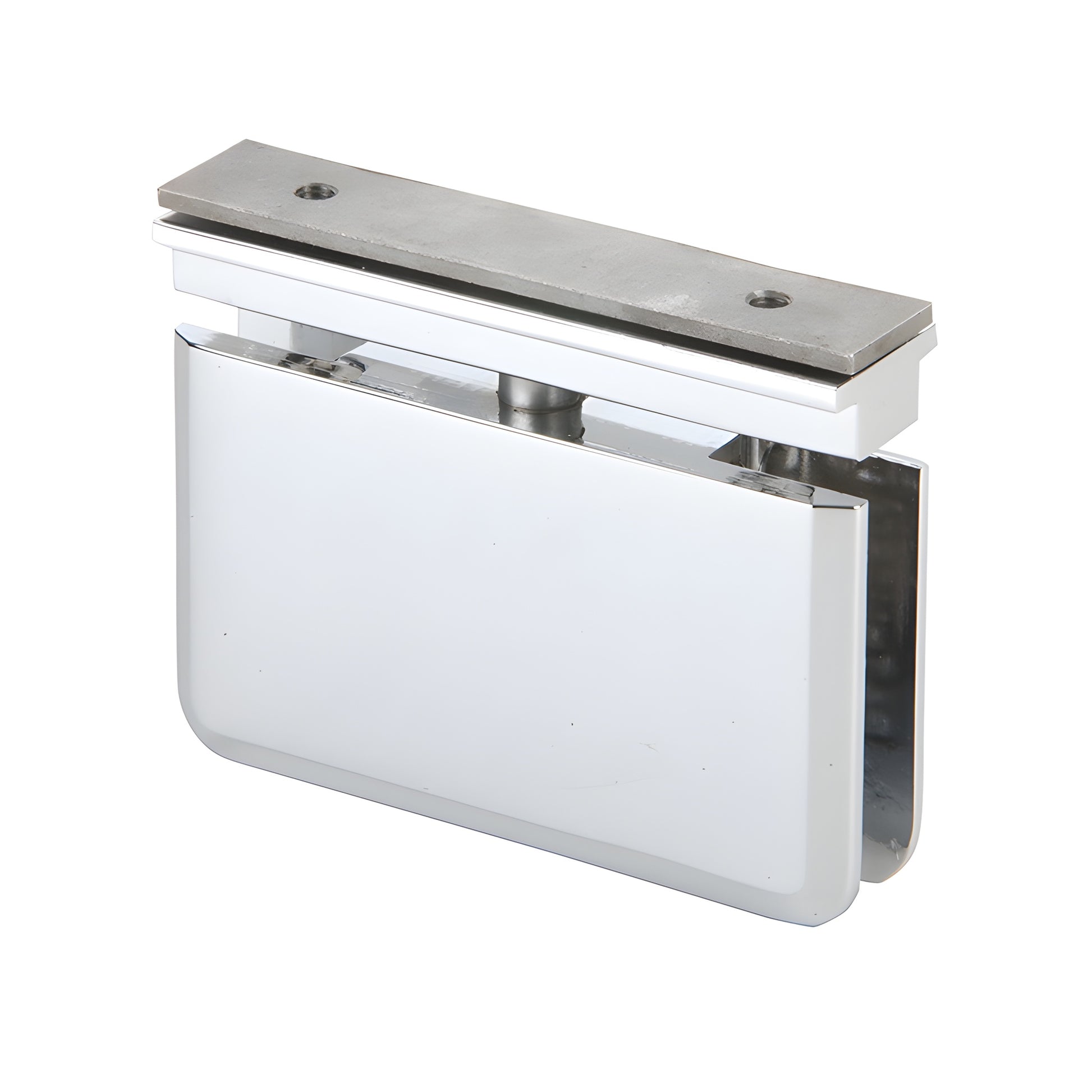

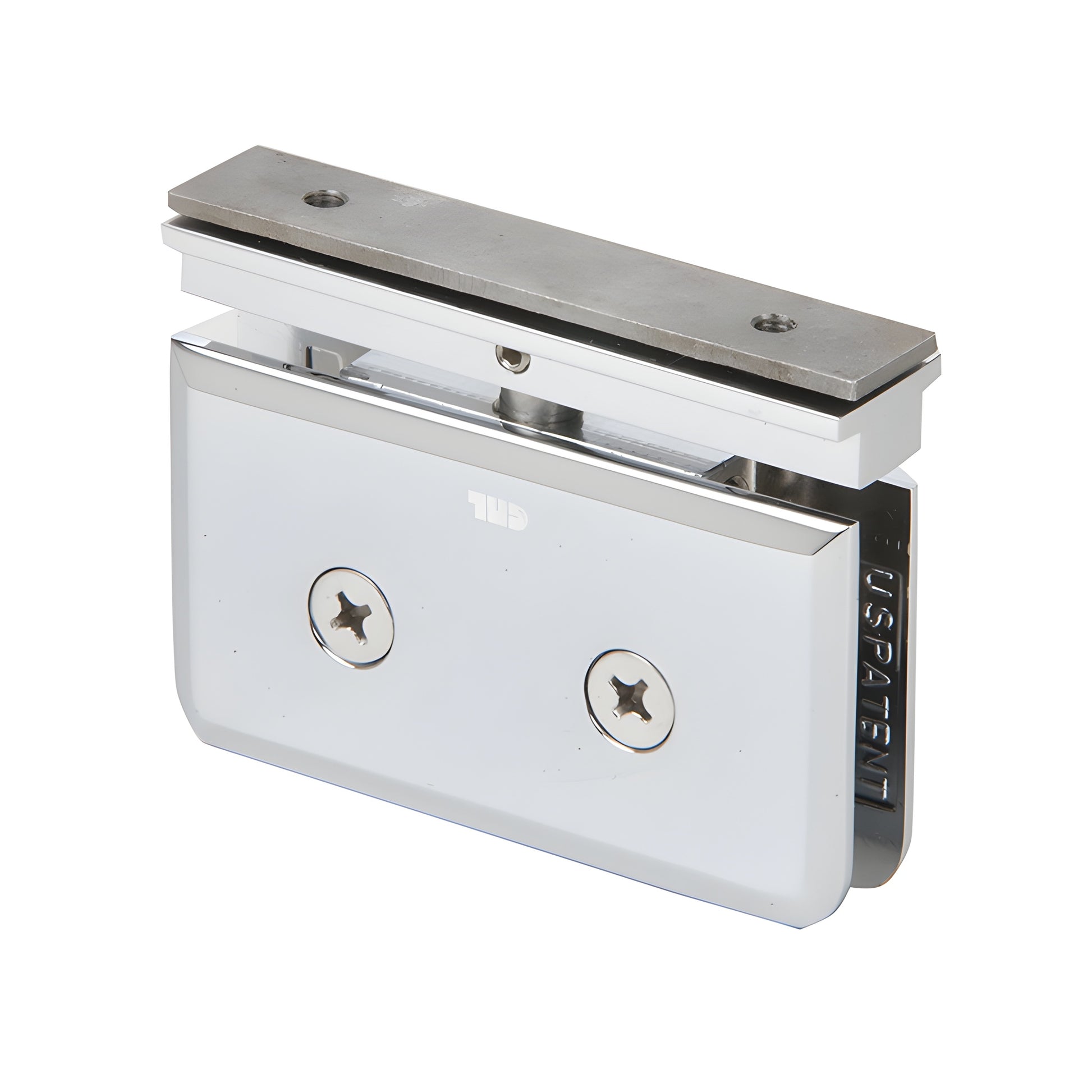

CRL Senior Prima 06 Polished Chrome EZ-Adjust Top Mount Glass Hinge

• Top Mount (Compatible only with EZ-Adjust Header; use Cat. No. SRPPH01 as bottom hinge)
• For use with 1/2" (12 mm) glass
• Available in several beautiful finishes
• No drilling required to install hinge into EZ-Adjust Header
• Adjustable side-to-side after installing
• 3 year warranty
• Use monolithic tempered glass
• U.S. Patent 5,297,313

Advantages of CRL Senior and Junior Prima hinges include carrying the majority of the door weight on the bottom and the ability to inset from the wall for clearance of towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors with fixed transoms above them; when mounted vertically either style can be used for movable transom installations. These pivot hinges are self-centering with four springs for maximum retention strength. The SRPPH01 model adapts to the Deluxe Header System. The SRPPH06 model (SKU SRPPH06CH) is only compatible with the EZ-Adjust Header System and includes an adapter for use with that system. The Junior Prima series adapts to our Junior Header Kit.

SENIOR PRIMA: With two hinges and 1/2" (12 mm) tempered safety glass, holds up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: With two hinges and 1/4" (6 mm) tempered safety glass, holds up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:

Glass Thickness:
Senior Prima — 1/2" (12 mm) tempered safety glass
Junior Prima — 1/4" (6 mm) tempered safety glass

Special Feature: Top and bottom mount allows more glass exposure and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require more cut-outs.

Construction: Solid brass

Hinge Swings: Full rotation

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions

Senior and Junior Prima hinges are
