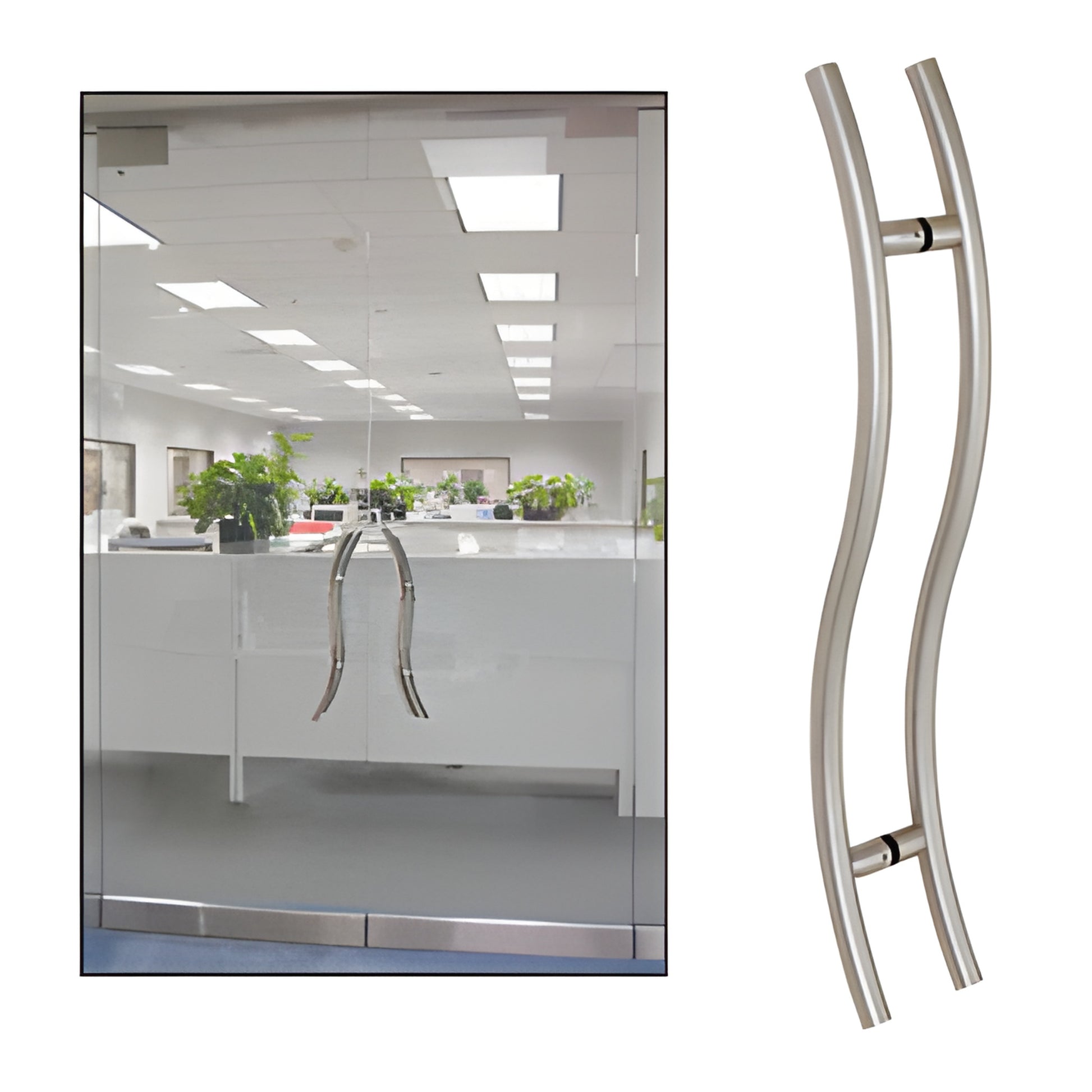

CRL 36" Brushed Stainless S-Ladder Back-to-Back Glass Door Pull RH
CRL 36" Brushed Stainless S-Ladder Back-to-Back Glass Door Pull RH
Regular price
$404.96 CAD
Regular price
Sale price
$404.96 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 36SRPBS
Shipping Weight: 6.812 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.812 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
24 in. (610 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
36 in. (914 mm)
Overview
- Three sizes in two popular finishes for 3/8" to 3/4" (10 to 19 mm) tempered glass doors
- Designer left and right hand models available for paired and single door installations
- 1-1/4" (32 mm) diameter heavy-wall 304 alloy stainless steel tubing for commercial durability
- Custom finishes and sizes available to meet architectural specifications
CRL "S" Style Ladder Pull Handles (SKU: 36SRPBS) are designed for back-to-back mounting with supplied through-bolts and are ideal as a stainless steel ladder pull handle for glass doors. Intended for tempered glass 3/8" to 3/4" (10–19 mm) thick, stock overall heights range from 24" to 48" (610 mm to 1.22 m). Standard finishes: polished stainless and brushed stainless. Handed left and right so exposed set-screws remain on the interior side of the door (handing determined from the exterior side looking in).
Custom sizes and finishes are available to meet architectural specifications—contact our Technical Sales Department to begin the custom design process.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) tempered glass
Construction: 1-1/4" (32 mm) diameter stainless steel tubing, 304 alloy
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
Product Warning:
This handle is handed; the opposite-handed pull is required for paired doors. For single-sided ladder pulls or alternative configurations, contact CRL Technical Sales Department.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance details.
For pricing, lead times, or to order custom finishes and sizes for SKU 36SRPBS, contact CRL Technical Sales today.
