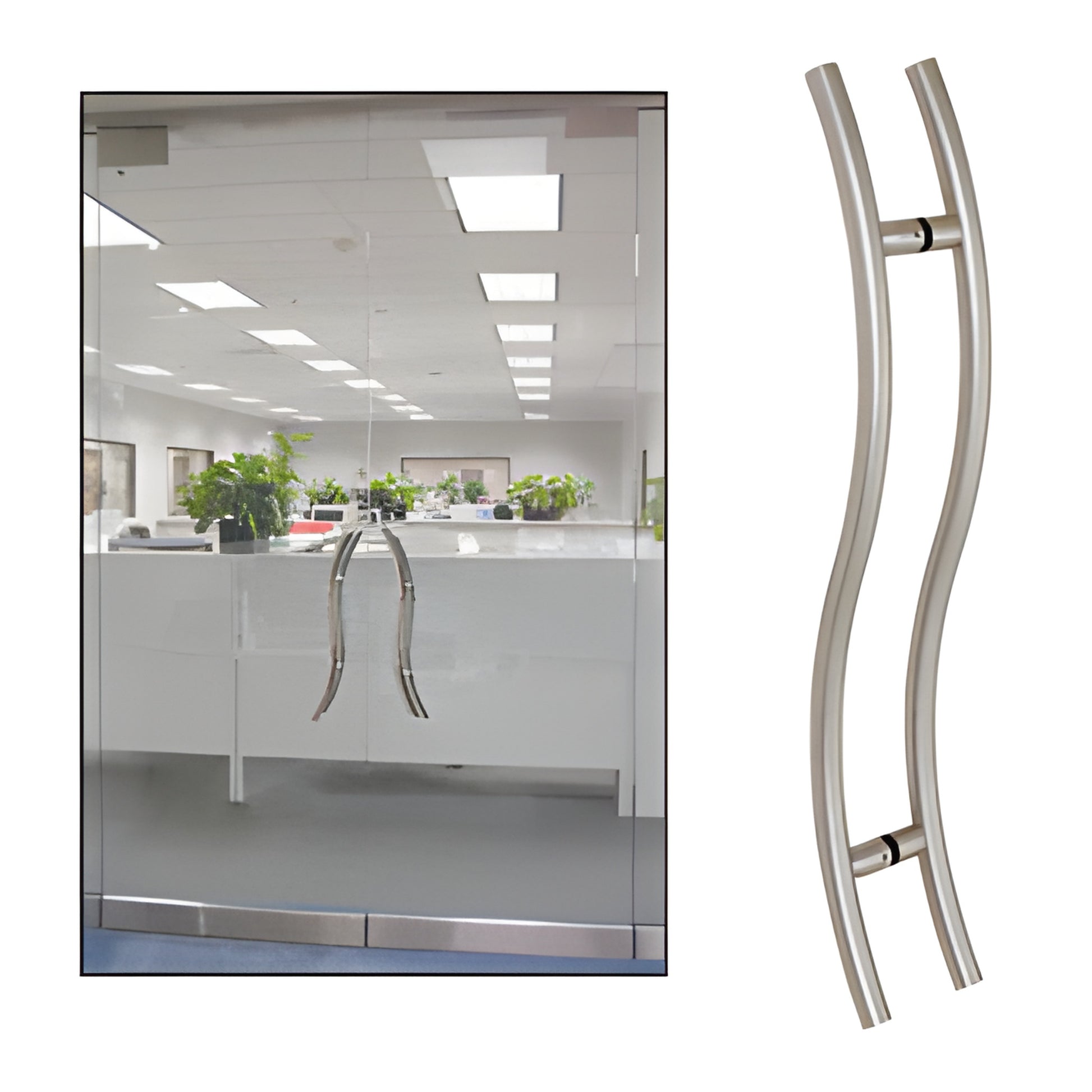

CRL 48in Brushed SS S-Ladder Back-to-Back Glass Door Pull Right
CRL 48in Brushed SS S-Ladder Back-to-Back Glass Door Pull Right
Regular price
$468.55 CAD
Regular price
Sale price
$468.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 48SRPBS
Shipping Weight: 7.937 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.937 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
36 in. (914 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
48 in. (1219 mm)
Overview
- Three sizes in two popular finishes for 3/8" to 3/4" (10 to 19 mm) tempered glass
- Designer left and right hand models available for paired or single glass doors
- 1-1/4" (32 mm) diameter heavy-wall 304 stainless steel tubing
- Custom finishes and sizes available to meet architectural specifications
CRL "S" Style Ladder Pull Handles — SKU: 48SRPBS are back-to-back mounted with supplied through-bolts and designed for tempered glass doors 3/8" to 3/4" (10 to 19 mm) thick. Stock overall heights range from 24" to 48" (610 mm to 1.22 m). Standard finishes: polished stainless and brushed stainless. Handed left and right so exposed set-screws are always on the interior side of the door; handing is determined from the exterior looking in.
Custom sizes and finishes can be produced for architectural specifications. Contact our Technical Sales Department to begin a custom design or request project-specific details.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) tempered glass (ladder pull for glass doors)
Construction: 1-1/4" (32 mm) diameter 304 stainless steel tubing
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
Product Warning:
This handle is handed; the opposite-handed pull is required for paired doors. For single-sided ladder pulls for glass doors, contact our Technical Sales Department.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Key differentiators:
- Heavy-wall 304 stainless steel for long-lasting durability
- Handed designs for clean interior appearance on paired glass doors
- Custom finishes and sizes to meet architectural glass door specifications
For quoting, custom options, or to order this ladder pull handle for tempered glass doors (SKU 48SRPBS), contact CRL Technical Sales today.
