CRL Brushed Stainless 4" x 10" Glass Center Lock w/ Deadlatch LH/RHR
CRL Brushed Stainless 4" x 10" Glass Center Lock w/ Deadlatch LH/RHR
Regular price
$1,062.79 CAD
Regular price
Sale price
$1,062.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DL410LBS
Shipping Weight: 4.64 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.64 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Handing
Left Hand
Height
10 in. (254 mm)
Width
4 in. (102 mm)
Overview
- For use with 1/2" (12 mm) monolithic tempered glass
- Installs easily with bolts — no silicone or cement required
- Available in five stock finishes
- Custom sizes for other glass thicknesses and custom finishes available by special order

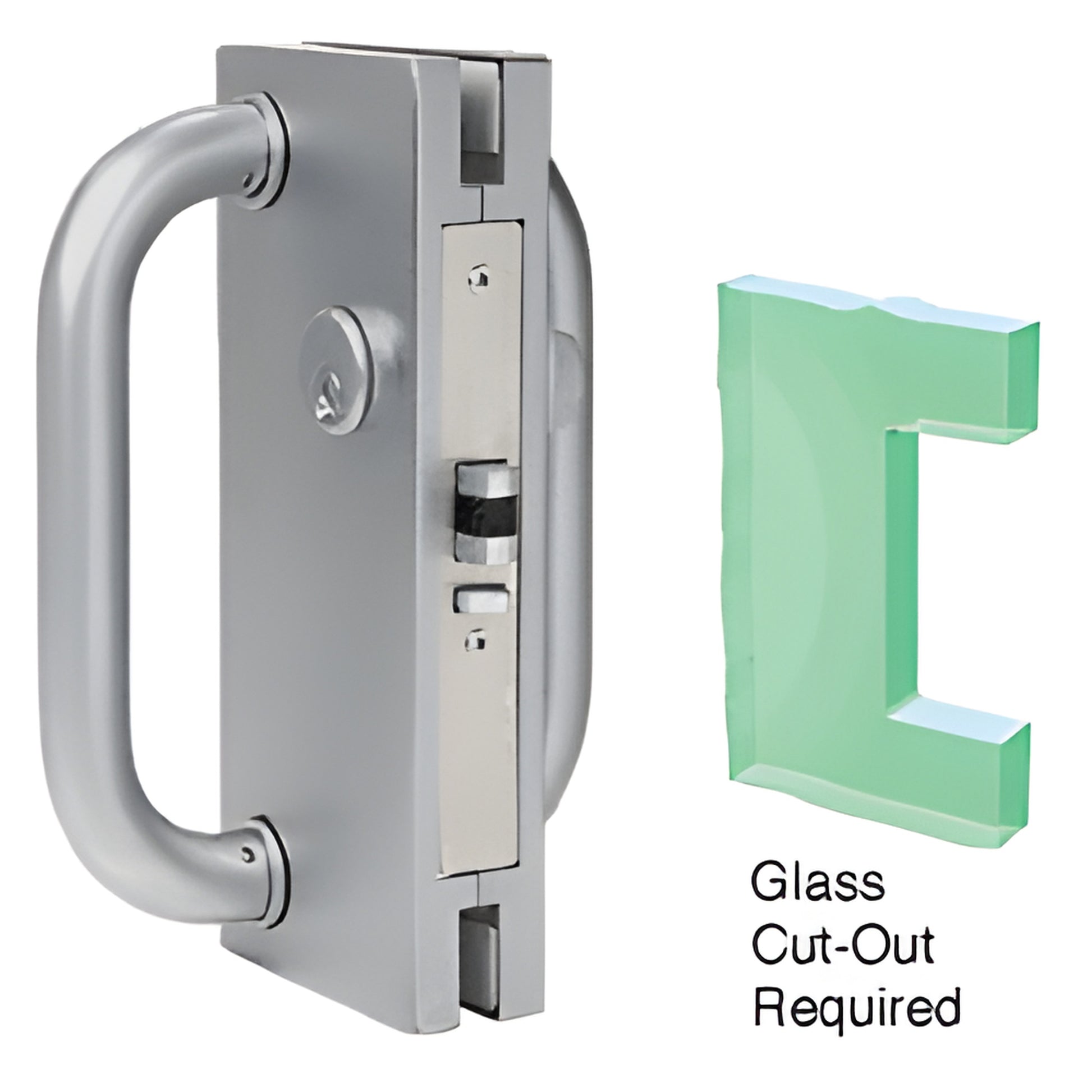

CRL 4" x 10" Center Locks with Deadlatch (SKU: DL410LBS) come with a deadlatch that can be dogged open, an 8" (203 mm) back-to-back D-handle, a thumbturn on the inside, and a keyed cylinder on the outside. The dogging feature is engaged by pushing both deadlatch bolts fully into the open position, then turning either the keyed cylinder or thumbturn until the dogging clips snap in place. This center lock is designed for 1/2" (12 mm) heavy tempered glass doors and is a durable, low-profile solution for commercial glass door security.
Available in five attractive finishes; custom locks and accessories can be special ordered to fit unique glass door hardware needs. Highlights: easy bolt installation for tempered glass doors, dogging option for hands-free open position, and keyed exterior plus interior thumbturn for secure access control.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to help maintain the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Order the DL410LBS 4" x 10" center lock for 1/2" tempered glass doors today — contact CRL for pricing and custom options.
