CRL Brushed Stainless Steel Cabinet Pivot Hinges
CRL Brushed Stainless Steel Cabinet Pivot Hinges
Regular price
$89.81 CAD
Regular price
Sale price
$89.81 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 12PVH
Shipping Weight: 5.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Depth
1/8 in. (3.2 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Includes
Vinyl Macaroni On Screws And Drilling Template. Two per pack
Length
2-3/8 in. (60.3 mm)
Material
Stainless Steel
Maximum Door Width
15 in. (381 mm)
Mounting Hole Diameter
3/8 in. (9.5 mm)
Weight Capacity
22 lbs. (10 kg)
Overview
- For 3/16" to 1/4" (4.7 to 6.3 mm) thick glass
- Requires two 3/8" (10 mm) holes per hinge

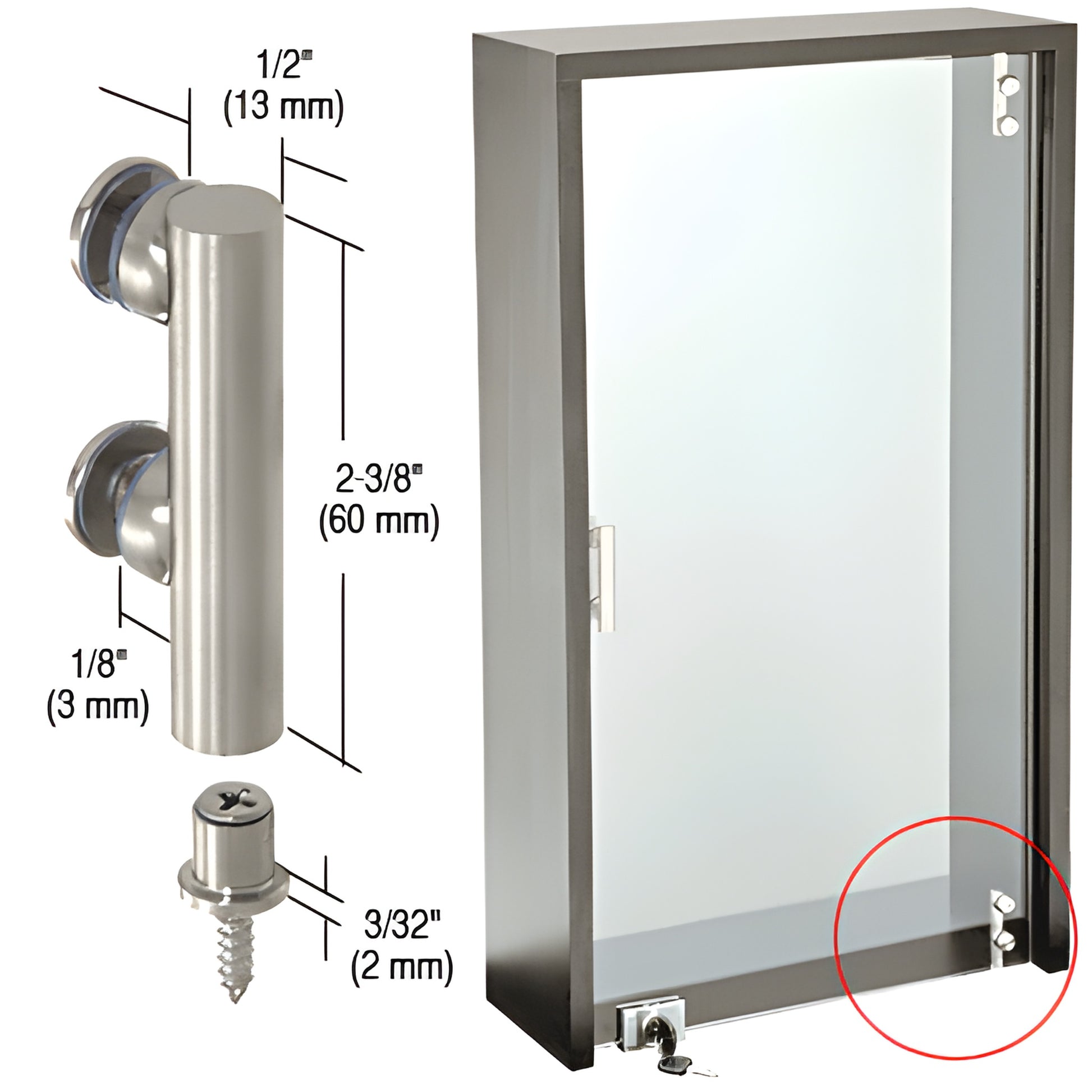

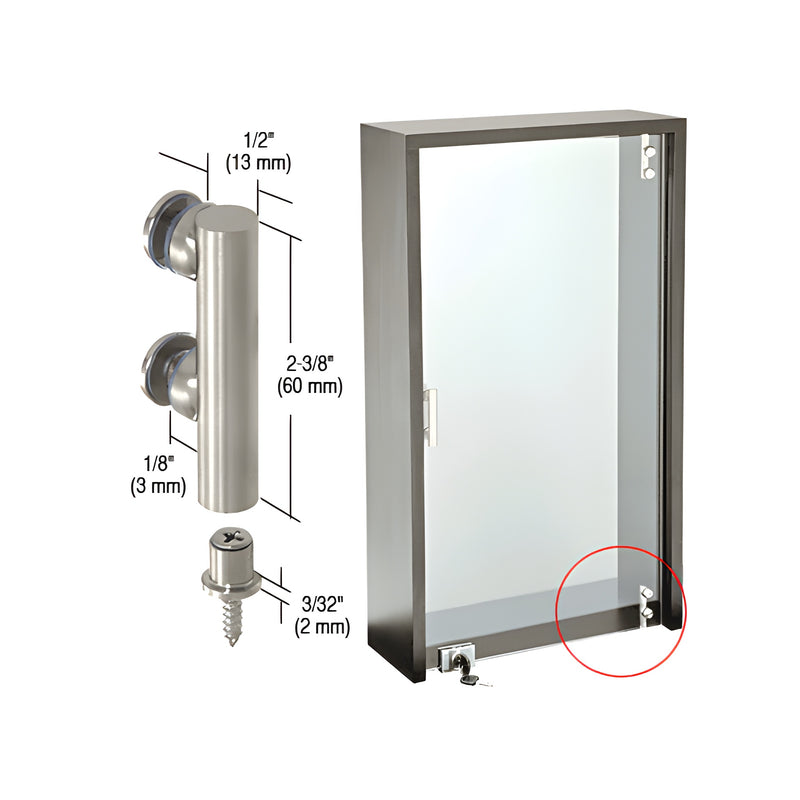

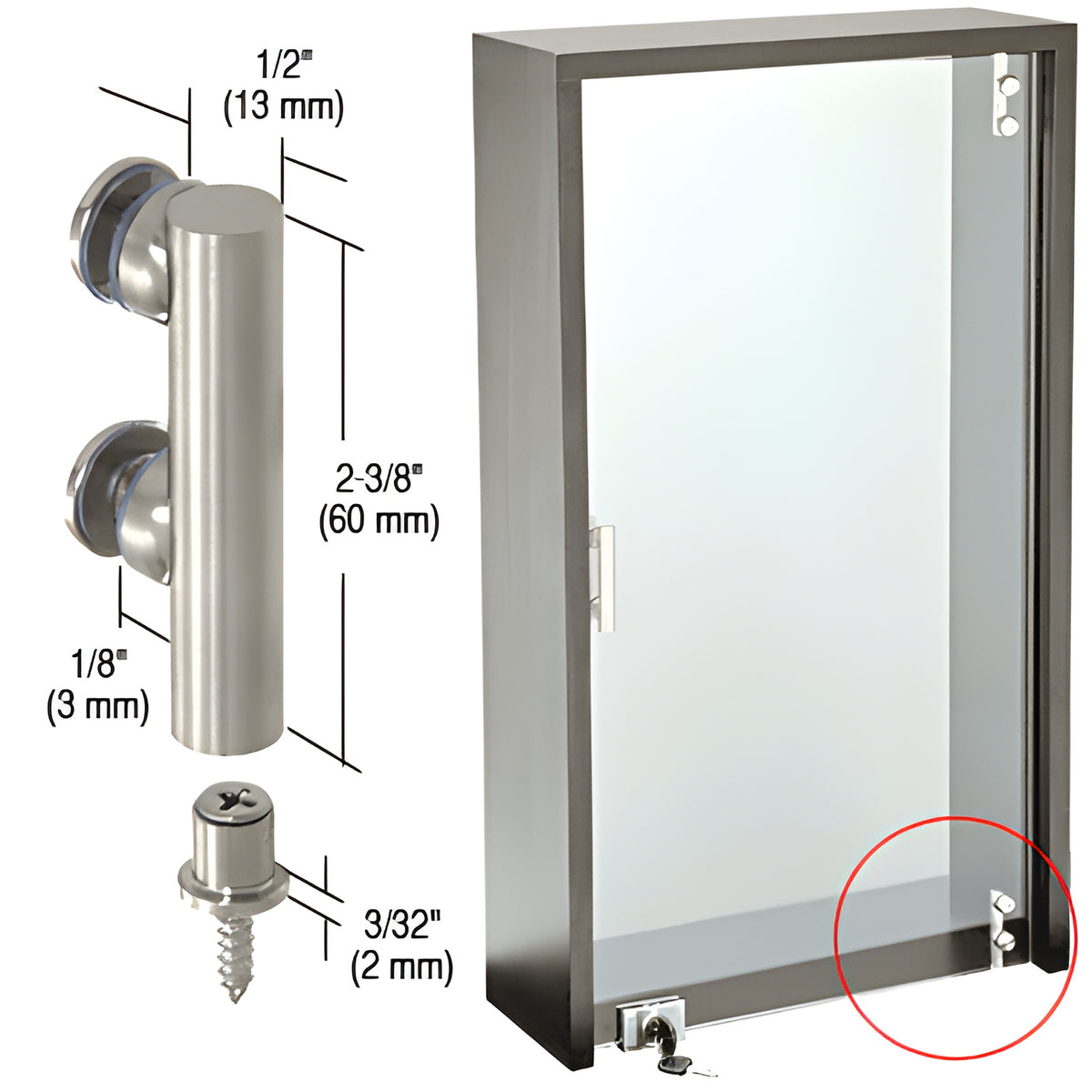

These CRL Brushed Stainless Pivot Hinges (SKU 12PVH) provide a contemporary, high‑tech look for glass cabinet doors. Designed for free‑swinging installation into wood at both cabinet top and bottom, these pivot hinges are ideal for display cabinets and glass-door furniture. Recommended maximum door width: 15" (381 mm); maximum weight: 22 lbs. (10 kg). Allow 1/8" (3 mm) clearance between glass door and cabinet. Includes drilling template and vinyl macaroni on screws. Matches the design of our cabinet door pivot pull, Cat. No. 12PVP. Pack quantity: two per pack.
Stainless Steel Advisory:
Although stainless steel is corrosion‑resistant, it is not completely rust‑ or stain‑proof. CRL recommends periodic maintenance to preserve the brushed stainless finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Find the right brushed stainless pivot hinge for 3/16"–1/4" glass — order SKU 12PVH now.
