CRL Brushed Stainless Glass Door Hydraulic Patch 90Β° Hold-Open 2-9/16"
CRL Brushed Stainless Glass Door Hydraulic Patch 90Β° Hold-Open 2-9/16"
Regular price
$302.68 CAD
Regular price
Sale price
$302.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL380HBS
Shipping Weight: 2.16 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.16 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)

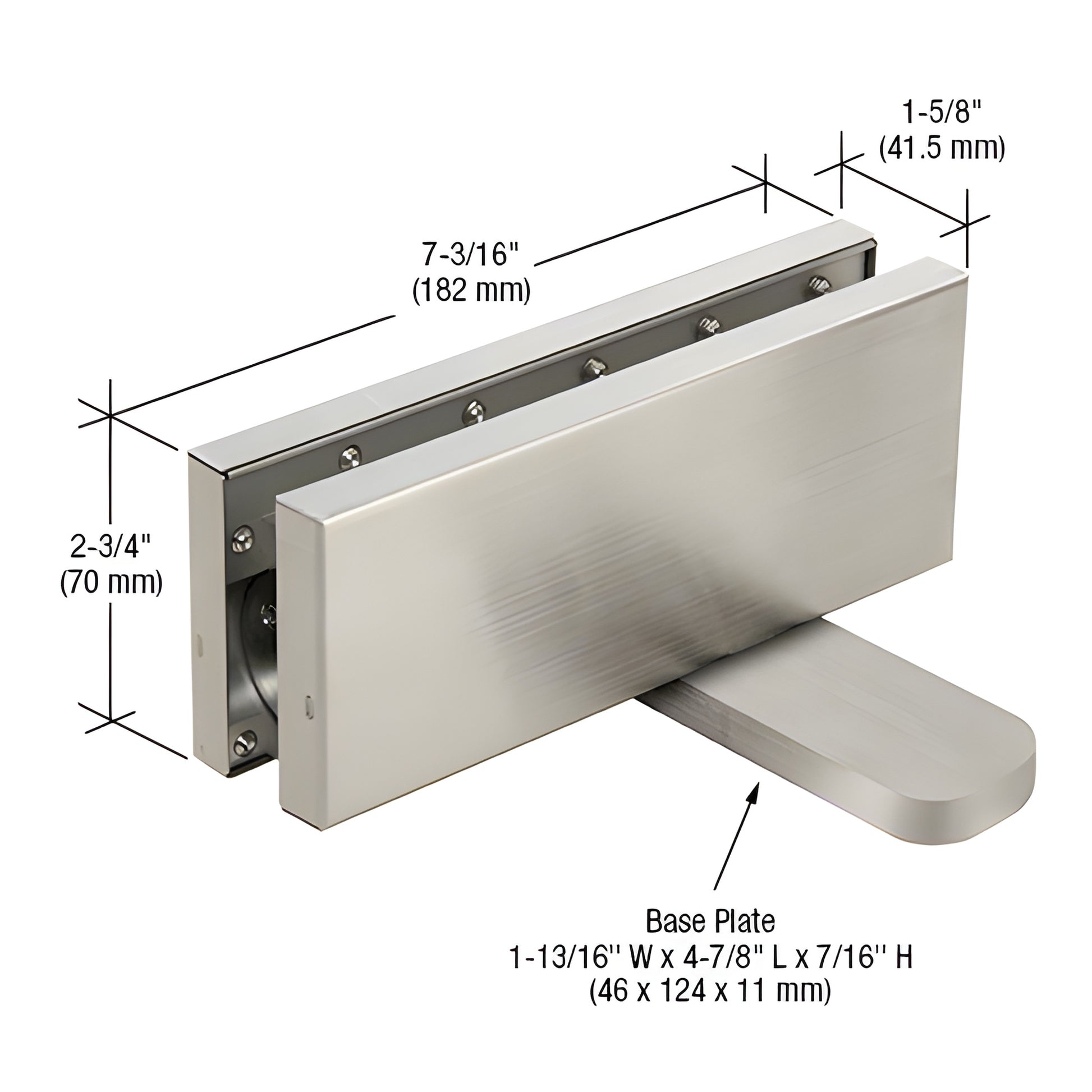

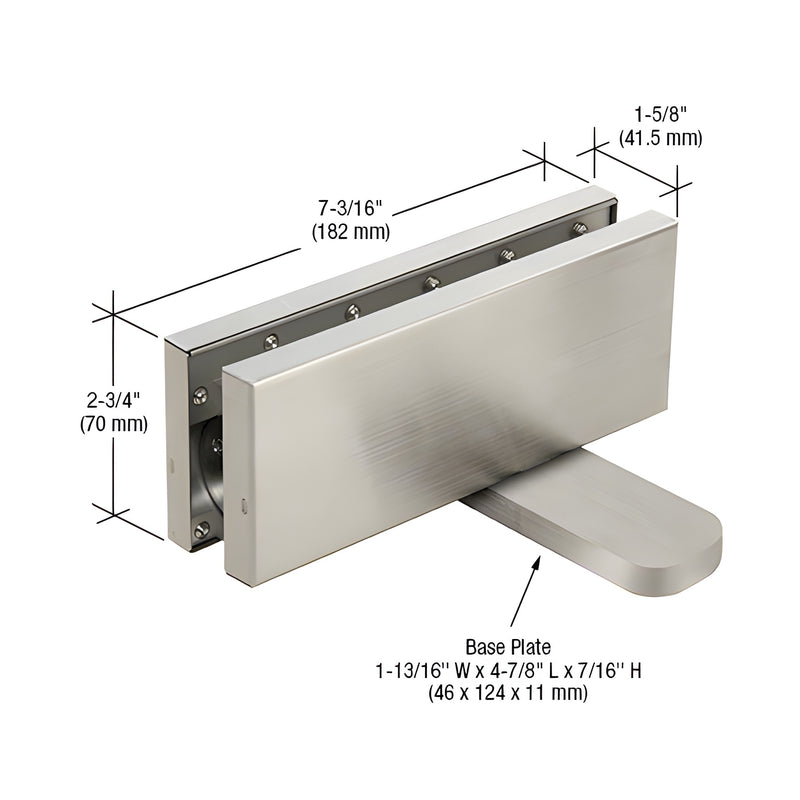

Height
2-3/4 in. (70 mm)
Hold Open
Yes
Length
7-3/16 in. (183 mm)
Maximum Door Width
39 in. (991 mm)
Maximum Panel Weight
220 lbs. (99.8 kg)
Pivot Setback
2-9/16
Width
1-5/8 in. (41 mm)
Overview
- 2-9/16" (65 mm) pivot point
- Available in Brushed Stainless, Polished Stainless, Satin Anodized, and Matte Black finishes
- Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
- Flush mount β no floor hole required
- For interior use only
- Requires PH21A top patches
CRL380 Series Hydraulic Patch Fittings (SKU: CRL380HBS) β medium-duty hydraulic patch fitting for interior glass doors. Two adjustable screws control latching speed and swing speed for precise closing. Designed as a self-contained pivot and closer, no additional floor or overhead closing devices are required. Supports doors up to 39" (1 m) wide and 220 lbs (100 kg). Requires glass fabrication (cut-out) for 3/8" (10 mm) or 1/2" (12 mm) tempered glass. Ideal as a hydraulic patch fitting for frameless glass doors and interior commercial glass door installations.
Product Warning:
Custom headers with 2-9/16" (65 mm) pivot points must be ordered if required. Not compatible with stock NH36xx and NH72xx headers.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Need assistance specifying the CRL380HBS hydraulic patch fitting for your project? Contact CRL or order now.
