CRL Brushed Stainless Patch Door Kit for Transom & 2 Sidelites No Lock
CRL Brushed Stainless Patch Door Kit for Transom & 2 Sidelites No Lock
Regular price
$548.25 CAD
Regular price
Sale price
$548.25 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHA5BS
Shipping Weight: 8.502 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.502 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Single With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4
Overview
- 'All-Glass' look for modern glass door installations
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks (optional AMR205 patch lock)
CRL PHA5 (SKU: PHA5BS) North American Door Kit includes complete hardware to assemble a free‑swinging commercial glass door with fixed transom and two sidelites (does not include glass or additional supports for transom/sidelites). Pivot setback: 2-3/4" (70 mm). Compatible with a separately ordered floor closer using a tapered spindle. This kit is ideal for storefronts and interior commercial glass doors requiring premium pivot hardware and an 'all-glass' aesthetic.

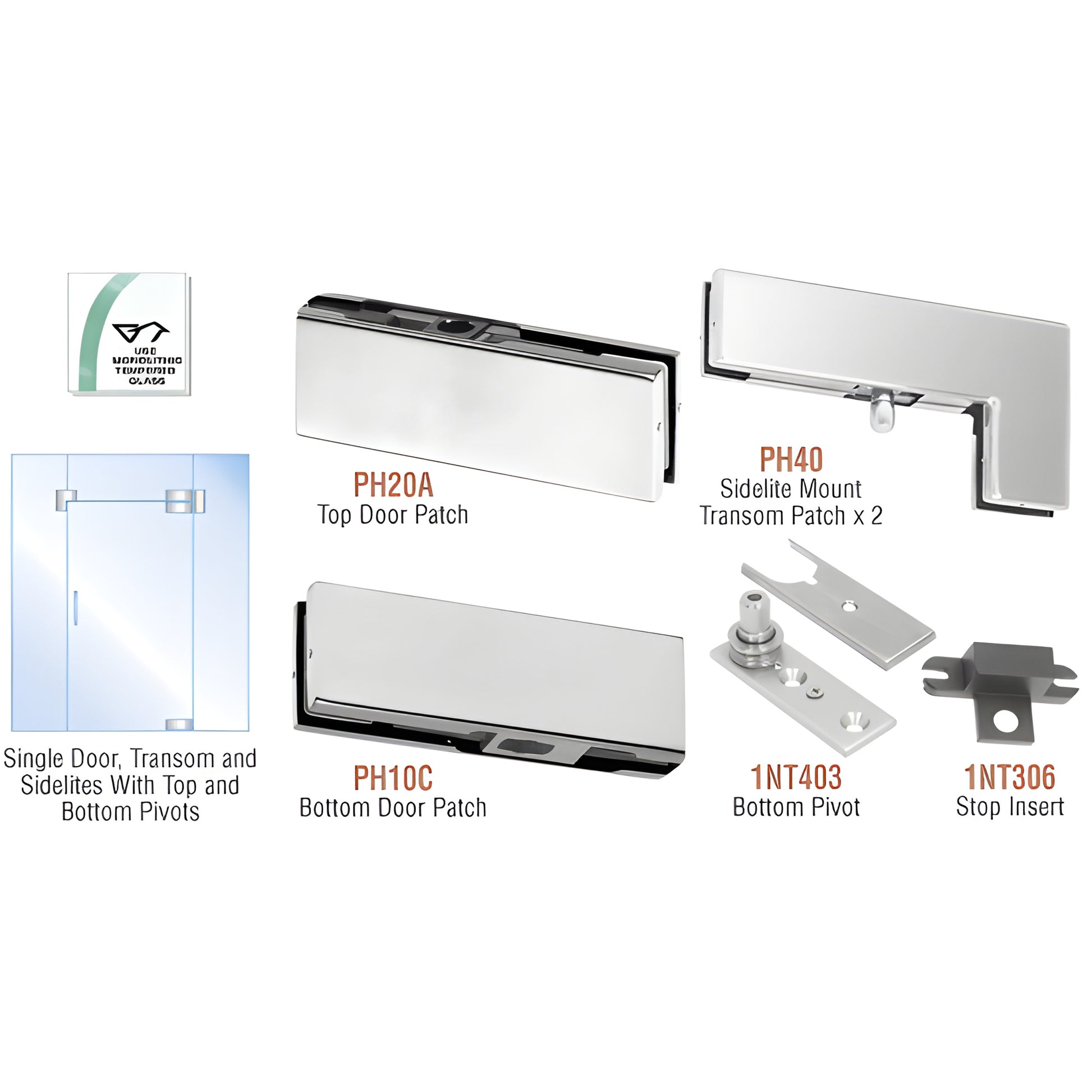

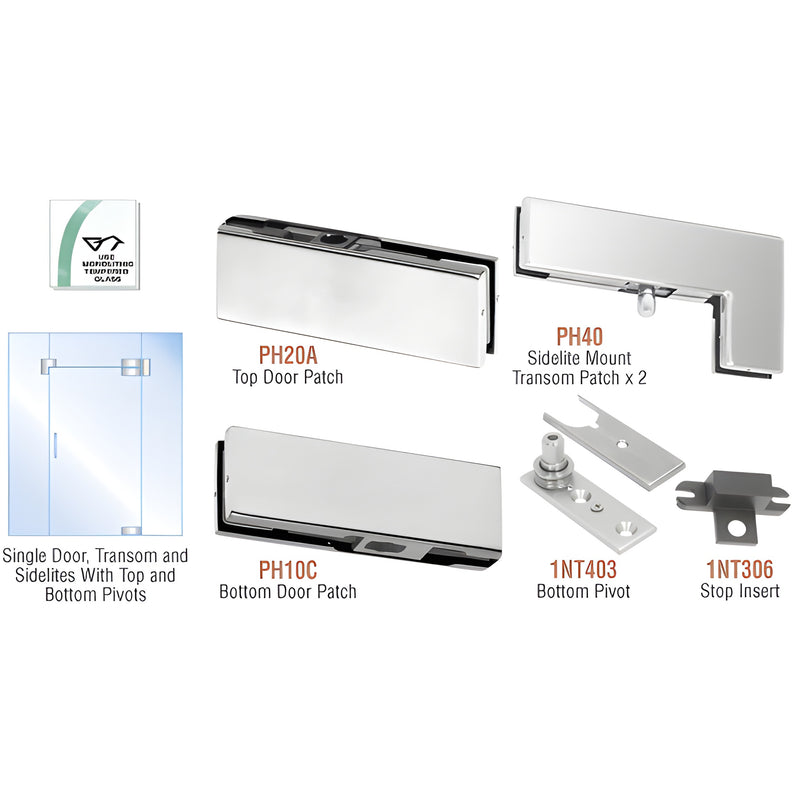

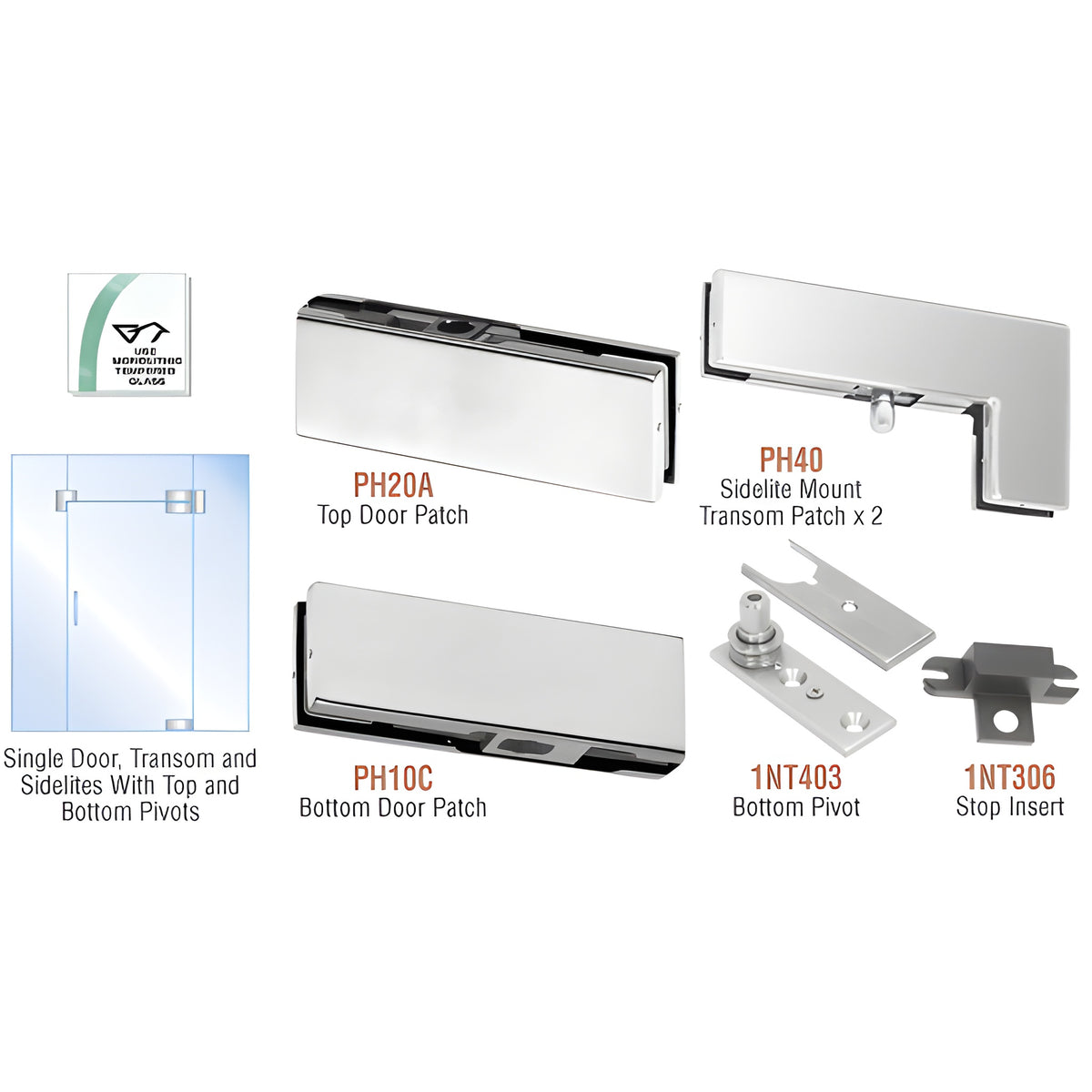

Kit Contains:
- 2 × PH40 Sidelite Mount Transom Patches
- 1 × PH20A Top Door Patch
- 1 × PH10C Bottom Door Patch
- 1 × 1NT306 Stop Insert
- 1 × 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)
Kits with locks include one AMR205 patch lock; cylinders, thumbturns, and keepers are ordered separately. For maximum door sizes, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Shop PHA5BS for reliable commercial glass door pivot hardware—contact CRL or your distributor to order or request technical assistance.
