CRL Satin Anodized Patch Door Kit for Transom & 2 Sidelites - No Lock

• “All-Glass” aesthetic for a clean frameless look
• Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
• Available with or without patch locks (lock cylinder and thumbturn ordered separately)

CRL PHA5 North American Door Kits (SKU: PHA5A) include complete hardware to assemble a free‑swinging all‑glass pivot door with a fixed transom and two sidelites (glass and any additional structural supports for transom/sidelites not included). Pivot setback: 2‑3/4" (70 mm). Compatible with most floor closers that use a tapered spindle (floor closers sold separately). Ideal for frameless commercial interior storefronts and high‑end residential applications requiring tempered glass pivot door hardware.

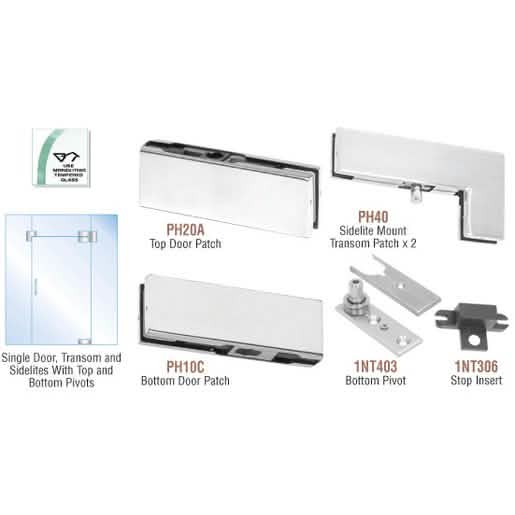

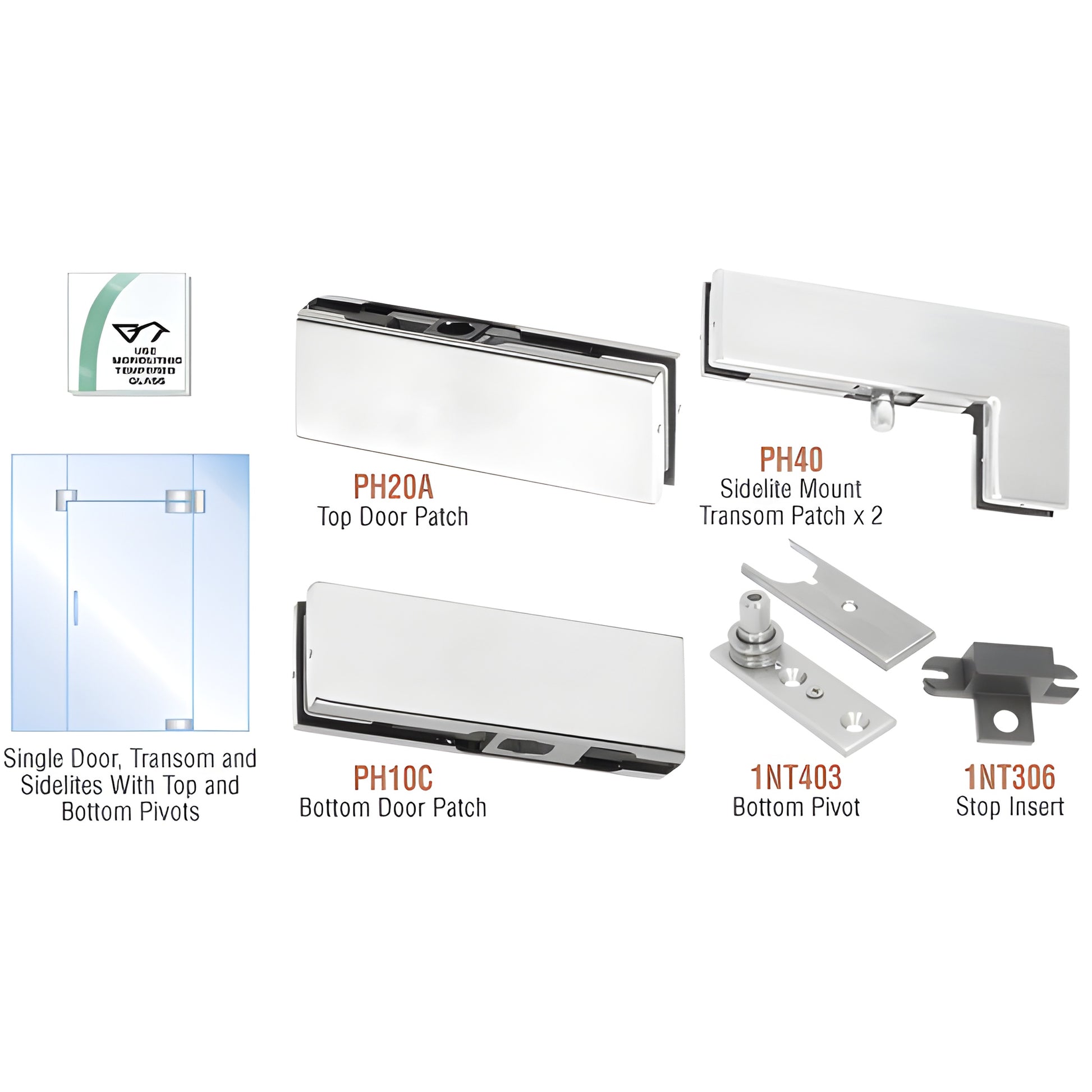

Kit Contains:

• 2 – PH40 Sidelite Mount Transom Patches
• 1 – PH20A Top Door Patch
• 1 – PH10C Bottom Door Patch
• 1 – 1NT306 Stop Insert
• 1 – 1NT403 Bottom Pivot
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must be drilled/notched per template)

Kits with lock include one AMR205 patch lock. Cylinders, thumbturns and keepers are ordered separately. For maximum door sizes and loading guidance, CRL follows GANA guidelines.

Order the PHA5A all‑glass pivot door kit today to complete your temperate‑glass storefront or interior door installation.
