CRL Matte Black Patch Door Kit for Transom & 2 Sidelites (No Lock)

• All-glass look for modern frameless installations
• Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
• Available with or without locks (lock-ready option)

CRL PHA5 North American Door Kits (SKU: PHA5MBL) include complete hardware to install a free-swinging frameless glass door with fixed transom and two sidelites (glass and any additional supports for transom/sidelites not included). Pivot setback: 2-3/4" (70 mm). Compatible with a separately ordered floor closer with tapered spindle.

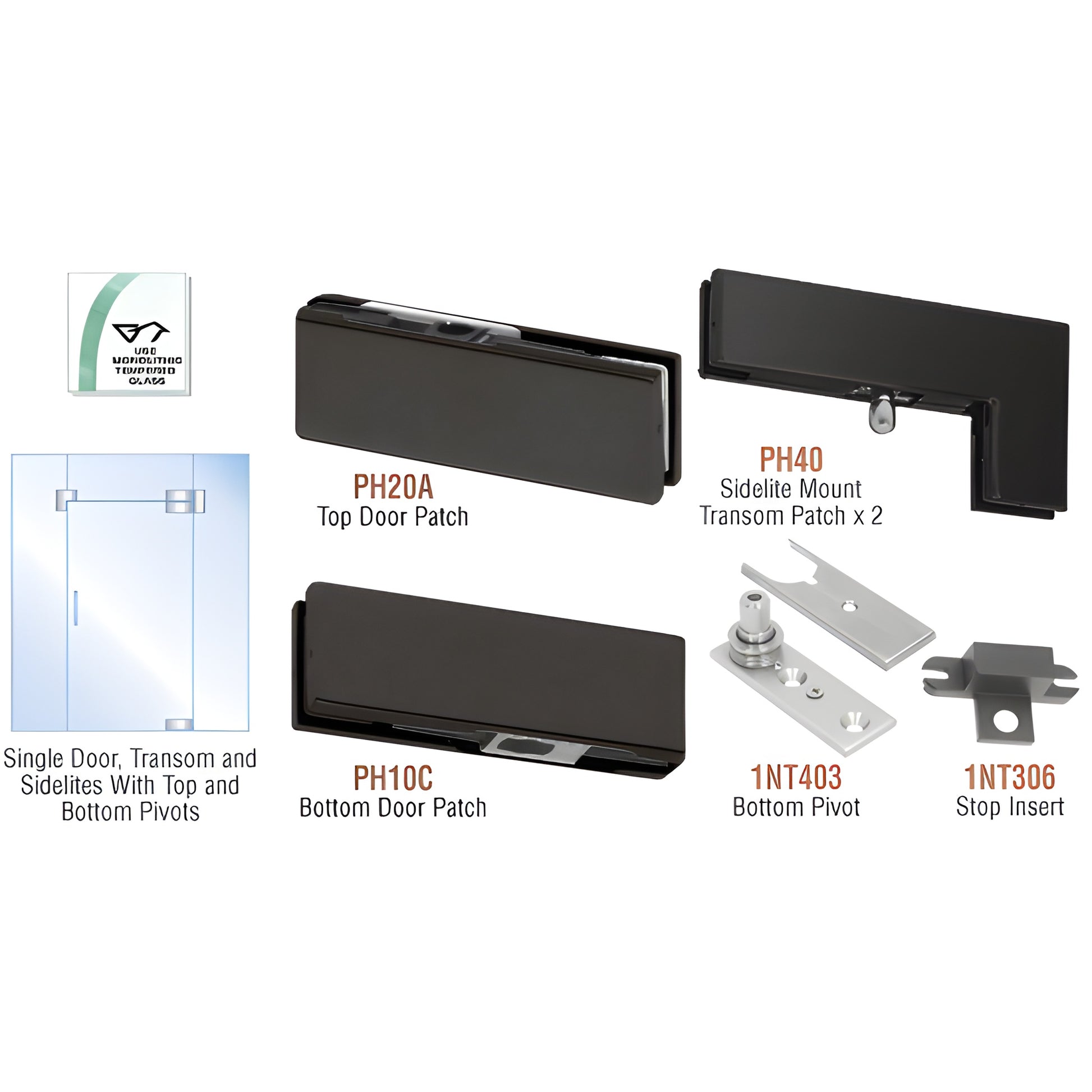

Kit contains:

• 2 × PH40 sidelite mount transom patches
• 1 × PH20A top door patch
• 1 × PH10C bottom door patch
• 1 × 1NT306 stop insert
• 1 × 1NT403 bottom pivot
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)

Kits with lock include one Cat. No. AMR205 patch lock; cylinders, thumbturns, and keepers sold separately.

Why choose this SKU (PHA5MBL)? Engineered for a seamless, all-glass, contemporary appearance—this pivot hinge kit is optimized for tempered glass storefronts and interior frameless glass doors. Complies with GANA guidelines for maximum door sizes when applicable, making it a reliable choice for commercial and high-end residential glass door installations.

Need help selecting the right frameless glass door hardware kit for your project? Contact CRL or add PHA5MBL to your cart to get started.
