CRL Brushed Stainless Slot Standoff for 3/8" Glass Panels
CRL Brushed Stainless Slot Standoff for 3/8" Glass Panels
Regular price
$45.59 CAD
Regular price
Sale price
$45.59 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SM38BS
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (31.8 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Height
1-5/8 in. (41.3 mm)
Material
Stainless Steel
Overview
- Fits 3/8" (10 mm) thick material — ideal for 3/8" tempered glass panels
- No drilling required for installation — protects monolithic glass and sheet materials
- Available in several architectural finishes for modern interior and exterior designs
- Use with monolithic tempered glass or panel materials up to 3/8" (10 mm)

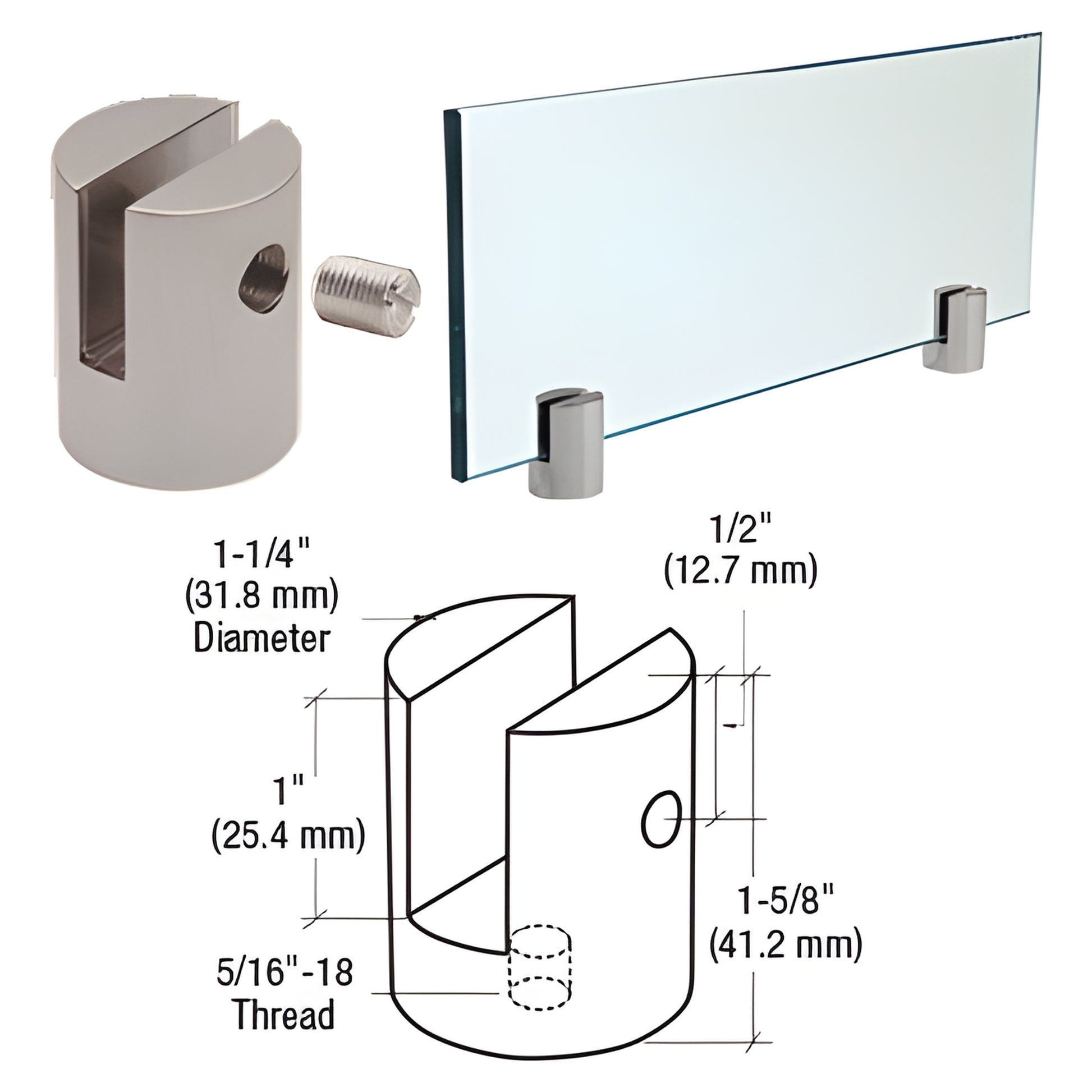

CRL's Slot Mount Standoffs (SKU: SM38BS) are engineered for vertical or horizontal mounting to install partition panels, shelving, or signage without drilling holes in the material. Nylon-tip set screws secure panels without marring glass or other panel surfaces. The 1-1/4" (32 mm) diameter slot mount standoff supports 3/8" (10 mm) thick material; recommended maximum shelf projection from the wall is 5" (127 mm) when anchored to a wall stud.
Slot mount standoffs can be used independently or with Standard Standoff Bases. Available slot widths: 1/4" (6 mm), 3/8" (10 mm) and 1/2" (12 mm) to accommodate various panel thicknesses.
Slot Mount Standoff Assemblies Consist of:
- 1 Standoff
- 1 Nylon-tip set screw
- 1 Clear "L" gasket
NOTE: Load capacity depends on wall or substrate anchoring and panel material strength. Determine anchoring and weight limits for your specific application.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order SKU SM38BS now or contact CRL for project-specific guidance and installation recommendations.
