CRL Chrome Slot-Mount Standoff for 3/8" Glass Panels

• Fits 3/8" (10 mm) thick material
• No drilling required for installation — protects glass and panel edges
• Available in several architectural finishes
• Designed for monolithic tempered glass

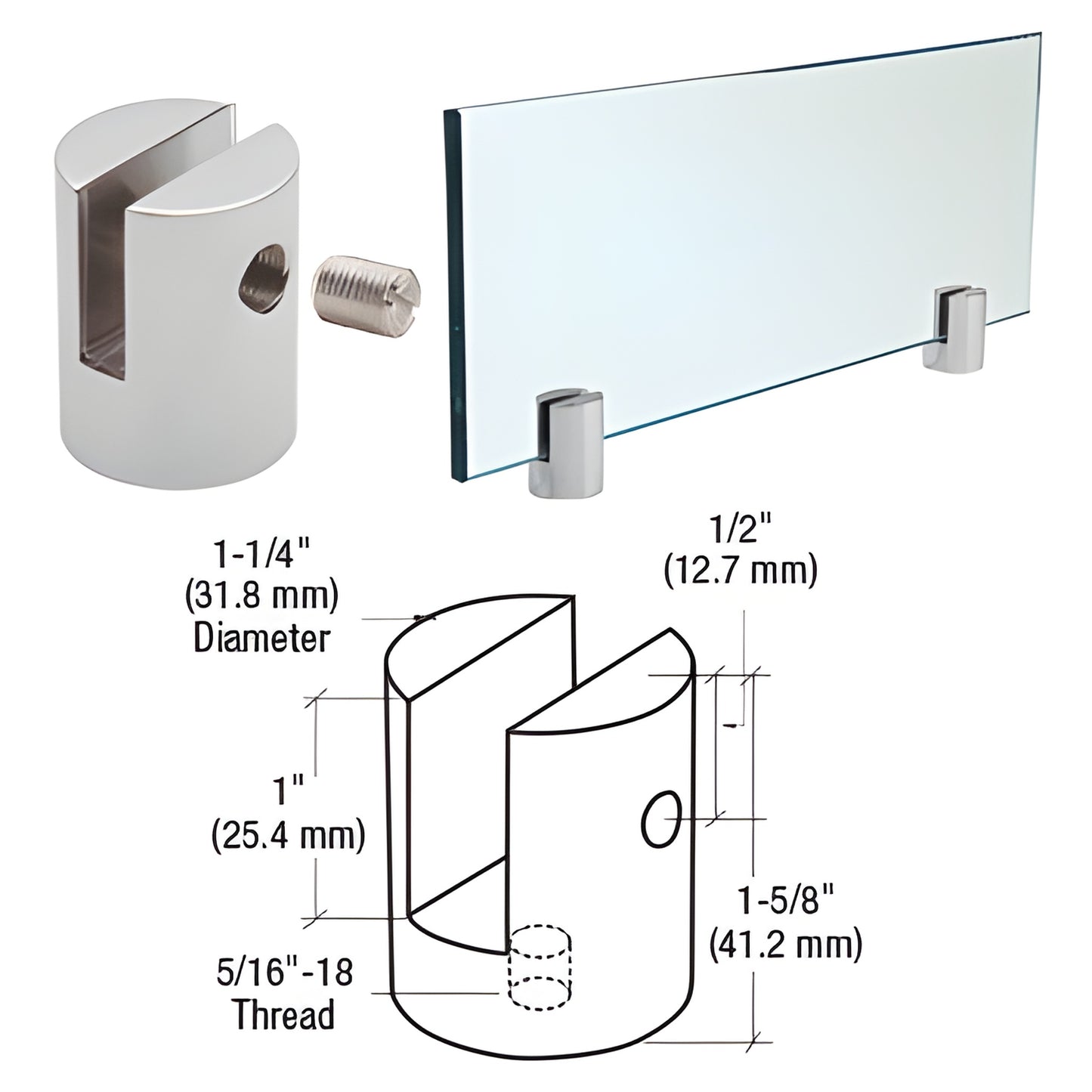

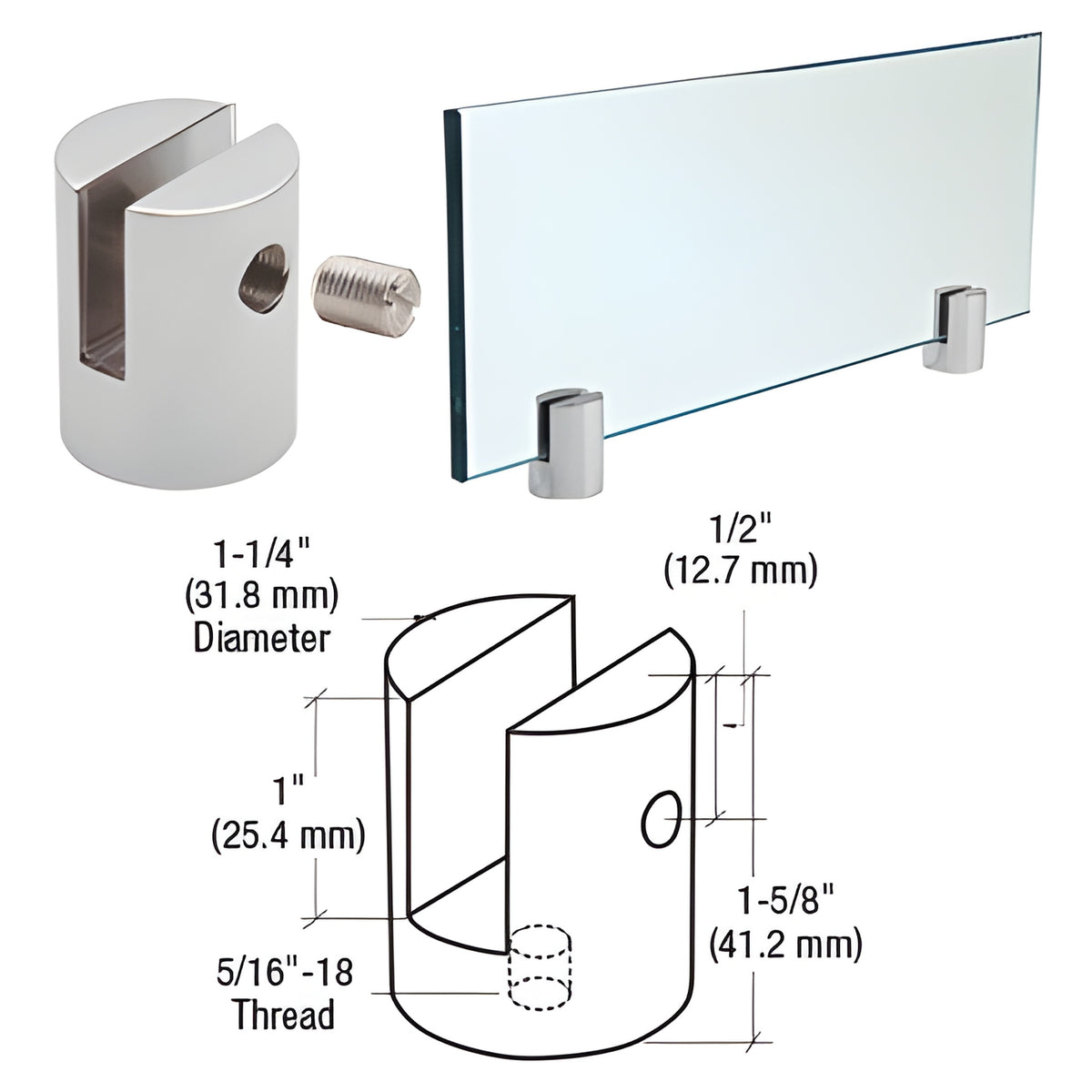

CRL Slot Mount Standoffs — SKU: SM38CH are engineered for vertical or horizontal mounting to install partition panels, shelving, or signage without drilling holes in the material. Nylon-tip set screws secure panels firmly without damaging edges or glass. This 1-1/4" (32 mm) diameter slot mount standoff accommodates 3/8" (10 mm) material and is suitable for monolithic tempered glass applications. Maximum recommended shelf projection from the wall is 5" (127 mm) when the standoff is anchored to a wall stud.

Slot mount standoffs can be used independently or with Standard Standoff Bases. Available slot widths: 1/4" (6 mm), 3/8" (10 mm), and 1/2" (12 mm) — ideal long-tail options such as "slot mount standoff for 3/8-inch glass shelf" or "no-drill standoff for tempered glass panel."

Slot Mount Standoff assemblies consist of:

• 1 each standoff
• 1 each nylon-tip set screw
• 1 each clear "L" gasket

NOTE: Load capacity depends on wall or substrate anchoring and material strength; verify anchoring method for shelving or signage weight requirements.
Contact CRL for pricing and availability or to request technical assistance.
