CRL Satin Chrome 3/8 in Slot Mount Glass Panel Standoff
CRL Satin Chrome 3/8 in Slot Mount Glass Panel Standoff
Regular price
$26.25 CAD
Regular price
Sale price
$26.25 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SM38SC
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

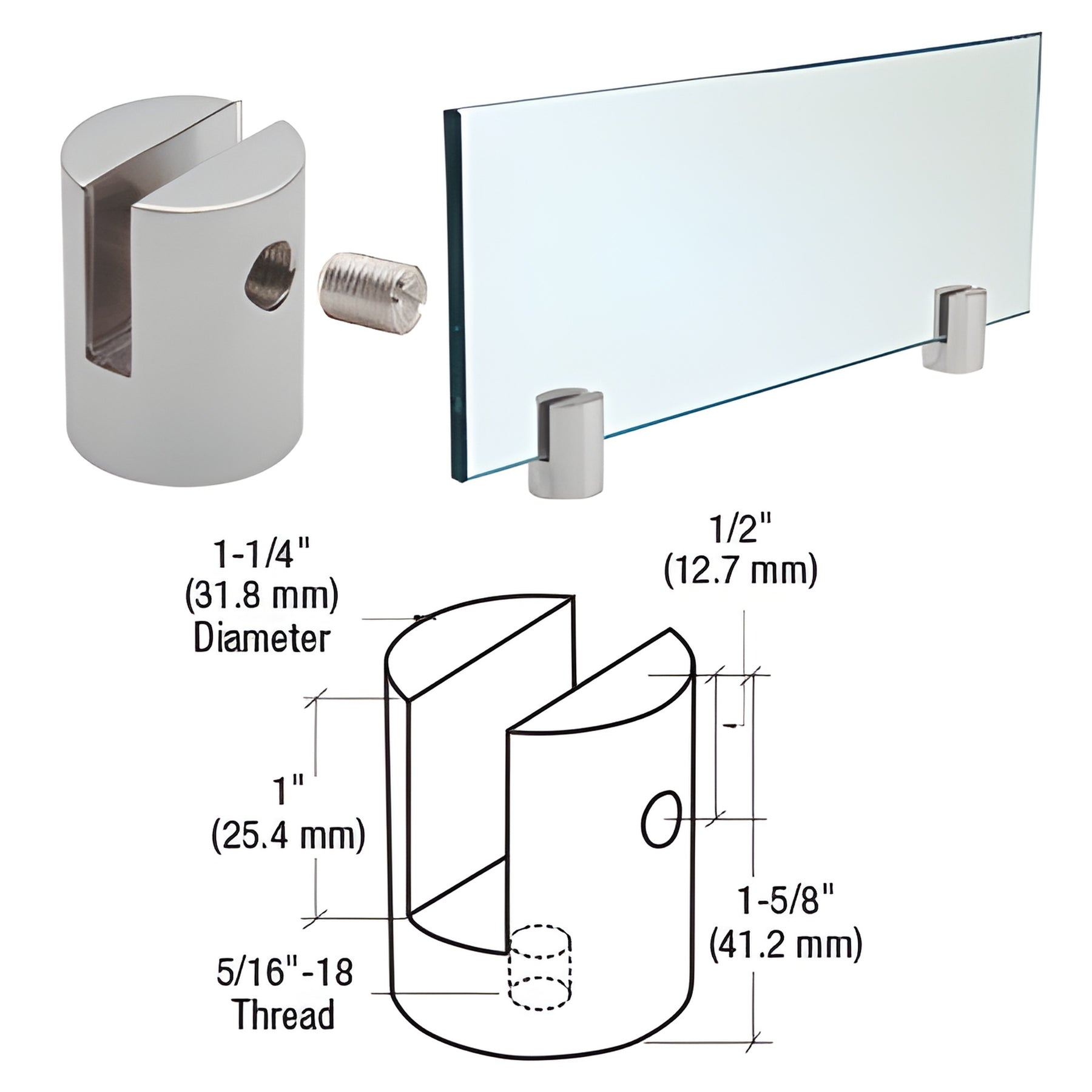

Diameter
1-1/4 in. (31.8 mm)
Finish/Color
Satin Chrome
Glazing Thickness
3/8 in. (10 mm)
Height
1-5/8 in. (41.3 mm)
Material
Brass
Overview
- Fits 3/8" (10 mm) thick material
- No drilling required for installation
- Available in several architectural finishes
- Use with monolithic tempered glass
CRL Slot Mount Standoffs (SKU: SM38SC) are engineered for vertical or horizontal mounting to install partitions, shelving, or signage without drilling holes in the panel. Nylon-tip set screws secure panels without damaging glass or panel material. This 1-1/4" (32 mm) diameter slot mount standoff accepts 3/8" (10 mm) material and is suitable for tempered glass partition and signage applications. For shelf installations, the maximum recommended shelf projection is 5" (127 mm) when the standoff is anchored to a wall stud.
Slot Mount Standoffs can be used independently or with Standard Standoff Bases. Available slot widths: 1/4" (6 mm), 3/8" (10 mm) and 1/2" (12 mm). Ideal long-tail search matches: slot mount standoff for 3/8" glass, no-drill standoff for tempered glass partitions, architectural finish standoffs for signage.
Slot Mount Standoff Assemblies include:
1 Each Standoff
1 Each Nylon Tip Set Screw
1 Each Clear "L" Gasket
Note: Load capacity varies with wall/substrate anchoring and panel material strength. Confirm anchoring method and material specifications for weight-critical installations.
Contact CRL Customer Service to order SKU SM38SC or for application guidance.
