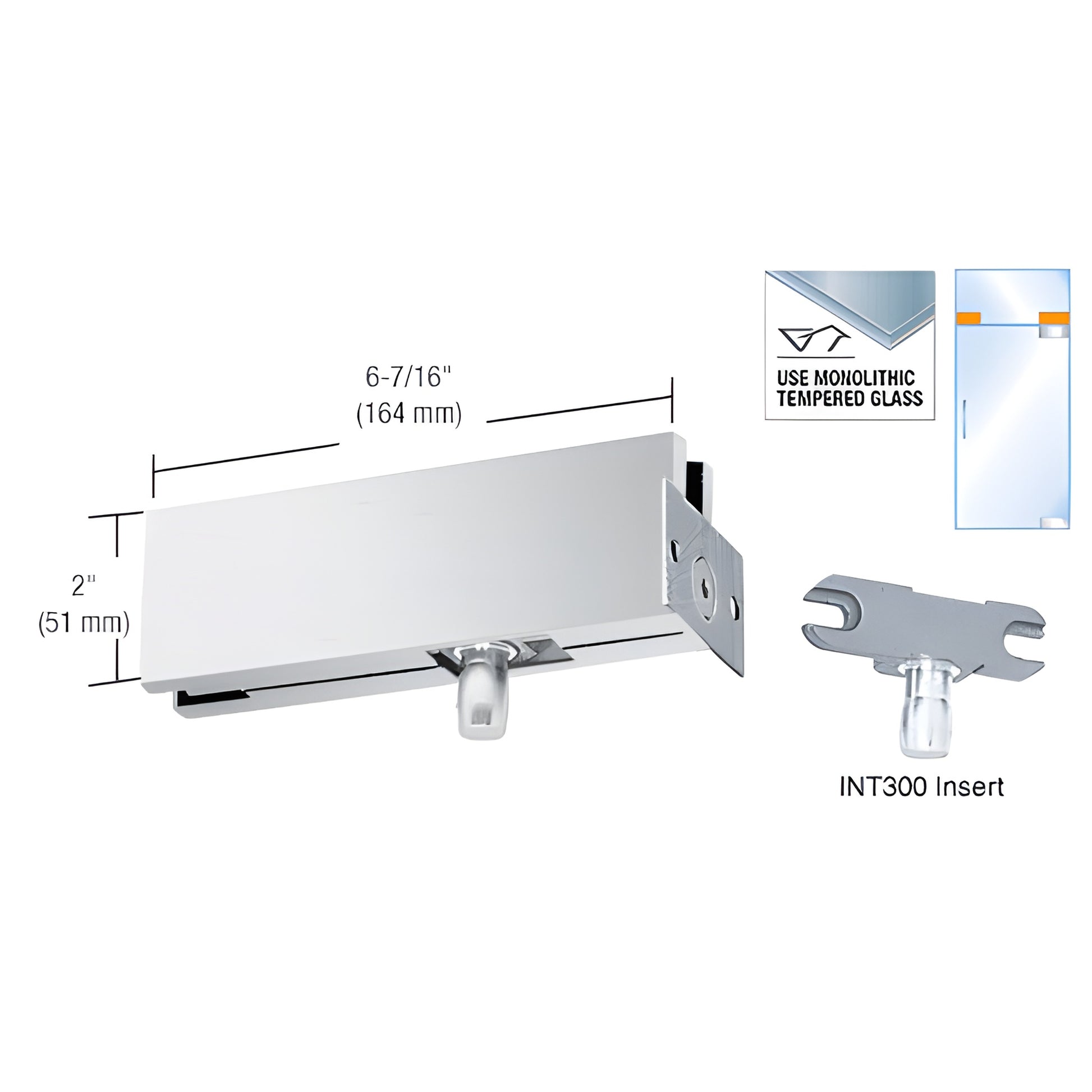

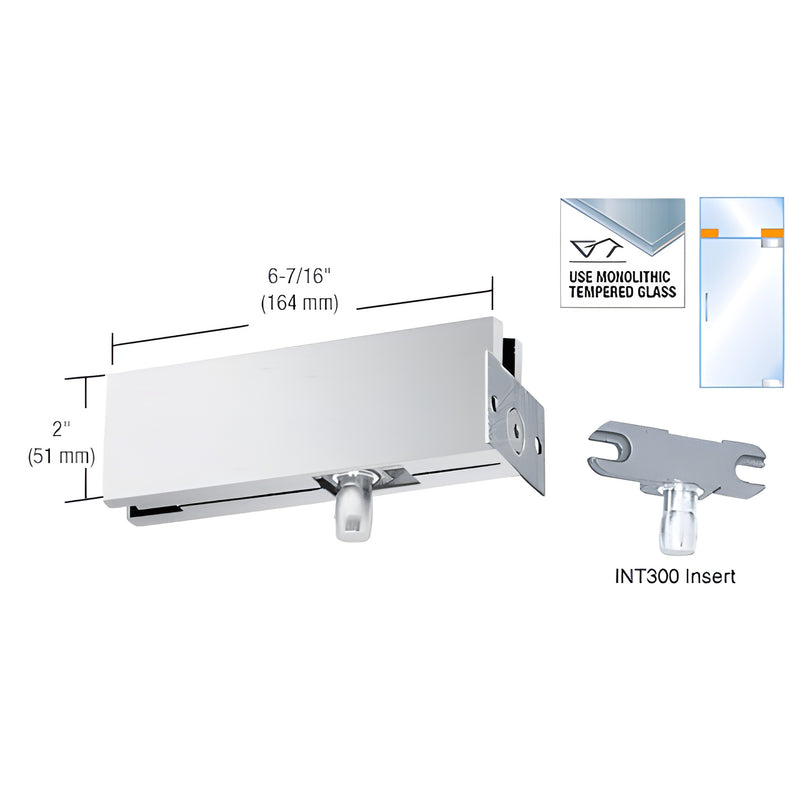

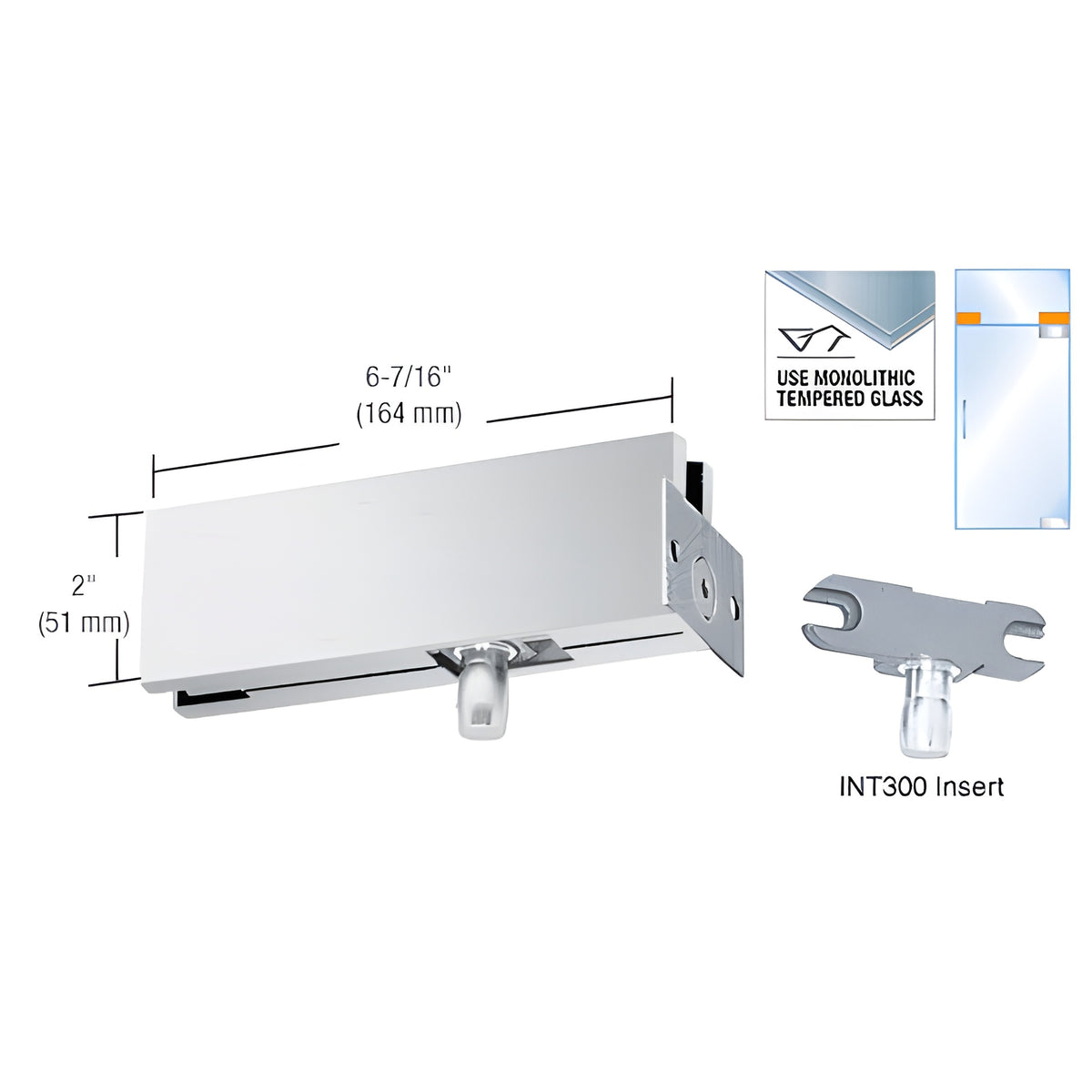

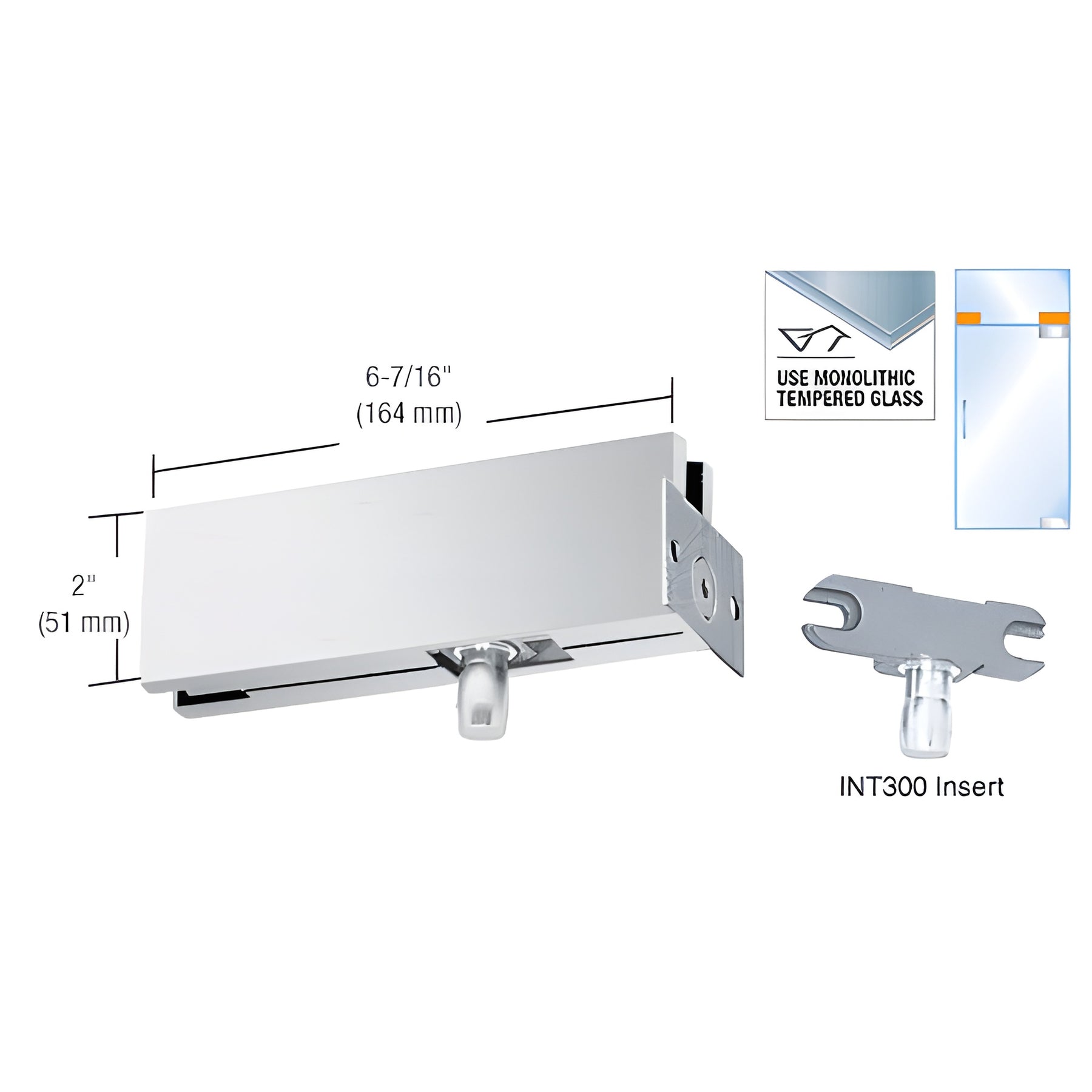

CRL Brushed Stainless Steel Wall-Mount Transom Patch w/ 1NT300 Insert
CRL Brushed Stainless Steel Wall-Mount Transom Patch w/ 1NT300 Insert
Regular price
$75.67 CAD
Regular price
Sale price
$75.67 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH34BS
Shipping Weight: 12.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type
1NT300
Mounting Type
Wall Mount
With Insert
Yes
Overview
- Works with both 2-3/4" and 2-9/16" (70 mm and 65 mm) pivot setback door patch fittings
- Use monolithic tempered glass
The CRL PH34 Wall Mounted Transom Patch (SKU: PH34BS) supports a transom from a side jamb for interior or exterior tempered glass door systems. Includes the INT300 insert for mounting with CRL PH20A or PH21A top door patch fittings. The INT300 insert can be repositioned to the non-hinged side to accommodate double-swing doors. Add the INT306 transom patch door stop insert for one-way operation, or install the INT305 keeper insert to use an AMR205 lock for top-of-door installations. These features make the PH34 ideal as a wall-mounted transom patch for tempered glass pivot doors and frameless glass door transom applications.
Glass Fabrication Required: One 3/4" (19 mm) diameter hole and corner notch.
Product Warning:
These fittings are not for use with laminated glass.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Why choose PH34BS? Durable stainless steel construction, compatible with 70 mm and 65 mm pivot setback fittings, and engineered for monolithic tempered glass transom installations.
Order PH34BS today to complete your frameless tempered glass pivot door transom installation.
