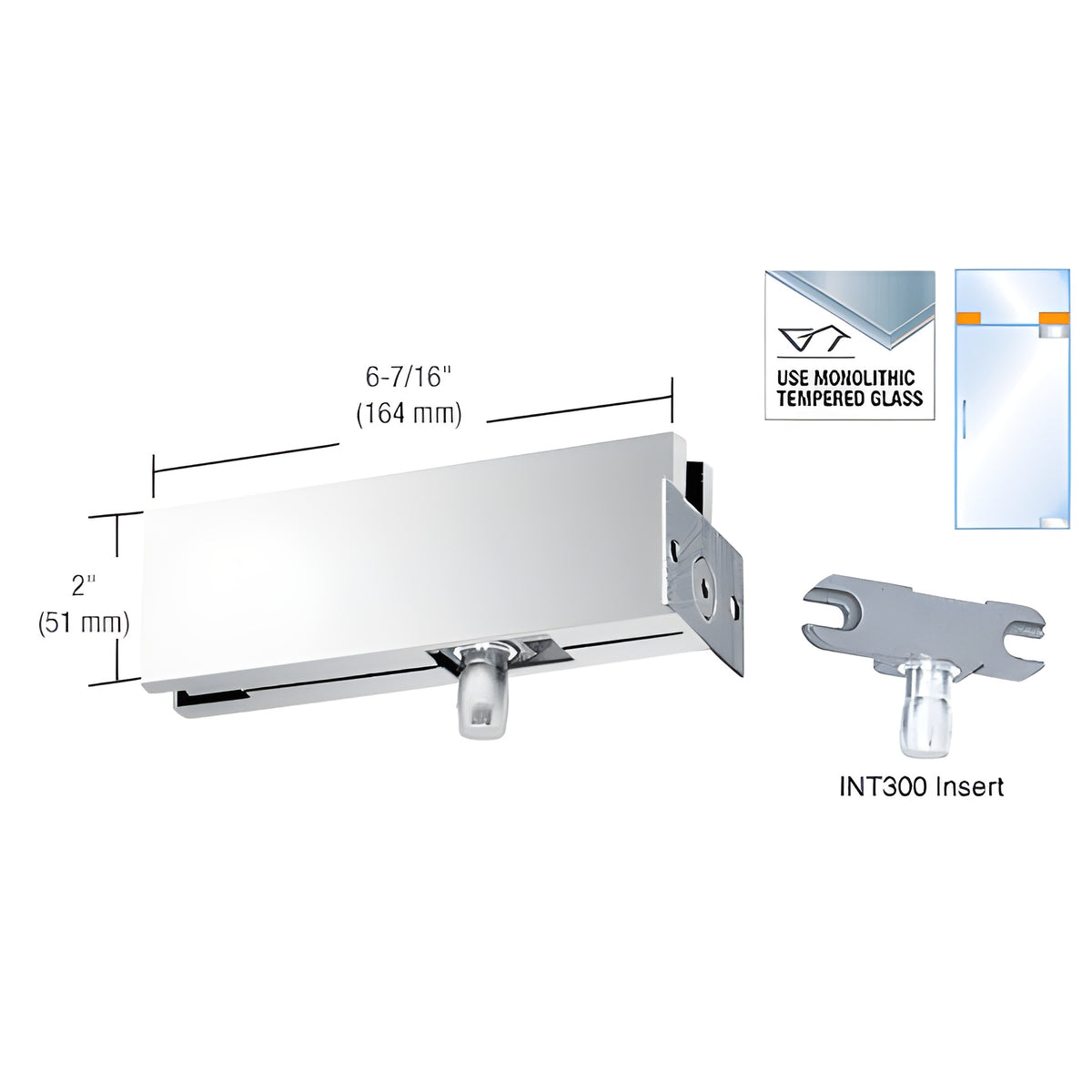

CRL Polished Stainless Wall Mounted Transom Patch with 1NT300 Insert
CRL Polished Stainless Wall Mounted Transom Patch with 1NT300 Insert
Regular price
$87.62 CAD
Regular price
Sale price
$87.62 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH34PS
Shipping Weight: 1.67 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.67 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Insert Type | 1NT300 |
| Mounting | Type Wall Mount |
| With | Insert Yes |
Overview
The CRL PH34 Wall Mounted Transom Patch is an essential component for supporting a transom from a side jamb, designed to work seamlessly with both 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings.
This product is ideal for use with monolithic tempered glass and includes the INT300 Insert for mounting doors with the CRL PH20A or PH21A Top Door Patch Fitting.
For enhanced functionality, the insert can be adjusted for a double swing door, and additional components like the INT306 Transom Patch Door Stop Insert and INT305 Transom Patch Keeper Insert can be utilized for specific door configurations.
Please note that glass fabrication requires one 3/4" (19 mm) diameter hole and corner notch, and these fittings are not suitable for laminated glass.
For optimal performance and appearance, periodic maintenance of the stainless steel components is recommended.
This product is ideal for use with monolithic tempered glass and includes the INT300 Insert for mounting doors with the CRL PH20A or PH21A Top Door Patch Fitting.
For enhanced functionality, the insert can be adjusted for a double swing door, and additional components like the INT306 Transom Patch Door Stop Insert and INT305 Transom Patch Keeper Insert can be utilized for specific door configurations.
Please note that glass fabrication requires one 3/4" (19 mm) diameter hole and corner notch, and these fittings are not suitable for laminated glass.
For optimal performance and appearance, periodic maintenance of the stainless steel components is recommended.
