CRL Satin Brass Wall-Mounted Transom Patch for Glass Doors 1NT300
CRL Satin Brass Wall-Mounted Transom Patch for Glass Doors 1NT300
Regular price
$87.08 CAD
Regular price
Sale price
$87.08 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH34SB
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type
1NT300
Mounting Type
Wall Mount
With Insert
Yes
Overview
- Works with both 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings
- Use monolithic tempered glass (not for laminated glass)

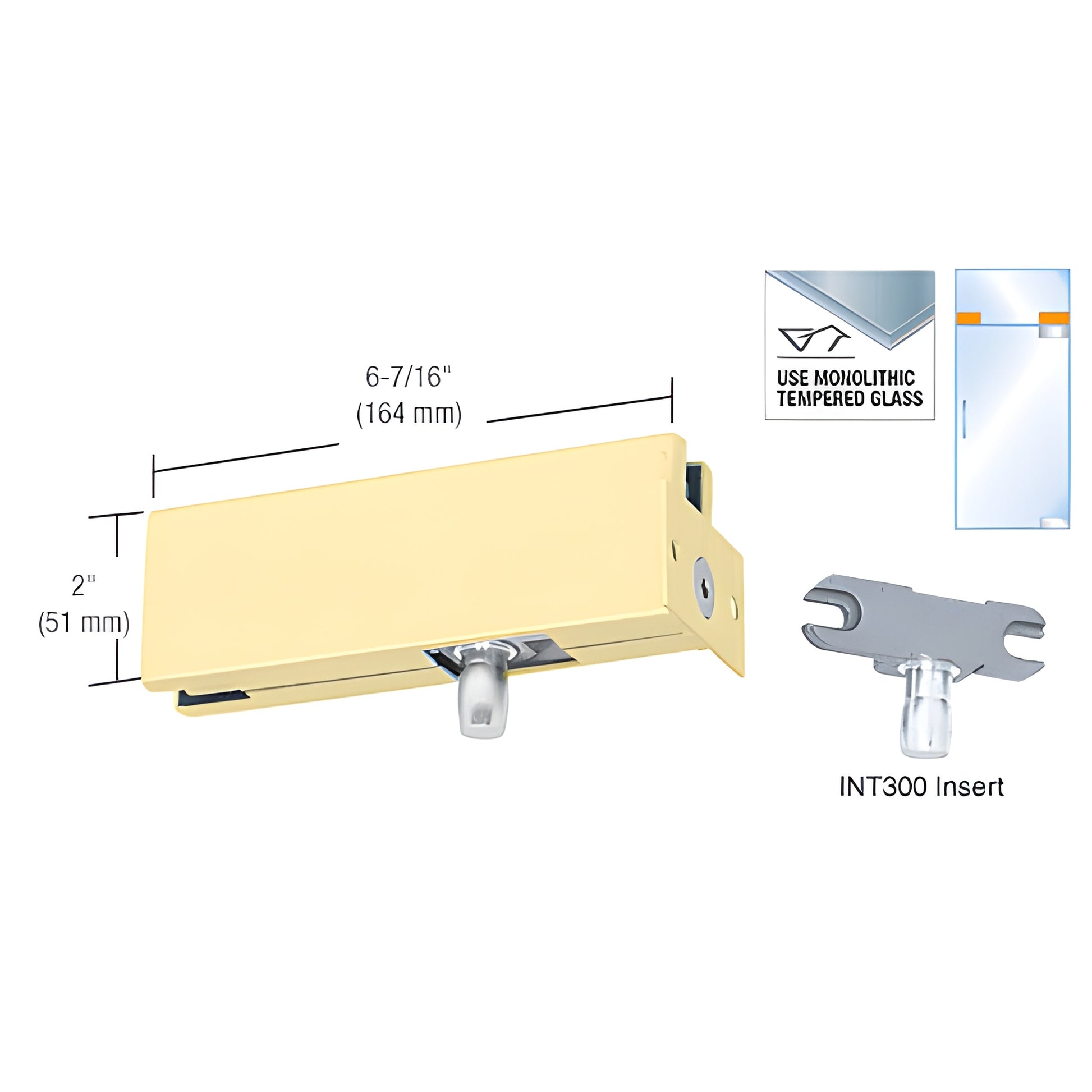

The CRL PH34 Wall Mounted Transom Patch (SKU: PH34SB) supports a transom from a side jamb for frameless glass doors and integrates the INT300 Insert for mounting with the CRL PH20A or PH21A top door patch fittings. The INT300 Insert can be repositioned to the non-hinged side to enable a double-swing door. Use the INT306 Transom Patch Door Stop Insert to create a one-way door, or install the INT305 Transom Patch Keeper Insert for compatibility with the AMR205 lock when installed at the top of the door. Ideal for commercial and architectural glass door applications requiring durable wall-mounted transom patch solutions.
Glass fabrication required: One 3/4" (19 mm) diameter hole and corner notch.
Product warning:
These fittings are not for use with laminated glass. Use only with monolithic tempered glass per installation guidelines.
Brass finish advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time. For care and maintenance details, see the Brass Finish Disclaimer in the Technical References section.
Need this wall mounted transom patch for a frameless glass door project? Contact CRL Customer Service or add SKU PH34SB to your cart to order.
