CRL Satin Anodized Wall-Mount Transom Patch 1NT300 - Glass Door

• Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings
• For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Use monolithic tempered glass only (not for laminated glass)

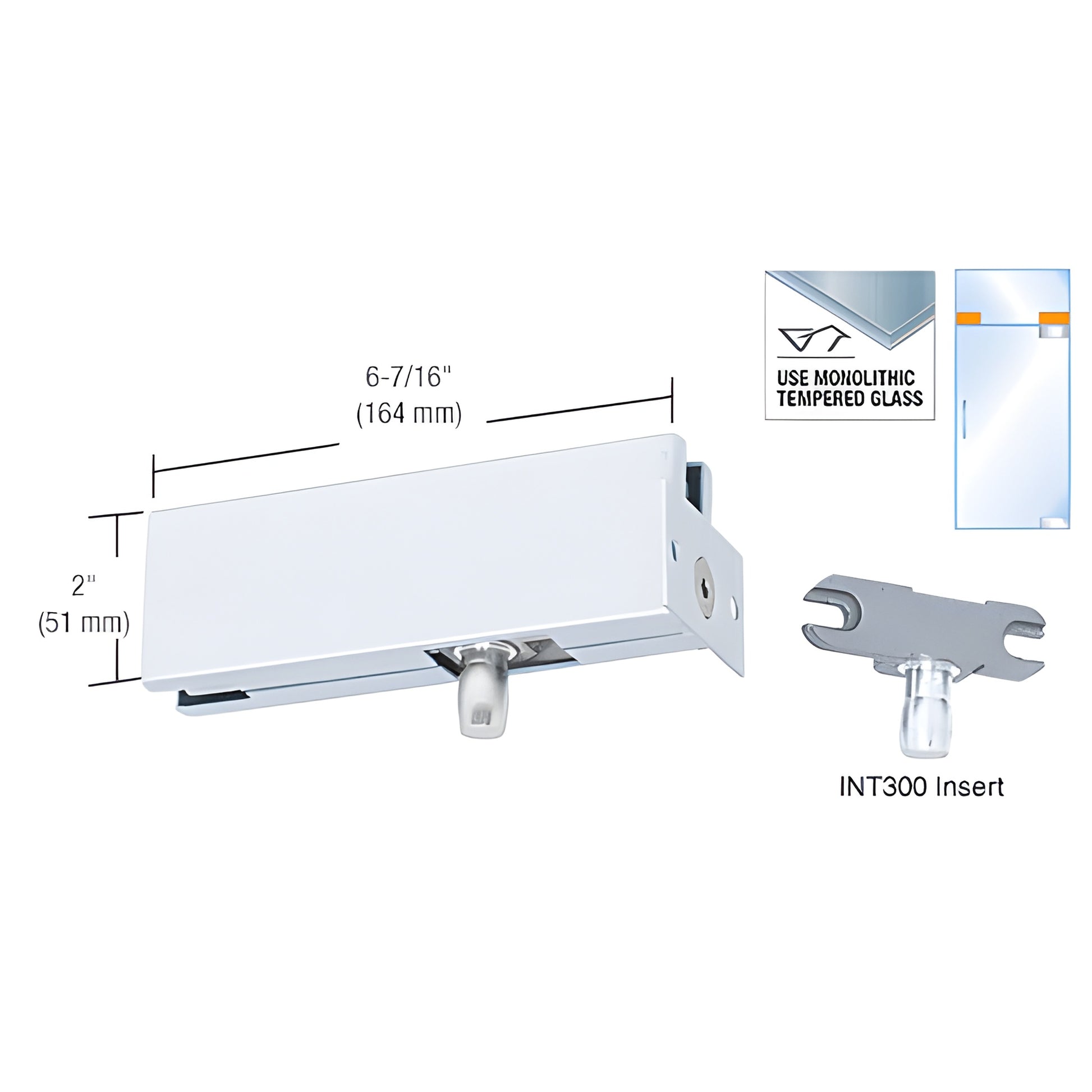

The CRL PH34 Wall Mounted Transom Patch (SKU: PH34A) is a wall-mounted glass transom patch used to support a transom from a side jamb. Designed for pivot door systems, it includes the INT300 insert for mounting with CRL PH20A or PH21A top door patch fittings. The insert can be relocated to the non-hinged side for double-swing door applications. Use the INT306 transom patch door stop insert for one-way doors, or install the INT305 keeper insert to use an AMR205 lock at the top of the door.

If the transom weight exceeds 100 lbs. (45.4 kg), provide ceiling support to prevent patch slippage. For high-weight support use Cat. No. B5BC Smoke Baffle Channel or PH94 patch fittings. For application guidance, please contact our Technical Sales Department.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch

COMES WITH:
Template and instructions

Product Warning:
These fittings are not for use with laminated glass.

Contact CRL Technical Sales for installation help or to order PH34A today.
