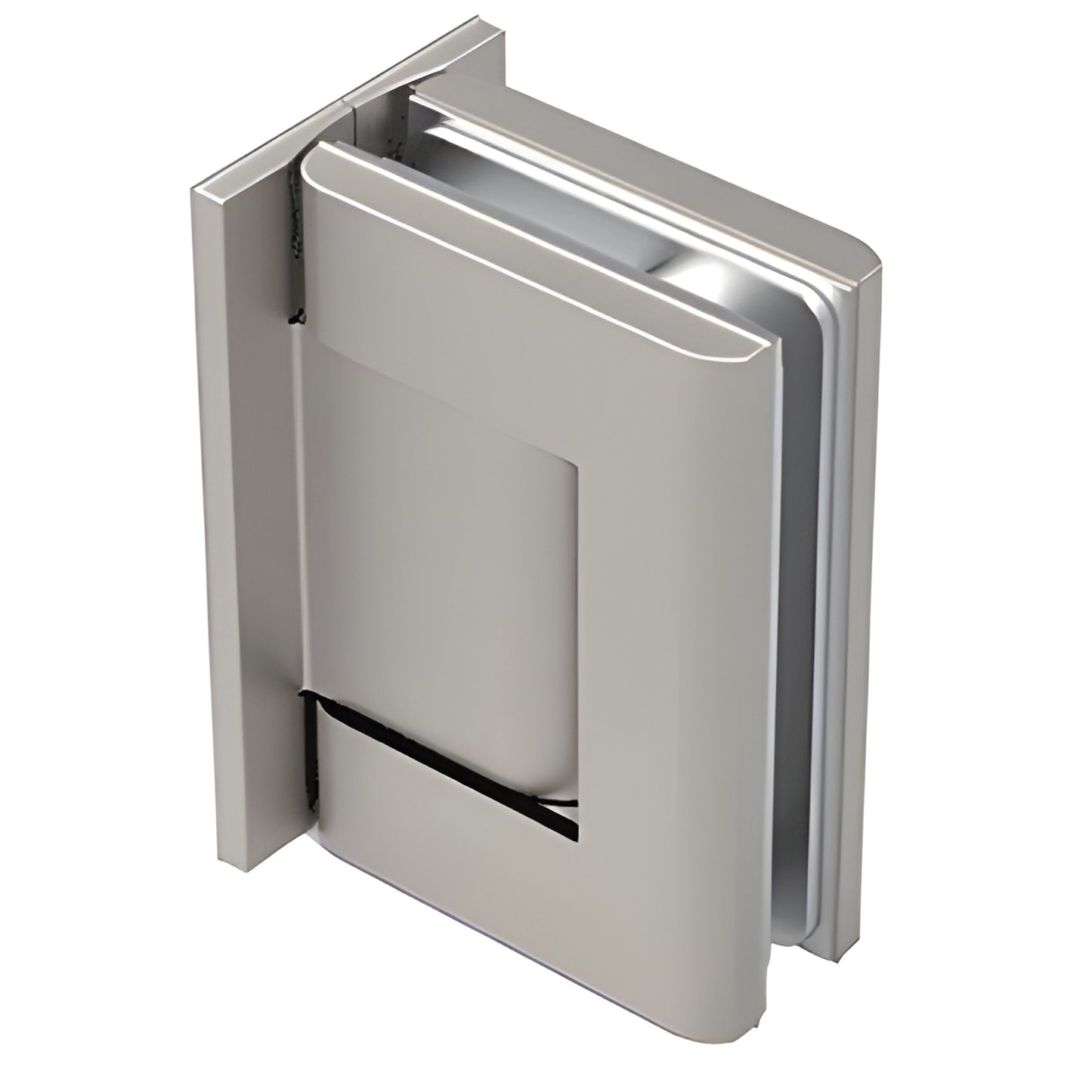

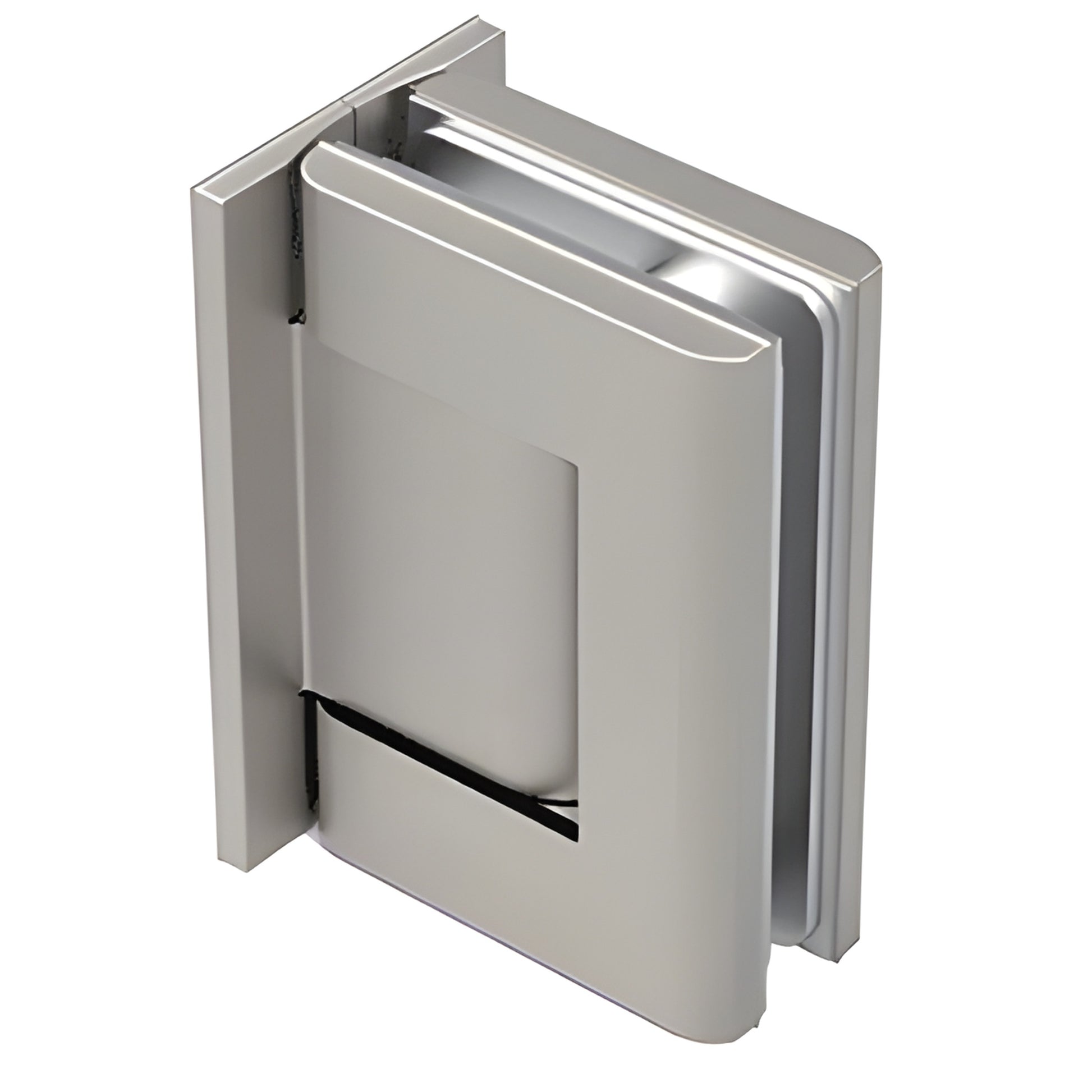

CRL Brushed Stainless Wall-to-Glass Shower Hinge Hold-Open Vernon Oil

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Designed for interior doors and use in humid, high-temperature environments (steam rooms, Turkish baths, showers)
• Hold-open and no-hold-open models available

The CRL Oil Dynamic Full Back Plate Wall Mount Hinge provides a compact, hydraulic self-closing solution for glass doors, swinging in and out a full 90° with positive stops at 0° and ±90°. Adjustable closing speed via a control valve makes it an ideal alternative to floor closers and patch fittings for retrofit or new installations. Suitable for glass doors up to 39" (1 m) wide; maximum capacity for two hinges is 220 lbs. (100 kg).

Oil Dynamic blends automatic mechanical hinge convenience with hydraulic door closer performance, enabling all-glass door installations without floor- or overhead-mounted closing hardware. Ambidextrous design and tested durability (over 1 million cycles) deliver reliable performance in damp and high-temperature interior settings.

Two properly mounted Oil Dynamic Hinges support 5/16" to 9/16" (8 to 13.52 mm) glass, include snap-in molded gaskets and hex screws, and require a cut-out per the included template. Wall Mount and Glass-to-Glass configurations are available in an aluminum body.

SPECIFICATIONS:
SKU: H8010JCBS
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90° inward and outward (except H8060 model, one-way only)
Closing Type: Automatic closing from 0° to 80°; adjustable speed via control valve
Special Feature: Holds open at 90°; no-hold-open models available (except H8060)
Cut-Out Required
Includes: Snap-in molded gaskets for 5/16"–9/16" (8–13.52 mm) glass; hex screws
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

NOTE: Use a maximum of two hinges per door. Not suitable for exterior/outdoor use.

Product Warning:
Do not use more than two hinges on one door. For uses beyond intended purpose, obtain CRL Technical Sales approval. Use only the included template—CRL cut-outs may differ from other brands.
