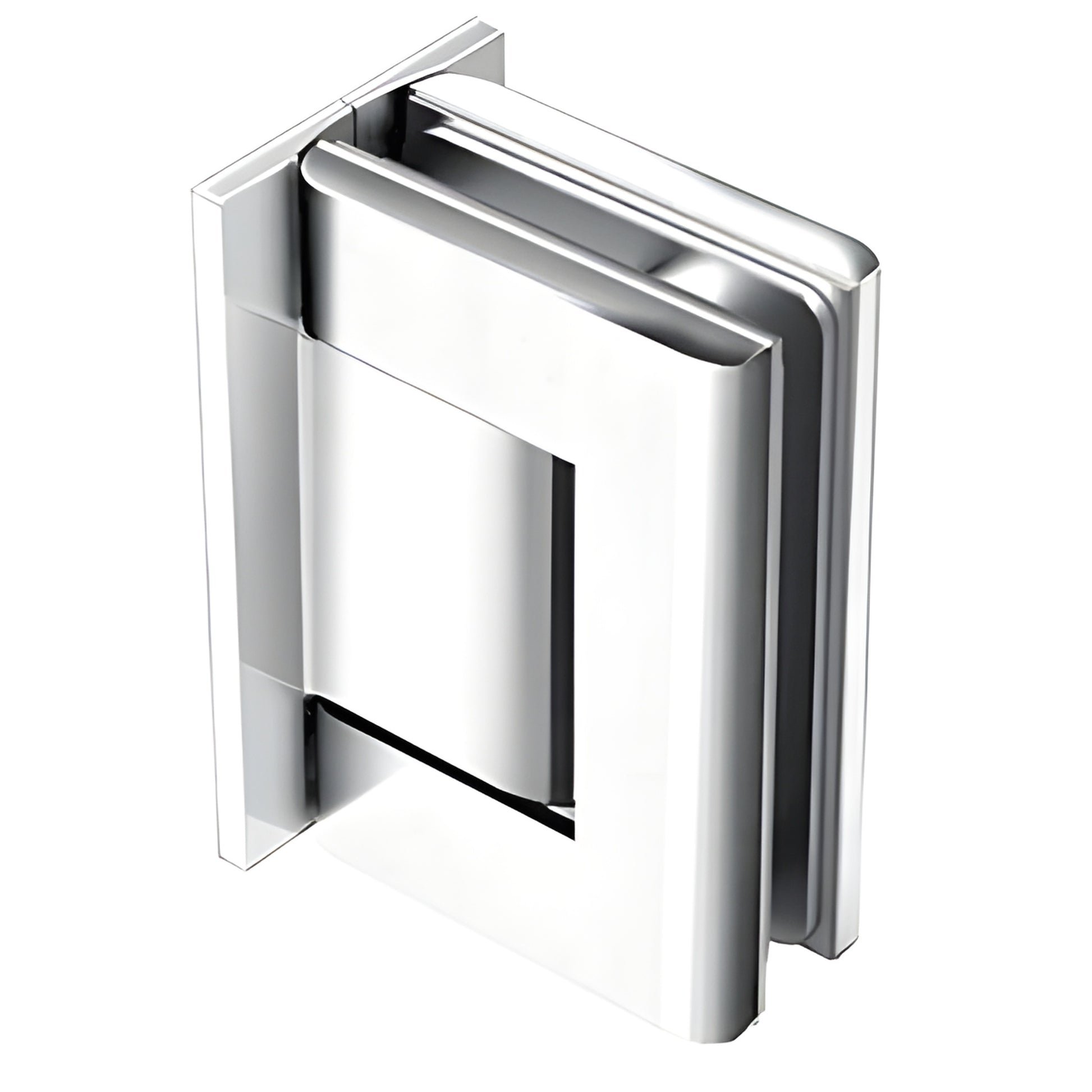

CRL Polished Stainless Vernon Oil-Dynamic Shower Door Hinge

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm)
• Designed for interior doors in humid, high-temperature environments (steam rooms, Turkish baths, shower doors)
• Available in Hold-Open and No Hold-Open models

The CRL Oil Dynamic Full Back Plate Wall Mount Hinge (SKU: H8010JCPS) swings in and out a full 90° with positive stops at 0°, +90° and −90°. Adjustable closing speed and hydraulic oil-damped action provide reliable self-closing performance without a floor closer or overhead device—ideal for installing an all-glass door without extensive retrofitting.

Use two Oil Dynamic hinges to support glass doors up to 39" (1 m) wide and up to 220 lbs. (100 kg). The hinge is ambidextrous, features a control valve for precise closing speed adjustment, and is engineered for long service life (tested over 1 million cycles).

The Oil Dynamic Hinge has an aluminum body in configurations for Wall Mount and Glass-to-Glass installations. Snap-in molded gaskets and hex screws are included for 5/16" to 9/16" glass.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90° inwards and outwards (except H8060, one-way only)
Closing Type: Automatic closing from 0° to 80°
Special Feature: Holds open at 90°; adjustable closing speed. No hold-open models available (except H8060).
Cut-Out Required
Includes: Snap-in molded gaskets for 5/16" to 9/16" (8 to 13.52 mm) glass; hex screws
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

NOTE: Do not use more than two hinges on one door. Not suitable for exterior or outdoor use.

Product Warning:
Do not use more than two hinges on one door. If hinges are used other than their intended purpose, obtain approval from the CRL Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may differ from other brands.
