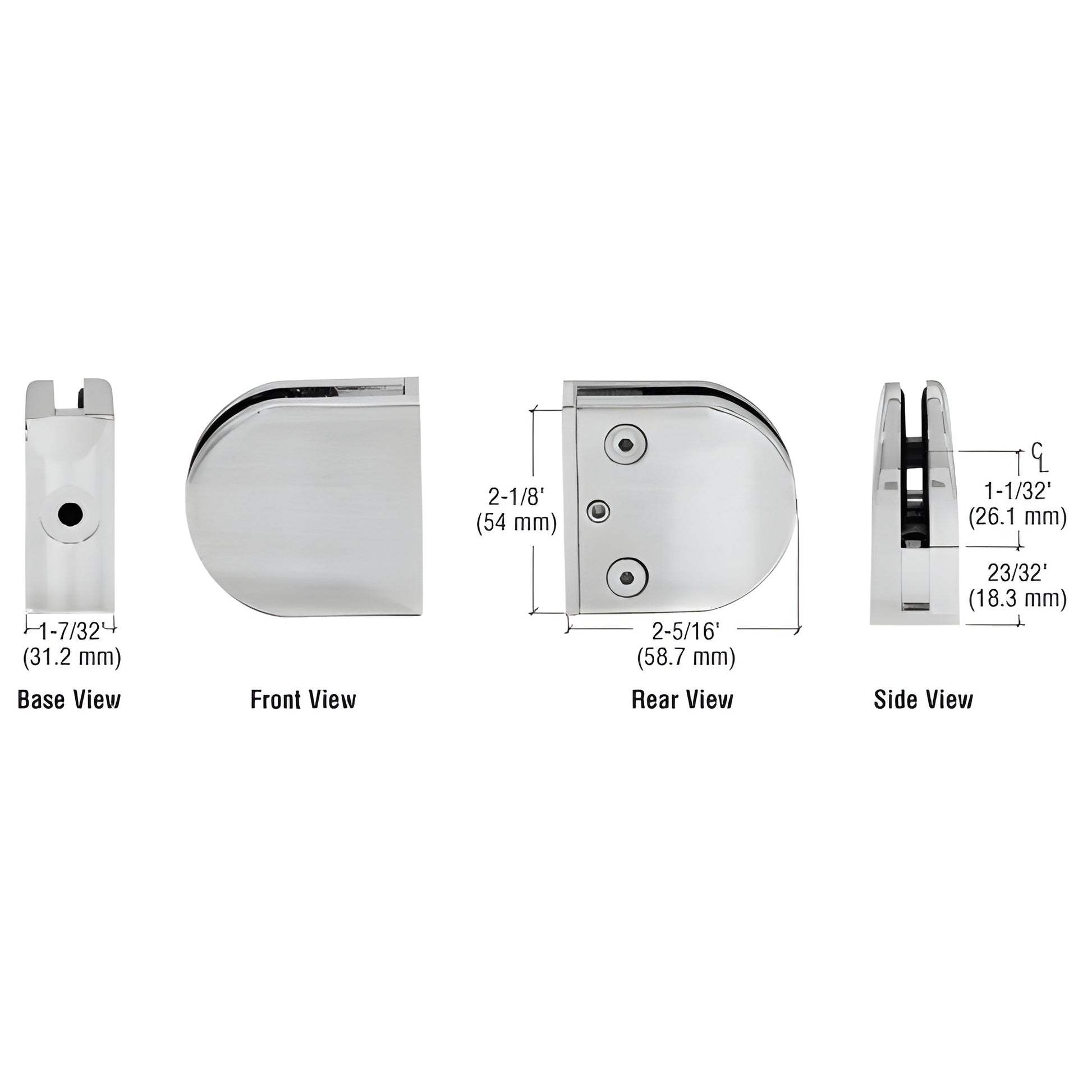

CRL Z-Series 1/2" Glass Round Flat-Base Brushed Stainless Clamp

• For 1/2" (12 mm) glass
• Replacement gaskets available: Cat. No. Z12RG
• Ideal for mezzanines, partitions, railings and windbreaks
• Use monolithic tempered glass for safety
• Steel pin included for additional glass support
• Custom painted finishes available upon request

This CRL Z-Series Round Type Flat Base Glass Clamp (SKU: Z512BS) secures 1/2" (12 mm) tempered glass and is available in zinc or stainless steel. Designed for applications such as partitions, railings, mezzanines and windbreaks, the Z-Series clamp combines a flat base design with included rubber gaskets and an optional steel support pin for reliable panel retention.

For securing the clamp to thin-wall tubing (less than 1/8"), use CRL’s ZB0LT socket head cap bolt and ZRNUT rivet-nut. Drill a 17/32" (13.5 mm) hole, then install the rivet-nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16" mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

SPECIFICATIONS
Glass Thickness: 1/2" (12 mm) recommended (use monolithic tempered glass).
Base Design: Flat
For Use With: Square tubing or other flat mounting surfaces
Material: Zinc or stainless steel. Stainless steel or powder-painted zinc recommended for durable exterior applications.
Glass Fabrication:
- For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required when using the steel pin for support.
- For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required when using the steel pin for support.
Includes: Rubber gaskets and steel pin with grommet
Replacement Hardware: CRL ZCS5X15SS replacement screws

Product Warning:

For interior and exterior installations, CRL recommends pinning each glass panel when the bottom edge does not support the panel to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.
