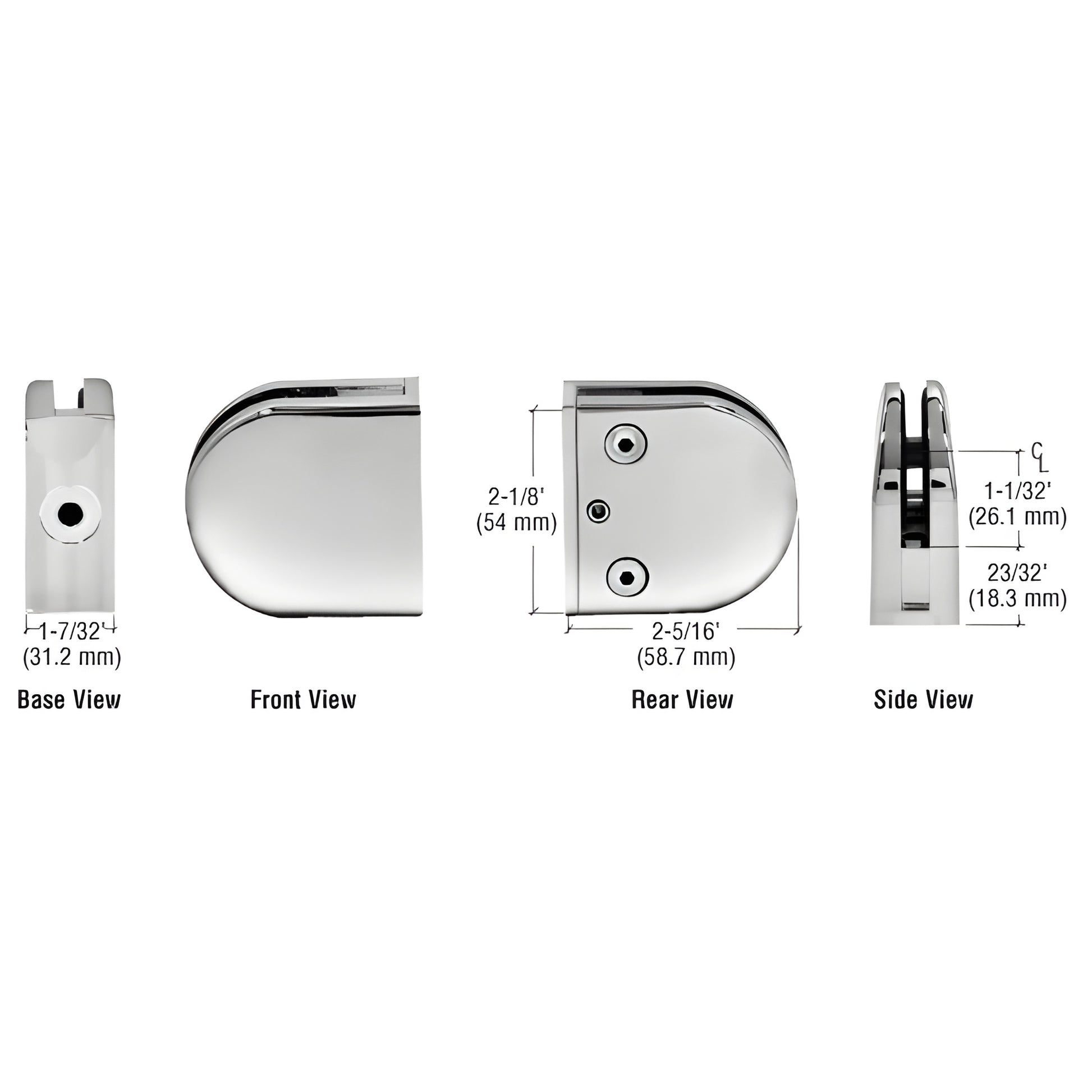

CRL Z-Series Polished Stainless Round Flat-Base Glass Clamp 1/2"

• For 1/2" (12 mm) Glass
• Replacement Gaskets are Available by Ordering Cat. No. Z12RG
• For Use on Mezzanines, Partitions, Railings and Windbreaks
• Use Monolithic Tempered Glass
• Steel Pin Available for Additional Glass Support
• Custom Painted Finishes Available Upon Request

This CRL Z-Series Round Type Flat Base Glass Clamp (SKU: Z512PS) fits 1/2" (12 mm) glass and is engineered for partitions, mezzanines, railings and windbreaks. Available in zinc or stainless steel, the flat-base design secures glass to square tubing or other flat surfaces—an ideal glass railing clamp solution for interior and exterior projects.

For securing the Z-Clamp to thin-wall tubing (less than 1/8”), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32” (13.5 mm) hole, then install the Rivet-Nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

SPECIFICATIONS
Glass Thickness: For 1/2" (12 mm).
Base Design: Flat
For Use With: Square tubing or other flat surfaces
Material: Zinc or Stainless Steel. For better exterior durability consider stainless steel or powder-painted zinc finishes.
Glass Fabrication:
For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required if using the provided steel pin for glass support.
For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required if using the provided steel pin for glass support.
Includes: Rubber gaskets and steel pin (optional use) with grommet
Replacement Hardware: CRL ZCS5X15SS replacement screws

Product Warning:

For interior and exterior installations CRL recommends pinning each glass panel when the panel is not supported from the bottom edge to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.
