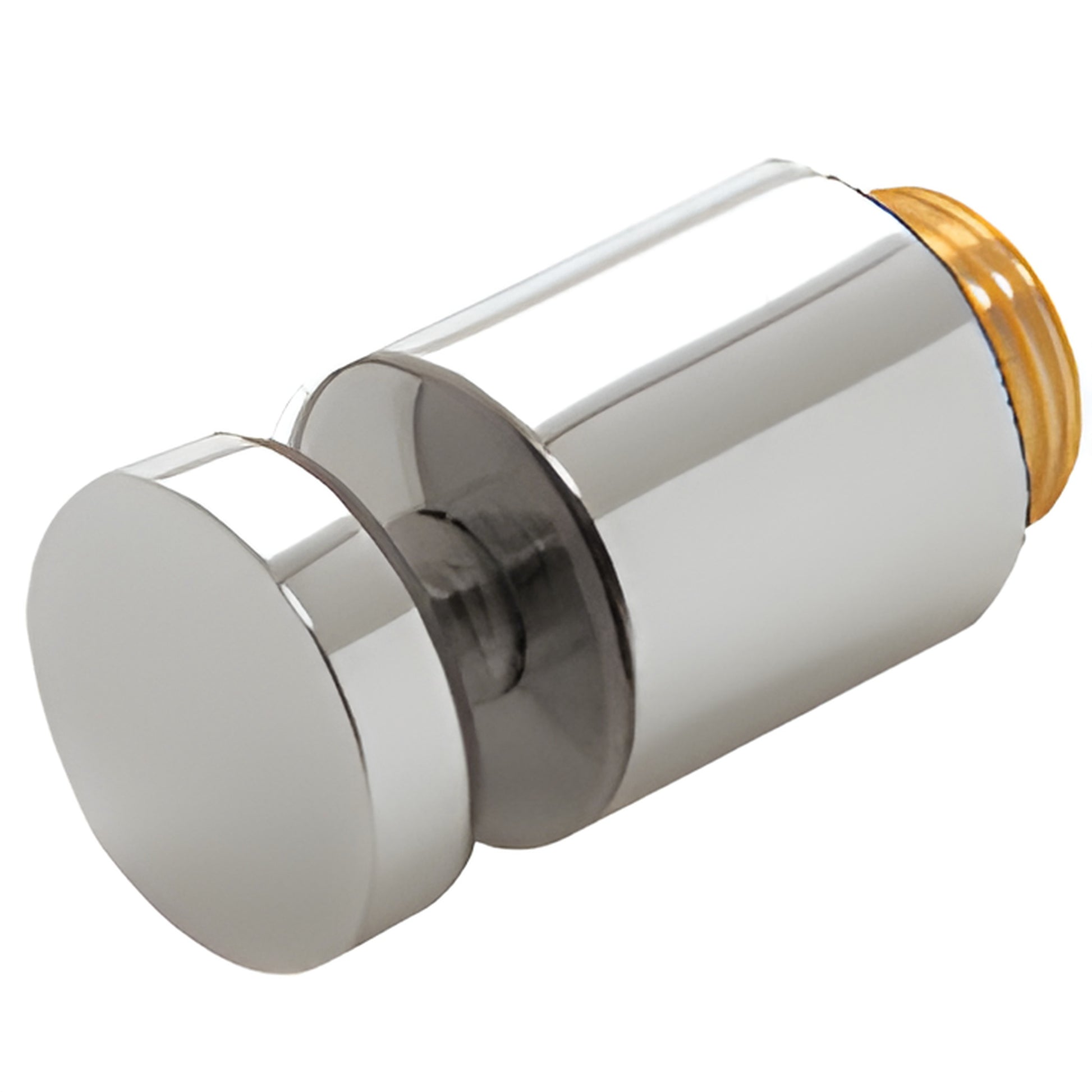

CRL Chrome 1" Diameter Tube Standoff for Glass Panels
CRL Chrome 1" Diameter Tube Standoff for Glass Panels
Regular price
$20.72 CAD
Regular price
Sale price
$20.72 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# TS1CH
Shipping Weight: 4.32 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.32 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25.4 mm)
Finish/Color
Polished Chrome
Glazing Thickness
3/8 in. (10 mm)
Length
1 in. (25.4 mm)
Material
Brass
Overview
- Convenient compact kit: Base, Cap, Stud, and Washers included (SKU: TS1CH)
- Two diameters for versatility: 5/8" (16 mm) and 1" (25.4 mm)
- Two finishes: chrome and satin chrome for decorative and commercial applications
CRL's Tube Style Standoffs (SKU: TS1CH) are compact, versatile standoffs ideal for acrylic panels, exhibit building, signage, decorative displays, and lightweight glass. Available in chrome or satin chrome finishes, each standoff ships complete with a 1" (25.4 mm) long base, threaded insert, cap with welded stud, clear washers, and vinyl sleeve. Use these tube standoffs for vertical panel mounting or horizontal applications such as elevating a glass tabletop or desk display. These standoffs are especially suited to projects needing low-profile, decorative hardware for acrylic, lightweight glass, and plastic signage.
Required panel fabrication: 5/8" (16 mm) standoffs require 9/32" (7 mm) holes; 1" (25.4 mm) standoffs require 7/16" (11 mm) drilled holes. Maximum recommended panel thickness is 3/8" (10 mm).
Installation is quick and easy: attach the threaded insert to the substrate using Cat. No. 8X2FHPSMS screw, screw on the standoff base, pass the cap assembly through the panel, and tighten the cap.
Product Warning:
Weight limits for standoff systems depend on wall or substrate anchoring and material strengths—determine anchoring method and material suitability before installation.
