CRL

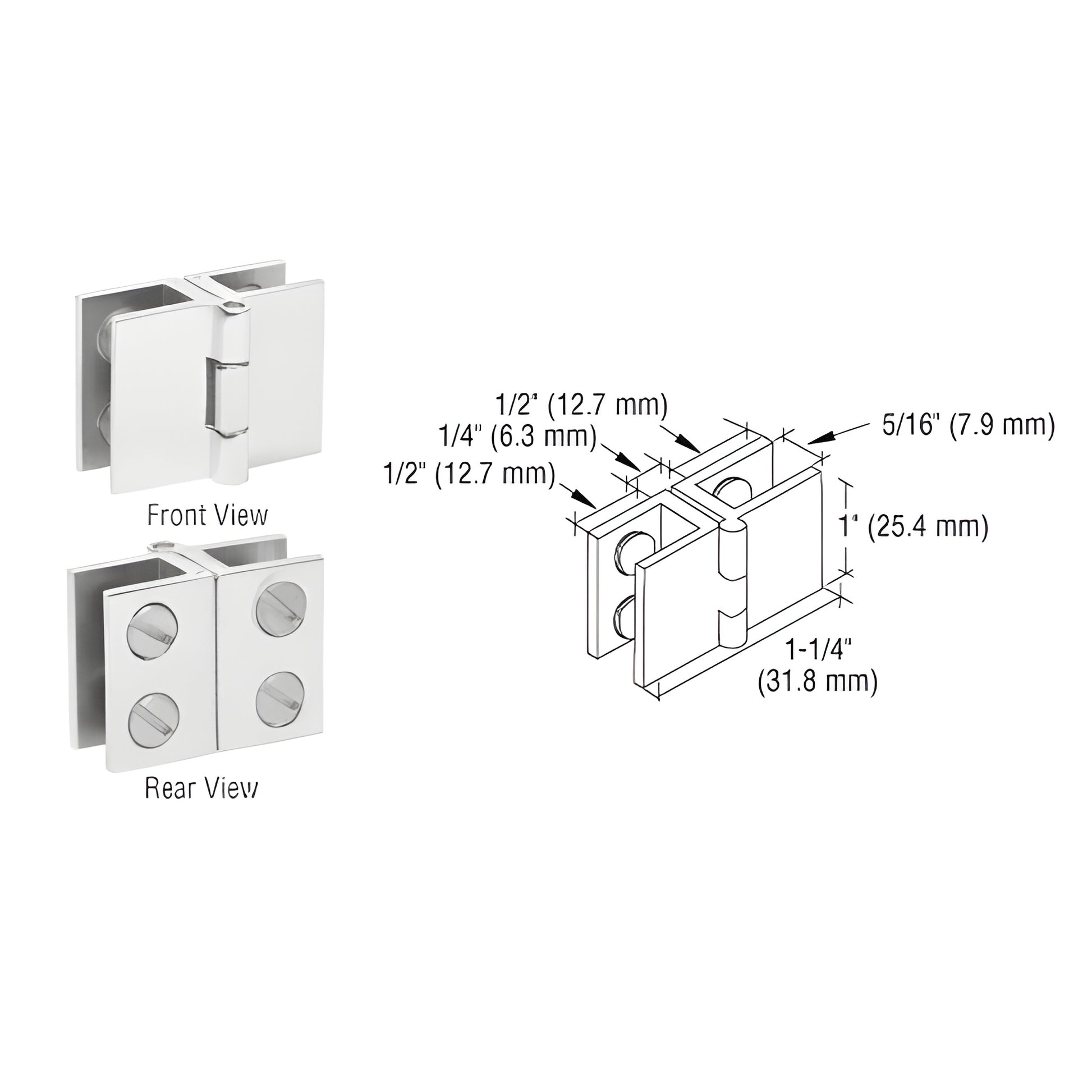

CRL Chrome 1" Glass-to-Glass Out-Swing Set-Screw Shower Door Hinge
Item# EH188
Shipping Weight: 3.68 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.68 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Polished Chrome
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
1 in. (25.4 mm)
Material
Brass
Maximum Door Width
16 in. (406.4 mm)
Open Width
1-1/4 in. (31.8 mm)
Pack Quantity
2
Weight Capacity
8 lbs. (3.6 kg)
- For 3/16" and 1/4" (5 and 6 mm) glass
- No holes or cut-outs required — no-drill installation
- Use monolithic tempered glass
- Two per package
CRL Outswing Hinges (SKU: EH188) are glass-to-glass outswing hinges engineered for showcase and stereo cabinets where both panes run in a 180° plane. Secure glass with plastic-tipped set screws for a no-drill attachment that protects glass edges. Recommended maximum door width: 16" (406 mm). Maximum door weight: 8 lbs. (3.6 kg).
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs and those costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and how your monitor's color is adjusted.
Durable, no-drill glass hinge for tempered cabinet doors—order EH188 today.
CAD Drawings - dwg
