CRL Chrome 1 in Wall-Mount Set-Screw Hinge
CRL Chrome 1 in Wall-Mount Set-Screw Hinge
Regular price
$41.45 CAD
Regular price
Sale price
$41.45 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH172
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

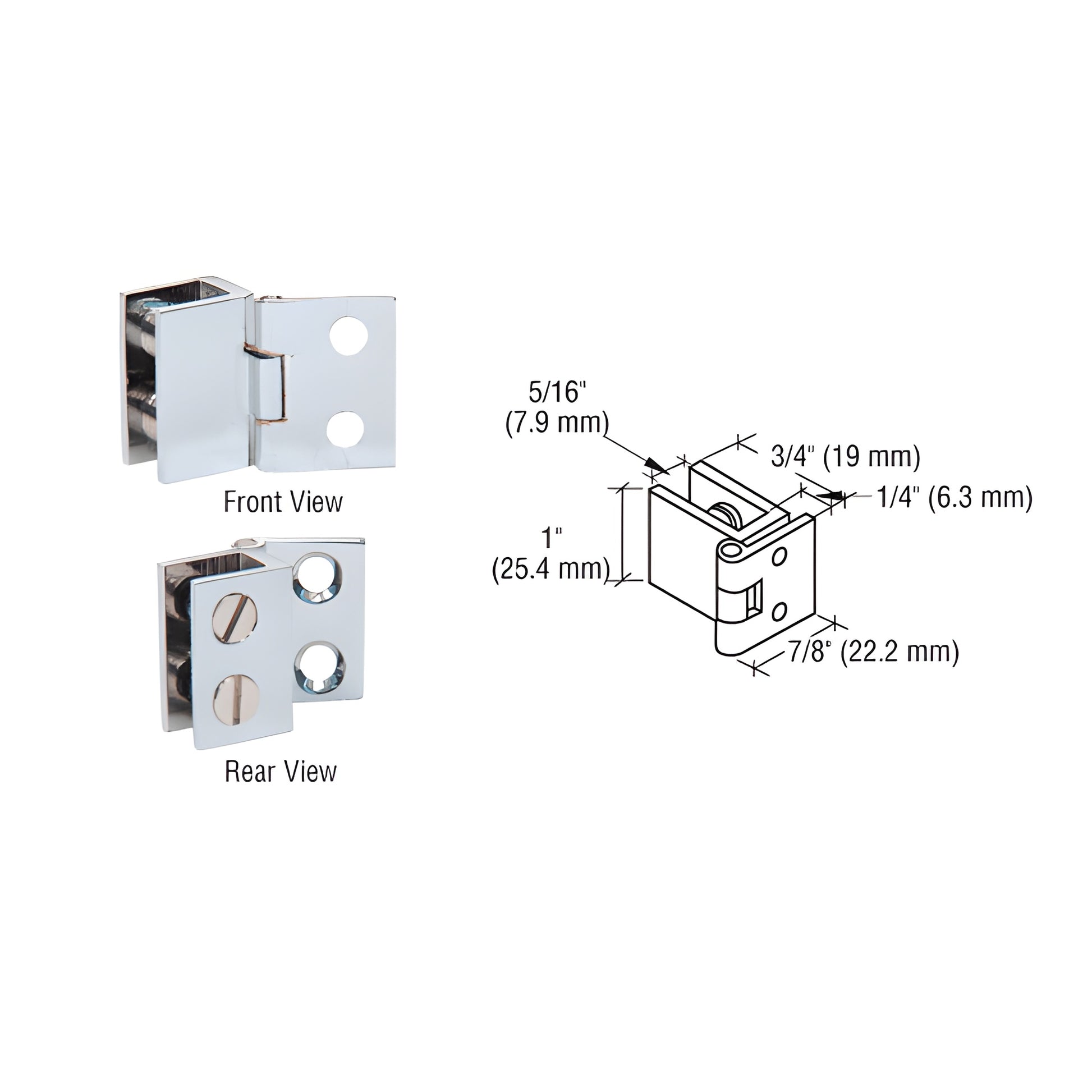

Description
Finish/Color
Polished Chrome
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
1 in. (25.4 mm)
Material
Brass
Maximum Door Width
16 in. (406.4 mm)
Pack Quantity
2
Weight Capacity
8 lbs. (3.6 kg)
Width
3/4 in. (19.1 mm)
Overview
- For 3/16" and 1/4" (5 and 6 mm) glass
- No holes or cut-outs required — no-drill attachment
- Use monolithic tempered glass only
These CRL hinges are purpose-built for glass-to-wall showcase and stereo cabinet installations. Plastic-tipped set screws secure the glass for a damage-free, no-drill installation. Ideal for glass cabinet doors up to 16" (406 mm) wide and weighing no more than 8 lbs. (3.6 kg). Two hinges per pack; matching-finish wood screws included — a reliable solution for glass showcase hinges and no-drill glass cabinet hardware.
Specifications
CAD Drawings - dwg
