CRL 1" Brushed Nickel Wall-Mount Set-Screw Glass Door Hinge
CRL 1" Brushed Nickel Wall-Mount Set-Screw Glass Door Hinge
Regular price
$41.45 CAD
Regular price
Sale price
$41.45 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH173
Shipping Weight: 2.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Nickel
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
1 in. (25.4 mm)
Material
Brass
Maximum Door Width
16 in. (406.4 mm)
Pack Quantity
2
Weight Capacity
8 lbs. (3.6 kg)

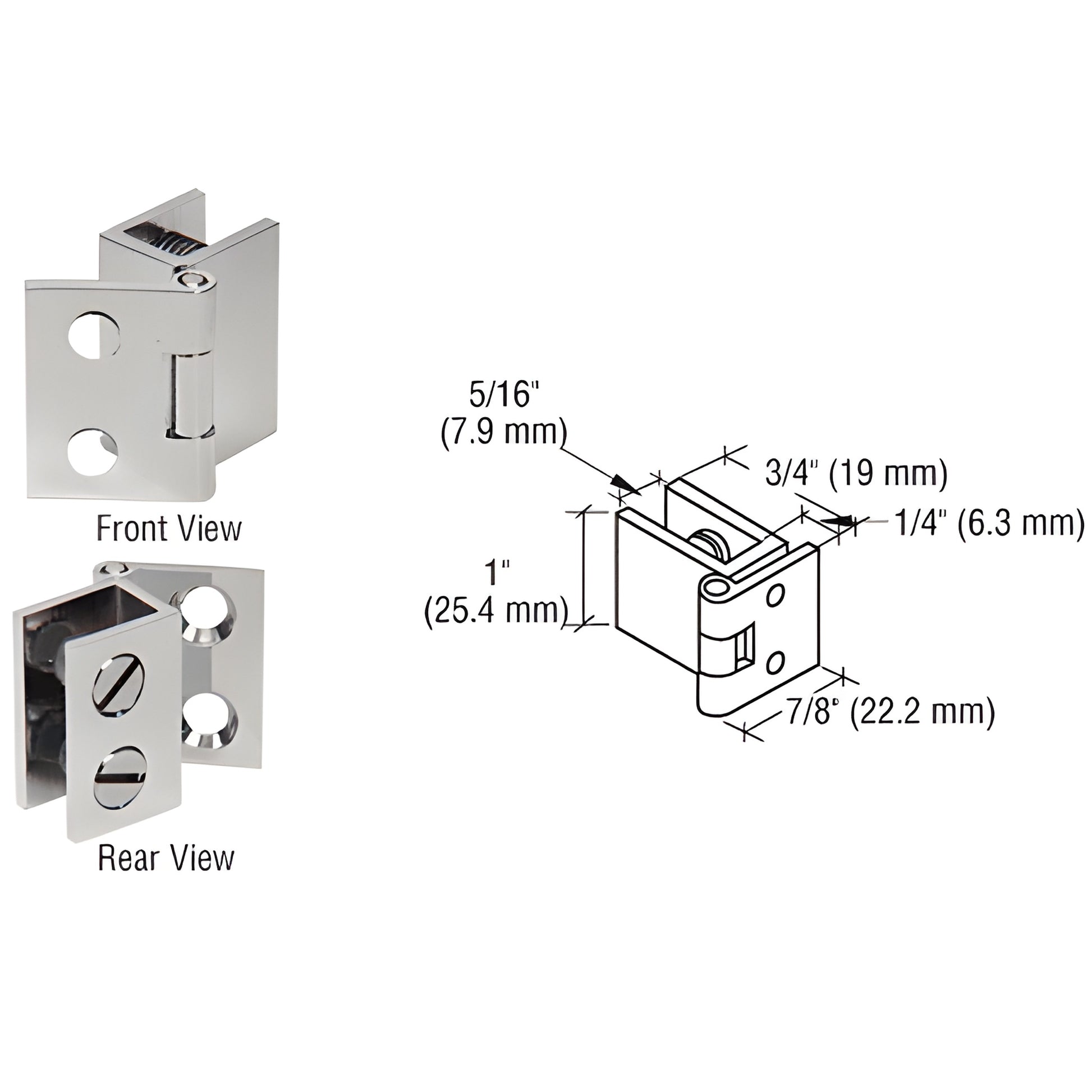

Width
3/4 in. (19.1 mm)
Overview
- For 3/16" and 1/4" (5 and 6 mm) Glass
- No Holes or Cut-Outs Required – no-drill glass hinge attachment
- Use Monolithic Tempered Glass
These CRL Hinges (SKU: EH173) are engineered for glass-to-wall showcase and stereo cabinet installations. The hinge secures monolithic tempered glass with plastic-tipped set screws for a no-drill attachment—ideal for delicate display and museum-style glass doors. Maximum recommended door width: 16" (406 mm). Maximum recommended door weight: 8 lbs. (3.6 kg). Two hinges per pack; matching-finish wood screws included. Designed for tempered glass cabinet doors and showcase glass door applications.
Order EH173 CRL glass hinges today to protect and present your display glass with a secure, no-drill solution.
Specifications
CAD Drawings - dwg
