CRL Chrome Large Glass-to-Glass Out-Swing Hinge Frameless Shower Door
CRL Chrome Large Glass-to-Glass Out-Swing Hinge Frameless Shower Door
Regular price
$102.26 CAD
Regular price
Sale price
$102.26 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH192
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

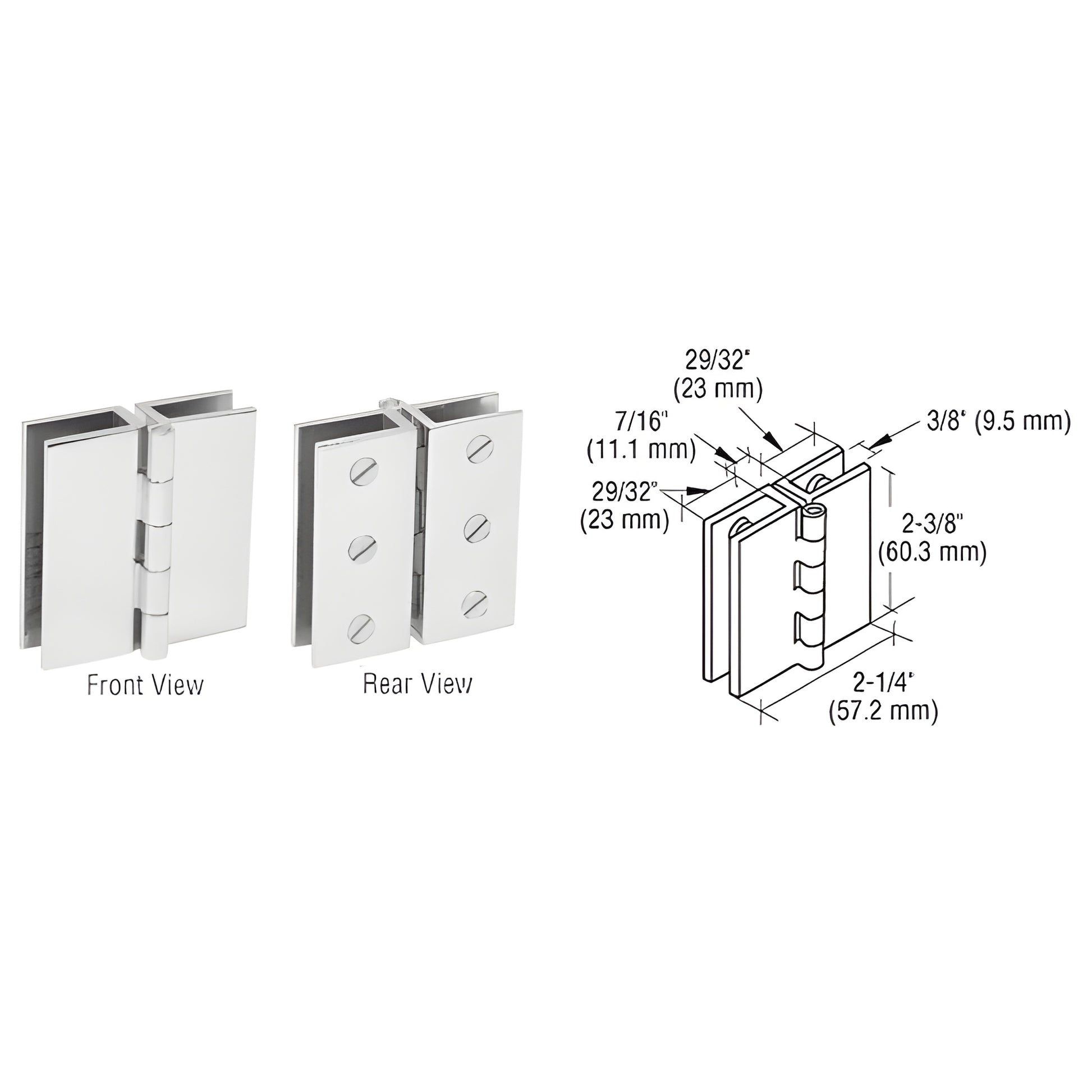

Description
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
2-3/8 in. (60.3 mm)
Material
Brass
Maximum Door Width
18 in. (457.2 mm)
Open Width
2-1/4 in. (57.2 mm)
Pack Quantity
2
Weight Capacity
20 lbs. (9.1 kg)
Overview
- For 1/4" to 5/16" (6 to 8 mm) glass
- No holes or cut-outs required — no-drill attachment
- Use monolithic tempered glass
- Two per package
CRL Large Chrome Glass-to-Glass Out-Swing Set Screw Hinge (SKU: EH192) — a popular chrome glass-to-glass hinge for display cabinets and showcase doors. These out-swing set screw hinges secure 1/4"–5/16" glass with plastic-tipped set screws, eliminating the need to drill or cut the glass. Ideal for stereo cabinets, display cases, and retail showcases where a clean, polished chrome finish and tool-free glass attachment matter.
- Maximum recommended door width: 18" (457 mm)
- Maximum recommended door weight: 20 lbs. (9 kg)
Differentiators: chrome finish, plastic-tipped set screws for scratch-free mounting, no-drill installation, designed for monolithic tempered glass.
Order EH192 today to upgrade your display with a no-drill chrome glass hinge.
Specifications
CAD Drawings - dwg
