CRL Chrome Small Wall Mount Hinges - Door Hardware
Item# EH176
Shipping Weight: 1.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Polished Chrome
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
11/16 in. (17.5 mm)
Material
Brass
Maximum Door Width
10 in. (254 mm)
Pack Quantity
2
Weight Capacity
3 lbs. (1.4 kg)
Width
3/4 in. (19.1 mm)
- For 3/16" and 1/4" (5 and 6 mm) thick glass
- No holes or cut-outs required — installs without drilling into glass
- Ideal for showcase, display, and stereo cabinets

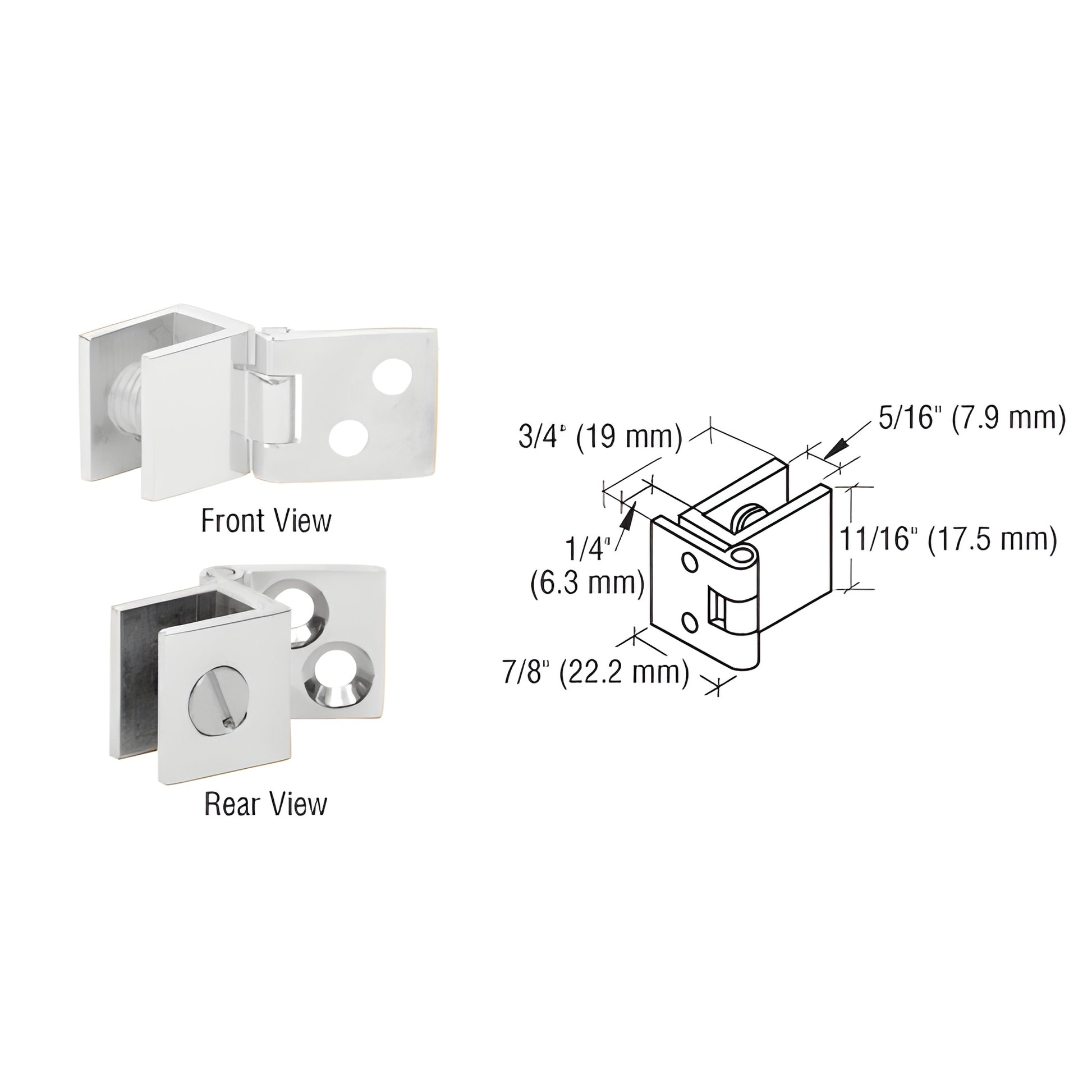

Designed to preserve an all-glass aesthetic with minimal metal, the CRL Chrome Small Wall Mount Set Screw Hinge (SKU EH176) mounts to the wall for small glass doors. At only 11/16" (17.5 mm) tall it delivers smooth operation for compact displays. Compatible with 3/16" and 1/4" (5 and 6 mm) thick glass, the hinge requires no holes or cut-outs in the glass and comes with matching finish wood screws. Maximum recommended door width: 10" (254 mm). Maximum recommended door weight: 3 lbs. (1.4 kg). Two hinges per pack with matching finish wood screws.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor settings.
Perfect for small glass cabinet doors and display cases — order EH176 today.
CAD Drawings - dwg
