CRL Clear Anodized 200, 300, 350, and 400 Series Bottom Rail for Glass 241" Long

Finish (6)

Overview

SKU	BRGLSCA
Sold as	1 Each
Base Plate Width	1/2 in. (13 mm)
Finish/Color:	Clear Anodized
Glazing Thickness	1/4 in. To 1/2 in. (6 mm To 12 mm)
Height	1-3/4 in. (44 mm)
Length	241 in. (6121 mm)
Material	Aluminum
Width	1-5/8 in. (41 mm)

Description

Product Details

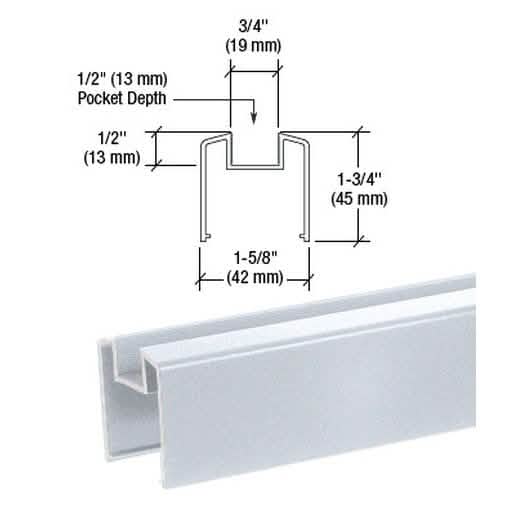

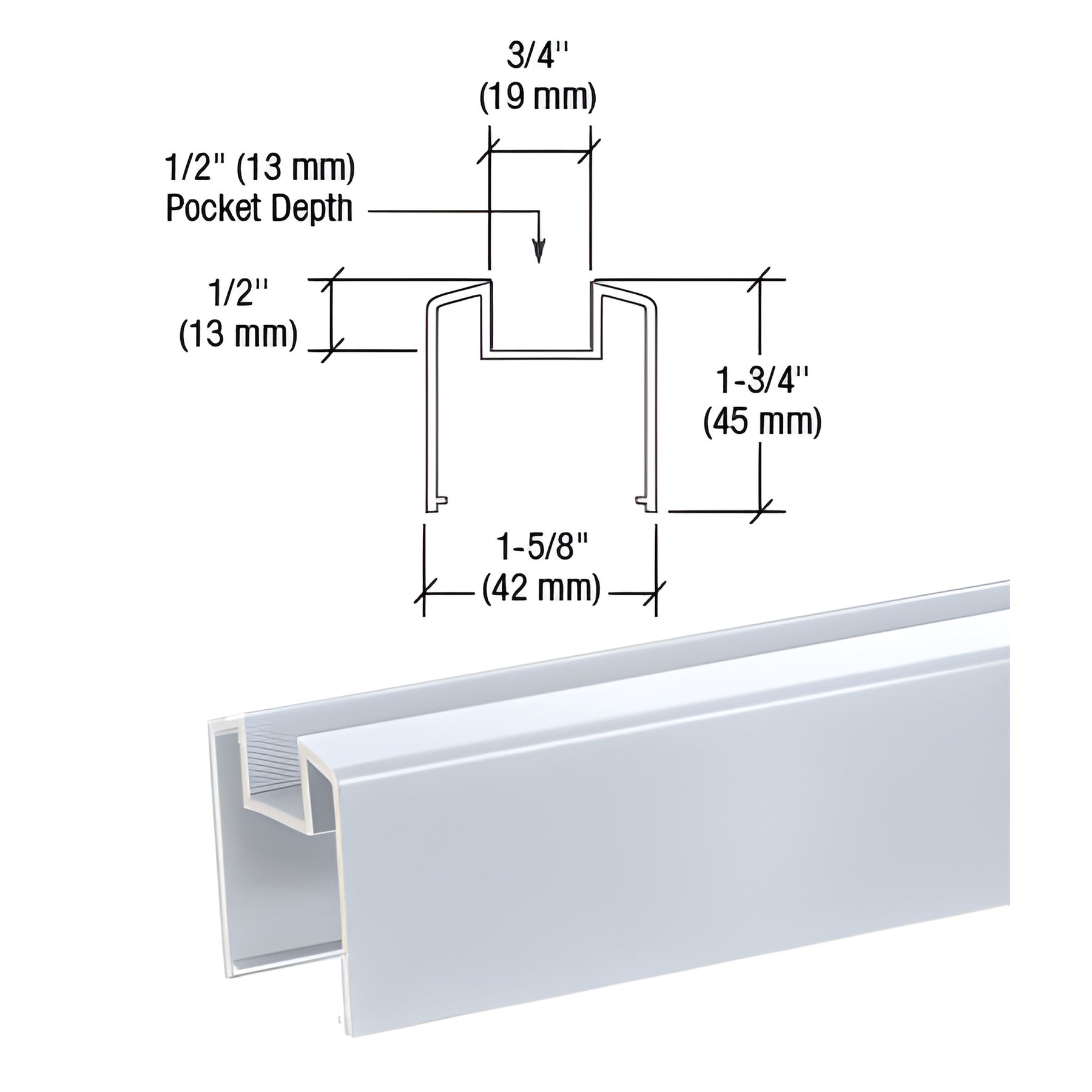

Bottom Rail Designed to Accommodate 1/4" to 1/2" (6 to 12 mm) Tempered Glass
Seven Standard Colors, Plus Unfinished Chromate

Our CRL 200, 300, 350, and 400 Series Bottom Rail is designed to accommodate 1/4" to 3/8" (6 to 10 mm) tempered glass with vinyl, 1/2" (12 mm) glazing if wet glazed. Simply snaps over Rail Connecting Block for an easy install. Stock lengths measure 20'-1" (6.12 m).

All ARS/AWS products are painted to order and are non-refundable or returnable.
